DataLogic Magellan 1500i
Description
Specifications
Download

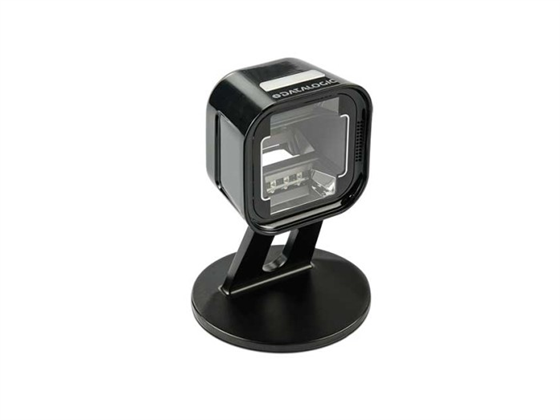

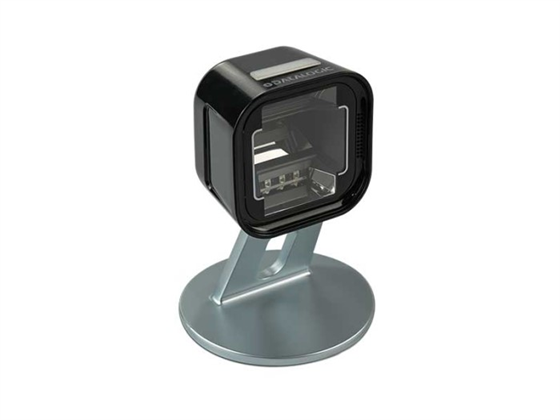

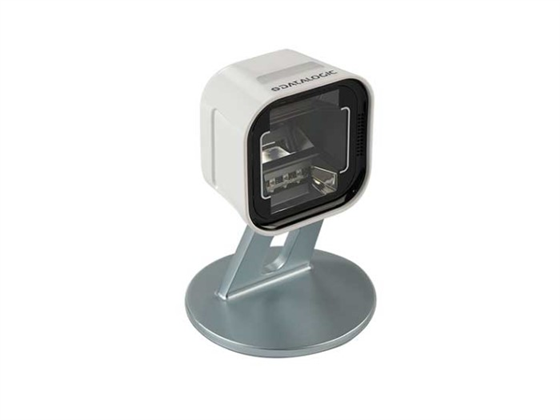

DataLogic Magellan 1500i

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

Compact presentation scanning for printed labels and mobile screens

The Datalogic Magellan 1500i reads 1D and 2D barcodes from product labels, mobile coupons, loyalty cards and tickets. Its compact body and routed cable fit tight checkout spaces. Choose a tilting or fixed riser, wall mount, or the dedicated Magellan 1500i OEM configuration for embedded installations.

Key Specifications

  • Scanner configuration: Corded 2D presentation scanner
  • Barcode capability: 1D, 2D, postal and stacked codes
  • Reading range: 13 mil UPC: 0–25 cm
  • Interfaces / connectivity: USB and RS-232
  • Durability: Repeated 1.2 m drops to concrete
  • Environmental sealing: IP52
  • Dimensions: Tilting stand: 6 × 7.5 × 13.8 cm
  • Weight: 240 g
  • Image capture: 1 MP; JPEG and BMP
  • Warranty: 3 years

Fixed riser: 6 × 7.5 × 10.6 cm; 164 g. Wall mount: 6 × 7.5 × 8.4 cm; 170 g. Reading distance depends on the barcode and conditions.

In the Box

  • Magellan 1500i scanner in the selected color and configuration, with the specified stand or wall mount
  • USB kits: USB Type-A cable
  • Magnetic-base kits: magnetic base included
  • MG1501-10210-1100: RS-232 cable and US power supply

MG1501-10210 has no interface cable. Digimarc decoding is included in MG1501-10310-0200; it is not standard on all models. MG1503-30250-0200 is the black OEM wall-mount USB kit.

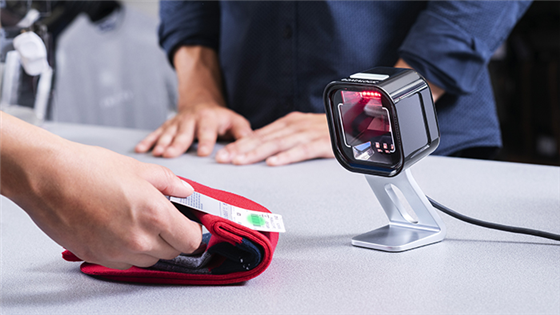

Comfortable scanning with clear feedback

Recessed, adaptive illumination supports sweep and presentation scanning while reducing operator glare. An LED aimer helps target small items, and Green Spot feedback visibly confirms a successful read.

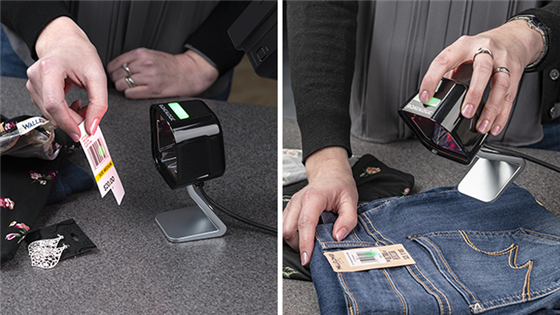

Fits the way you work

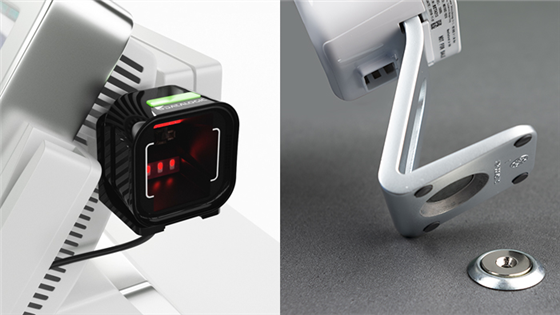

Standard models support hands-free or handheld use, with stand and magnetic-base choices for the counter. The OEM version provides an integrated window and secure, latching cable connection for embedded applications.

Scanner Configuration
Corded omnidirectional 2D presentation scanner; standard stand/wall-mount and Magellan 1500i OEM configurations.
1D Barcode Support
Auto-discriminates standard 1D codes including GS1 DataBar linear codes.
2D Code Support
Aztec Code, Data Matrix, MaxiCode and QR Code.
Postal Code Support
Australian, British, Canadian, China, Japanese, Portuguese and Swedish Post; IMB, KIX Post, Planet Code, Postnet and Royal Mail RM4SCC.
Stacked Code Support
GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MicroPDF417 and PDF417.
Operating Current
Typical operating: less than 500 mA. Typical standby/idle: less than 300 mA.
Input Voltage
5 VDC ±10%.
Ambient Light
0–86,100 lux.
Drop Resistance
Repeated 1.2 m / 4 ft drops onto concrete.
ESD Protection
25 kV air discharge.
Humidity
5–95%, non-condensing.
Environmental Sealing
IP52.
Operating Temperature
0–40°C / 32–104°F.
Storage / Transport Temperature
−40 to 70°C / −40 to 158°F.
Interfaces
USB Keyboard, USB COM, OEM (IBM) USB and RS-232; supplied cable depends on the selected model.
Colors
Standard models: black or white. OEM MG1503-30250-0200: black.
Dimensions with Tilting Riser
6.0 × 7.5 × 13.8 cm / 2.4 × 3.0 × 5.4 in.
Weight
Tilting stand: 240 g / 8.5 oz. Fixed riser: 164 g / 5.8 oz. Wall mount: 170 g / 6 oz.
Aiming
LED aimer for precision scanning.
Image Capture
1 MP, 1280 × 800 pixels; JPEG and BMP.
Minimum Print Contrast
25%.
Reading Angles
Pitch ±65°; roll/tilt 0–360°; skew/yaw ±75°.
Reading Indicators
Adjustable-tone/volume beeper, Datalogic Green Spot good-read feedback and good-read LED.
Maximum Resolution
0.130 mm / 5 mil.
Reading Range Conditions
Depends on printing resolution, symbol length, scan angle, contrast and ambient light.
Typical 1D Depth of Field
5 mil: 2.5–9 cm; 7.5 mil: 0–17 cm; 10 mil: 0–21 cm; 13 mil UPC: 0–25 cm; 20 mil: 1–30 cm.
Typical 2D Depth of Field
6.5 mil PDF: 2.5–11 cm; 13 mil Data Matrix: 0–17 cm; 16 mil PDF: 0–20 cm; 24 mil Data Matrix: 0–25 cm.
Agency Approvals
Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for certifications.
Environmental Compliance
EU RoHS and China RoHS.
LED Classification
EN 62471 and IEC 62471 lamp illumination.
Configuration Utility
Datalogic Scanalyzer scanner configuration; available at no charge.
OPOS / JavaPOS
Manufacturer utilities available at no charge.
Remote Host Download
Supported for remote servicing and updates.
Warranty
3-year factory warranty.
Digital Watermarks
Optional Digimarc / GS1 DW support. Listed model MG1501-10310-0200 includes Digimarc; do not assume it on other configurations.
Dimensions with Fixed Riser
6.0 × 7.5 × 10.6 cm / 2.4 × 3.0 × 4.2 in.
Dimensions with Wall Mount
6.0 × 7.5 × 8.4 cm / 2.4 × 3.0 × 3.3 in; standard and OEM wall-mount configurations.
OEM Model Package
MG1503-30250-0200: black Magellan 1500i OEM, 2D, wall-mount kit and USB Type-A cable.
Standard USB Model Packages
MG1501-10210-0200: black tilting stand. MG1502-10220-0200: white tilting stand. MG1501-10211-0200: black tilting stand and magnetic base. MG1502-10221-0200: white tilting stand and magnetic base. MG1501-10231-0200: black riser and magnetic base. MG1501-10250-0200: black wall mount. All include USB Type-A cable.
Specialized Model Packages
MG1501-10310-0200: black tilting stand, Digimarc and USB Type-A cable. MG1501-10210: black tilting stand, no cable. MG1501-10210-1100: black tilting stand, RS-232 cable and US power supply.
Remote Management
Standard models support OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director, and Wavelink Avalanche.
EAS Compatibility
Standard Magellan 1500i: Checkpoint Systems EAS and Interlock compatible.
Magellan 1500i Specification Sheet (Rev E)
Download
Magellan 1500i Product Reference Guide
Download
Magellan 1500i Quick Reference Guide
Download
Datalogic Scanalyzer 3.4.0 Configuration Utility
Download
Datalogic Scanalyzer User Guide
Download
Datalogic USB-COM Driver 7.1.5
Download

Shop Magellan 1500i Models

MG1502-10220-0200

Magellan 1500i, 2D Standard Range, Tilt Mount, USB A Cable, White

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount

Interface:

USB

Color:

White

$329.81

MG1502-10221-0200

Magellan 1500i, 2D Standard Range, Tilt Mount with Magnetic Base, USB, White

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount with Magnetic Base

Interface:

USB

Color:

White

$339.84

MG1501-10211-0200

Datalogic Magellan 1500i, 2D, Tilting Stand with Magnetic Base, USB Type-A Cable, Black

Color:

Black

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount with Magnetic Base

Interface:

USB

$339.84

MG1501-10250-0200

Magellan 1500i, Black, Std Configuration, 2D, Wall Mount Kit, USB A Cable

Color:

Black

Configuration:

Standard 2D

Interface:

USB

Stand/Mount Style:

Wall Mount Kit

$325.37

MG1501-10210

Magellan 1500i, Black, Std Configuration, 2D, Tilting Stand, No Cable

Color:

Black

Interface:

No Cable

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount

$318.29

MG1501-10210-1100

Magellan 1500i, Black, Std Configuration, 2D, Tilting Stand, US Power Supply RS-232 Cable

Color:

Black

Interface:

Serial

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount

$357.23

MG1503-30250-0200

Datalogic Magellan 1500i OEM, 2D, Wall-Mount Kit, USB Type-A Cable, Black

Color:

Black

Configuration:

OEM 2D

Interface:

USB

Stand/Mount Style:

Wall Mount Kit

$320.37

MG1501-10231-0200

Magellan 1500i, 2D Standard Range, Riser Stand with Magnetic Base, USB A Cable, Black

Color:

Black

Stand/Mount Style:

Riser Stand with Magnetic Base

Configuration:

Standard 2D

Interface:

USB

$333.35

MG1501-10210-0200

Magellan 1500i, 2D Standard Range, Tilt Mount, USB, Black

Color:

Black

Configuration:

Standard 2D

Stand/Mount Style:

Tilt Mount

Interface:

USB

$329.81

MG1501-10310-0200

Magellan 1500i, 2D Standard Range with Digimarc, Tilt Mount, USB, Black

Configuration:

2D with Digimarc

Color:

Black

Stand/Mount Style:

Tilt Mount

Interface:

USB

$329.81

Shop Magellan 1500i Accessories

ZSC2M150031

Datalogic Magellan 1500i EASEOFCARE, 3-Year Comprehensive, 2-Day Turnaround

$22.42

90ACC0400

Round Tilt Stand, Black/Black

$29.57

8-0754-12

Datalogic USB Type-A Scanner Cable, 2 m, Host Powered

$20.33

90A052363

Datalogic USB Type-A Scanner Cable, 1 m, Host Powered

$14.44

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

90ACC1886

Datalogic US 2-Pin AC Power Cord

$4.00

90ACC0402

Round Tilt Stand, Black/Silver

$29.57

90ACC0382

Wall Mount Kit, Black, MGL15

$5.62

90ACC0378

Tilt Stand, Black, MGL15

$16.90

90ACC0380

Riser Stand, Black, MGL15

$8.94

90ACC0384

Magnetic Mount, MGL15

$11.69
