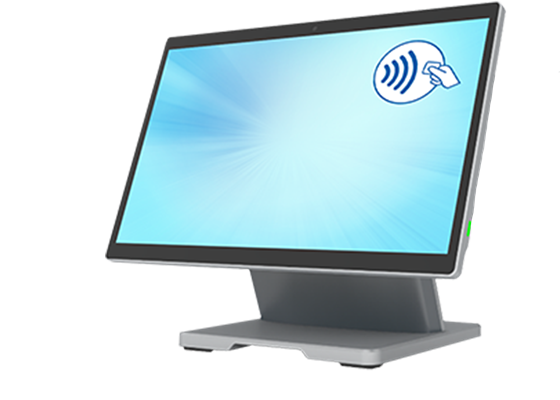

MicroTouch Mach POS - Android
A purpose-built Android 15 POS system with integrated I/O and optional customer display or behind-glass NFC.
MicroTouch Mach POS combines a thin 15.6-inch touch computer with a weighted commercial base and integrated connection hub. Configurations are available with a 7-inch customer-facing touch display and with NFC hardware embedded behind the LCD for compatible SoftPOS tap-to-pay deployments.
The MediaTek Genio 520 platform runs Android 15 GMS and pairs 8GB LPDDR5 memory with 64GB eMMC storage, Wi-Fi 6E, Bluetooth 5.2 and commercial POS ports.
Key Specifications
- Processor: MediaTek Genio 520 with 10 TOPS AI capability
- Memory / storage: 8GB LPDDR5 / 64GB eMMC 5.1
- Display / touch: 15.6-inch, 1920 x 1080, 450 nits; optically bonded 10-point PCAP
- Operating system: Android 15 GMS
- Ports / connectivity: Ethernet, Wi-Fi 6E, Bluetooth 5.2, cash drawer, powered USB, USB-A and USB-C
- Mount / stand: Stand with integrated hub; VESA 100 x 100 mm through an adapter kit
- Peripheral options: Optional 7-inch customer display, behind-glass NFC, camera and modular USB-C peripherals
- Serviceability: Modular peripheral connections with secured head and hub cabling
- Dimensions / weight: 364.1 x 290.4 x 190 mm; 3.79 kg
- Warranty: 3 years
In the Box
- Mach POS 15.6-inch terminal with integrated stand/hub
The 7-inch customer display and NFC hardware are configuration-dependent. Select the exact item number that includes the required components.

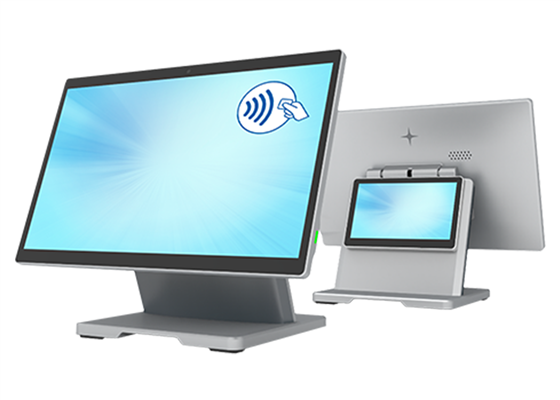

Build the customer experience

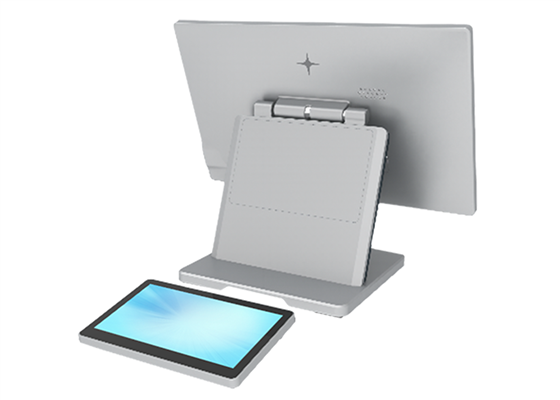

Add a matching 7-inch touch display
The optional customer-facing display can attach to the base or sit on the counter, supporting customer prompts and interaction without changing the main terminal footprint.
Prepare for SoftPOS payments
NFC can sit behind the display glass
NFC-equipped configurations place the EMV Level 1 reader behind the main or customer display for tap-to-pay integration with compatible Android SoftPOS software.
Shop Mach POS - Android Models
M2-156P-DN-A15-A1
MicroTouch M2-156P-DN-A15-A1 15.6-inch Android 15 POS terminal, MediaTek Genio 520, 8 GB/64 GB, integrated stand and hub, 7-inch customer-facing display, NFC
Configuration:
Customer Display + NFC
M2-156PN-A15-A1
MicroTouch M2-156PN-A15-A1 15.6-inch Android 15 POS terminal, MediaTek Genio 520, 8 GB/64 GB, integrated stand and hub, NFC
Configuration:
Base
M2-156P-D-A15-A1
MicroTouch M2-156P-D-A15-A1 15.6-inch Android 15 POS terminal, MediaTek Genio 520, 8 GB/64 GB, integrated stand and hub, 7-inch customer-facing display
Configuration:
Customer Display
Shop Mach POS - Android Accessories
MA-MSR-A1
MicroTouch MA-MSR-A1 three-track magnetic stripe reader for compatible Mach Desktop and Mach All-in-One systems; USB-C side-mount design.
MA-SCAN-A1
MicroTouch MA-SCAN-A1 side-mount 2D barcode scanner for compatible Mach Desktop and Mach All-in-One systems; Honeywell N4680 scan engine, up to 120 frames per second.
MA-CAM-A1
MicroTouch MA-CAM-A1 USB-C 8MP camera module for compatible Mach Desktop and Mach All-in-One systems; installs on any supported side-mounted USB-C accessory port.
MA-HUB-B1
Mach Expansion Hub for Mach AIO: 1 × 24 V PSUB, 2 × 12 V PSUB, and 1 × USB-C PD output; two RS-232 RJ50 serial ports; RJ11 cash drawer jack. (Gen 2)
MA-HUB-B2
MicroTouch MA-HUB-B2 connectivity hub for compatible Mach All-in-One systems; provides installation-ready peripheral and I/O expansion.
MA-STAND-A2
MicroTouch MA-STAND-A2 weighted adjustable stand for compatible Mach Desktop and Mach All-in-One systems; integrated cable routing and VESA mounting interface.
MA-READER-A1
MicroTouch MA-READER-A1 RFID reader module for compatible Mach All-in-One systems; customer-facing integrated credential-reading accessory.
MA-HUB-A2
Mach Windows AIO Hub Without Stand
MA-LBAR-A1
MicroTouch MA-LBAR-A1 LED light bar for compatible Mach Desktop and Mach All-in-One systems; USB-C side-mount design.
