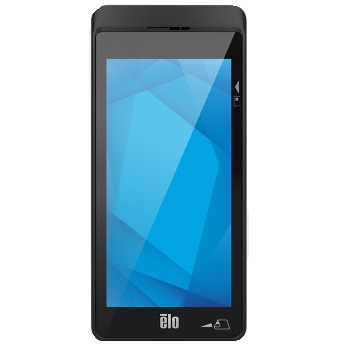

Elo TouchSystems M60
A purpose-built Android payment computer for taking secure service, checkout and data capture wherever the customer is.
Elo Pay M60 combines a 6-inch Android mobile computer with integrated EMV chip, contactless and magnetic-stripe payment. The active M60 configurations give teams a compact choice of Wi-Fi or US/Canada cellular connectivity for line-busting, tableside and mobile-point-of-sale work.
Its optically bonded touch display, serviceable battery and USB-C support a practical all-day handheld workflow. Current POSGuys configurations provide Wi-Fi or US/Canada cellular connectivity; barcode-scanner variants are not included.
Key Specifications
- Processor: Qualcomm Snapdragon 660, 2.2 GHz octa-core
- Memory and storage: 3 GB RAM / 32 GB flash
- Display and touch: 6-inch 1440 × 720 HD LCD, PCAP
- Operating system: Android 10 with Google Play Services
- Connectivity: Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0; cellular by option
- Ports: USB-C for display, charging and data
- Payment: EMV chip, NFC/contactless and 3-track MSR
- Power: Serviceable 4,000 mAh battery; Quick Charge 4
- Ruggedness: IP54, multiple 1 m drops
- Warranty: 1 year
In the Box
- Elo Pay M60 mobile computer
- USB Type-C charger
- Quick installation guide
The selected M60 Wi-Fi or cellular configuration determines wireless connectivity. Mounting, docking, expansion and coverage options are sold separately.
Payment Built In

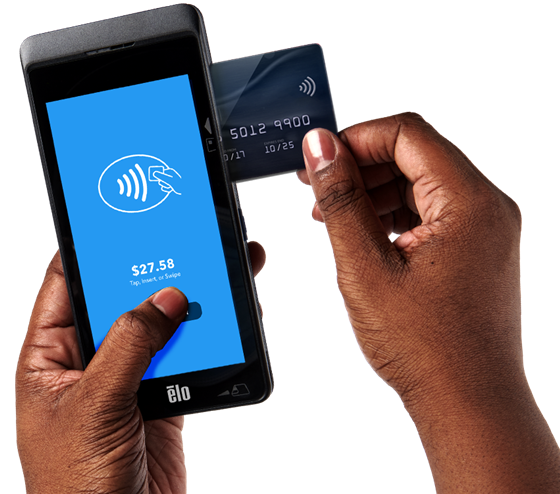

Dip, tap and swipe from one handheld
The M60 integrates EMV contact, ISO 14443-A/B contactless, NFC and three-track magnetic-stripe payment hardware for supported payment applications and processor integrations.
Mobile-First Performance
A clear screen and familiar Android tools
The 430-nit, optically bonded 6-inch display uses two-touch projected-capacitive input with Corning Gorilla Glass, water rejection and an anti-fingerprint coating.
Deploy for the Site
Choose Wi-Fi or cellular
The active Wi-Fi option suits on-premises mobility. The active cellular option supports AT&T, T-Mobile and TELUS networks in the United States and Canada, subject to carrier service and deployment requirements.
Ready for Daily Service
Purposeful durability and expansion

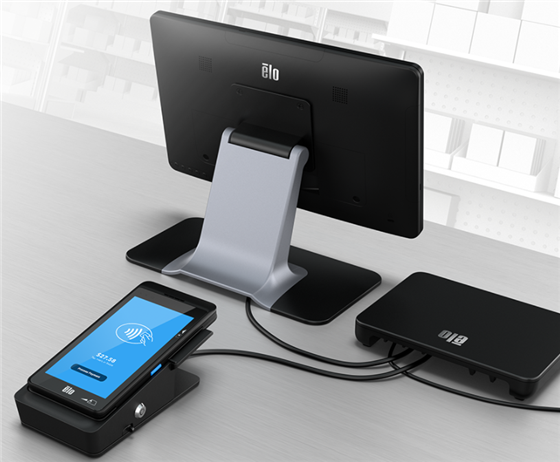

IP54 sealing, a serviceable battery and USB-C support mobile work. Use the compatible EM10 expansion module, DS11 dock and protection or warranty accessories when the workflow needs more than the handheld alone.
Shop M60 Models
E862945
Elo M60 Pay Mobile Computer, Cellular (USA), Android 10 with GMS, 6-inch HD 1440 x 720 Display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Wi-Fi, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), 8MP Camera, EloView Compatible, Black. No Barcode Scanner.
Wireless:
Cellular
E863128
Elo M60 Pay Mobile Computer, Wi-Fi, Android 10 with GMS, 6-inch HD 1440 x 720 Display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), 8MP Camera, EloView Compatible, Black. No Barcode Scanner.
Wireless:
Wi-Fi
Shop M60 Accessories
E672040
Mobile Computer 3 YR Warranty Coverage + Accidental Damage Repair
E672239
Mobile Computer 5yr Warranty + Accidental Damage Repair
E863687
EM10 Expansion Module
