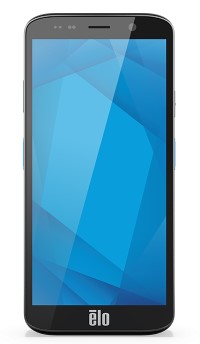

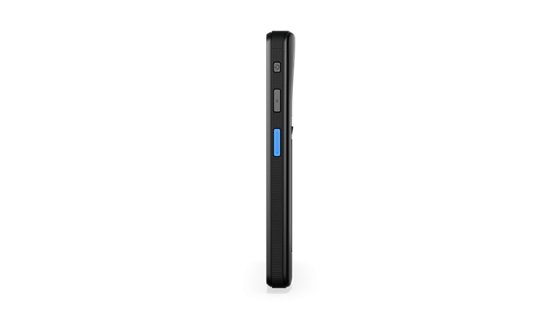

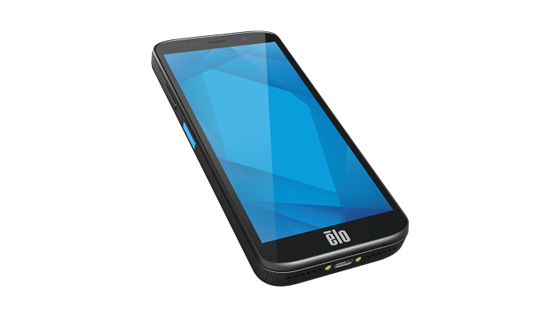

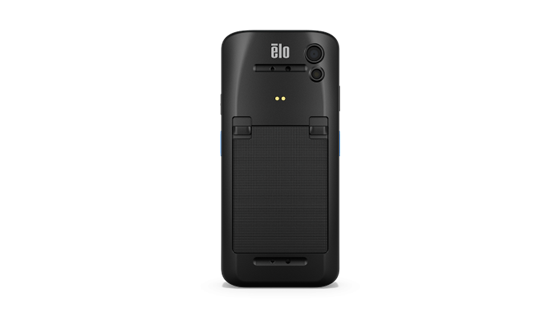

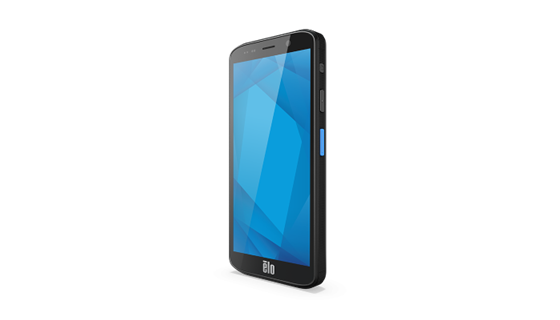

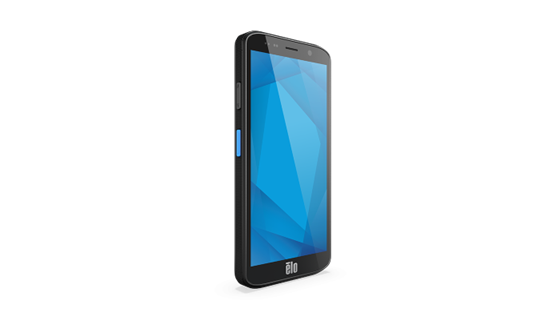

Elo TouchSystems M51

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Rugged Android Mobility for Retail, Warehouse and Ticketing Workflows.

Put Enterprise Workflows in Your Team's Hands.

The Elo M51 is a rugged 6-inch Android mobile computer built for inventory, fulfillment, line busting, ticketing and other commercial workflows. It combines Android 14, Qualcomm QCM6490 processing, Wi-Fi 6E, 5G cellular connectivity and a warm-swappable battery in an IP68-rated handheld.

Available options include two cellular-and-Wi-Fi configurations: choose the standard M51C or add the integrated 1D/2D scan engine for barcode-intensive applications.

Official Elo overview of the M51 rugged mobile computer.

6-inch FHD2160 x 1080 bonded display
Android 14With Google Mobile Services
8GB / 128GBLPDDR5 RAM and UFS storage
IP68 rugged1.2-meter drop rated
Up to 12 hoursWarm-swappable battery

Choose the Scanning Configuration.

M51C without Scanner

Choose the standard cellular model for mobile applications that rely on the touchscreen, cameras, NFC or software-based data capture.

  • Part number E450425
  • 5G cellular plus Wi-Fi 6E
  • Integrated 13MP rear and 8MP front cameras

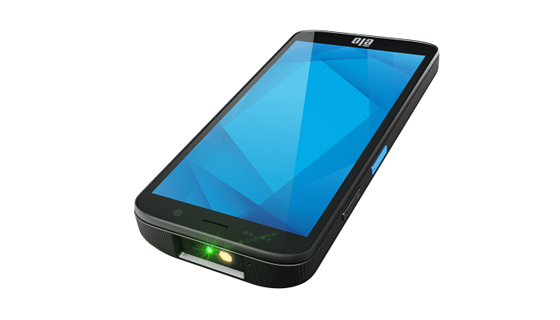

M51C with 1D/2D Scanner

Add the integrated Zebra SE4100 scan engine for faster inventory, fulfillment, ticket and queue-management workflows.

  • Part number E450619
  • 5G cellular plus Wi-Fi 6E
  • Dedicated integrated barcode capture

Built for Demanding Commercial Shifts.

Rugged Housing

IP68 protection and a 1.2-meter MIL-810G drop rating help the M51 handle daily mobile work. An optional protective boot raises the documented drop rating to 1.8 meters.

Warm-Swappable Power

The approximately 4,500mAh battery is rated for up to 12 hours depending on workload and can be warm-swapped to keep teams moving.

Bright Touch Display

The optically bonded 6-inch Full HD display provides 500-nit brightness and a multi-touch interface for indoor and mobile workflows.

Connect People, Data and Accessories.

Modern Wireless

Wi-Fi 6E, Bluetooth 5.2 and 5G cellular connectivity support store, warehouse and field deployments. Cellular service and regional compatibility depend on the selected model and carrier.

NFC and Cameras

Integrated NFC supports contactless workflows, while 13MP rear and 8MP front cameras support documentation and collaboration. Payment acceptance depends on the deployed payment solution.

Docking Ecosystem

USB-C plus rear and bottom pogo contacts support charging, docks, scan handles and other Elo accessories. Accessory compatibility is M51-specific.

Display
6” Optically Bonded High-Definition LCM; 2160x 1080; LED back-light; 500 NITS
Touchscreen
Capacitive touch with Corning Gorilla Glass Victus, Water droplet rejection, Anti-Fingerprint Coating
Operating System
Android 14 with GMS, Planned upgrade to Android 16
Processor
Qualcomm QCM6490 8x Kryo 670 CPU up to 2.7GHz
Memory
8GB LPDDR5
Storage
128GB UFS
Expansion Slot
MicroSD card supports up to SDXC UHS-1 1TB
SIM
1 nano SIM;1 eSIM
I/O Ports
USB Type-C for display, charging, and data, Rear pogo pad for scan trigger handle, Bottom pogo pad for charging
Wireless
IEEE 802.11 a/b/g/n/ac/ax, WIFI 6E, 2x2 MU-MIMO, Bluetooth 5.2
Cellular
  • North America Models: E450425, E450619 - Carrier: AT&T certified
  • 5G FR1: n2/5/12/25/30/38/41/48/66/71/77/78; 4G: B2/4/5/12/13/14/17/25/29/30/38/41/42/43/46/48/66/71;3G: B2/4/5
    • GPS
    GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS, GAL, BeiDou); AGPS support
    Notification
    1x combination Green/Amber LED for charging status, 1x combination Blue/Red user programmable LED, Vibrator for haptic feedback
    Keyboard
    On-screen keyboard
    Audio
    Dual microphone with noise cancellation, Dual speakers with combine a receiver on the top, Bluetooth headset support, USB-C PTT headset and USB-C headset support
    Buttons
    Dual scan buttons (programmable buttons), Power button, Push to talk button, Volume up/down buttons
    Integrated Peripherals
  • NFC - MiFare, Felica, ISO15693, ISO 14443 Type A/B, Support CPoC
  • Barcode Scanner - Zebra SE4100 1D/2D scan engine (Scanner SKU only)
  • Camera - Rear: 13MP Auto-Focus with Flash LED, supports torch mode; Front: 8MP Fixed-Focus
    • Sensors
    Light sensor (automatically adjust backlight brightness), Proximity sensor (disable display and touch when placed against head during the call), Accelerometer
    Battery
    Rechargeable, 3.85V/4520mAh, Warm Swap battery mode, Qualcomm Quick Charge 4
    Dimensions
    Unpackaged: 6.65" x 3.07" x 0.65" / 168.8 mm x 78 mm x 16.5 mm, Packaged: 8.66" x 5.28" x 2.91" / 220 mm x 134 mm x 74 mm
    Weight
    Unpackaged: 298g, Packaged: 700g
    Drop Specification
    4ft/1.2m drops per MIL810-G; 6ft/1.8m drops with the protective boot per MIL 810-G
    Tumble Specification
    1000 tumbles, 1.6ft./0.5m with the protective boot per IEC 60068-2-32
    Sealing
    IP68 per IEC standard 60529
    Temperature
    Operating: -4°F to 122°F (-20°C to 50°C); Storage: -22°F to 140°F (-30°C to 60°C)
    Humidity
    5% to 95% non-condensing
    Warranty
    1 Year
