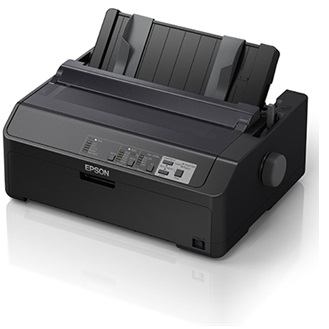

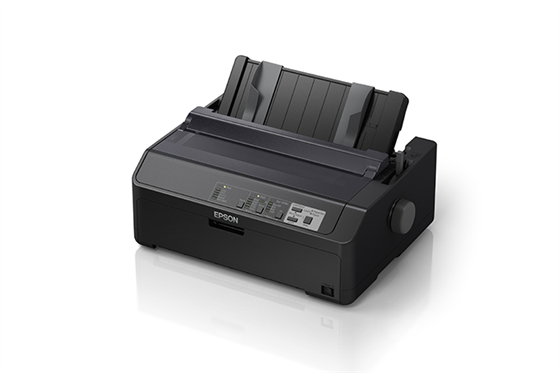

Epson LQ-590II

Name: Epson LQ-590II
Brand: Epson
Price: 423.33 USD
Availability: InStock

Images may not reflect the actual product

Reliable 24-pin printing for multipart forms

The Epson LQ-590II is a 24-pin impact printer for demanding daily forms and report printing. It combines flexible paper handling with a long-life ribbon, an intuitive control panel and support for established printer languages.

Key Specifications

Print method: Impact Dot Matrix
Print speed: Up to 584 cps at 12 cpi, high-speed draft
Paper widths: Cut sheets: 100–257 mm; continuous forms: 101.6–254 mm
Resolution: Up to 360 × 180 dpi
Interfaces / connectivity: USB and parallel; LQ-590II N adds serial and Ethernet
Cutter and reliability: No cutter; ribbon rated for up to 5 million characters
Platform support: Epson ESC/P2 and IBM PPDS emulation
Dimensions and weight: 437 × 320 × 176.5 mm (W × D × H), excluding sheet guide and release lever; approx. 7.2 kg
Warranty: 3 years

In the Box

Selected LQ-590II or LQ-590II N printer
Power cable and ribbon cartridge
Setup documentation, driver media and warranty certificate

Interface cables and optional paper-handling accessories are separate.

Fast draft printing

High Speed Draft reaches 584 characters per second at 12 cpi.

Long-life ribbon

A ribbon rated for up to five million characters under Epson’s test conditions helps reduce replacement frequency.

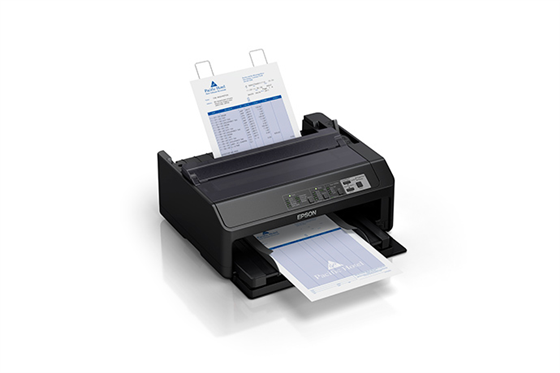

Multiple paper formats

Print cut sheets and continuous forms. Multipart output supports up to seven parts with the optional pull tractor.

Simple integration

Epson ESC/P2 and IBM PPDS printer languages support existing systems, with a straightforward control panel for setup.

Printing Method

24-pin serial impact dot matrix

Print Direction

Bidirectional logic seeking for text and graphics; selectable unidirectional printing

Print Speed

Ultra speed draft: 550 cps at 10 cpi
High-speed draft: 487 cps at 10 cpi or up to 584 cps at 12 cpi
Draft: 366 cps at 10 cpi
Letter quality: 121 cps at 10 cpi

Print Resolution

Up to 360 × 180 dpi in letter-quality mode

Character Sets

13 standard character tables; 15 international character sets, according to Epson’s user guide

Bitmap Fonts

Epson Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-B, Orator, Orator-S and Script C; available pitches vary by font

Scalable Fonts

Epson Roman, Sans Serif, Roman T and Sans Serif H; 10.5 pt or 8–32 pt in 2 pt steps

Barcodes

EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5 and Matrix 2 of 5.

Column Width

80 columns at 10 cpi; 96 at 12 cpi; 120 at 15 cpi; 137 at 17 cpi; 160 at 20 cpi

Line Spacing

1/6 in or programmable in 1/360 in increments

Paper Feed

Friction feed; front/rear push tractor; front/bottom/rear pull tractor; push-pull tractor; optional cut-sheet feeder and roll-paper holder

Paper Feed Speed

Continuous: 139 mm/s (5.5 in/s); intermittent: 40.7 ms per line at 1/6 in spacing

Media Types

Single sheets, continuous forms, multipart forms, envelopes, labels and roll paper

Maximum Media Thickness

Up to 0.49 mm (0.0193 in). One original plus five copies normally; up to one original plus six copies with front or bottom pull tractor under Epson’s normal conditions.

Media Width

Single sheet: 3.9" to 10.1"
Continuous: 4.0" to 10.0"
Cut-sheet feeder: 7.2" to 8.5"

Media Length

Single sheets: 3.9–14.3 in; continuous forms: 4–22 in; cut-sheet feeder: 8.3–14.3 in.

Optional Feeder Capacity

Single-bin: up to 50 sheets; high-capacity: up to 150 sheets of 82 g/m² paper, or up to 25 plain/bond envelopes or 30 airmail envelopes

Interfaces

LQ-590II: bidirectional parallel and USB 2.0
LQ-590II N: parallel, USB 2.0, serial and 10/100Base-TX Ethernet

Sound Level

55 dBA (ISO 7779 pattern)

Power Requirements

AC 100–240 V, 50–60 Hz

Power Consumption

Operating: approx. 57 W
Ready: approx. 12 W
Sleep: approx. 0.4 W; 0.7 W for network model

Dimensions (W x D x H)

437 × 320 × 176.5 mm (17.2 × 12.6 × 6.9 in), W × D × H; excludes sheet guide and paper release lever

Weight

15.9 lb (7.2 kg)

Control Panel

Font, pitch, pause, tear-off/bin selection, line feed/form feed, load/eject, micro-adjust, reset, self-test, data dump and default-setting selection.

Reliability

MTBF: 25,000 power-on hours at 25% duty
MVBF: 50 million lines
Printhead life: 400 million characters

Ribbon Life

Up to 5 million characters at letter quality, 10 cpi

Receive Buffer

128 KB

Standards

UL62368-1, CAN/CSA C22.2 No. 60950-1, IEC/EN62368-1; FCC Part 15 Subpart B Class A and ICES-003 Class A; CE marking; ENERGY STAR V2.0 and RoHS.

Software Drivers / OS Support

Windows Vista, XP, 7, 8 and 10; Windows Server 2003, 2008, 2012 and 2016, as listed in Epson’s specification sheet. Additional OS support depends on the installed driver version.

Printer Languages

Epson ESC/P2 and IBM PPDS

Ribbon

S015337 black ribbon for LQ-590II and LQ-590IIN

What’s Included

LQ-590II impact printer, AC cable, ribbon cartridge, User’s Manual/Start Here Guide, setup guide, driver CD and warranty certificate

Warranty

3-year limited warranty in the U.S. and Canada

Shop LQ-590II Models

C11CF39201

LQ-590II - Impact Dot Matrix Form Printer, 7-part Forms Printing, 24-Pin, Narrow-Carriage, Up to 584 cps (12 cpi), Parallel & USB, Light Gray

Interface:

USB + Parallel

$423.33

C11CF39202

Epson LQ-590II N 24-pin impact printer, narrow carriage, up to 584 cps at 12 cpi, USB, parallel, serial and Ethernet, light gray.

Interface:

USB + Parallel + Serial + Ethernet

$831.27

Shop LQ-590II Accessories

C825343

PS-180 Power Supply For Epson Receipt Printers (120/220V). Includes AC Cord (205498100). Energy Star Rated.

$63.03

C12C811141

Paper Roll Holder for FX-890/890II & PLQ-20

$94.00

C12C933761

Epson pull tractor unit for FX-890II and LQ-590II printers.

$76.03
