Elo TouchSystems LM Series Medical Grade

Name: Elo TouchSystems LM Series Medical Grade
Brand: Elo TouchSystems
Price: 1007.72 USD
Availability: InStock

Images may not reflect the actual product

Medical touchscreens with DICOM Part 14 calibration for secondary image review.

Elo’s LM-Series Medical Grade touchscreens combine anti-glare TouchPro PCAP 10-touch with DICOM Part 14 calibration for AAPM secondary-display clinical review. The 1903LM provides a 19-inch 5:4 screen; the 2203LM, 2403LM and 2703LM provide 21.5-, 23.8- and 27-inch Full HD screens. Choose black or white, with or without a desktop stand.

The IP54 enclosure and IK06 impact rating support healthcare deployment, while HDMI, VGA, stereo speakers and four side peripheral ports support EMR documentation, patient engagement and clinical collaboration. All listed configurations include a medical-grade power adapter and North American and European power cords. RS232 touch requires the separately sold E810917 Y-cable.

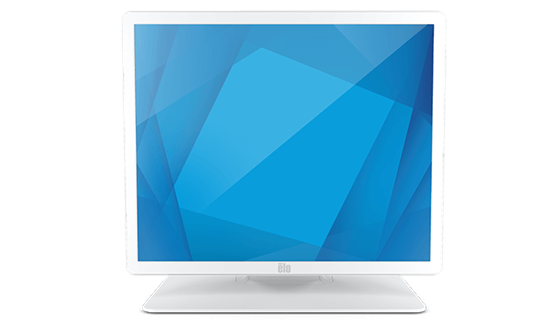

Elo 1903LM white medical touchscreen with desktop stand

Key Specifications

Product / application: Medical secondary-review displays; external host required
Display / resolution: 19-inch 1280 × 1024; 21.5-, 23.8- or 27-inch Full HD
Touch input: TouchPro PCAP 10-touch; finger, glove or compatible stylus
Touch interface: USB; RS232 via optional E810917 Y-cable
Video inputs: HDMI and VGA
Peripheral ports: Four side micro-USB ports; model-specific accessories
Power: 12V DC; medical-grade adapter and NA/EU cords included
Mounting: 100 mm VESA; desktop stand included only on stand configurations
Operating temperature: 0°C to 40°C
Protection: IP54 entire enclosure; IK06 impact rating
Dimensions / weight: 429.6–647.6 mm wide; 4.3–10.27 kg unpackaged, depending on model and stand
Warranty: 3 years

In the Box

Selected touchscreen monitor and DICOM calibration sheet
Medical-grade power adapter with North American and European AC cords
HDMI, VGA, USB touch and audio cables
Quick-install guide, tie wraps and model-specific cable-cover / VESA hardware
Desktop stand only with stand-included configurations; no-stand options require a separate compatible stand or mount

Consistent secondary image review

Factory DICOM Part 14 calibration supports consistent grayscale presentation for clinical image review as an AAPM secondary display. Each listed configuration includes its calibration sheet. Select the resolution and screen size that fit the workflow.

Built for clinical interaction

Ten-point PCAP supports finger, glove and compatible stylus input. The fully IP54-rated enclosure and IK06 impact protection support demanding healthcare settings, and the included medical-grade power supply avoids the need to source a separate normal-use adapter.

Part Number(s)

1903LM: TouchPro PCAP White with stand - E658586 TouchPro PCAP Black with stand - E658394 TouchPro PCAP White without stand - E380665 TouchPro PCAP Black without stand - E380478 2203LM: TouchPro PCAP White with stand - E658992 TouchPro PCAP Black with stand - E658788 TouchPro PCAP White without stand - E381048 TouchPro PCAP Black without stand - E380851 2403LM: TouchPro PCAP White with stand - E659395 TouchPro PCAP Black with stand - E659195 TouchPro PCAP White without stand - E381452 TouchPro PCAP Black without stand - E381251 2703LM: TouchPro PCAP White with stand - E659793 TouchPro PCAP Black with stand - E659596 TouchPro PCAP White without stand - E381844 TouchPro PCAP Black without stand - E381654

Enclosure Color

1903LM, 2203LM, 2403LM, 2703LM: White or Black

Touch Technology & Capacity

1903LM, 2203LM, 2403LM, 2703LM: PCAP (TouchPro® Projected Capacitive) - 10 Touch

Diagonal Size

1903LM: 19'' diagonal, Active matrix TFT LCD (LED) 2203LM: 21.5'' diagonal, Active matrix TFT LCD (LED) 2403LM: 23.8'' diagonal, Active matrix TFT LCD (LED) 2703LM: 27'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

1903LM: 5:4 2203LM, 2403LM, 2703LM: 16:9

Active Area

1903LM: 14.76" x 11.80" / 374.78 mm x 299.83 mm 2203LM: 18.74" x 10.54" / 476.06 mm x 267.79 mm 2403LM: 20.75" x 11.67" / 527.04 mm x 296.46 mm 2703LM: 23.54" x 13.24" / 597.88 x 336.31 mm

Resolution

1903LM: 1280 x 1024 @ 60Hz 2203LM, 2403LM, 2703LM: 1920 x 1080 @ 50, 60Hz

Other Supported Resolutions

1903LM: 640 x 480 @ 60Hz 720 x 400 @ 70Hz 640 x 400 @ 70Hz 800 x 500 @ 60Hz 800 x 600 @ 56, 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 @ 60 Hz 2203LM, 2403LM: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56Hz, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 2703LM: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB

Viewing Angle

1903LM, 2203LM, 2403LM, 2703LM: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

1903LM, 2203LM, 2403LM, 2703LM: 16.7 million

Brightness (typical)

1903LM, 2203LM, 2403LM: LCD Panel: 250 nits TouchPro PCAP: 225 nits 2703LM: LCD Panel: 300 nits TouchPro PCAP: 270 nits

Response Time-total (typical)

1903LM, 2203LM, 2703LM: 14 msec 2403LM: 16 msec

Contrast Ratio

1903LM, 2203LM, 2403LM, 2703LM: 1000:1

Touch Interface

1903LM, 2203LM, 2403LM, 2703LM: USB, Serial (via VGA)

Surface Treatment

1903LM, 2203LM, 2403LM, 2703LM: Anti-glare

On Screen Display

1903LM: Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean Lockouts: OSD, Power

On Screen Display (continued 2)

2203LM, 2403LM, 2703LM: Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean Lockouts: OSD, Power

I/O Ports

1903LM, 2203LM, 2403LM, 2703LM: VGA (RS232 touch supported via E810917) HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4x Micro USB

Speakers

1903LM: Two 2W internal speakers 2203LM, 2403LM, 2703LM: Two x 2W internal speakers

Input Video Format

1903LM, 2203LM, 2403LM, 2703LM: VGA (VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included)

Input Video Frequency

1903LM, 2203LM, 2403LM, 2703LM: Horizontal: 30 – 82KHz Vertical: 50 - 75Hz

Power Consumption (Typical)

1903LM: Monitor + AC/DC adapter ON (Default - 80% Brightness): 14.53 W ON (Typical - 100% Brightness): 16.36 W SLEEP: 0.79 W OFF: 0.37 W 2203LM: Monitor + AC/DC adapter ON (Default - 80% Brightness): 14.8 W ON (Typical - 100% Brightness): 16.78 W SLEEP: 0.78 W OFF: 0.36 W 2403LM: Monitor + AC/DC adapter ON (Default - 75% Brightness): 15.68 W ON (Typical - 100% Brightness): 17.33 W SLEEP: 1.09 W OFF: 0.24 W 2703LM: Monitor + AC/DC adapter ON (Default - 75% Brightness): 17.37 W ON (Typical - 100% Brightness): 22.41W SLEEP: 1.006 W OFF: 0.24 W

Input Voltage

1903LM, 2203LM, 2403LM, 2703LM: 12VDC +/- 5% 100-240VAC, 50/60Hz

Input Connector

1903LM, 2203LM, 2403LM, 2703LM: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

Peripheral Mounting

1903LM, 2203LM, 2403LM, 2703LM: 4x Micro USB side ports (Top, Bottom, Left, Right)

Monitor Dimensions (without Stand)

1903LM: 429.6 × 354.6 × 41.6 mm (W × H × D), per dimensional drawing MS601973 2203LM: 526.9 × 326.9 × 43.2 mm (W × H × D), per dimensional drawing MS601974 2403LM: 574.6 × 354.1 × 42.8 mm (W × H × D) 2703LM: 647.6 × 394.1 × 44.9 mm (W × H × D)

Monitor Dimensions (with Stand)

1903LM: 429.6 × 397.65 × 193.4 mm (W × H × D), per dimensional drawing MS601973 2203LM: 526.9 × 383.8 × 193.4 mm (W × H × D), per dimensional drawing MS601974 2403LM: 574.6 × 432.9 × 233 mm (W × H × D) 2703LM: 647.6 × 450.9 × 233 mm (W × H × D)

Shipping Box Dimensions

1903LM: With Stand: 18.97" x 20.75" x 10.24" / 482 mm x 527 mm x 260 mm Without Stand: 18.97" x 20.75" x 7.47" / 482 mm x 527 mm x 190 mm 2203LM: 24.29" x 18.78" x 10.24" / 617 mm x 477 mm x 260 mm 2403LM: With Stand: 20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm Without Stand: 18.11" x 26.77" x 6.65" / 460 mm x 680 mm x 169 mm 2703LM: With Stand: 22.05" x 30.08" x 12.68" / 560 mm x 764 mm x 322 mm Without Stand: 20.47'' x 30.31'' x 7.36'' / 520 mm x 770 mm x 187 mm

Weight (Unpackaged)

1903LM: With Stand: 13.9 lbs / 6.3 kg Without Stand: 9.48 lbs / 4.3 kg 2203LM: With Stand: 14.88 lbs / 6.75 kg Without Stand: 10.59 lbs / 4.8 kg 2403LM: With Stand: 21.58 lbs / 9.80 kg Without Stand: 14.73 lbs / 6.69 kg 2703LM: With Stand: 22.64 lbs / 10.27 kg Without Stand: 15.72 lbs / 7.13 kg

Weight (Packaged)

1903LM: With Stand: 21.6 lbs / 9.8 kg Without Stand: 15.04 lbs / 6.82 kg 2203LM: With Stand: 23.81 lbs / 10.8 kg Without Stand: 16.43lbs / 7.45kg 2403LM: With Stand: 28.45 lbs / 12.92 kg Without Stand: 18.12 lbs / 8.22 kg 2703LM: With Stand: 31.48 lbs / 14.28 kg Without Stand: 22.95 lbs / 10.41 kg

Operating Temperature

1903LM, 2203LM, 2403LM, 2703LM: 0°C to 40°C / 32°F to 104°F

Storage Temperature

1903LM, 2203LM, 2403LM, 2703LM: -20°C to 60°C / -4°F to 140°F

Humidity

1903LM, 2203LM, 2403LM, 2703LM: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

MTBF

1903LM, 2203LM, 2403LM, 2703LM: 50,000 hours demonstrated

Mounting Options

1903LM, 2203LM, 2403LM, 2703LM: VESA 4-hole 100mm mounting interface on rear of unit

Warranty

1903LM, 2203LM, 2403LM, 2703LM: 3-year

Regulatory approvals and declarations

1903LM, 2203LM: Canada CUL, IC China CCC Europe CE United Kingdom UKCA Korea KCC Taiwan BSMI United States FCC, UL Japan VCCI International CB Australia RCM Russia EAC Mexico CoC India BIS RoHS, China RoHS, WEEE, REACH ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21; CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03 CB: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD:2020 (Ed 3.2) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2019 Usability: IEC 60601-1-6:2010/AMD2:2020, IEC 62366:2017

Regulatory approvals and declarations (continued 2)

2403LM, 2703LM: Canada CUL, IC China CCC Europe CE United Kingdom UKCA Korea KCC Taiwan BSMI United States FCC, UL Japan VCCI International CB Australia RCM Russia EAC Mexico CoC RoHS, China RoHS, WEEE, REACH India BIS ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21; CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03 CB: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD:2020 (Ed 3.2) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2019 Usability: IEC 60601-1-6:2010/AMD2:2020, IEC 62366:2017

DICOM

1903LM, 2203LM, 2403LM, 2703LM: DICOM Part 14 (AAPM secondary display)

Ingress Protection

1903LM, 2203LM, 2403LM, 2703LM: IP54 entire enclosure

Impact Protection

1903LM, 2203LM, 2403LM, 2703LM: IK06

What's in the Box

1903LM: Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet 2 x Cable cover screws 4 x VESA Screws (only for E380478 and E380665) 4 x rubbers (only for E380478 and E380665, affix to VESA holes) 2203LM: Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet 2 x Cable cover screws 4 x VESA Screws (only for E380851 and E381048) 4 x rubbers (only for E380851 and E381048, affix to VESA holes)

What's in the Box (continued 2)

2403LM: Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet 2 x Cable cover screws 4 x VESA Screws (only for E381251 and E381452) 4 x rubbers (only for E381251 and E381452, affix to VESA holes) 2703LM: Touchmonitor Quick Install Guide 3x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet 4 x VESA Screws (only for E381654 and E381844) 4 x rubbers (only for E381654 and E381844, affix to VESA holes) 2 x Cable cover screws

Sealability

2203LM, 2403LM, 2703LM: Touchscreen sealed to bezel; Touchscreen sealed to LCD

Stand configuration

Stand included: E658394/E658586 1903LM; E658788/E658992 2203LM; E659195/E659395 2403LM; E659596/E659793 2703LM. No stand: E380478/E380665 1903LM; E380851/E381048 2203LM; E381251/E381452 2403LM; E381654/E381844 2703LM. No-stand configurations require a separate compatible 100 mm VESA stand or mount. Product photos show the model with an optional desktop stand.

Stand compatibility

E804330 black / E808963 white: 1903LM and 2203LM. E509844 black / E510042 white: 2403LM and 2703LM. Match the monitor size and desired color. Stand-included configurations already have a desktop stand; replacement stands are optional spares.

Accessory compatibility

E143088 wall mount, E066148 PCAP stylus, E352196 handles, E810917 VGA/serial Y-cable and E408193 cable kit: all four models. Privacy filters: E352596 19-inch, E352783 22-inch, E352977 24-inch, E353170 27-inch. E593253 replacement medical power brick: all four models; the normal monitor package already includes a medical-grade power adapter. Other mount/peripheral compatibility is specified by exact model.

Medical / healthcare application scope

DICOM Part 14 calibration is for AAPM secondary-display clinical image review. Elo’s medical/healthcare disclaimer leaves intended-use suitability and required regulatory approvals to the system provider; Elo does not represent these products as FDA-cleared medical devices. See the manufacturer’s datasheets for the full application disclaimer.

Configuration-specific order terms

E380665 is non-cancelable/non-returnable and does not include a stand. Availability and package contents vary by the selected configuration.

Wallaby Pro and mount compatibility

Wallaby Pro supports 2403LM and 2703LM in portrait orientation. E698263 centering VESA adapter is required for 02/03 monitor installation. Countertop: E989127. Floor: E989314 top plus E989512 base. Double-sided floor: two E989314 tops plus E989705 base. Wall installation: E989127 plus E990079 wall kit. Displays, computers, payment devices and printers are supplied separately; component parts are not complete stands. E045151 pole-mount bracket is listed for 2203LM; do not assume compatibility with every LM size.

E658586

Elo 1903LM, 19-inch DICOM Part 14 medical touchscreen, 1280 × 1024, anti-glare zero-bezel PCAP 10-touch, white, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Resolution:

1280 x 1024

Size:

19"

Aspect Ratio:

5:4

Stand:

Included

Color:

White

$1275.19

E659596

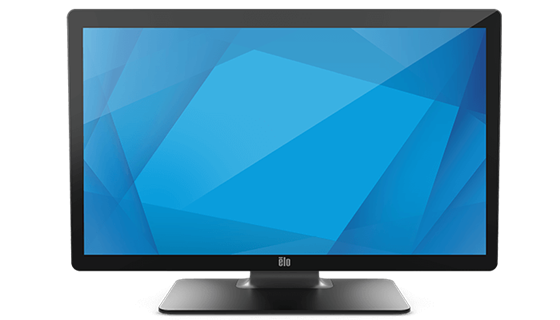

Elo 2703LM, 27-inch DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

27"

Color:

Black

Stand:

Included

$1389.47

E659195

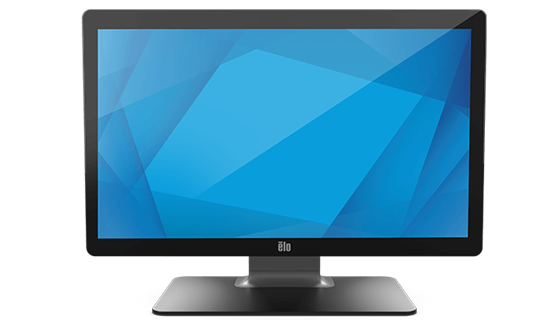

Elo 2403LM, 23.8-inch (24-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

23.8"

Color:

Black

Stand:

Included

$1363.91

E658788

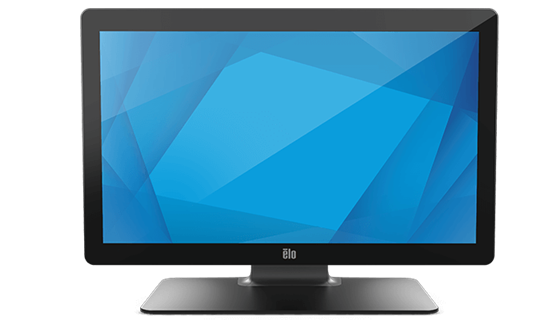

Elo 2203LM, 21.5-inch (22-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

21.5"

Color:

Black

Stand:

Included

$1209.03

E658992

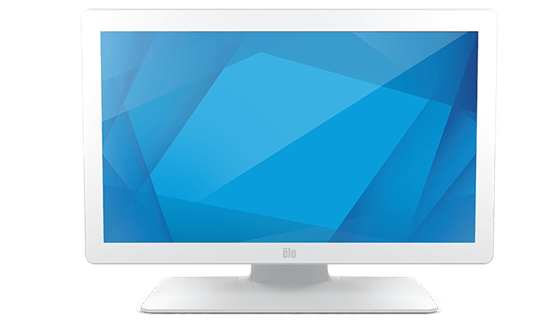

Elo 2203LM, 21.5-inch (22-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

21.5"

Stand:

Included

Color:

White

$1228.57

E380478

Elo 1903LM, 19-inch DICOM Part 14 medical touchscreen, 1280 × 1024, anti-glare zero-bezel PCAP 10-touch, black, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Resolution:

1280 x 1024

Size:

19"

Aspect Ratio:

5:4

Color:

Black

Stand:

Not included

$1055.44

E380665

Elo 1903LM, 19-inch DICOM Part 14 medical touchscreen, 1280 × 1024, anti-glare zero-bezel PCAP 10-touch, white, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Resolution:

1280 x 1024

Size:

19"

Aspect Ratio:

5:4

Stand:

Not included

Color:

White

$1102.34

E380851

Elo 2203LM, 21.5-inch (22-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

21.5"

Color:

Black

Stand:

Not included

$1007.72

E381048

Elo 2203LM, 21.5-inch (22-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

21.5"

Stand:

Not included

Color:

White

$1025.96

E381251

Elo 2403LM, 23.8-inch (24-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

23.8"

Color:

Black

Stand:

Not included

$1136.84

E381452

Elo 2403LM, 23.8-inch (24-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

23.8"

Stand:

Not included

Color:

White

$1166.32

E381654

Elo 2703LM, 27-inch DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, black, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

27"

Color:

Black

Stand:

Not included

$1157.90

E381844

Elo 2703LM, 27-inch DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, no stand, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

27"

Stand:

Not included

Color:

White

$1185.96

E658394

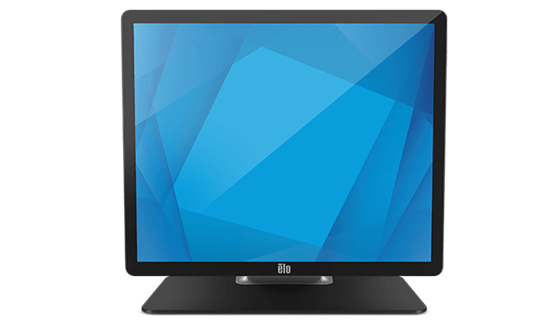

Elo 1903LM, 19-inch DICOM Part 14 medical touchscreen, 1280 × 1024, anti-glare zero-bezel PCAP 10-touch, black, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Resolution:

1280 x 1024

Size:

19"

Aspect Ratio:

5:4

Color:

Black

Stand:

Included

$1139.66

E659395

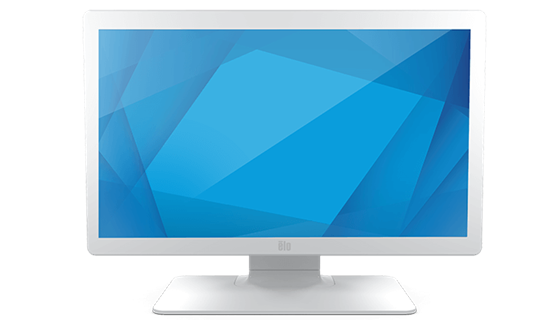

Elo 2403LM, 23.8-inch (24-inch class) DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

23.8"

Stand:

Included

Color:

White

$1268.78

E659793

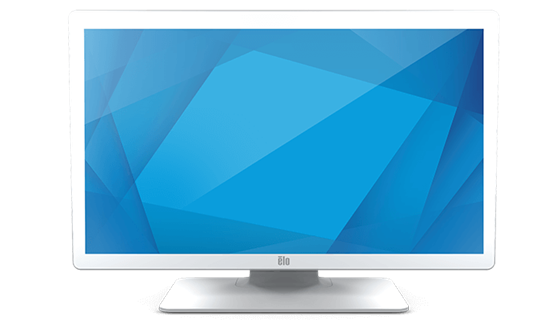

Elo 2703LM, 27-inch DICOM Part 14 medical touchscreen, Full HD 1920 × 1080, anti-glare zero-bezel PCAP 10-touch, white, desktop stand included, HDMI and VGA, USB touch; serial touch via separate E810917 Y-cable. Medical-grade power adapter and NA/EU power cords included.

Aspect Ratio:

16:9

Resolution:

1920 x 1080

Size:

27"

Stand:

Included

Color:

White

$1291.23

Shop LM Series Medical Grade Accessories

E804330

Replacement Stand for Elo 1902L, 1903LM, 2002L, 2202L and 2203LM Monitors, Black

$176.32

E808963

Elo White Replacement Stand for 1902L, 1903LM, 2202L and 2203LM

$177.64

E509844

24 and 27 Inch Replacement Stand, 02-Series Desktop Monitors, Black

$213.17

E510042

24 and 27 Inch Replacement Stand, 03-Series Desktop Monitors, White

$213.17

E143088

Wall Mount bracket for Elo E-Series, I Series, X Series, and 02-Series & 03-Series Touchscreen Monitors. VESA 75x75mm / 100x100mm. Black.

$53.00

E066148

Stylus Pen for Elo TouchPro PCAP Systems

$43.00

E047458

6 inch pole mount kit for I-series and M-seires monitors

$159.17

E047663

Elo 12-inch Pole Mount Kit, 75mm/100mm VESA

$184.58

E047864

18 inch pole mount kit for I-series and M-series monitors

$211.33

E048069

Pole Mount Floor Stand for I-Series interactive signage

$511.84

E045151

Pole Mount Bracket I-Series and 02-Series

$108.34

E352196

Silver Handles (set of 2), 02-/03-Series Desktop Monitors

$39.00

E408193

1.8m Cable Kit for 03LM Series Monitors - VGA, USB, HDMI, Audio

$35.00

E989127

Elo Wallaby Pro countertop stand, compatible with 22-inch I-Series, 24-inch or 27-inch touchscreen monitors

$1334.22

E810917

Elo Cable Kit, Y Cable for IDS

$30.00

E989314

Elo Wallaby Pro floor stand top, compatible with 22-inch I-Series, 24-inch or 27-inch touchscreen monitors (requires floor stand base E989512 for complete Wallaby Pro floor stand)

$1683.03

E989512

Elo Wallaby Pro floor stand base (requires floor stand top E989314 for complete Wallaby Pro floor stand)

$335.55

E989705

Elo Wallaby Pro double-sided base for floor stand (requires 2x floor stand tops E989314 for complete Wallaby Pro double-sided floor stand)

$453.58

E990079

Elo Wallaby Pro wall-mount kit for countertop stand

$153.85

E698263

VESA Mount for 02/03 Monitors on Wallaby Countertop and Floor Stands

$39.00

E593253

Power Brick Kit - 1.8m Power Cable, 03-Series Desktop Monitors

$205.27

E593865

NA power cord, 02-/03-Series Desktop Monitors

$39.00

E898247

Elo Touch Monitor 4-Year Extended Warranty Coverage

$39.00

E898449

Elo Touch Monitor 5-Year Extended Warranty Coverage

$57.00

E898648

Elo Touch Monitor 3-Year Warranty with Advance Unit Replacement

$61.00

E894921

Elo Touch Monitor 4-Year Warranty with Advance Unit Replacement

$98.69

E895125

Elo Touch Monitor 5-Year Warranty with Advance Unit Replacement

$140.79

Have Questions?Call Us at: (800) 241-6264

Elo TouchSystems LM Series Medical Grade

Medical touchscreens with DICOM Part 14 calibration for secondary image review.

Key Specifications

In the Box

Consistent secondary image review

Built for clinical interaction

Shop LM Series Medical Grade Models

E658586

E659596

E659195

E658788

E658992

E380478

E380665

E380851

E381048

E381251

E381452

E381654

E381844

E658394

E659395

E659793

Shop LM Series Medical Grade Accessories

E804330

E808963

E509844

E510042

E143088

E066148

E047458

E047663

E047864

E048069

E045151

E352196

E408193

E989127

E810917

E989314

E989512

E989705

E990079

E698263

E593253

E593865

E898247

E898449

E898648

E894921

E895125
