Infinite Peripherals Linea Pro
Mobile data capture for compatible iPhone and iPad devices

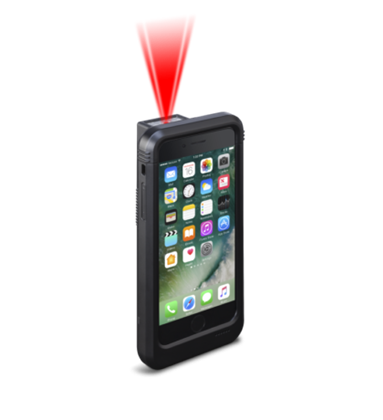

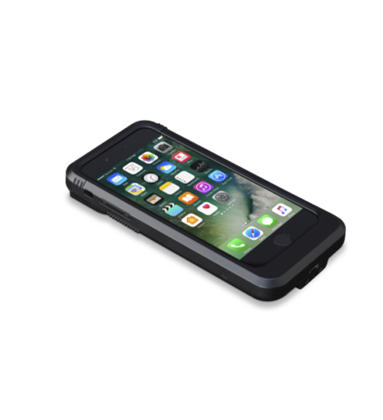

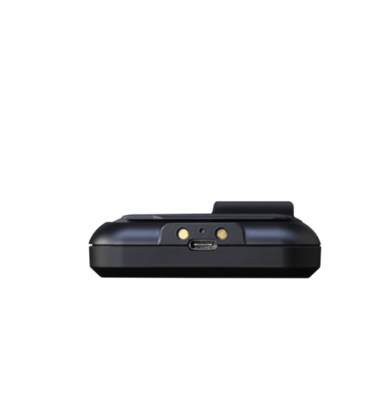

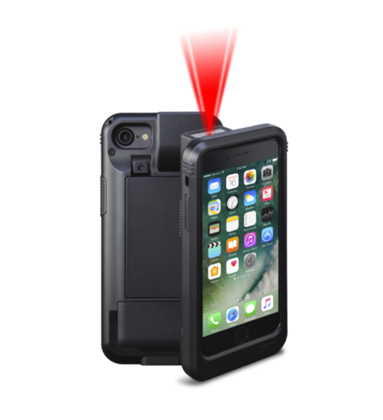

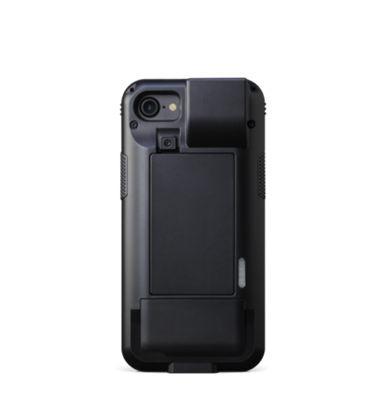

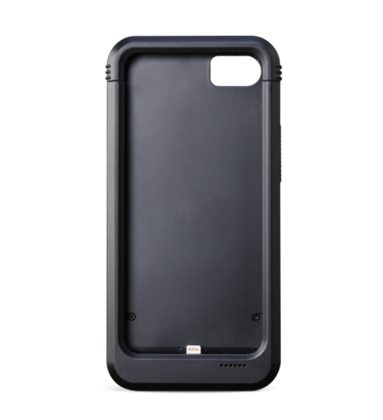

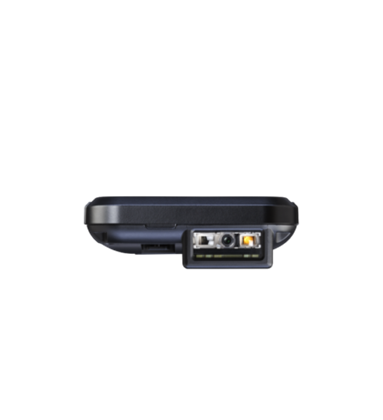

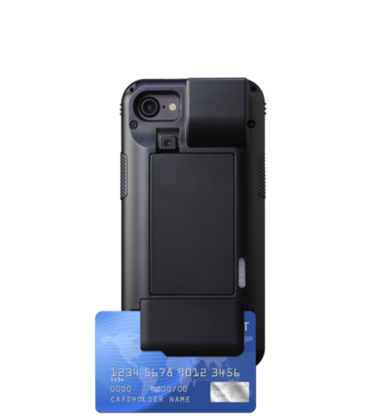

Linea Pro 7 turns a compatible iPhone into a handheld data-capture device for inventory, asset tracking and mobile transactions. Choose a 1D laser or 2D imager, with magnetic-stripe reading, Bluetooth and RFID capabilities depending on the selected configuration.
This page also includes Infinea Tab M readers for compatible Lightning-equipped iPads. ITM-MSE is an encrypted magnetic-stripe reader without a barcode scanner; ITM-O2DBTRE adds 1D/2D barcode capture.
Key Specifications
- Scanner configuration: iPhone sled or compact iPad reader
- Barcode capability: 1D laser, 1D/2D imager or MSR only
- Reading range: Standard or mid-range; varies by model
- Interfaces / connectivity: Lightning host; USB charging; optional Bluetooth
- Durability: Drop/tumble ratings not published for standard LP7 or Tab M
- Environmental sealing: Varies by housing; standard LP7 and Tab M have no published IP rating
- Dimensions: LP7: 157 × 77 × 26 mm; Tab M: 103 × 88 × 23.5 mm
- Weight: LP7: 148 g; Tab M 2D: 140 g; excludes iOS device
- Warranty: 1 year
In the Box
- Linea Pro 7 / 7i
- Selected Linea Pro scanner configuration
- Infinea Tab M
- Selected Infinea Tab M reader configuration
The iPhone or iPad is not included. Applicable accessories are sold separately unless the selected option explicitly includes them.
Keep mobile workflows moving
Linea Pro 7 combines a compact handheld design with a replaceable battery, helping keep data-capture work moving through the day.
Integrate with your iOS application
IPCMobile provides an SDK for integrating supported scanning and reader functions into iOS applications. Available functions depend on the selected hardware and application.
Device compatibility: Linea Pro 7 models support iPhone SE (2nd/3rd generation), iPhone 7/8 and iPhone 6/6s. The two Infinea Tab M options listed here support iPad mini 1/2/3, iPad Air 1, iPad 9.7 (5th/6th generation) and iPad 10.2 (7th/8th/9th generation). Match the exact reader and host device before ordering.
Shop Linea Pro Models
LP7-BT-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 1D Barcode Scanner MSR-BT
Scan Engine:
1D Laser
Device Compatibility:
iPhone SE3 & iPhone 7/8
Card Reader (MSR):
MSR with BT Included
LP7-ZS2D-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner
Scan Engine:
2D Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
LP7-ZS2D-UHF-PH7
Linea Pro 7 UHF - iPhone SE, iPhone 7/8 & iPhone 6/6S 2D Barcode Scanner
Scan Engine:
2D Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
LP7-ZS2DE-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR
Scan Engine:
2D Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
Card Reader (MSR):
MSR Included
LP7-ZM2D-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D MID-RANGE Barcode Scanner
Scan Engine:
2D Mid Range Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
LP7-ZS2DBTE-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR-BT
Scan Engine:
2D Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
Card Reader (MSR):
MSR with BT Included
LP7-ZS2DBTRE-PH7
Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR-BT-RFID
Scan Engine:
2D Imager
Device Compatibility:
iPhone SE3 & iPhone 7/8
Card Reader (MSR):
MSR with BT Included
RFID:
RFID
LP7I-ZS2DR-PHSE
Linea Pro 7i - iPhone SE3 & iPhone 7/8 2D Barcode Scanner
Scan Engine:
2D Imager
Industrial Rated:
Industrial
Device Compatibility:
iPhone SE3 & iPhone 7/8
RFID:
RFID
LP7I-ZM2DBTR-PHSE
Linea Pro 7i - iPhone SE3 & iPhone 7/8 2D Mid-Range Barcode Scanner
Scan Engine:
2D Mid Range Imager
Industrial Rated:
Industrial
Device Compatibility:
iPhone SE3 & iPhone 7/8
RFID:
RFID
ITM-MSE
Infinea Tab M iPad mini 1,2,3 – iPad Air 1 & iPad 9.7 (5th/6th Gen.) – iPad 10.2 (7th/8th/9th Gen.) – Encrypted Magstripe Reader Only
Device Compatibility:
iPad mini 1–3 / Air 1 / iPad 5–9
Card Reader (MSR):
MSR Included
Scan Engine:
No Barcode Scanner
ITM-O2DBTRE
Infinea Tab M – iPad mini 1/2/3, iPad Air 1, iPad 9.7 (5th/6th Gen.), iPad 10.2 (7th/8th/9th Gen.) – 2D Barcode Scanner – Encrypted MSR
Scan Engine:
2D Imager
Device Compatibility:
iPad mini 1–3 / Air 1 / iPad 5–9
Card Reader (MSR):
MSR with BT Included
RFID:
RFID
