Zebra LI3678

Name: Zebra LI3678
Brand: Zebra
Price: 649.92 USD
Availability: InStock

Images may not reflect the actual product

The Simplicity Of A Scanner, The Versatility To Do More

The cordless LI3678 brings Zebra’s ultra-rugged 1D linear imaging to mobile warehouse and manufacturing workflows. Bluetooth communication, a sealed cradle and full-shift battery options let workers move between racks, loading areas and cold environments without a scanner cable.

The page supports both standard-range and extended-range configurations. The existing POSGuys durability test is retained because it directly demonstrates the shared Zebra 3600 Series construction.

POSGuys tests the ultra-rugged Zebra 3600 Series against water, cold, heat and impact.

Key Specifications

Scanner configuration: Cordless ultra-rugged handheld linear imager; standard-range and extended-range options
Barcode capability: 1D barcodes, including UPC/EAN, Code 39, Code 128 and GS1 DataBar
Reading range: Standard range: 1 to 31 in./2.5 to 78.7 cm for 13 mil UPC; extended range: approximately 2 in. to 56 ft./5.1 cm to 17.1 m, depending on barcode size
Interfaces / connectivity: Bluetooth 4.0 Low Energy Class 1 with at least 300 ft./100 m line-of-sight range; cradle interfaces vary by configuration
Durability: Multiple 10 ft./3 m drops at room temperature, multiple 8 ft./2.4 m drops across operating temperature and 7,500 tumbles from 3.3 ft./1 m
Environmental sealing: IP65 and IP68 scanner; IP65 forklift cradle
Dimensions and weight: 7.3 x 3.0 x 5.6 in./18.6 x 7.6 x 14.2 cm; 13.6 oz./385 g (SR) or 15.0 oz./424 g (ER)
Warranty: Three years
Battery: PowerPrecision+ 3100 mAh battery; scan capacity varies by engine
Operating temperature: -4° to 122° F/-20° to 50° C

In the Box

Selected LI3678-SR or LI3678-ER cordless scanner

Installed PowerPrecision+ battery

Configuration note: Scanner-only options require a compatible cradle and interface cable. USB cradle kits include only the exact cable, cradle, power supply, DC cord, and US AC line cord explicitly named in the selected option; no-line-cord kits exclude the AC line cord. Other accessories are sold separately.

Benefits of the LI3600 Series

Superior Performance

The advanced linear imager captures 1D barcodes as fast as workers can pull the trigger, including labels that are under shrinkwrap, damaged, dirty or poorly printed.

Ultra-Rugged Design

The LI3600 family is built for manufacturing floors, warehouses and cold environments, with dust-tight, waterproof IP65 and IP68 sealing plus class-leading drop and tumble protection.

Unrivaled Manageability

Zebra’s complimentary tools support remote configuration and firmware updates, data formatting and battery-health monitoring across a deployed scanner fleet.

Zebra DNA for Scanners - Set Up. Secure. Manage. Optimize.

Zebra’s scanner software capabilities help teams deploy, secure, manage and optimize devices throughout their operating life while adapting workflows as requirements change.

Additional Software Features

123Scan

Use Zebra’s guided utility to program scanners electronically or with a printed configuration barcode and to stage multiple devices locally.

Remote Management (SMS/WMI)

Scanner Management Service and Windows Management Instrumentation provide two supported paths for configuring and maintaining deployed scanners remotely.

Virtual Tether

On cordless models, the scanner and cradle can alert workers when a device moves too far from its base, needs charging, is misplaced or remains out of the cradle beyond a set interval.

Dimensions

Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D (18.5 cm H x 7.6 cm W x 13.2 cm D); Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D (18.5 cm H x 7.7 cm W x 14.2 cm D)

Weight

SR: Corded 10.1 oz./287 g; Cordless 13.6 oz./386.5 g. ER: Corded 11.5 oz./327 g; Cordless 15.0 oz./424 g

Input Voltage Range

Host powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max.

Color

Industrial Green

Supported Host Interfaces

USB, RS-232, Keyboard Wedge; Industrial Ethernet: EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP

Battery

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

User Indicators

Direct Decode Indicator; LEDs; beeper; vibration

Scans per Full Charge

LI3678-SR: 140,000+; LI3678-ER: 100,000+

Illumination

SR: two 617 nm amber LEDs; ER: 660 nm LED

Aimer

SR: single bright LED aiming line; ER: 655 nm laser, three central dots with two side lines

Imager Field of View

SR: 35° horizontal; ER: 30.7° horizontal

Image Sensor

SR: 1,500 pixels; ER: 2,496 pixels

Minimum Print Contrast

SR: 15% minimum reflective difference; ER: 25% minimum reflective difference

Skew/Pitch/Roll

Skew: ±65°; Pitch: ±65°; Roll: ±45°

Decode Capabilities

1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar and Base 32 (Italian Pharma)

Motion Tolerance

25 in./63.5 cm per second

Operating Temperature

Corded: -22°F to 122°F (-30°C to 50°C); Cordless: -4°F to 122°F (-20°C to 50°C)

Storage Temperature

-40°F to 158°F (-40°C to 70°C)

Humidity

5% to 95% non-condensing

Drop Specification

LI36X8: multiple 10 ft./3.0 m drops to concrete at room temperature; LI3678: multiple 8 ft./2.4 m drops across -20°C to 50°C

Tumble Specification

7,500 tumbles from 3.3 ft./1.0 m

Sealing

Scanner: IP65 and IP68 per applicable IEC sealing specifications; FLB cradle: IP65

ESD

Per EN61000-4-2: ±25 kV air discharge, ±10 kV direct discharge and ±10 kV indirect discharge

Ambient Light Immunity

0 to 10,037 foot-candles/0 to 108,000 lux (direct sunlight)

123Scan

Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports

Scanner SDK

Provides scanner application documentation, drivers, test utilities and sample source code

Scanner Management Service (SMS)

Remotely manages Zebra scanners and queries asset information

Network Connect

Connects 3600 Series scanners to Industrial Ethernet networks without added conversion equipment

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), Serial Port Profile (SPP) and HID profiles

Data Rate

Classic Bluetooth: 3 Mbit/s (2.1 Mbit/s); Low Energy: 1 Mbit/s (0.27 Mbit/s)

Radio Range

Direct line of sight in open air: Class 1 minimum 300 ft./100 m; Class 2 minimum 30 ft./10 m

Environmental

RoHS EN 50581:2012

Electrical Safety

EU: EN 60950-1; International: IEC 60950-1; US/Canada: UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07

LED/Laser Safety

SR: IEC 62471:2006 and EN 62471:2008; ER: 21 CFR 1040.10/1040.11 and IEC/EN 60825-1

EMI/RFI

Class B emissions; IT and heavy-industrial immunity; FCC Part 15/ICES-003 Class B

SR Decode Ranges (Typical)

Code 39 4 mil: 4.0-10.0 in.; Code 39 7.5 mil: 1.5-19.0 in.; 100% UPC 13 mil: 1.0-31.0 in.; Code 39 20 mil: 1.0-42.0 in.

ER Decode Ranges (Typical)

Code 39 7.5 mil: 3-28 in.; Code 39 10 mil: 2-70 in.; Code 128 15 mil: 5-85 in.; Code 39 20 mil: 3-140 in.; Code 39 55 mil: 6-350 in.; Code 39 100 mil: 20-680 in.; reflective Code 39 100 mil: 30-780 in.

Warranty

Three years from date of shipment, subject to Zebra's hardware warranty statement

Recommended Services

Zebra OneCare Select; Zebra OneCare Essentials

Shop LI3678 Models

LI3678-SR3U4210S1W

LI3678 Ultra Rugged Cordless Linear Imager Kit, Green, Standard Range, Cordless, Includes Cradle, Power Supply and Line Cord, USB Interface

Scan Method:

1D Imager

Accessories:

Included

Scan Engine:

Standard Range

$1058.32

LI3678-ER2F003VZWW

LI3678: Rrugged,Linear Imager,Extended Range, Cordless,FIPs,Industrial Green, Vibration Motor

Scan Engine:

Extended Range

Accessories:

Not Included

$857.84

LI3678-ER3U4210S1W

LI3678-ER RUGGED FIPS STANDARD CRADLE USB KIT: LI3678-ER2F003VZWW SCANNER, CBA-U42-S07PAR SHIELDED USB CABLE, STB3678-C100F3WW CRADLE, PWR-BGA12V50W0WW P/S, CBL-DC-451A1-01 DC Cord, 23844-00-00R A/C Cord

Scan Engine:

Extended Range

Accessories:

Included

$1265.31

LI3678-ER3U42A0S1W

LI3678-ER RUGGED FIPS STANDARD CRADLE USB (NO LINE CORD) KIT: LI3678-ER2F003VZWW SCANNER, CBA-U42-S07PAR SHIELDED USB CABLE, STB3678-C100F3WW CRADLE, PWR-BGA12V50W0WW P/S, CBL-DC-451A1-01 DC Cord, A/C Cord Not Included

Scan Engine:

Extended Range

Accessories:

Included - No US Line Cord

$1256.00

LI3678-SR3U42A0S1W

LI3678 Ultra Rugged Cordless Linear Imager Kit, Green, Standard Range, Cordless, Includes Cradle & Power Supply, USB Interface, International Model - Order Appropriate Country Line Cord Separately

Accessories:

Included - No US Line Cord

Scan Engine:

Standard Range

$1049.00

LI3678-SR0F003VZWW

LI3678 Ultra Rugged Cordless Linear Imager, Green, Standard Range, Cordless, **Requires Cradle and Cable**

Scan Method:

1D Imager

Accessories:

Not Included

Scan Engine:

Standard Range

$649.92

Outlet Items

Zebra LI3678

Zebra LI3678 Ultra Rugged Cordless Linear Imager (Renewed, Like New). Bluetooth, USB, RS232, Keyboard Wedge. (LI3678-SR0F003VZWW) CID: 4554

Item Number: LI3678-SR0F003VZWW

1 Like New Available

CID: 4554

$545.00

Shop LI3678 Accessories

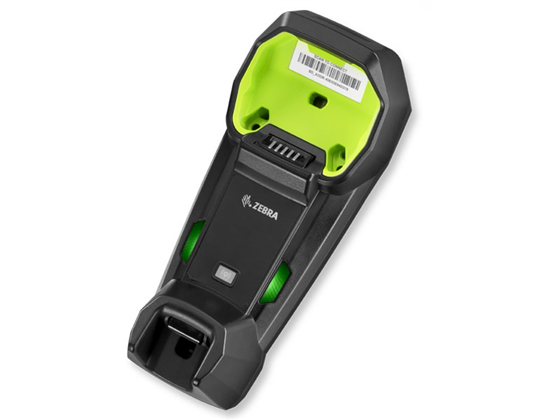

STB3678-C100F3WW

Standard Bluetooth Cradle for 3678 Family Scanners. Cradle Only. Order Power Supply & Line Cords Separately (PWR-BGA12V50W0WW, 23844-00-00R, and CBL-DC-375A1-01)

$418.90

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$17.94

FLB3678-C100F3WW

Forklift Cradle for 3678 Scanners, Sealed IP64 Rated, Bluetooth, Multi Interface. Purchase Mounting Bracket Separately. (BRKT-MM0036W-00)

$514.40

PWR-BGA12V50W0WW

Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.

$82.33

CBL-DC-388A1-01

7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW

$16.32

BTRY-36IAB0E-00

Spare Battery For Zebra 36XX Family Scanners. 3150 mAh. PowerPrecision Plus. Batteries Must be Shipped via Ground Shipping.

$119.77

SAC3600-4001CR

4 Slot Battery Charger for 3600 Series Battery; Power Supply & AC Line Cord Required - Order Separately (AC Line Cord CBL-DC-388A1-01 and Power Brick PWR-BGA12V50W0WW)

$466.40

BRKT-MM0036W-00

Forklift Mounting Bracket for DS3600 Cradle. Purchase Cradle (FLB3678-C100F3WW) Seperately.

$119.77

21-52612-01R

Forklift Holder for Zebra DS3X78 & LS3X78 Industrial Barcode Scanners

$198.68

CBL-DC-451A1-01

DC Line Cord for Zebra DS3600 Barcode Scanners. 1.5 Meters. Used along with Power Supply PWRBGA12V50W0WW. Not compatible for charging 4-Slot Battery Charger

$33.82

CBA-U42-S07PAR

Shielded Powered USB Cable for Zebra Barcode Scanner: Series A Connector, 7ft. Straight. Filter Adapter Cable (CBL-36-453A-01) required if using DC Line Cord (CBL-DC-375A1-01) or legacy PWRS-14000-148R power supply on STB/FLB cradles

$67.21

CBA-R07-S07PAR

Zebra RS232 Cable. DB9 Female, TxD on 2, 7ft. Straight. Requires 12V External Power Supply

$67.21
