Zebra KC50 Android Kiosk Computer

Name: Zebra KC50 Android Kiosk Computer
Brand: Zebra
Price: 1581.25 USD
Availability: InStock

Images may not reflect the actual product

A modular Android kiosk platform built for business

The Zebra KC50 is the intelligent core of the Zebra Kiosk System, combining a large touch display, enterprise Android, flexible mounting and modular peripherals in one purpose-built platform. Configure it for self-service, assisted checkout, information, wayfinding or digital-display workflows.

Choose a 15.6-inch or 21.5-inch full-HD display, then add the stand, mount, TD50 secondary display and Z-Flex scanner your deployment requires. Zebra DNA tools simplify staging, security and lifecycle management.

See how the modular Zebra Kiosk System adapts to different customer experiences.

Key Specifications

Processor: Qualcomm 5430 octa-core, 2.1 GHz
Memory and storage: 6 GB/64 GB or 8 GB/128 GB by configuration
Display and touch: 15.6-inch or 21.5-inch FHD multi-touch display, 300 nits
Operating system: Android with GMS; upgrade path through Android 16
Ports and connectivity: Wi-Fi 6E, Bluetooth 5.3, NFC, Ethernet and USB; PoE on selected configurations

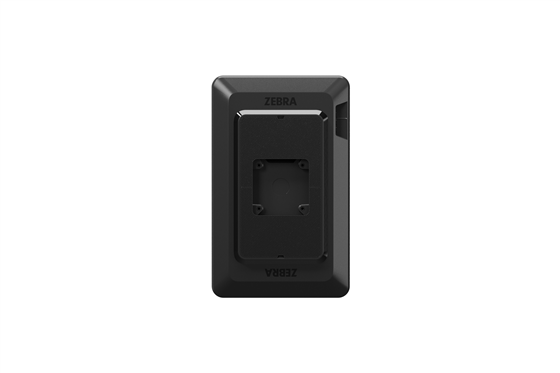

Mount / stand: VESA 75 and VESA 100; wall, floor, counter and desktop options
Peripheral options: Z-Flex SE4720 1D/2D scanner, TD50 secondary display and printer/payment enclosures
Serviceability: Modular covers and peripherals; Zebra DNA deployment and management tools
Dimensions and weight: Vary by 15.6-inch or 21.5-inch configuration
Warranty: Zebra limited hardware warranty

In the Box

KC50 kiosk computer, according to selected configuration
Two back covers
Four M4 screws and size 3 hex key
Regulatory Guide

Power supply, AC cord, mount or stand and optional peripherals are sold separately unless the selected option explicitly states they are included.

Build the kiosk you need

One platform, many experiences

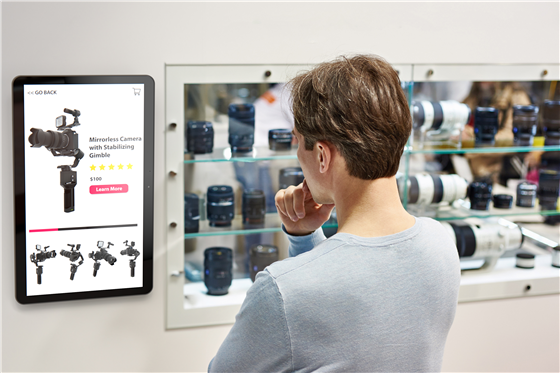

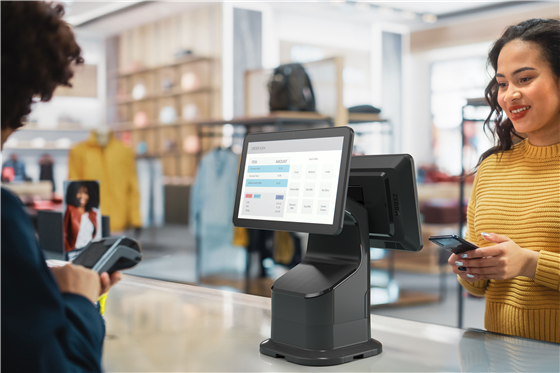

The KC50 can anchor self-checkout, loyalty, ordering, employee-assistance and information applications. The modular design lets organizations standardize the computing platform while changing the physical experience by location.

Purpose-built data capture

Add the Z-Flex scanner for fast 1D/2D, OCR and Digimarc capture, or use NFC for contactless interactions. Camera, haptic feedback and PoE vary by configuration.

Flexible installation and management

Mount almost anywhere

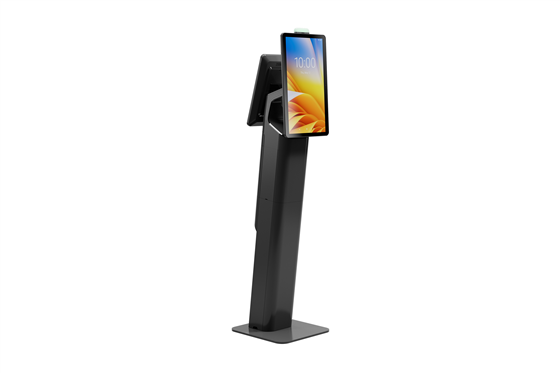

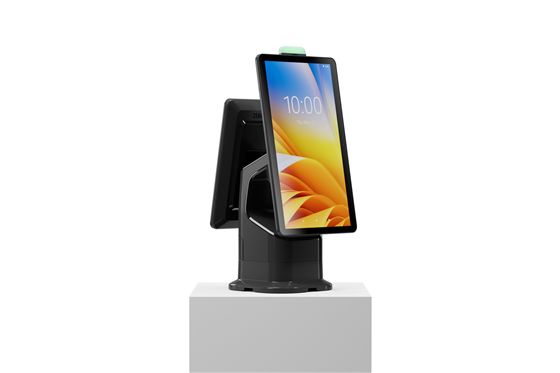

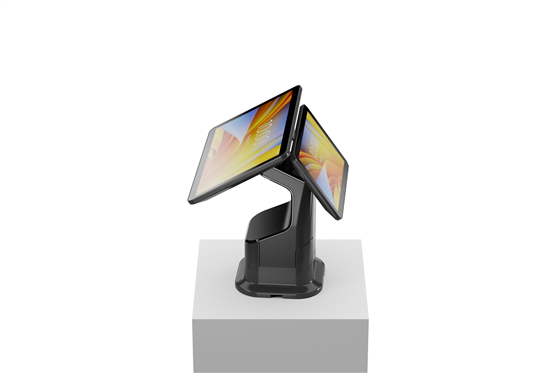

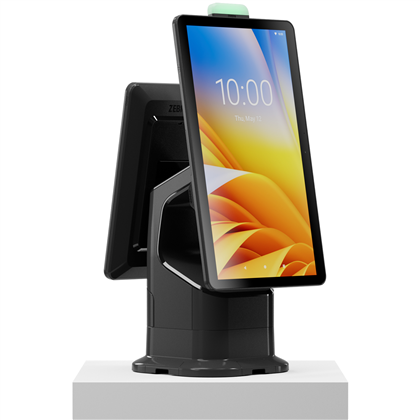

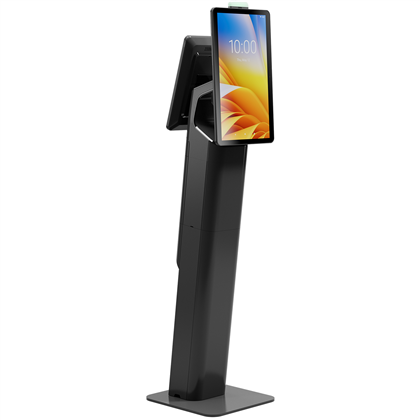

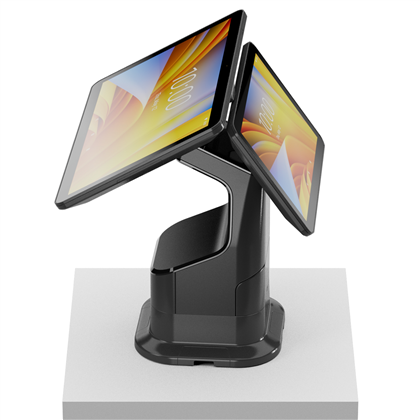

VESA mounting plus Zebra floor, counter and desktop stands support a broad range of footprints. The optional TD50 can present customer-facing information on the opposite side of the kiosk.

Enterprise Android

Zebra DNA tools help teams stage, secure, manage and support a fleet of kiosks while the sealed IP65 front withstands demanding public environments.

Dimensions

15 in: 15.17 in L x 9.43 in W x 1.51 in H

15 in: (385.2mm L x 239.4mm W x 38.3mm H)

22 in: 20.35 in L x 12.56 in W x 1.70 in H

22 in: (516.8mm L x 319.0mm W x 43.3mm H)

Weight

15 in: 5.7 lbs (2.6kg)

22 in: 11.6 lbs (5.3kg)

Display

22 in: 21.5 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel

15 in: 15.6 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel

Touch Panel

2.0mm thick Alkali-Aluminosilicate chemically strengthened cover glass; fingerprint resistant antismudge coating; multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately)

Expansion

MicroSD card supports up to 2 TB

Connectivity

USB-C with DP ALT Mode for secondary display

Network Connections

WLAN (Wireless Local Area Networks) 10/100/1000 Ethernet via RJ45 connector

Notifications

Audible tone; haptic feedback; optional Z-Flex multi-color LED bar accessory, Power LED

Keypad

On-screen keypad and enterprise keyboard

Audio

Two microphones with noise cancellation; Dual 1W speakers

Buttons

Power and volume up/down buttons

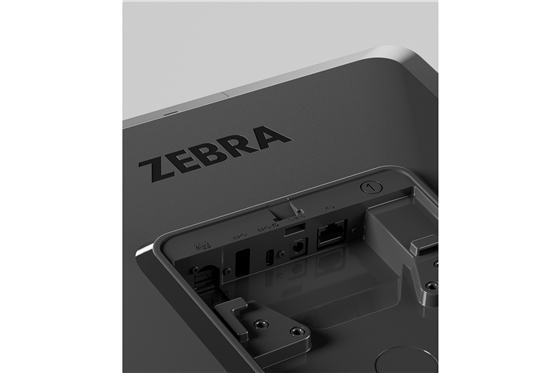

Interface Ports

Ethernet RJ45; USB Type A 3.0 Superspeed Host Port; GPIO connector for future expansion with USB 2.0 Host Port

Scanner Support

Support for external USB and Bluetooth Scanners

Mounting and Stands

VESA 100 or VESA 75 mounting Optional accessories: TD50 15-inch secondary display; Z-Flex SE4720 decoded scanner; Z-Flex Multi-Color LED light bar; desktop/floor/countertop stand accessories with support for printer box, height risers

CPU

Qualcomm® 5430 Octa Core chipset 2.1 GHz

Operating System

Upgradeable to Android 16

Memory

Up to 8 GB RAM/128 GB UFS Flash

Sealing

IP65 per IEC 60529

Power

24 VDC Zebra PSU: PWR-BGA24V78W4WW

Power profiles: includes predefined or customized configurations for main display brightness, external display connection, speaker, Wi-Fi, Bluetooth, USB and GPIO connectors to meet different power allocations

Power over Ethernet: 30W to 90W PSE; IEEE 802.3at/bt; capable of receiving a maximum power of 71 watts from a compliant PoE power supply (support for Class 4 through 8)

Motion Sensor

3-axis gyroscope; 3-axis accelerometer

Scanning

Optional SE4720 1D/2D decoded imager Z-Flex Accessory

Front Camera

5 MP

Radio

IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6

Data Rates

2.4 GHz: 802.11b/g/n/ax — 20 MHz — up to 286.8 Mbps;

5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps;

6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps

Bluetooth

Class 2, Bluetooth v5.3 with Bluetooth Low Energy (BLE)

NFC

Center of Display front facing; ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support, ECP1.0 and ECP2.0 polling support, NFC Forum Compliant, Google Smart Tap certified, Apple VAS ready

Shop KC50 Android Kiosk Computer Models

KC50E22-G0A200-NA

KC50 Kiosk Computer 22", Wifi, Android GMS, 6GB/64GB, No Camera. Does not include POE & Haptic Vibrator.

$1644.50

KC50A15-G0B1C0-NA

KC50 Kiosk Computer 15", Wifi, Android GMS, 8GB/128GB, Front Facing Camera. Includes POE & Haptic Vibrator.

$1834.25

KC50E15-G0A200-NA

KC50 Kiosk Computer 15", Wifi, Android GMS, 6GB/64GB, No Camera. Does not include POE & Haptic Vibrator.

$1581.25

KC50A22-G0B1C0-NA

KC50 Kiosk Computer 22", Wifi, Android GMS, 8GB/128GB, Front Facing Camera. Includes POE & Haptic Vibrator.

$1960.75

Shop KC50 Android Kiosk Computer Accessories

ZFLX-SCNR-E00

Z-Flex Scanner, SE4720

$435.92

PWR-BGA24V78W4WW

AC/DC Power Supply. 5.5/2.5 PLUG. AC INPUT: 100-240V, 1.4ADC OUTPUT: 24V, 3.25A, 78W. Requires: Country Specific Grounded AC Line Cord

$114.40

Z1AE-KC50XX-3C00

Zebra EVM, Onecare Service, KC50XX, Essential, Purchased Within 30 Days of Hardware, 3 Year, Comprehensive, STD. Logistics, Dashboard

$318.35

CBL-EC5X-USBC3A-01

USB-C To USB-C Communications And Charging Cable 1.2M Long; Support 3.0 Superspeed And Fast Charge

$21.00

3PTY-SC-2000-R1-01

Zebra EVM/EMC, Kiosk Stand Riser, KC50 Compatible

$420.25

3PTY-SC-2000-CF2-01

Kiosk Countertop Stand, Dual Display Mount With Countertop Height Base. Please Note, Comes With Rear Facing Display Mount

$720.26

ZFLX-LTBAR-200

Z-Flex Light Bar, Two Sided, RGB

$99.45

3PTY-SC-2000-CF1-01

Kiosk Countertop Stand, Single Display Mount With Countertop Height Base. Please Note, Does Not Come With Rear Facing Mount

$743.60

3PTY-SC-2000-PB1-01

Kiosk Floor Stand, Single Display Mount With Pedestal Base. Riser Or printer Box Sold Separately - Required For Full Height.

$1717.67

3PTY-SC-2000-PE-02

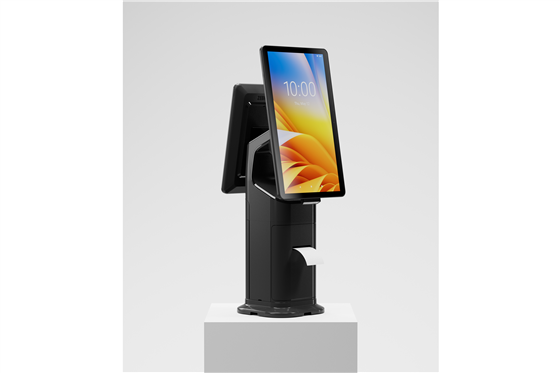

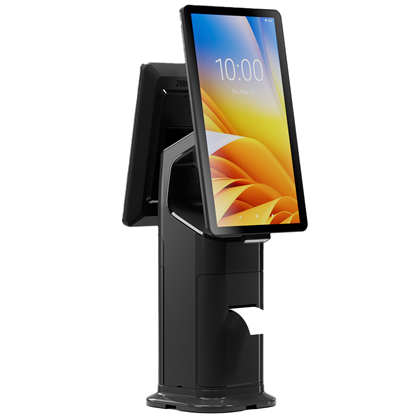

Kiosk Stand Printer Enclosure, KC50 compatible. Epson T-88VII compatible

$536.98

3PTY-SC-2000-PB2-01

Kiosk Floor Stand, KC50 compatible, Dual Display Mount With Pedestal Base. Riser Or Printer Box Sold Separately - Required For Full Height.

$1826.90

3PTY-SC-2000-PA-01

Kiosk Stand Payment Mount Bracket, KC50 compatible.

$210.13

TD50-15F0

TD50 Customer Facing Touch Display 15", Full HD

$574.45
