Zebra KC401

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

Deliver guided self-service wherever customers and frontline teams need it

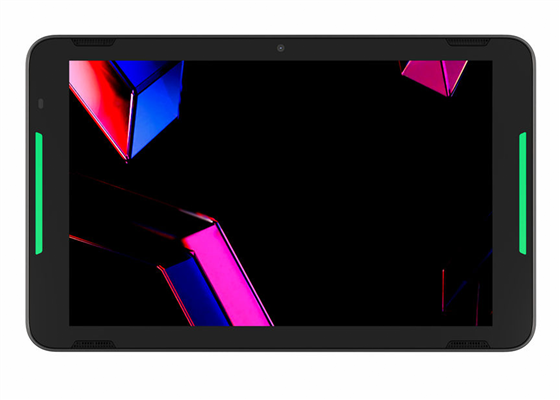

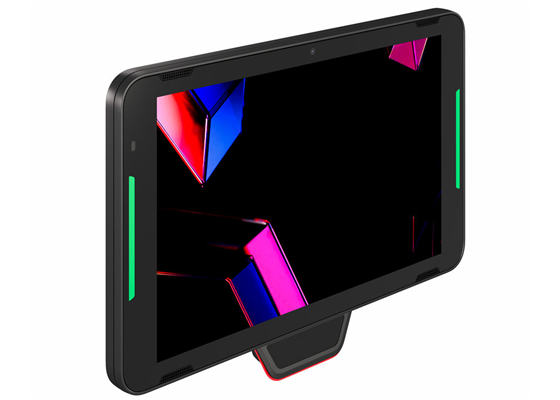

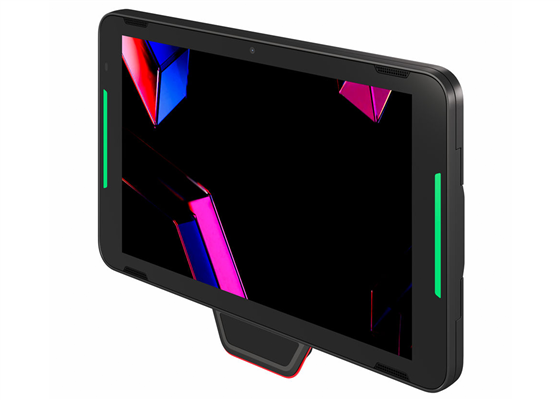

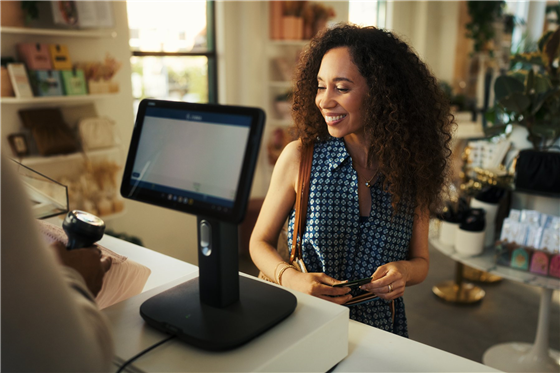

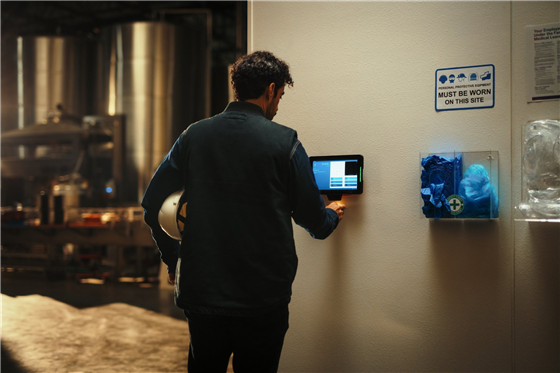

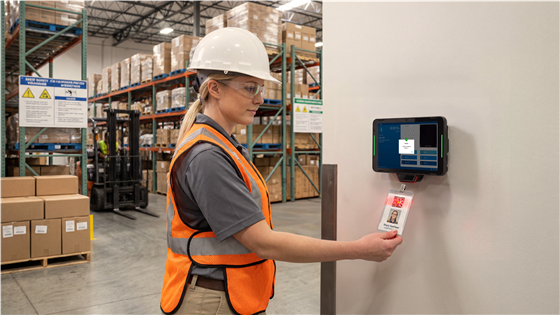

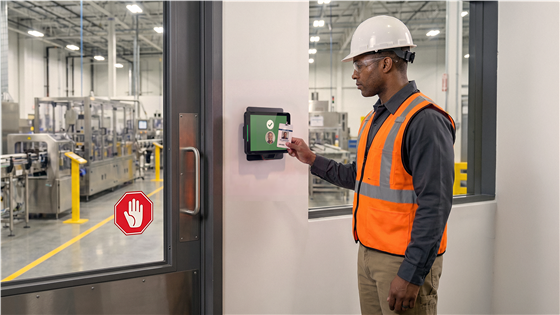

The Zebra KC401 is a compact 10.1-inch Android kiosk for price checks, loyalty, ticketing, access, returns, check-in and employee workflows. A bright touch display, programmable LED light bars, NFC and optional enterprise scanning make each interaction clear and responsive.

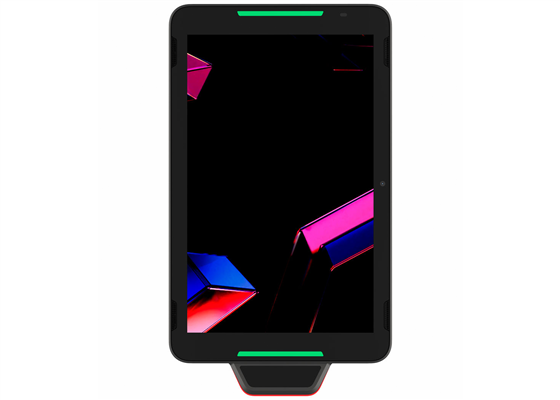

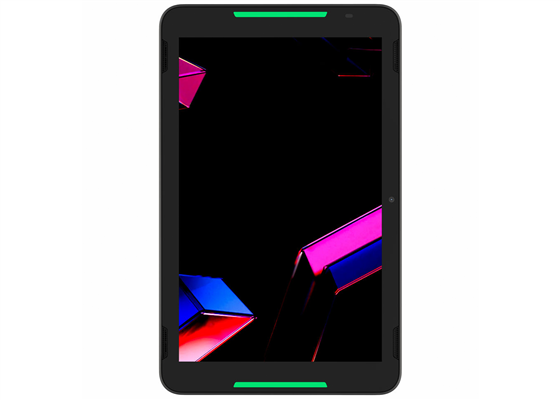

Designed as a drop-in upgrade for Zebra CC6000 installations, the KC401 supports portrait or landscape use, VESA mounting, Wi-Fi 7, Gigabit Ethernet and PoE+ for flexible deployment with less infrastructure change.

Key Specifications

  • Processor: Qualcomm Dragonwing Q-6690, up to 2.0 GHz
  • Memory and storage: 6 GB LPDDR5 RAM, 64 GB UFS 2.2 flash; microSD up to 2 TB
  • Display and touch: 10.1-inch WXGA 1280 x 800 display, 300 nits, capacitive multi-touch and 9H glass
  • Operating system / platform: Android with Zebra DNA Core; LifeGuard updates require an eligible Zebra OneCare contract
  • Data capture and peripherals: 5 MP front camera, NFC and optional SR500 1D/2D scan modules in three scan angles
  • Ports and connectivity: Wi-Fi 7, Gigabit Ethernet, Bluetooth 6.0, USB-C 2.0 and two USB-A 2.0 ports
  • Mounting / deployment: Portrait or landscape orientation with VESA mounting; Zebra 100 x 100 mount options available
  • Power: PoE+ or optional 12 V / 36 W Zebra power supply; legacy 5.4 V / 16 W supply requires an adapter and has restrictions
  • Durability / environmental range: IP65, 9H touch glass, 32°F to 104°F operation and 5% to 95% non-condensing humidity
  • Dimensions and weight: 10.35 x 6.44 x 1.43 in. and 2.03 lb without scanner in landscape orientation
  • Warranty: One-year Zebra hardware warranty

In the Box

  • KC401 10.1-inch Android kiosk computer

The standard package is device-only. Scan module, mount, DC power supply and country-specific AC line cord are sold separately unless the selected option explicitly states they are included. PoE+ can replace the DC power supply when the network meets KC401 requirements.

Make self-service intuitive

Guide each interaction

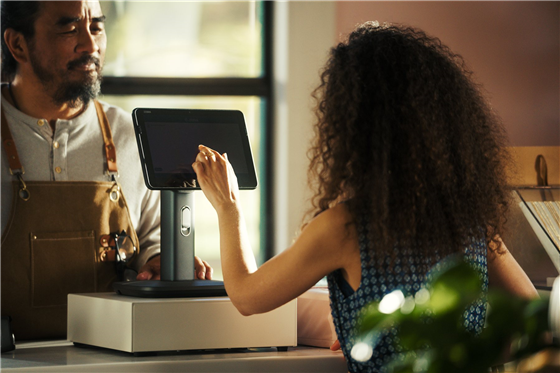

The bright touch display and programmable multi-color light bars help customers and workers move through tasks. NFC supports compatible loyalty, ticket, access and wallet interactions, including Apple VAS and Google Smart Tap; unattended SoftPOS is not supported.

Capture data without slowing down

Choose the scan angle for the workflow

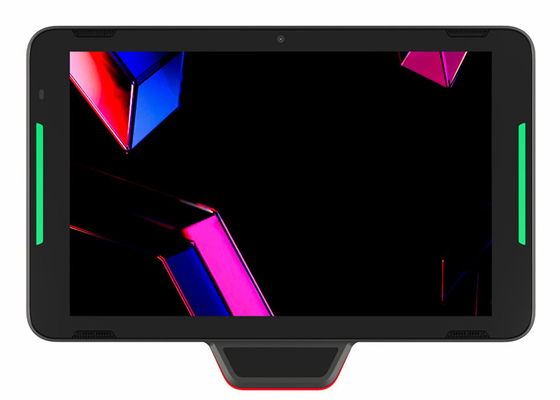

Optional field-installable SR500 modules capture 1D and 2D barcodes. Choose +25-degree, 0-degree or -25-degree scanning for front-facing, under-device or behind-device presentation in either orientation.

Deploy with less disruption

Upgrade existing CC6000 locations

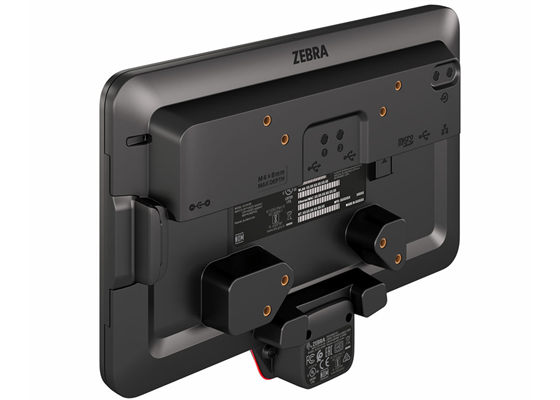

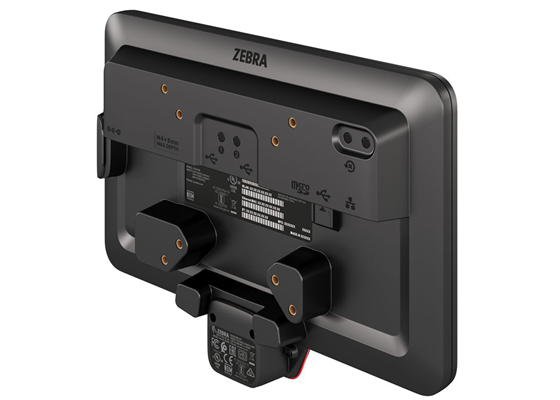

The KC401 is designed to reuse compatible CC6000 cabinetry, mounting hardware and infrastructure. VESA mounting, PoE+, Gigabit Ethernet and Wi-Fi 7 support walls, poles, counters and cabinetry without forcing one installation approach.

Keep kiosks ready for business

Protect, manage and support the fleet

IP65 sealing and scratch-resistant 9H touch glass support frequent use and cleaning. Zebra DNA tools simplify setup, security and management, while Workcloud Sync, LifeGuard and optional Zebra OneCare services can extend assistance, update control and device protection.

Dimensions
L x H x D: Without scanner: Landscape—10.35 x 6.44 x 1.43 inches (262.9 x 163.7 x 36.2 mm) Portrait—6.44 x 10.35 x 1.43 inches (163.7 x 262.9 x 36.2 mm) With scanner: Landscape—10.35 x 7.44 x 1.43 inches (262.9 x 189.0 x 36.2 mm) Portrait—6.44 x 11.35 x 1.43 inches (163.6 x 288.3 x 36.2 mm)
Weight
Without scanner: 2.03 lbs. (920 g) With scanner: 2.09 lbs. (947 g)
Display
10.1 inches (25.7 cm) WXGA 1280x800; 300 NITS
Touch Panel
Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); fingerprint resistant coating; durable touch panel glass with 9H hardness
Power
Three power options: 12 V DC / 36 W Zebra power supply (recommended); 5.4 V DC / 16 W Zebra power supply (requires an adapter cable and has restrictions); Power over Ethernet (PoE+, 30 W) RJ45 input, IEEE 802.3at/bt Class 4 or greater
Network Connections
LAN: 10/100/1000 Ethernet via RJ45 connector WLAN: Wi-Fi 7
Notifications
Audible tone; multi-color LED light bars; vibration
Keypad
Virtual; Bluetooth; USB
Voice and Audio
Stereo speakers; two microphones; audio headset support via USB or Bluetooth wireless headset; BLE compatible; VoIP including PTT support; Qualcomm® Fluence™ AI noise suppression
Buttons
Volume up/down; power/reset buttons
Interface Ports
USB Type C (USB 2.0 host or client) USB Type A (USB 2.0 x2) RJ45
CPU
Qualcomm® Dragonwing™ Q-6690 Processor up to 2.0 GHz
Operating System
Android
Memory
6 GB LPDDR5 RAM/64 GB UFS 2.2 Flash; MicroSD card supports up to 2TB
Operating Temp
+32°F to +104°F (0°C to +40°C)
Storage Temp.
-40°F to +158°F (-40°C to +70°C)
Humidity
5%-95% non-condensing
Sealing
IP65
Electrostatic Discharge (ESD)
+/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect
Vibration
Sine: 4 g’s PK(5 Hz to 2 kHz) Random: 6 g RMS (20 Hz to 2 kHz)
Thermal Shock
-40°F to +158°F (-40°C to +70°C)
Ambient Light Sensor
Automatically adjusts display brightness
Motion Sensor
3-axis gyroscope; 3-axis accelerometer
Proximity Sensor
Proximity sensor for presence detection
Scanning
Front camera scanning Optional SR500 1D/2D Scan Engine, with 0°, -25°, +25° angle SKUs available
Front Camera
5 MP; fixed focus
NFC
NFC ISO 14443 Type A and B; MIFARE, FeliCa and ISO 15693; MIFARE DESFire EV1/EV2/EV3; EMVCo RR2 compliant; NFC Forum tags 2, 3, 4 and 5; Host Card Emulation; contactless payment support; Google Wallet; Apple ECP 1.0/2.0, Apple VAS and Google Smart Tap certified; VAS Library/SDK for Apple, Google and Samsung Wallet
Bluetooth
Bluetooth Class 1, Bluetooth 6.0; Classic Bluetooth (BR/EDR) and Bluetooth LE
Wireless LAN Radio
IEEE 802.11be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w; tri-band 2.4/5/6 GHz, 2x2 MU-MIMO; Wi-Fi CERTIFIED 7; MLO; Dual Band Simultaneous and High Band Simultaneous; IPv4/IPv6; Wi-Fi Aware
Data Rates
2.4 GHz: 802.11b/g/n/ax/be, 20 MHz, up to 344 Mbps 5 GHz: 802.11a/n/ac/ax/be, 20/40/80/160 MHz, up to 2882 Mbps 6 GHz: 802.11ax/be, 20/40/80/160/320 MHz, up to 5764 Mbps
Fast Roam
802.11r Fast BSS Transition; PMK caching; Cisco CCKM; OKC
Operating Channels
2.4 GHz: channels 1-13 5 GHz: channels 36-165 6 GHz: channels 1-233 Actual channels, frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption
WPA3 Enterprise 192-bit (GCMP-256/EAP-TLS); WPA3 Enterprise (AES-CCMP-128/GCMP-256 with EAP-TTLS, EAP-TLS, PEAP, EAP-GTC and EAP-PWD); WPA3 Personal (SAE/SAE-EXT); WPA/WPA2 Enterprise and Personal; Enhanced Open (OWE); WEP 40/104-bit
Certifications
Wi-Fi CERTIFIED 7/6/6E/ac/n; WPA2 Personal/Enterprise; WPA3 Personal/Enterprise including 192-bit; Protected Management Frames; Wi-Fi Enhanced Open; WMM/WMM-Power Save/WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint
Multimedia
Wi-Fi Multimedia (WMM) and WMM-PS; TSPEC
Environmental Compliance
RoHS Directive 2011/65/EU and Amendment 2015/863; REACH SVHC 1907/2006
Warranty
One year from date of shipment, subject to Zebra hardware warranty terms
Recommended Services
Zebra OneCare SV or Zebra OneCare Essential; Zebra VisibilityIQ Foresight
Zebra DNA
Zebra DNA Core software suite for Android; feature availability varies by model and a support contract may be required
Spec Sheet
Download
Accessory Guide
Download

Shop KC401 Models

KC4010B-00101CP0-NA

KC401 Kiosk Computer 10", Wi-Fi 7, Android GMS, 6GB / 64GB, Front Camera, DNA Core, Scanner Sold Separately, North America

$1543.80

Shop KC401 Accessories

KC401-SCNR-SR0

KC401 SR500 Scan Module, 0-Degree Scan Angle

$295.00

KC401-SCNR-SR1

KC401 SR500 Scan Module, +25-Degree Scan Angle

$295.00

KC401-SCNR-SR2

KC401 SR500 Scan Module, -25-Degree Scan Angle

$234.12

PWR-BGA12V36W0WW

KC401 36 W Power Supply, 12 V / 3 A, Requires Country-Specific C5 Grounded AC Line Cord

$67.00

450040

Zebra North America C5 Grounded AC Line Cord

$14.76

KT-152096-03

KC401 / CC6000 Pole Mount Kit with Power Supply Storage

$191.63

KT-152097-03

KC401 / CC6000 Wall Mount Kit with Power Supply Shelf

$95.81

KT-152097-04

KC401 / CC6000 Wall Mount Bracket

$114.00

KT-152098-03

KC401 / CC6000 Thin Wall Mount Kit with Power Supply Shelf

$80.75

BRKT-DPA-SK1-01

PrintKiosk Mounting Bracket for Zebra ZD4/ZD6 Printers and KC401 / CC6000 Kiosks, 75/100 mm VESA

$365.36
