Custom America K3

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

Fast, dependable thermal receipt printing for busy retail and service counters.

Custom America K3 is a direct-thermal receipt printer for receipts, coupons, kitchen slips, invoices, and tickets. It supports 58 mm and 80 mm paper workflows with fast output and practical POS connectivity.

Capacitive controls simplify paper loading and cover release, while the JamFree cutter and long print-head life support dependable daily service.

Key Specifications

  • Print method: Direct thermal
  • Print speed: Up to 350 mm/s
  • Paper widths: 58 mm and 80 mm
  • Resolution: 200 dpi
  • Interfaces / connectivity: USB, serial, Ethernet, and cash-drawer port
  • Cutter and reliability: JamFree auto-cutter; 200 km print-head life
  • Platform support: ESC/POS and OPOS; Windows, macOS, iOS, and Android
  • Dimensions and weight: 5.5 x 8 x 5.8 in; 4.3 lb
  • Warranty: 4 years

In the Box

  • Custom K3 thermal receipt printer
  • AC power adapter
  • Standard or U.S. power cable, according to the selected package
  • Short guide

Interface cables, paper, and optional service plans are sold separately unless the selected option explicitly includes them.

Built for Daily Service

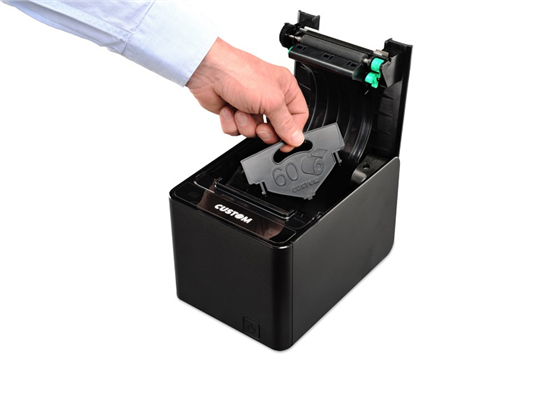

Capacitive controls help operators load paper, open the cover, and check status with minimal interruption.

Flexible Deployment

Use the K3 for counter receipts, coupons, kitchen output, invoices, and tickets where speed and standard POS interfaces matter.

Dimensions (W x D x H)
5.5" x 8" x 5.8" (140mm x 206mm x 148mm)
Weight
4.3lbs (1.98kg)
Interface Options
Serial/USB/Ethernet Standard, Wi-Fi/Bluetooth model available; 1 cash drawer port
Emulation
ESC/POSCommand Compatible,OPOS
Print Method
Direct Thermal
Max. Print Speed
13"/sec (350mm/sec)
Print Resolution
200 DPI
Sensors
Cover Open, Paper End
Print Head Life
124 miles (200Km)
Auto Cutter
JamFree auto-retracting guillotine; 2,000,000 cuts
Max Paper Width
2.2" (58mm) - 3.15" (80mm)
Max Paper Thickness
0.0024" (0.063mm) - 0.0033" (0.085mm)
Roll Diameter
Max 3.93" (100mm)
Operating Temperature
32°F to 122°F (0°C to 50°C) operating
Humidity
10% to 85% non condensing
Supported Operating Systems
Win 7, Win 8, Win 10, OPOS drivers, OSX, iOS, Android
warranty
5-year warranty with free 2-day Advance Exchange Service (US/CAN only)
Power
24 Vdc
K3 Printer Drivers
Download
K3 Spec Sheet
Download
K3 User Manual
Download
