Custom America K-Ranger
A rugged Android mobile computer for connected retail, inventory, and field work.
K-Ranger combines a 4-inch multi-touch display, 38-key alphanumeric keypad, integrated 1D/2D scanning, and 4G LTE in a handheld built for mobile workflows.
Choose the KR500-G for standard-range scanning or the KR550-G for long-range scanning. Both models provide Android 9, Wi-Fi, Bluetooth, NFC, IP65 protection, and a 5,200 mAh battery.
Key Specifications
- Operating system / support horizon: Android 9 with Google Mobile Services.
- Processor: Qualcomm Snapdragon 450 octa-core, 1.8 GHz.
- Memory and storage: 2 GB RAM and 16 GB storage; microSD support up to 128 GB.

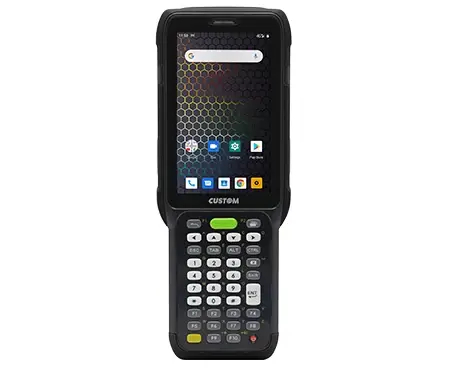

- Display and input: 4-inch 800 × 480 PCAP multi-touch display and 38-key alphanumeric keypad.
- Scan engine: KR500-G SE4750 standard range or KR550-G SE4850 long range.
- Wireless connectivity: 802.11 a/b/g/n Wi-Fi, Bluetooth 4.2, NFC, and 4G LTE.
- Ruggedness and sealing: IP65 and multiple 1.5 m drops to concrete.
- Battery / power: 5,200 mAh rechargeable lithium-ion battery.
- Form factor, dimensions and weight: Handheld; 202.4 × 77.8 × 41.6 mm; 314–349 g without battery.
- Warranty: 2 years
In the Box
- K-Ranger handheld computer
- 38-key alphanumeric keyboard
- 5,200 mAh battery
- User documentation
Charging accessories and the optional pistol grip are sold separately unless included by the selected configuration.
Scanning and Mobility
Match the Scan Range to the Job
KR500-G uses the Zebra SE4750 1D/2D engine for standard-range work. KR550-G uses the SE4850 for near/far scanning where operators need more reach.
Built for Daily Handling
Connected, Protected, and Serviceable

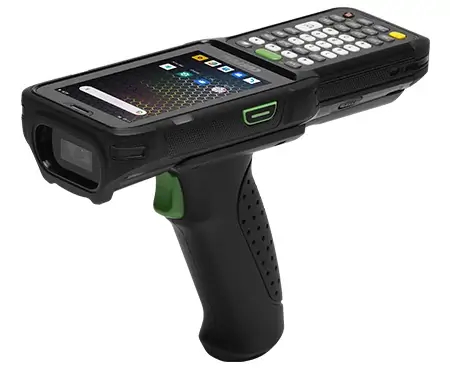

IP65 sealing, a rugged drop rating, cellular connectivity, NFC, and an attachable pistol grip support warehouse, inventory, retail, and field workflows away from fixed workstations.
Shop K-Ranger Models
995CO020200833
K-Ranger KR550 Rugged Mobile Computer — 38-Key Keypad, Zebra SE4850 Long-Range Scanner, Android 9 GMS, Wi-Fi, Bluetooth, and 4G LTE
Scan Engine:
SE4850 Long Range
995ED042600833
K-Ranger KR500 Rugged Mobile Computer — 38-Key Keypad, Zebra SE4750 Standard-Range Scanner, Android 9 GMS, Wi-Fi, Bluetooth, and 4G LTE
Scan Engine:
SE4750 Standard Range
Shop K-Ranger Accessories
996ED040000026
Four-Slot Charging Cradle for K-Ranger; power supply 996ED040000029 and AC cable 976ZZ010000021 sold separately
996ED040000029
Power Supply for K-Ranger Four-Slot Cradle 977ED040000007
977ED040000007
Four-Slot Charging Cradle for K-Ranger; power supply 996ED040000029 sold separately
48000000005500
K-Ranger Replacement Battery
977ED040000005

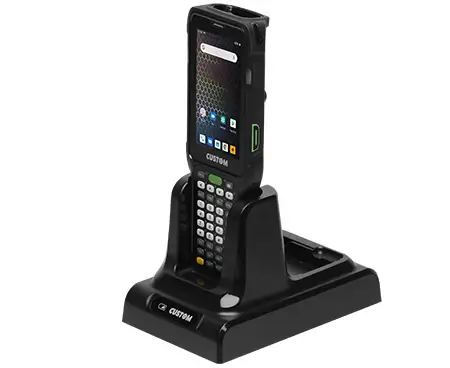

Single-Slot Cradle for K-Ranger with Backup Battery Slot; power supply 996ED040000028 and AC cable 976ZZ010000021 sold separately
996ED040000027
Card Cradle for K-Ranger with Snap-On Micro-USB Converter and Cable
996ED040000031
K-Ranger Snap-On IO to Micro USB Converter.
996ED040000036
K-Ranger Micro USB Cable
996CO020000001

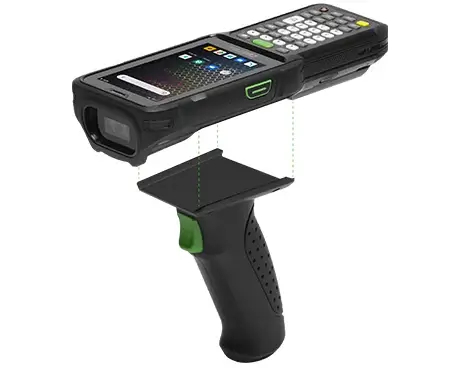

Pistol Grip for K-Ranger; camera disabled when installed
996ED040000028
K-Ranger Single Cradle Power Supply
996ED040000032
K-RANGER RUBBER BOOT KR5 SC
976ZZ010000021
Custom America AC Power Cable
