Elo TouchSystems Intel Backpack

Name: Elo TouchSystems Intel Backpack
Brand: Elo TouchSystems
Price: 1441.56 USD
Availability: InStock

Images may not reflect the actual product

Compact Intel computing for signage, self-service and embedded systems.

Elo’s Intel Backpack pairs a small commercial computer with your choice of external display. Select Intel N97, Core 3 N355 or Core Ultra 5 135U processing, with Windows 11 IoT Enterprise LTSC or no operating system.

Wi-Fi 6E, Gigabit Ethernet and a broad mix of display and USB connections support deployments across screen sizes. Serviceable internal components and the integrated 100 mm VESA pattern simplify installation and maintenance.

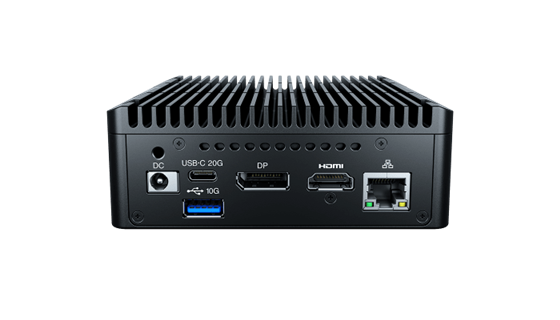

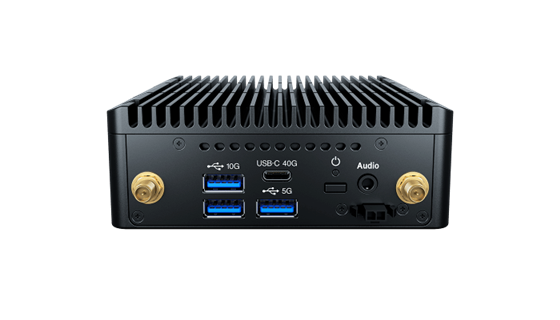

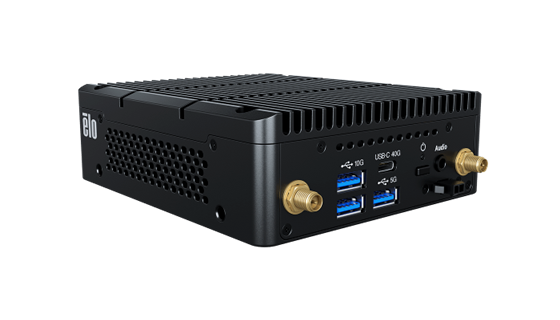

Elo Intel Backpack computer, Core Ultra 5 configuration shown; ports vary by processor

Key Specifications

Processor: Intel N97, Core 3 N355 or Core Ultra 5 135U
Memory / storage: 8–16GB DDR5; 128–256GB NVMe SSD, configuration dependent
Display / touch: External display required; HDMI, DisplayPort and USB-C video
Operating system: Windows 11 IoT Enterprise LTSC 64-bit or No OS
Connectivity: Gigabit LAN, Wi-Fi 6E and Bluetooth 5.3
Ports: 4 USB-A, 2 full-function USB-C and 3.5 mm headset; USB speeds vary by processor
Mount / stand: 100 mm VESA pattern and included side brackets
Peripheral options: External displays and USB peripherals; compatibility depends on the peripheral
Serviceability: Accessible internal components; replaceable clock battery
Power: 19V DC; included 90W external adapter
Environment: 0–40°C operation; specified airflow required
Dimensions / weight: 139.1 × 113.75 × 43.66 mm; 0.97 kg device
Warranty: 3 years

In the Box

Selected Intel Backpack computer
90W power adapter and NA/EU power cords
USB Type-C cable, approximately 6 ft
Two SMA antennas and Quick Installation Guide
Two side mounting brackets, four M4 × 5 mm screws and four M4 × 40 mm screws

A commercial platform across displays

Use the same compact computing architecture across digital signage, self-service, kitchen displays and automation controls. N97 and Core 3 configurations support up to three simultaneous displays.

Flexible placement and control

Mount the computer behind a display, on a counter or inside a kiosk using its integrated 100 mm VESA pattern or brackets. The remote power-button connection provides on/off control when the computer is installed out of reach.

Product type

Elo Intel Backpack compact commercial computer; external display required

Enclosure color

Black

Operating system

No OS or Microsoft Windows 11 IoT Enterprise LTSC 64-bit, as selected; No OS configurations do not include a Windows license

Languages

Windows 11 configurations: 36 language groups

Processor

E345165/E345569: Intel N97, 6MB cache, up to 3.6GHz; E345966/E346150: Intel Core 3 N355, 6MB cache, up to 3.9GHz; E346334/E346532: Intel Core Ultra 5 135U, 12MB cache, up to 4.4GHz

Graphics

N97: Intel UHD Graphics; Core 3 N355 and Core Ultra 5 135U: Intel Graphics

BIOS

AMI; Secure Boot enabled by default

Installed memory

N97: 8GB DDR5-4800 SO-DIMM; Core 3 N355: 16GB DDR5-4800 SO-DIMM; Core Ultra 5 135U: 16GB DDR5-5600 SO-DIMM

Memory expansion

N97/Core 3: one slot, 16GB maximum. Core Ultra 5: two slots, one occupied, 64GB maximum using both slots. Verify the installed memory brand before purchasing a memory kit

Storage

N97: 128GB M.2 PCIe NVMe SSD, 80 TBW; Core 3/Core Ultra 5: 256GB M.2 PCIe NVMe SSD, 160 TBW. Accessible capacity may be less

Display connections

One HDMI, one DisplayPort and two full-function USB-C with DisplayPort. N97/Core 3 support a maximum of three simultaneous displays

USB-A ports

N97/Core 3: two USB 3.2 Gen 2, one USB 3.2 Gen 1 and one USB 2.0. Core Ultra 5: three USB 3.2 Gen 2 and one USB 3.2 Gen 1

USB-C ports

N97/Core 3: two USB 3.2 Gen 2x1. Core Ultra 5: one USB4 Gen 3x2 and one USB 3.2 Gen 2x2. All are full-function with DisplayPort and up to 15W (5V/3A) output

Ethernet

One Gigabit RJ45 LAN port

Audio

One 3.5 mm headset jack

Wireless

Wi-Fi 6E, IEEE 802.11a/b/g/n/ac/ax, 2.4/5/6GHz; Bluetooth 5.3

Antenna

2T2R design with external SMA connectors; two antennas included

TPM

TPM 2.0

Remote management

Intel Active Management Technology and vPro support on Core Ultra 5 135U configurations only

Controls

Power button and remote power-button port

Power supply

External 19V DC, 90W universal adapter; 100–240V AC input, 50–60Hz

Typical power consumption

Without peripherals: N97 21W, Core 3 25.5W, Core Ultra 5 26W; sleep below 2W; off below 1W with BIOS EUP disabled, below 0.5W with EUP enabled

Dimensions

139.1 × 113.75 × 43.66 mm (5.48 × 4.48 × 1.72 in)

Device weight

0.97 kg (2.14 lb)

Individual shipping dimensions

379 × 207 × 82 mm (14.92 × 8.15 × 3.23 in)

Manufacturer packaged weight

Individual system: 2.27 kg (5.01 lb), per Elo data sheet; fulfillment weight may differ by distributor packaging

Carton dimensions / weight

Six systems per carton: 441 × 270 × 413 mm; 14.55 kg (32.08 lb)

Operating temperature

0–40°C (32–104°F). Manufacturer thermal qualification uses 0.5 m/s airflow and CPU minimum assured power condition; remove protective side film before use

Storage temperature

−20–60°C (−4–140°F)

Humidity

Non-condensing: operating 10–90% RH; storage 0–95% RH, 38.7°C maximum wet-bulb temperature

Mounting

Table mounting with included side brackets and screws, or 100 mm VESA mounting

Real-time clock

Replaceable CR2450 lithium-metal coin-cell battery

Security / service

Kensington Nano Security Slot; serviceable internal components

Regulatory
