Zebra Industrial Ribbon
Description
Specifications
Download

Zebra Industrial Ribbon

Images may not reflect the actual product
Product Image
small product image0

Zebra industrial thermal transfer ribbons

Choose 2000 or 2100 wax, 3200 or 5586 wax/resin, or 5095 resin to match your thermal transfer labels and operating conditions. These black industrial ribbons have a 1-inch core and 450 m length, with widths and package quantities varying by option.

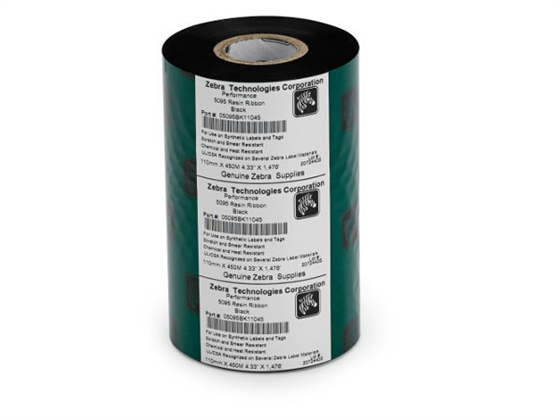

Representative Zebra industrial ribbon rolls

Representative ribbon image. Width and package quantity vary by option.

Key Specifications

  • Print method: Thermal transfer
  • Color: Black
  • Core: 1 in. inside diameter
  • Length: 450 m (1,476 ft) per roll
  • Widths: 1.57 to 8.66 in.; select the width supported by your printer
  • Compatibility: Industrial thermal transfer printers supporting the selected ribbon width, 1-inch core and 450 m roll
  • Warranty: 1 year; recommended storage conditions required

In the Box

  • 3200, 5586 and 5095: 6 rolls per case
  • 2100 cases: 12 rolls
  • 2000 cases: 24 rolls; 02000BK22045 contains 12 rolls
  • Options ending -EA: 1 ribbon roll

2000 and 2100 wax

Paper-label applications include shipping, receiving, inventory and retail. The 2100 formulation supports high-volume printing on coated and uncoated paper.

3200 and 5586 wax/resin

Both formulations work with coated paper and matte synthetics. They provide smear and scratch resistance; select the ribbon and label combination for the intended chemical exposure.

5095 resin

Designed for matte and gloss synthetics, including small fonts, graphics and rotated barcodes. Chemical resistance varies by substance and label material.

Consistent formulations

Zebra tests ribbons for print quality, durability and printhead performance. Its zero-substitution policy maintains the same formulation for repeat orders.

Print method
Thermal transfer
Ribbon core
1 in. inside diameter
Ribbon length
450 m (1,476 ft) per roll for all listed options
Ink color
Black
Base film
Polyester; 4.5 microns across 2000, 2100, 3200, 5586 and 5095
Scanning
Infrared and visible light
2000 total caliper
6.8 microns +/-10%
2100 total caliper
8 microns
3200 total caliper
8.6 microns +/-10%
5586 total caliper
7.2 microns +/-10%
5095 total caliper
6.5 microns +/-10%
2000 formulation and applications
Wax; coated paper; general labeling, shipping, inventory, warehousing and retail
2100 formulation and applications
Wax; coated and uncoated paper; high-volume manufacturing, distribution and print-and-apply
3200 formulation and applications
Wax/resin; coated paper and matte synthetics; abrasion, solvents, chemical drums and demanding outdoor applications
5586 formulation and applications
Wax/resin; coated paper and matte synthetics; smear/scratch resistance in moderately harsh environments
5095 formulation and applications
Resin; matte/gloss synthetics; small fonts, graphics, rotated barcodes and chemical/temperature resistance
2000 storage
72 F (22 C), 50% RH; expected shelf life 1 year
2100 storage
5 to 35 C, 20 to 80% RH
3200 storage
72 F (22 C), 50% RH; expected shelf life 1 year
5586 storage
72 F (22 C), 50% RH; shelf life 1 year
5095 storage
23 to 104 F (-5 to 40 C), 20 to 85% RH; 1 year duration
2000 print speed qualification
2026 catalog states up to 12 ips; 2025 sheet headline states up to 14 ips and generic wax guidance says 10 ips. Final speed depends on printer, media and application validation.
2100 normal barcode performance
10/12 mil: coated paper 12 ips, typical ANSI A; matte synthetics 10 ips, A; uncoated paper 6 ips, B
2100 rotated barcode performance
15 mil: coated paper 8 ips, typical ANSI B; matte synthetics 6 ips, B
2100 chemical performance
Glass cleaner with ammonia, Formula 409 and 90% IPA: ANSI B or better; brake fluid, Gunk degreaser and WD-40: ANSI C-F
2100 manufacturer life statement
Sheet labels 1 year as Expected Exterior Life; this is not a blanket outdoor durability or warranty guarantee.
3200 UL recognized combinations
Z-Xtreme 4000T White/Silver and High-Tack White/Silver; Z-Xtreme 2000T White/Silver/Clear; Z-Supreme 3000T White
5586 UL certified combinations
Z-Xtreme 4000T White/Silver and High-Tack White/Silver; Z-Xtreme 2000T White/Silver/Clear (UL only)
5095 UL/cUL combinations
Z-Ultimate 3000T White/Silver/Yellow/High-Tack; Z-Ultimate 2500T White; Z-Xtreme 4000T White and White/Silver High-Tack; 8000T Void Matte
5095 barcode performance
Synthetic facestock: 10/12 mil normal barcode up to 8 ips, typical ANSI A; 15 mil rotated up to 6 ips, typical ANSI B
5095 chemical test method
Z-Xtreme 4000T White; Crockmeter 10 cycles (20 rubs)
5095 good chemical resistance
Ammonia glass cleaner, Formula 409, motor oil, Gunk degreaser, WD-40, hexane, 90% IPA
5095 chemicals requiring testing
Brake fluid and gasoline
5095 chemicals not recommended
Skydrol, Genesolv, Rho-Tro, xylene, acetone
2000 listed compliance
REACH/SVHC 1907/2006/EC; EU food contact 1935/2004/EC; US FDA food contact; RoHS/heavy metals 2011/65/EU; California Proposition 65; halogens IEC 61249-2-21:2003
2100 listed compliance
REACH/SVHC; RoHS; Dodd-Frank conflict minerals; California Proposition 65; FDA 21 CFR 175.300 indirect food contact; EC1935/2004; LFGB; halogen-, latex-, animal derivative- and BP-free
5095 listed compliance
REACH/SVHC; EC1935/2004 food contact; FDA food contact; RoHS/heavy metals; halogens IEC61249-2-21; UL969; BS5609. Match certified label/ribbon combination.
03200BK06045 configuration
3200 Wax/Resin; 2.36 in. (60 mm) wide; 6 roll(s) per POSGuys sale unit
03200BK08045 configuration
3200 Wax/Resin; 3.15 in. (80 mm) wide; 6 roll(s) per POSGuys sale unit
05586BK08345 configuration
5586 Wax/Resin; 3.27 in. (83 mm) wide; 6 roll(s) per POSGuys sale unit
03200BK08945 configuration
3200 Wax/Resin; 3.50 in. (89 mm) wide; 6 roll(s) per POSGuys sale unit
03200BK10245 configuration
3200 Wax/Resin; 4.02 in. (102 mm) wide; 6 roll(s) per POSGuys sale unit
03200BK11045 configuration
3200 Wax/Resin; 4.33 in. (110 mm) wide; 6 roll(s) per POSGuys sale unit
02000BK04045 configuration
2000 Wax; 1.57 in. (40 mm) wide; 24 roll(s) per POSGuys sale unit
02000BK06045-EA configuration
2000 Wax; 2.36 in. (60 mm) wide; 1 roll(s) per POSGuys sale unit
02100BK08045-EA configuration
2100 Wax; 3.15 in. (80 mm) wide; 1 roll(s) per POSGuys sale unit
02000BK08345-EA configuration
2000 Wax; 3.27 in. (83 mm) wide; 1 roll(s) per POSGuys sale unit
02000BK08345 configuration
2000 Wax; 3.27 in. (83 mm) wide; 24 roll(s) per POSGuys sale unit
02100BK08945 configuration
2100 Wax; 3.50 in. (89 mm) wide; 12 roll(s) per POSGuys sale unit
02000BK10245 configuration
2000 Wax; 4.02 in. (102 mm) wide; 24 roll(s) per POSGuys sale unit
02100BK10645 configuration
2100 Wax; 4.16 in. (106 mm) wide; 12 roll(s) per POSGuys sale unit
02000BK11045-EA configuration
2000 Wax; 4.33 in. (110 mm) wide; 1 roll(s) per POSGuys sale unit
02000BK11045 configuration
2000 Wax; 4.33 in. (110 mm) wide; 24 roll(s) per POSGuys sale unit
02000BK13145 configuration
2000 Wax; 5.16 in. (131 mm) wide; 24 roll(s) per POSGuys sale unit
05095BK15445 configuration
5095 Resin; 6.06 in. (154 mm) wide; 6 roll(s) per POSGuys sale unit
02100BK15645 configuration
2100 Wax; 6.16 in. (156 mm) wide; 12 roll(s) per POSGuys sale unit
02000BK22045 configuration
2000 Wax; 8.66 in. (220 mm) wide; 12 roll(s) per POSGuys sale unit
05095BK04045 configuration
5095 Resin; 1.57 in. (40 mm) wide; 6 roll(s) per POSGuys sale unit
05095BK06045 configuration
5095 Resin; 2.36 in. (60 mm) wide; 6 roll(s) per POSGuys sale unit
05095BK08345 configuration
5095 Resin; 3.27 in. (83 mm) wide; 6 roll(s) per POSGuys sale unit
05095BK08945 configuration
5095 Resin; 3.50 in. (89 mm) wide; 6 roll(s) per POSGuys sale unit
05095BK11045 configuration
5095 Resin; 4.33 in. (110 mm) wide; 6 roll(s) per POSGuys sale unit
Application suitability
Pre-test ribbon with the intended printer, label material and end-use conditions. Certification and resistance depend on the combination.
Warranty
1 year; recommended storage conditions required
Suministros Certificados de Zebra
Download
Zebra Supply Selector Guide
Download
Zebra 2000 Wax Ribbon Spec Sheet
Download
Zebra 2100 High-Performance Wax Ribbon Spec Sheet
Download
Zebra 3200 Wax/Resin Ribbon Spec Sheet
Download
Zebra 5095 Resin Ribbon Spec Sheet
Download
Zebra 5586 Wax/Resin Ribbon Spec Sheet
Download

Shop Industrial Ribbon Models

03200BK06045

(Case of 6 Rolls) Zebra 3200 Wax/Resin Ribbon, Black, 2.36 in. (60 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

2.36 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$154.10

03200BK08045

(Case of 6 Rolls) Zebra 3200 Wax/Resin Ribbon, Black, 3.15 in. (80 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

3.15 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$201.71

05586BK08345

(Case of 6 Rolls) Zebra 5586 Wax/Resin Ribbon, Black, 3.27 in. (83 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

3.27 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$236.45

03200BK08945

(Case of 6 Rolls) Zebra 3200 Wax/Resin Ribbon, Black, 3.50 in. (89 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

3.50 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$223.91

03200BK10245

(Case of 6 Rolls) Zebra 3200 Wax/Resin Ribbon, Black, 4.02 in. (102 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

4.02 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$257.41

03200BK11045

(Case of 6 Rolls) Zebra 3200 Wax/Resin Ribbon, Black, 4.33 in. (110 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

4.33 in.

# of Rolls:

6

Ribbon Type:

Wax and Resin

$278.59

02000BK04045

(Case of 24 Rolls) Zebra 2000 Wax Ribbon, Black, 1.57 in. (40 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

1.57 in.

# of Rolls:

24

Ribbon Type:

Wax

$145.25

02000BK06045-EA

(Single Roll) Zebra 2000 Wax Ribbon, Black, 2.36 in. (60 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

1

Ribbon Width:

2.36 in.

Ribbon Type:

Wax

$15.00

02100BK08045-EA

(Single Roll) Zebra 2100 Wax Ribbon, Black, 3.15 in. (80 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

1

Ribbon Width:

3.15 in.

Ribbon Type:

Wax

$33.90

02000BK08345-EA

(Single Roll) Zebra 2000 Wax Ribbon, Black, 3.27 in. (83 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

1

Ribbon Width:

3.27 in.

Ribbon Type:

Wax

$17.65

02000BK08345

(Case of 24 Rolls) Zebra 2000 Wax Ribbon, Black, 3.27 in. (83 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

24

Ribbon Width:

3.27 in.

Ribbon Type:

Wax

$296.92

02100BK08945

(Case of 12 Rolls) Zebra 2100 Wax Ribbon, Black, 3.50 in. (89 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

12

Ribbon Width:

3.50 in.

Ribbon Type:

Wax

$234.25

02000BK10245

(Case of 24 Rolls) Zebra 2000 Wax Ribbon, Black, 4.02 in. (102 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

24

Ribbon Width:

4.02 in.

Ribbon Type:

Wax

$365.28

02100BK10645

(Case of 12 Rolls) Zebra 2100 Wax Ribbon, Black, 4.16 in. (106 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

12

Ribbon Width:

4.16 in.

Ribbon Type:

Wax

$278.77

02000BK11045-EA

(Single Roll) Zebra 2000 Wax Ribbon, Black, 4.33 in. (110 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

1

Ribbon Width:

4.33 in.

Ribbon Type:

Wax

$53.01

02000BK11045

(Case of 24 Rolls) Zebra 2000 Wax Ribbon, Black, 4.33 in. (110 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

24

Ribbon Width:

4.33 in.

Ribbon Type:

Wax

$394.08

02000BK13145

(Case of 24 Rolls) Zebra 2000 Wax Ribbon, Black, 5.16 in. (131 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

24

Ribbon Width:

5.16 in.

Ribbon Type:

Wax

$467.69

05095BK15445

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 6.06 in. (154 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

6

Ribbon Width:

6.06 in.

Ribbon Type:

Resin

$693.67

02100BK15645

(Case of 12 Rolls) Zebra 2100 Wax Ribbon, Black, 6.16 in. (156 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

12

Ribbon Width:

6.16 in.

Ribbon Type:

Wax

$415.65

02000BK22045

(Case of 12 Rolls) Zebra 2000 Wax Ribbon, Black, 8.66 in. (220 mm) x 450 m (1,476 ft), 1 in. Core

# of Rolls:

12

Ribbon Width:

8.66 in.

Ribbon Type:

Wax

$393.37

05095BK04045

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 1.57 in. (40 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

1.57 in.

# of Rolls:

6

Ribbon Type:

Resin

$176.65

05095BK06045

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 2.36 in. (60 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

2.36 in.

# of Rolls:

6

Ribbon Type:

Resin

$266.60

05095BK08345

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 3.27 in. (83 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

3.27 in.

# of Rolls:

6

Ribbon Type:

Resin

$370.17

05095BK08945

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 3.50 in. (89 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

3.50 in.

# of Rolls:

6

Ribbon Type:

Resin

$399.27

05095BK11045

(Case of 6 Rolls) Zebra 5095 Resin Ribbon, Black, 4.33 in. (110 mm) x 450 m (1,476 ft), 1 in. Core

Ribbon Width:

4.33 in.

# of Rolls:

6

Ribbon Type:

Resin

$493.89
Have Questions?Call Us at: (800) 241-6264
