Elo TouchSystems I-Series 4 Android

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

Commercial Android touchcomputers for self-service, POS, price checking and interactive deployments.

The Elo I-Series 4 Android combines a commercial 10-touch display, integrated Android computing and flexible peripheral expansion in one fixed device. Choose a compact 10.1-inch, versatile 15.6-inch or large 21.5-inch configuration for the installation.

Standard and Value configurations let buyers match processor, storage, camera and display characteristics to the workload. Android 10 and Android 12 configurations are represented on this page; available software services depend on the selected configuration.

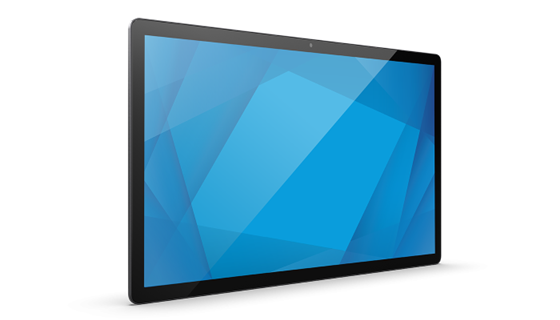

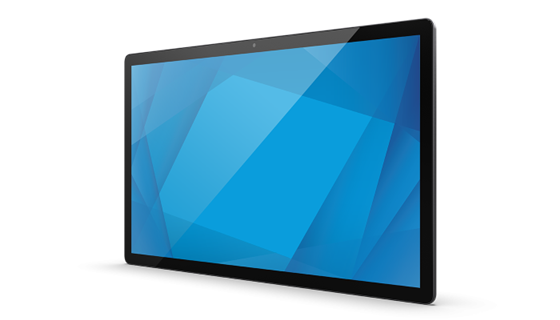

Elo I-Series 4 Android all-in-one touchcomputers

Key Specifications

  • Processor: Qualcomm Snapdragon SDA660 or Rockchip RK3399
  • Memory and storage: 4GB RAM; 64GB Standard or 32GB Value flash
  • Display and touch: 10-point PCAP touch; 10.1, 15.6 or 21.5 inches
  • Operating system: Android 10 or Android 12 with GMS, by configuration
  • Ports and connectivity: USB, USB-C, Gigabit Ethernet, GPIO, microSD, Wi-Fi and Bluetooth 5.0
  • Peripheral options: Four Elo Edge Connect ports for compatible accessories
  • Serviceability: Fixed all-in-one platform with configuration-dependent software services
  • Mounting: VESA mounting; selected kits include Elo stand E924077
  • Dimensions and weight: Vary by display size and hardware tier
  • Warranty: 2 years

In the Box

  • Selected Elo I-Series 4 Android touchcomputer
  • AC-DC power adapter and regional power cables
  • Cable-management hardware
  • Quick installation guide

Selected PGKIT configurations include stand E924077. Other compatible accessories are sold separately.

Choose the Right Display

Three installation sizes

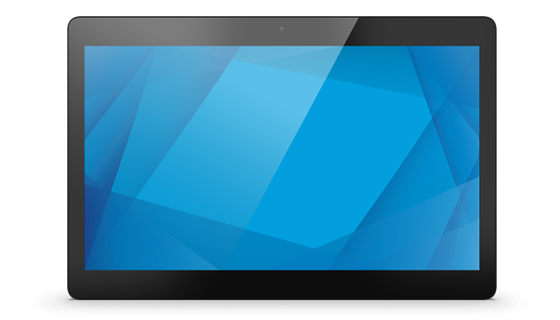

The 10.1-inch format suits compact counters and room controls. The 15.6-inch format supports POS and self-service, while 21.5 inches provides a larger interface for kiosks, signage and information applications.

Match Performance to the Job

Standard or Value hardware

Standard models pair Snapdragon processing, 64GB flash and an 8MP camera. Value models use Rockchip processing, 32GB flash and a 5MP camera for focused, cost-conscious applications.

Expand at the Edge

Purpose-built peripherals

Four Elo Edge Connect ports support compatible barcode scanning, RFID, magnetic-stripe and other workflow accessories. USB, USB-C, Ethernet, Wi-Fi, Bluetooth, GPIO and microSD support integration with business systems.

Deploy and Manage

Built for fixed commercial use

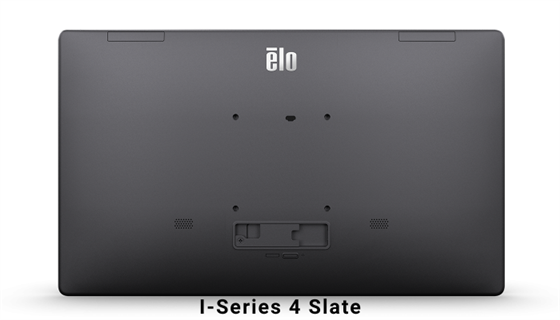

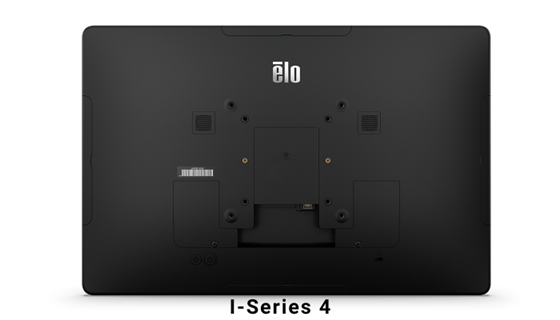

VESA mounting supports counters, walls, poles and kiosk enclosures. EloView compatibility and supported OS 360 services help organizations provision and manage eligible Android deployments across locations.

Screen Size
10-inch model
  • 10.1" (256.54mm)

    • 15-inch model
  • 15.6" (396.24mm)

    • 22-inch model
  • 21.5" (546.10mm)
    • Bezel Color
    Gray, Black
    Operating System
    Android 10 with Google Play Services and EloView content deployment and management
    Processor
  • Standard: Qualcomm Snapdragon SDA660
  • Value: Rockchip RK3399
    • Memory
    4GB
    Storage
    Standard: 64GB; Value: 32GB
    I/O Ports
  • 1x USB 3.0 support (900mA), Type C USB output, Micro SD slot, GPIO, Ethernet 1x LAN (Gigabit), DC in 4x micro-USB 2.0 Elo Edge
  • Connect ports (Support for 1.2A on one port and 500mA for the remaining three ports)
    • Wireless
    802.11a/b/g/n/ac + Bluetooth 5.0
    Webcam
  • Standard: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm;
  • Value: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
    • Speakers
    Standard: 2x 0.8W; Value: 2x 2W
    Audio
    Standard: 2x built-in Digital Microphones; Value: 1x built-in Analog Microphone
    Resolution
    10-inch model
  • Standard: 1920 x 1200 @ 60Hz
  • Value: 1280 x 800 @ 60Hz
    15-inch model & 22-inch model
  • 1920 x 1080 @ 60Hz
    • Touch Technology
    TouchPro® PCAP (Projected Capacitive) - up to 10 touches
    Aspect Ratio
    10-inch model
  • 16:10

    • 15-inch model
  • 16:9

    • 22-inch model
  • 16:9
    • Number of Colors
    8-bit (16.7M)
    Brightness
    10-inch model
  • Standard: LCD Panel: 450 nits; PCAP: 387 nits
  • Value: LCD Panel: 300 nits; PCAP: 250 nits

    • 15-inch model
  • Standard: LCD Panel: 300 nits; PCAP: 258 nits
  • Value: LCD Panel: 250 nits; PCAP: 215 nits

    • 22-inch model
  • Standard: LCD Panel: 250 nits; PCAP: 215 nits
  • Value: LCD Panel: 250 nits; PCAP: 215 nits
    • Power
    AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
    Power Consumption
  • Standard: On: 8.5W; Off: 0.4W; Sleep: 4.5W Value: On: 7.2W; Off: 0.4W; Sleep: 3.4W
  • Standard: On: 11.0W; Off: 0.4W; Sleep: 4.4W Value: On: 10.0W; Off: 0.4W; Sleep: 3.4W
  • Standard: On: 19.8W; Off: 0.4W; Sleep: 4.4W Value: On: 15.7W; Off: 0.45W; Sleep: 3.4W
    • Dimensions (W x D x H)

    10"
  • Standard: 12.6" x 6.0" x 9.3" / 320 mm x 150 mm x 235 mm
  • Value: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm
    15"
  • Standard: 17.7" x 6.5" x 13.0" / 450 mm x 165 mm x 330 mm
  • Value: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm
  • Standard: 23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm
  • Value: 23.6" x 6.6" x 16.0" / 600 mm x 168 mm x 406 mm
    • Weight

    10"
  • Standard: 2.0 lbs / 0.9 kg;
  • Value: 1.8 lbs / 0.8 kg
    15"
  • Standard: 3.9 lbs / 1.8 kg;
  • Value: 3.5 lbs / 1.6 kg
    22"
  • Standard: 8.4 lbs / 3.8 kg;
  • Value: 9.5 lbs / 4.3 kg
    • I-Series 4 - Android - Spec Sheet
    Download
    I-Series 4 Slate - Android - Spec Sheet
    Download
    I-Series 4 Android User Manual
    Download
    I-Series 4 Android Quick Installation Guide
    Download

    Shop I-Series 4 Android Models

    E746741-PGKIT

    I-Series 4 STANDARD, Android 12 with GMS, 10.1-inch, 1920 x 1200 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Includes Stand (E924077).

    Screen Size:

    10.1"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1317.04

    E746926-PGKIT

    I-Series 4 STANDARD, Android 12 with GMS, 15.6-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Includes Stand (E924077).

    Screen Size:

    15.6"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1492.35

    E747123-PGKIT

    I-Series 4 STANDARD, Android 12 with GMS, 21.5-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Includes Stand (E924077).

    Screen Size:

    21.5"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Standard

    Processor:

    Value - Rockchip 3399 Processor

    $1739.48

    E792262

    I-Series 4 VALUE, Android 12 with GMS, 10.1-inch, 1280 x 800 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Item is Made To Order and Non-Returnable.

    Screen Size:

    10.1"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1008.70

    E390647

    I-Series 4 VALUE, Android 10 with GMS, 10.1-inch, 1280 x 800 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    10.1"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1008.70

    E746741

    I-Series 4 STANDARD, Android 12 with GMS, 10.1-inch, 1920 x 1200 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    10.1"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1005.40

    E389883

    I-Series 4 STANDARD, Android 10 with GMS, 10.1-inch, 1920 x 1200 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    10.1"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $992.08

    E411643

    I-Series 4 VALUE, Android 10 with GMS, 10.1-inch, 1280 x 800 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    10.1"

    Storage:

    32GB Flash

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    Color:

    White

    $1203.40

    E391032

    I-Series 4 VALUE, Android 10 with GMS, 15.6-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    15.6"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1349.70

    E390075

    I-Series 4 STANDARD, Android 10 with GMS, 15.6-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    15.6"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1398.10

    E411266

    I-Series 4 STANDARD, Android 10 with GMS, 10.1-inch, 1920 x 1200 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    10.1"

    Storage:

    64GB Flash

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    Color:

    White

    $1185.03

    E390263

    I-Series 4 STANDARD, Android 10 with GMS, 21.5-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    21.5"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1582.90

    E792461

    I-Series 4 VALUE, Android 12 with GMS, 15.6-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    15.6"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1349.70

    E412421

    I-Series 4 VALUE, Android 10 with GMS, 15.6-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    15.6"

    Storage:

    32GB Flash

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    Color:

    White

    $1580.70

    E392786

    I-Series 4 Slate 15.6-inch Full HD - VALUE, Android 10 with GMS, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Gray

    Screen Size:

    15.6"

    Storage:

    32GB Flash

    Color:

    Gray

    Version:

    Slate

    Processor:

    Value - Rockchip 3399 Processor

    $1582.90

    E746926

    I-Series 4 STANDARD, Android 12 with GMS, 15.6-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    15.6"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1398.10

    E412033

    I-Series 4 STANDARD, Android 10 with GMS, 15.6-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    15.6"

    Storage:

    64GB Flash

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    Color:

    White

    $1516.73

    E391994

    I-Series 4 Slate 15.6-inch Full HD - STANDARD, Android 10 with GMS, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Gray

    Screen Size:

    15.6"

    Storage:

    64GB Flash

    Color:

    Gray

    Version:

    Slate

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1577.90

    E792655

    I-Series 4 VALUE, Android 12 with GMS, 21.5-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    21.5"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1455.30

    E391414

    I-Series 4 VALUE, Android 10 with GMS, 21.5-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    21.5"

    Storage:

    32GB Flash

    Color:

    Black

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    $1455.30

    E413211

    I-Series 4 VALUE, Android 10 with GMS, 21.5-inch, 1920 x 1080 display, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 5MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    21.5"

    Storage:

    32GB Flash

    Version:

    Value

    Version:

    Value

    Processor:

    Value - Rockchip 3399 Processor

    Color:

    White

    $1696.20

    E747123

    I-Series 4 STANDARD, Android 12 with GMS, 21.5-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, Black, Worldwide

    Screen Size:

    21.5"

    Storage:

    64GB Flash

    Color:

    Black

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    $1582.90

    E412818

    I-Series 4 STANDARD, Android 10 with GMS, 21.5-inch, 1920 x 1080 display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView compatible, White, Item is Made To Order and Non-Returnable.

    Screen Size:

    21.5"

    Storage:

    64GB Flash

    Version:

    Standard

    Version:

    Standard

    Processor:

    Standard - Qualcomm 660 Octa-Core

    Color:

    White

    $1712.00

    Shop I-Series 4 Android Accessories

    E682436

    Elo I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables

    $163.18

    E143088

    Wall Mount bracket for Elo E-Series, I Series, X Series, and 02-Series & 03-Series Touchscreen Monitors. VESA 75x75mm / 100x100mm. Black.

    $53.00

    E001002

    Elo Edge Connect Magnetic Stripe Reader (MSR) - NCNR

    $151.14

    E134286

    Edge Connect Fingerprint Scanner

    $263.49

    E393160

    Elo Edge Connect 2D Barcode Scanner, SE2707, Black

    $275.00

    E245047

    Edge Connect 2D Barcode Scanner, SE4107, Black

    $279.54

    E454318

    Elo Edge Connect 2D Barcode Scanner, SE4107, White

    $282.90

    E413396

    Kit, Power-over-Ethernet (PoE) adapter for Android I-Series

    $155.15

    E644767

    Edge Connect Status Light, Micro USB, RGB LED lights offer various color illumination

    $73.57

    E134699

    Edge Connect 3D Camera

    $477.49

    E201494

    Edge Connect 2D Webcam

    $220.69

    E809509

    I-Series Android Expansion Module. Can be installed on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management.

    $391.89

    E673037

    Edge Connect RFID Reader

    $361.13

    E894719

    Edge Connect Speaker Bar, Black

    $78.92

    E551946

    Elo Edge Connect 2D Barcode Scanner, SE2707, White

    $248.69

    E384627

    Edge Connect 2D Barcode Scanner, SE4720, Black

    $382.53

    E454122

    Elo Edge Connect 2D Barcode Scanner, SE4720, White

    $385.53

    E924077

    Elo Flip Stand for 10"/15" i-series or 1002L/1502L. Includes Flip Stand, 4x screws for mounting I-Series, 3x small black zip-ties.

    $311.64

    E043382

    Elo Shelf Mount Bracket, 75mm/100mm VESA

    $180.27

    E048069

    Pole Mount Floor Stand for I-Series interactive signage

    $482.84

    E047458

    6 inch pole mount kit for I-series and M-seires monitors

    $159.17

    E047663

    Elo 12-inch Pole Mount Kit, 75mm/100mm VESA

    $184.58

    E047864

    18 inch pole mount kit for I-series and M-series monitors

    $211.33

    E045151

    Pole Mount Bracket I-Series and 02-Series

    $108.34

    E307788

    13-inch Replacement Stand, 02-Series Desktop Monitors, Black

    $148.69

    E572635

    Elo 90W power brick kit

    $101.32

    E160104

    Table top stand for 1002L and 10i

    $153.82

    E307974

    13-inch Replacement Stand, 02-Series Desktop Monitors, White

    $102.64

    E514304

    I-Series for Android (2/3/4) Replacement Power Supply Kit

    $111.02

    E133780

    Elo Edge Connect Speaker Bar, White

    $85.53

    E044356

    2-position adjustable table-top stand for 22" I-Series

    $156.58

    E044162

    2-Position Adjustable Table-Top Stand for 15" I-Series, (WINDOWS MODELS REQUIRE E388675 ADAPTER KIT).

    $80.25

    E804330

    Replacement Stand for Elo 1902L, 1903LM, 2002L, 2202L and 2203LM Monitors, Black

    $176.32

    E509844

    24 and 27 Inch Replacement Stand, 02-Series Desktop Monitors, Black

    $213.17

    E514693

    Slim self service countertop stand with support for 15-inch to 22-inch I-Series

    $289.48

    E514881

    Slim self service floor stand top with support for 15-inch to 22-inch I-Series (requires floor stand base E515260 for complete self-service floor stand)

    $684.22

    E515260

    Slim self service floor stand base (requires floor stand top E514881 for complete self-service floor stand)

    $188.17
    Have Questions?Call Us at: (800) 241-6264
