UniTech HT730 Plus (2nd Gen)

Name: UniTech HT730 Plus (2nd Gen)
Brand: UniTech
Price: 748.32 USD
Availability: InStock

Images may not reflect the actual product

Keypad control for demanding warehouse work

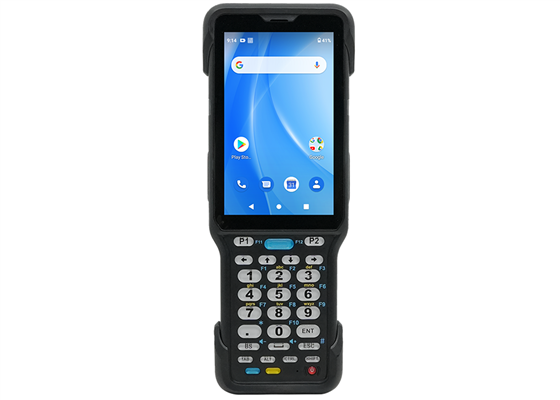

The Unitech HT730 Plus (2nd Gen) combines Android 14, a physical keypad and a 4-inch touch display in a rugged handheld terminal for warehousing, logistics and field service. Its tilt-down scan window supports one-handed barcode capture.

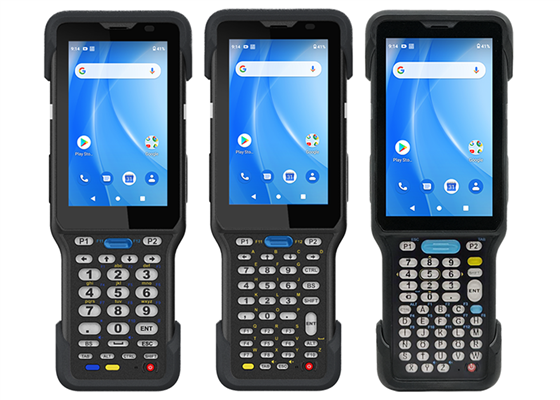

Choose a 29- or 38-key model with standard-range or long-range scanning. Wi-Fi configurations suit connected facilities, while cellular models add 5G connectivity. A separate heater configuration supports cold-storage work.

Key Specifications

Operating system / support horizon: Android 14; upgrade support to Android 16
Processor: Snapdragon 4490; octa-core up to 2.4 GHz
Memory and storage: 6 GB RAM / 128 GB UFS flash
Display and input: 4-inch 480 × 800 touch display; 29- or 38-key models
Scan engine: 1D/2D; standard- or long-range configuration
Wireless connectivity: Wi-Fi 6E and Bluetooth 5.2; 5G on cellular models
Ruggedness and sealing: IP65/IP67; 1.8 m drops, 2.4 m with bumper
Battery / power: 6700 mAh; hot swap up to one minute
Form factor: Handheld
Dimensions: 195 × 72 × 34 mm
Weight: 395 g with battery
Warranty: 1 year

In the Box

HT730 Plus terminal in the selected configuration
6700 mAh battery
Hand strap
Quick start guide
Bumper where included in the selected model

USB-C cable, terminal power adapter, cradle and gun grip are sold separately.

Keep work moving between battery changes

The removable 6700 mAh battery supports a hot swap that keeps applications active for up to one minute. Wi-Fi 6E, fast roaming and Bluetooth 5.2 connect the terminal to facility networks and peripherals; cellular versions add 5G and eSIM support.

Select the scanner and environment configuration

Standard-range models handle nearby labels, while long-range models support distant barcode capture. Unitech specifies up to 32 m for the long-range configuration, depending on barcode size and conditions. Standard models operate down to −20°C; the optional heater version extends operation to −30°C.

Operating system

Android 14; manufacturer states upgrade support to Android 16. GMS and Android Enterprise Recommended (AER).

Processor

Qualcomm Snapdragon 4490; 64-bit octa-core, up to 2.4 GHz

Memory and storage

6 GB RAM; 128 GB UFS flash

Languages

Multiple languages supported

Display

4-inch TFT-LCD WVGA, 480 × 800 pixels; 400 nits

Touch panel

Capacitive; supports wet operation, gloves up to 4 mm thick and 3 mm stylus

Keypad

Family offers backlit 29-, 38- and 47-key configurations. Listed POSGuys models have 29 or 38 keys; left/right scan triggers and Back/Home/Recent touch keys.

Camera

Rear 16 MP autofocus camera with LED flash; ARCore support

Indicators

LED, speaker and vibration

Scan configurations

Standard-range and long-range 1D/2D configurations; select the exact model. Manufacturer advertises up to 32 m for the long-range configuration; actual range depends on barcode size and conditions.

Scanning ergonomics

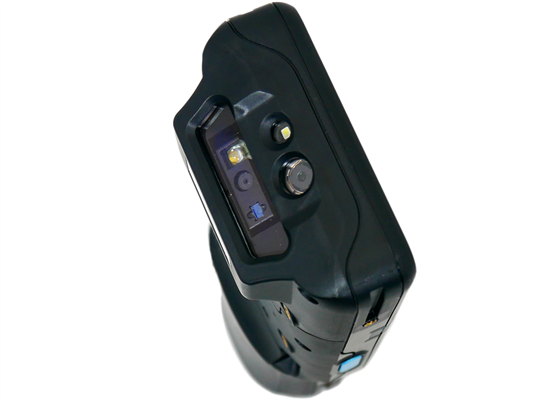

30-degree tilt-down scan window

1D barcodes

UPC/EAN/JAN; GS1 DataBar; Code 39, 128, 32 and 93; Codabar/NW7; Interleaved 2 of 5; Matrix 2 of 5; MSI; Trioptic

2D barcodes

PDF417; MicroPDF417; GS1 Composite; Code 11; Aztec; Data Matrix; QR; Micro QR; MaxiCode; Han Xin; DOT Code

Postal codes

Intelligent Mail Barcode; Postal-4i; Australian Post; Japanese Post; Netherlands KIX; Postnet; Planet Code

OCR

OCR-A; OCR-B; E13B (MICR); supported through Unitech USS software

HF RFID / NFC

13.56 MHz; ISO14443A/B, ISO15693, NFC, MIFARE and FeliCa

USB interface

USB 3.1 Type-C with USB OTG; POGO-pin OTG connection for cradle

SIM slots

Cellular models only: one Micro SIM and one eSIM

Expansion storage

MicroSD/TF slot supports SD, SDHC and SDXC up to 256 GB

Audio

2 W speaker with Smart PA; 105 dB at 10 cm; dual microphones with noise cancellation

Battery

3.6 V, 6700 mAh; battery part 1400-900082G

Hot swap

Keeps applications active for up to one minute during battery replacement

Bluetooth

Bluetooth 5.2

Wi-Fi

Wi-Fi 6E, 2.4/5/6 GHz; IEEE 802.11a/b/g/n/ac/d/h/i/k/r/v/ax; 2 × 2 MIMO, dual-band simultaneous (DBS), fast roaming

Wireless security

WPA3, WPA2, WPA and WEP

5G bands

Cellular models only. NR Sub-6 GHz: n1/n2/n3/n5/n7/n8/n12/n20/n28/n34/n38/n40/n41/n48/n66/n77/n78/n79

4G bands

Cellular models only. LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B19/B20/B28/B34/B39/B48/B66; LTE TDD: B38/B39/B40/B41

3G / 2G bands

Cellular models only. 3G: B1/B2/B4/B5/B8; 2G: 850/900/1800/1900 MHz. Manufacturer references PESQ for voice-quality measurement.

Positioning

Cellular models only: GPS, GLONASS, Galileo and BeiDou; L1 + L5

Sensors

Gyroscope, G-sensor, e-compass, ambient light, proximity and 3-axis accelerometer

Device management

Unitech MoboLink DMS and utilities; manufacturer lists SOTI, AirWatch and 42Gears compatibility

Dimensions

195 × 72 × 34 mm

Weight

395 g including battery

Drop resistance

1.8 m; 2.4 m with bumper

Environmental sealing

IP65 / IP67

Operating temperature

−20°C to 50°C standard; −30°C to 50°C on the optional cold-storage/heater configuration

Storage temperature

−30°C to 70°C without battery

Charging temperature

0°C to 45°C
