Name: Honeywell HF680
Brand: Honeywell
Price: 283.85 USD
Availability: InStock

HF680

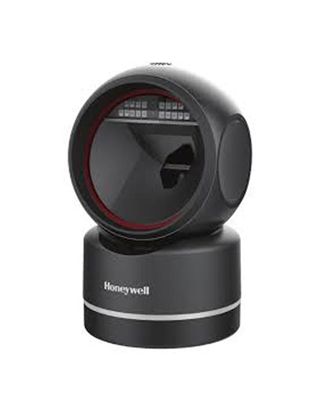

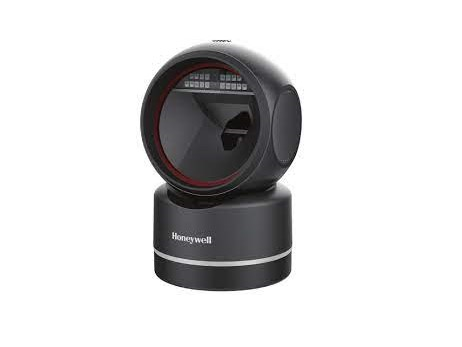

Honeywell Orbit HF680 Presentation Scanner



Fast, compact 1D/2D presentation scanning for retail checkout


The Honeywell Orbit HF680 is a hands-free area imager built for busy retail counters. Its megapixel sensor and 1 GHz processor read common 1D and 2D barcodes, including digital and damaged codes, while recessed illumination keeps the scan zone comfortable for customers.
The adjustable head makes it easy to present items at the counter or lift the scanner for bulky merchandise. USB and RS-232 configurations support common POS integrations, and Honeywell EZConfig simplifies setup.



POSGuys reviews the Orbit HF680's presentation-scanning performance and checkout fit.




Key Specifications

Scanner configuration: hands-free corded presentation area imager
Barcode capability: 1D, 2D, PDF and common mobile barcodes
Reading range: standard-range engine; official 0&ndash;1 m class, barcode dependent
Interfaces / connectivity: USB or RS-232, depending on configuration
Durability: 1 m (3.3 ft) drop specification
Environmental sealing: IP42
Dimensions and weight: 85 &times; 88 &times; 139 mm; 278 g
Warranty: 3-year Honeywell scanner warranty
Image sensor: 1280 &times; 800 pixels
Motion tolerance: up to 2.5 m/s for 13 mil UPC



In the Box

HF680-R0/R1-1USB: white or black Orbit HF680 scanner and 1.5 m USB cable
HF680-R0/R1-2USB: white or black Orbit HF680 scanner and 2.7 m USB cable; the black kit is Youji branded
HF680-R1-1RS232-US: black Orbit HF680 scanner, 1.5 m RS-232 cable, US plug and 5.2 V / 1 A power supply
HF680-R1-41165: black Orbit HF680 scanner with custom firmware and RS-232 cable




Built for the checkout counter


Fast presentation reads
The wide scan zone captures barcodes without precise alignment, helping transactions keep moving.


Digital and damaged codes
Hybrid imaging handles common paper labels and customer-facing mobile coupons without changing scan modes.


Operator-friendly lighting
Recessed LEDs illuminate the barcode and switch off when the scanner is idle.


Straightforward deployment
Use Honeywell EZConfig for supported programming and configuration workflows.





hello everyone this is colton with posguys.com and today we're going to be taking a look at the new honeywell hf 680 uh presentation scanner uh the scanner here was kind of designed to replace and consolidate a lot of honeywell's presentation line of scanners so things like the orbit here uh the fusion and the genesis i got to admit i really like this scanner here uh from a price perspective you're not going to get much better when it comes to presentation scanners uh it it comes in cheaper than just about anything else in honeywell's presentation line of products and the cool thing is that it doesn't sacrifice on performance i think that this unit is on par and even better than a lot of similar products that come in at higher price tags so you're really getting a good bang for your buck here going into the basics on this unit one it's a 2d presentation scanner meaning that it's always on and you're going to be able to get that omnidirectional scanning so you can take a barcode like this it's gonna you know scan without you having to pull the trigger and you can also do it at other angles which is really cool so do it upside down off to the left and what's really cool about these uh is that you can actually scan barcodes that are on screens so pop it on there you can see a pull up right there uh and that's really nice if you're doing anything with like coupons you can have customers come in pull it up and it scans right away so you're going to save a lot of time than having to manually punch in those coupon codes the hf680 was also designed to be able to read bench bar codes barcodes with water droplets on them or a partially damaged barcodes uh which is pretty standard with other 2d codes but uh doing some testing with it i found that it's pretty consistent and can kind of you know scan some pretty messed up codes so uh definitely a really good performing scanner here uh i think it works better than the orbit if you look at the scanner array on it the pixels on it it's like a 1280 by 920 which is a lot better than you're getting with the orbit that comes in at over a hundred dollars more so again a really great value appearance wise uh the hf 680 looks a little similar to the orbit here it kind of has this uh circular head uh you're gonna get uh the leds on the front so it's illuminating things that are being scanned uh and it also has a really cool pivot here so you can pivot the scan angle which is always fun uh the unit comes in both black and white i don't have the white one here but i'll pop a photo right there so you can take a look at it they come both colors come in a usb configuration which we're currently using to connect to the computer but they also come with a serial connection which isn't too common nowadays especially in newer models uh and the another reason i really like this scanner is the compatibility it's going to be compatible with things like the ruby veraphone system sam 4s sharp registers which uh you don't see a lot in new scanners and there's kind of been a lack of them recently so i'm super excited to have something with really good performance and a really good price tag uh that can kind of fill in that niche uh and finally i'm a big fan of this unit uh because of the reliability that it has it's rated to work for 40 000 hours and it has a three-year manufacturer warranty that protects it from defects so if this is something you're interested in or you want to learn more about the unit definitely give us a call uh our sales reps and our sales engineers are here to help and kind of you know guide you through and get you connected with one of these units thank you so much for tuning in and i'll see you next time
