DataLogic Heron 3130
Description
Specifications
Download

DataLogic Heron 3130

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

1D checkout scanning with customizable light and sound

The Datalogic Heron HD3130 is a corded linear imager for retail checkout, especially fashion and specialty stores. It reads standard 1D barcodes and supported GS1 stacked codes, with USB, RS-232 and Keyboard Wedge multi-interface connectivity. Black and white designs, illuminated accents and a polyphonic speaker give the counter a distinctive appearance, while its stand supports automatic switching between handheld and hands-free reading.

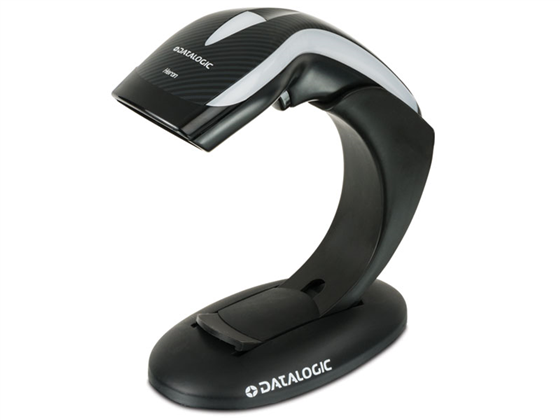

Datalogic Heron HD3130 corded linear barcode imager

Key Specifications

  • Scanner configuration: Corded linear imager
  • Barcode capability: 1D, China Post and supported GS1 stacked codes
  • Reading range: 13 mil: 2–40 cm
  • Interfaces / connectivity: USB, RS-232 and Keyboard Wedge
  • Durability: Repeated 1.5 m drops to concrete
  • Environmental sealing: IP40
  • Dimensions: 15.2 × 15.3 × 6.8 cm
  • Weight: 150 g
  • Read rate: Up to 270 reads per second
  • Warranty: 5 years

Reading range varies with symbol size, print quality, contrast, scan angle and ambient light. The five-year factory warranty applies to the scanner; cables have a separate 90-day manufacturer warranty.

In the Box

  • HD3130-BKK1B / WHK1B USB kits

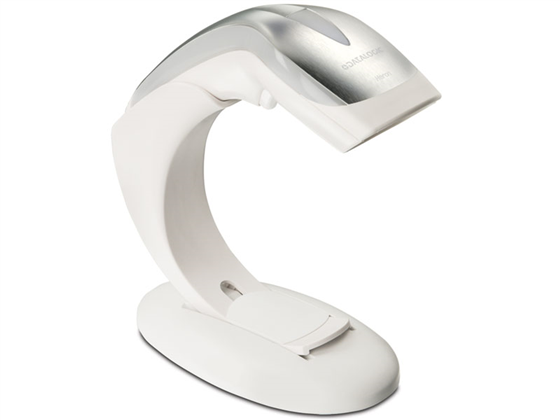

    • Black or white HD3130 scanner
    • AutoSense stand
    • USB cable
  • HD3130-BK without cable
    • Black HD3130 scanner
    • AutoSense stand
    • Connection cable ordered separately

Choose the cable for the host connection. Power supplies are ordered separately when required by the selected serial connection.

Light and sound that fit the counter

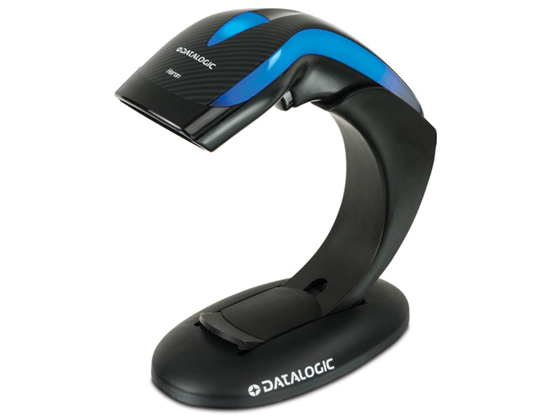

Changing-color LEDs and a polyphonic speaker provide customizable visual and audio feedback. Carbon-Fiber and Silver top-cover designs offer different finishes, and manufacturer customization programs can add a logo or other colors subject to minimum quantities.

Green Spot feedback in either reading mode

Datalogic Green Spot gives visible good-read confirmation and serves as an aiming aid in hands-free use. Automatic switching between handheld and stand operation keeps the reader ready for items of different sizes; its lightweight 150 g design and repeated 1.5 m drop resistance support daily checkout work.

Scanner Configuration
Corded linear imager; automatic handheld / hands-free switching with stand.
1D Barcode Support
Auto-discriminates standard 1D codes including GS1 DataBar linear codes.
Postal Code Support
China Post.
Stacked Code Support
GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omnidirectional.
Operating Current
Maximum less than 500 mA at 5 VDC; typical less than 300 mA at 5 VDC.
Input Voltage
5 VDC ±5%.
Ambient Light
0–100,000 lux.
Drop Resistance
Repeated 1.5 m / 5 ft drops onto concrete.
ESD Protection
Air discharge: 16 kV.
Humidity
5–90%, non-condensing.
Environmental Sealing
IP40.
Operating Temperature
0–50°C / 32–122°F.
Storage / Transport Temperature
−20 to 70°C / −4 to 158°F.
Interfaces
RS-232, USB and Keyboard Wedge multi-interface; cable and power requirements depend on the selected connection.
Colors
Black and white; other colors and custom logos subject to manufacturer minimum quantities.
Dimensions
15.2 × 15.3 × 6.8 cm / 6.0 × 6.0 × 2.7 in.
Top Cap Designs
Carbon-Fiber and Silver.
Weight
150 g / 5.3 oz.
Imager Sensor
CCD solid-state, 2,500 pixels.
Minimum Print Contrast
15%.
Maximum Read Rate
270 reads per second.
Reading Indicators
Adjustable tone/volume beeper; Datalogic Green Spot good-read feedback; side/upper illumination and good-read LED.
Maximum Resolution
0.100 mm / 4 mil.
Reading Range Conditions
Minimum distance depends on symbol length and scan angle; range depends on print resolution, contrast and ambient light.
Typical Depth of Field
5 mil: 5–15 cm / 2–6 in. 10 mil: 2–35 cm / 0.8–13.8 in. 13 mil: 2–40 cm / 0.8–15.7 in. 20 mil: 2–60 cm / 0.8–23.6 in.
Agency Approvals
Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for the certification list.
Environmental Compliance
China RoHS and EU RoHS.
LED Classification
IEC 62471 Exempt Class.
Configuration Utility
Datalogic Aladdin available at no charge.
OPOS / JavaPOS
Utilities available at no charge.
Remote Host Download
Supported for remote servicing and operational updates.
Warranty
5-year factory warranty for the reader; manufacturer eCatalog specifies 90 days for cables.
Heron HD3130 Data Sheet
Download
Quick Reference Guide
Download
User Manual
Download
Datalogic Heron USB-COM Driver
Download

Shop Heron 3130 Models

HD3130-BKK1B

Datalogic Heron 3100 Imager, Black with AutoSense Stand and USB Cable

Color:

Black

Accessories:

USB Cable

$151.04

HD3130-WHK1B

Datalogic Heron 3100 Imager, White with AutoSense Stand and USB Cable

Accessories:

USB Cable

Color:

White

$168.00

HD3130-BK

Datalogic Heron 3100 Imager, Black with AutoSense Stand, Cable not Included

Color:

Black

Accessories:

Cable Not Included

$137.00

Shop Heron 3130 Accessories

90G000008

Cable for Datalogic Scanners, Grey, Straight 2 Meters, CAB-327, RS232, DBP, Receipt, E/P - Replaces 90G001070

$18.00

ZSC2HD313031

Heron 3130 Ease of Care 3-Year Comprehensive Warranty. Includes 2 Day Shipping To Depot and Customer Covered by Datalogic. No Advanced Replacement.

$11.80

90A052065

Cable, USB Type A, 2M Straight, Enhanced, For Datalogic Scanners

$15.40

90A051230

Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.

$16.70

90G001010

Gryphon PS/2 Keyboard Wedge Interface Cable

$15.00

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00
