DataLogic Heron 2D 3430

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

2D checkout scanning with a distinctive retail design

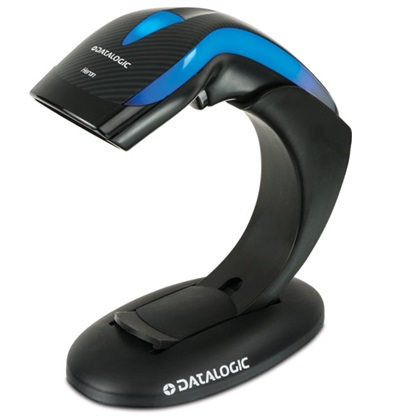

The Datalogic Heron HD3430 combines 1D and 2D barcode reading with image capture for fashion and specialty retail checkout. Its sculpted design, changing-color lights and polyphonic speaker bring customizable visual and audio feedback to the counter, while the AutoSense stand supports automatic switching between handheld and hands-free scanning.

Key Specifications

  • Scanner configuration: Corded 2D area imager
  • Barcode capability: 1D, 2D, postal and stacked codes
  • Reading range: 13 mil EAN-13: 3–40 cm
  • Interfaces / connectivity: USB, RS-232 and Keyboard Wedge
  • Durability: Repeated 1.5 m drops to concrete
  • Environmental sealing: IP40
  • Dimensions: 15.2 × 15.3 × 6.8 cm
  • Weight: 150 g
  • Image capture: BMP, JPEG and TIFF
  • Warranty: 5 years

Reading distance varies with symbol size, print quality, contrast, angle and ambient light. The scanner has a five-year factory warranty; cables have a separate 90-day warranty.

In the Box

  • HD3430-BKK1B USB kit
    • Black Heron HD3430 2D scanner
    • AutoSense stand
    • USB cable

Optional interface cables and any power supply required by the selected serial connection are sold separately.

2D reading and image capture

Read linear, 2D, postal and stacked codes, and capture images in BMP, JPEG or TIFF format. White illumination, a visible aiming system and Green Spot good-read feedback help the operator target and confirm each scan.

Light and sound for your brand

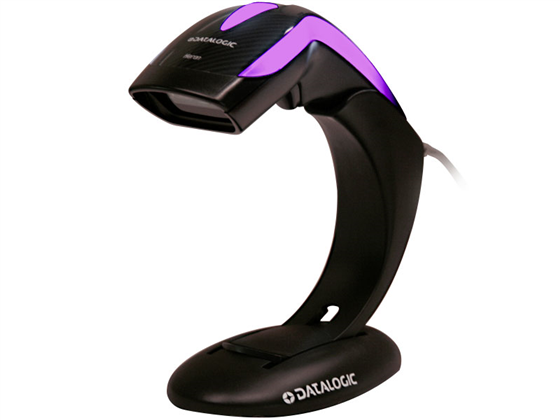

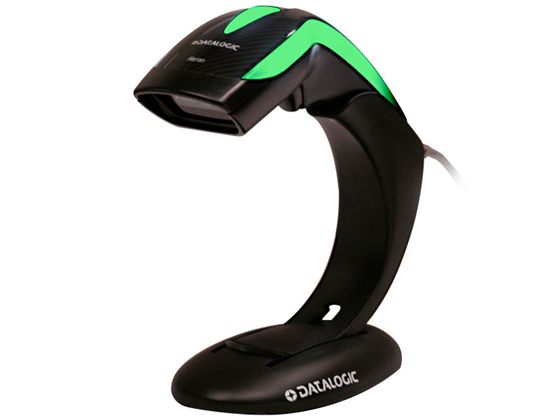

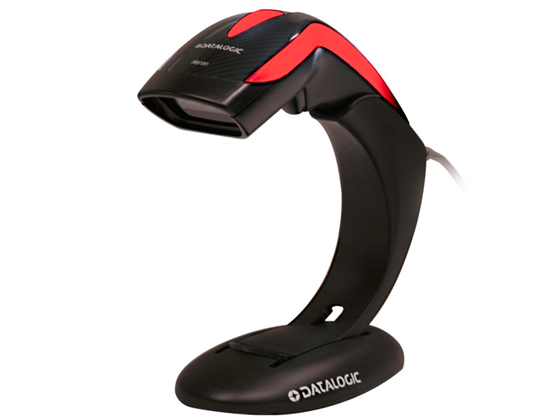

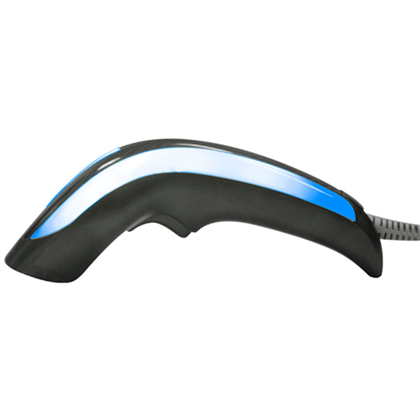

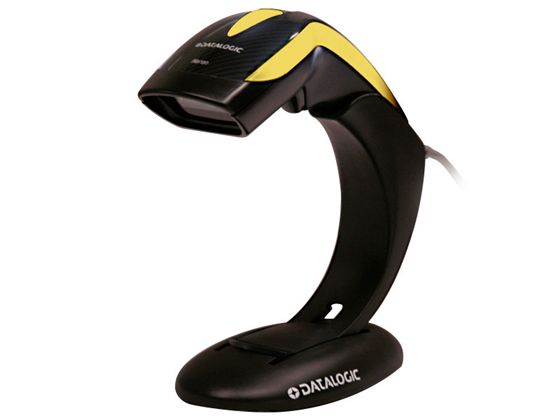

Multiple color-changing LEDs and a polyphonic speaker support personalized scan feedback. Carbon-Fiber and Silver top-cover designs complement the black and white family; manufacturer logo and other color customization requires minimum quantities.

Scanner Configuration
Corded 2D area imager with automatic handheld / hands-free switching.
1D Barcode Support
Auto-discriminates standard 1D codes including GS1 DataBar linear codes.
2D Code Support
Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code and China Han Xin Code.
Postal Code Support
Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet and Royal Mail Code (RM4SCC).
Stacked Code Support
EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417 and UPC A/E Composites.
Operating Current
Maximum less than 500 mA at 5 V; typical less than 300 mA at 5 V; sleep mode less than 2.5 mA.
Input Voltage
5 VDC ±5%.
Ambient Light
0–100,000 lux.
Drop Resistance
Repeated 1.5 m / 5 ft drops onto concrete.
ESD Protection
Air discharge: 16 kV.
Humidity
5–90%, non-condensing.
Environmental Sealing
IP40.
Operating Temperature
0–50°C / 32–122°F.
Storage / Transport Temperature
−20 to 70°C / −4 to 158°F.
Interfaces
Keyboard Wedge, OEM (IBM) USB, RS-232 and USB; the selected kit includes a USB cable.
Colors

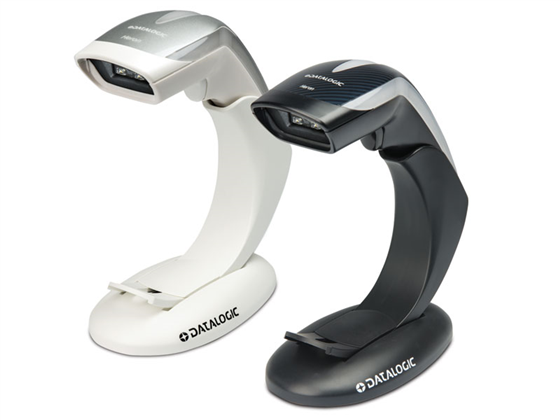

Black and white; other colors and custom logos subject to manufacturer minimum quantities.
Dimensions
15.2 × 15.3 × 6.8 cm / 6.0 × 6.0 × 2.7 in.
Top Cap Designs
Carbon-Fiber and Silver.
Weight
150 g / 5.3 oz.
Image Capture
BMP, JPEG and TIFF; grayscale levels: 256, 16 or 2.
Imager Sensor
Wide VGA, 752 × 480 pixels.
Light Source
Aiming: 650 nm VLD. Illumination: white.
Motion Tolerance
25 inches per second.
Minimum Print Contrast
15%.
Reading Angles
Pitch ±65°; roll (tilt) up to ±360°; skew (yaw) ±60°.
Reading Indicators
Adjustable tone/volume beeper; Datalogic Green Spot good-read feedback; side/upper illumination and good-read LED.
Maximum Resolution
0.100 mm / 4 mil.
Reading Range Conditions
Minimum distance depends on symbol length and scan angle; range depends on print resolution, contrast and ambient light.
Typical Depth of Field
Code 39, 5 mil: 3.5–20 cm / 1.3–7.8 in. EAN-13, 13 mil: 3–40 cm / 1.2–15.7 in. Data Matrix, 15 mil: 2–25 cm / 0.8–9.8 in.
Agency Approvals
Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for the certification list.
Environmental Compliance
China RoHS and EU RoHS.
Laser Classification
Class 2 according to IEC 60825-1.
LED Classification
IEC 62471 Exempt Class.
Configuration Utility
Datalogic Aladdin available at no charge.
OPOS / JavaPOS
Utilities available at no charge.
Remote Host Download
Supported for remote servicing and operational updates.
Warranty
5-year factory warranty for the reader; manufacturer eCatalog specifies 90 days for cables.
