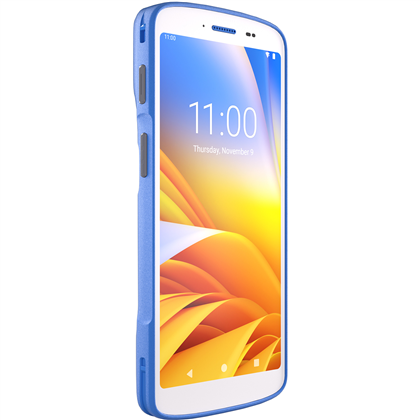

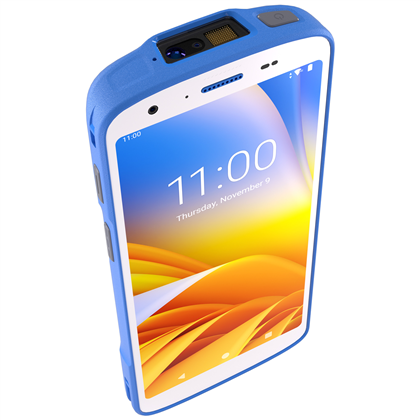

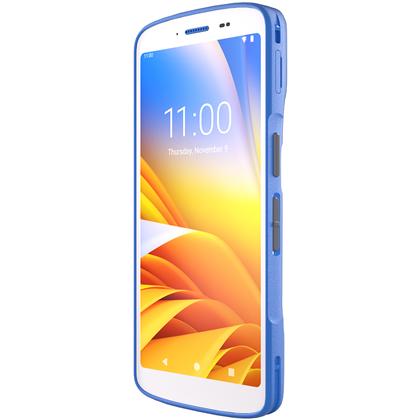

Zebra HC2X/HC5X Mobile Computer
Zebra HC20, HC25, HC50 and HC55 healthcare mobile computers are built for clinical and non-clinical workflows.
The HC2X/HC5X family combines a disinfectant-ready housing, dedicated alert button and enterprise Android management in a pocketable design. Choose Wi-Fi-only HC20/HC50 models for facility use or cellular HC25/HC55 models for mobile care and field workflows.
HC20/HC25 configurations provide essential camera-based capture and Zebra DNA Professional software. HC50/HC55 models add an integrated SE4720 scan engine, more memory, a front camera, true hot-swap battery support and Zebra DNA Enterprise features.
See Zebra's HC2X and HC5X healthcare mobile computers in action.
Key Specifications
- Android 13 and 14 currently available; final supported release is Android 16
- Qualcomm 5430 hex-core 2.1 GHz processor
- HC20/HC25: 6 GB RAM and 64 GB flash; HC50/HC55: 8 GB RAM and 128 GB flash

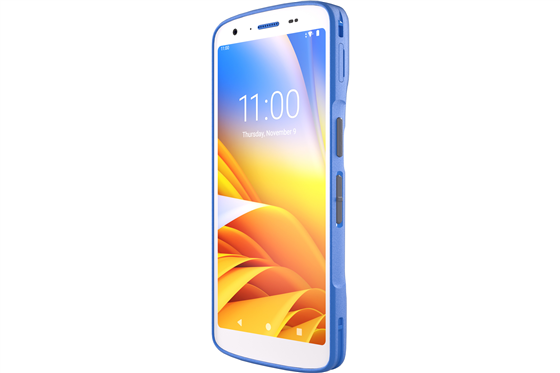

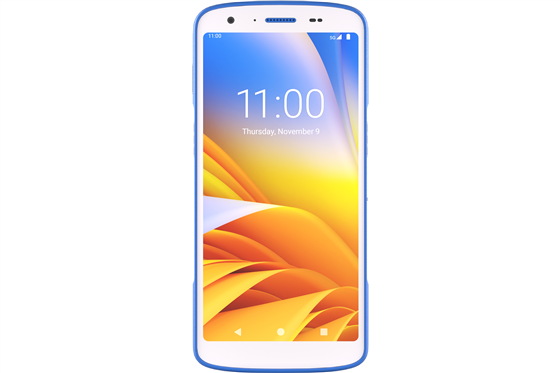

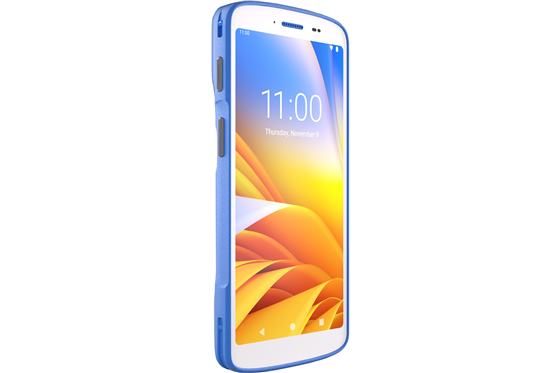

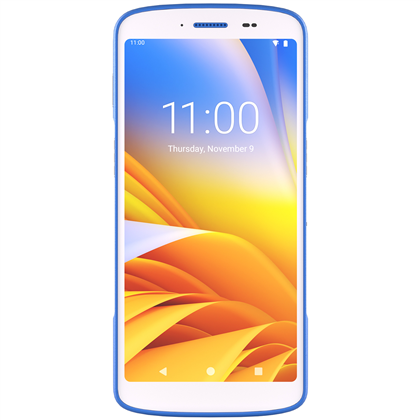

- 6-inch FHD+ 1080 x 2160 display with Corning Gorilla Glass
- HC20/HC50: Wi-Fi; HC25/HC55: Wi-Fi, cellular, SIM and eSIM
- 16 MP rear camera on all models; 5 MP front camera on HC50/HC55

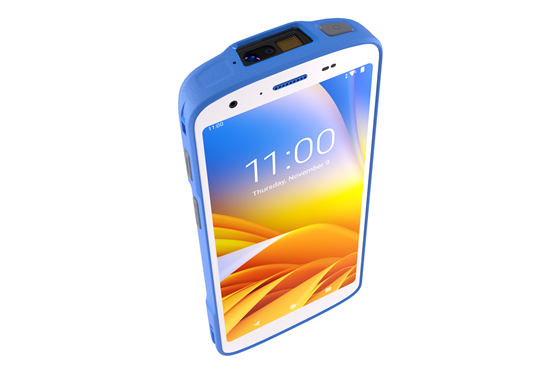

- Camera-based barcode capture on HC20/HC25; SE4720 1D/2D scan engine on HC50/HC55 North American configurations

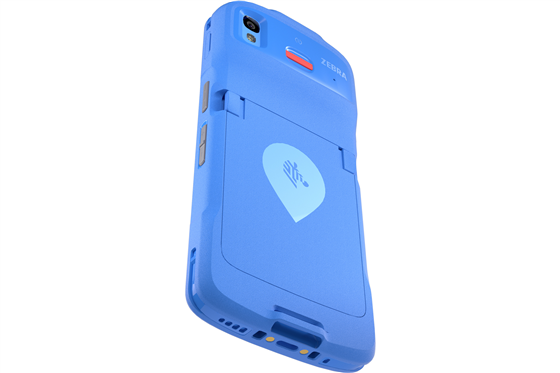

- 3,800 mAh removable PowerPrecision battery with fast charging; true hot swap on HC50/HC55
- IP65/IP68 sealing, 4 ft drop rating and 500 tumbles at 1.6 ft
- One-year Zebra hardware warranty
In the Box
- Selected HC20, HC25, HC50 or HC55 mobile computer
- 3,800 mAh PowerPrecision lithium-ion battery
- Regulatory guide
Configuration note: Applicable cables, power supplies, cradles, straps, cases and other accessories are sold separately unless the selected option explicitly states they are included.
Designed for healthcare
Disinfectant-ready and easy to carry
Medical-grade plastics support frequent cleaning with approved disinfectants. The balanced body, contoured grip and bright edge-to-edge display help reduce fatigue during long shifts and remain usable with light gloves.

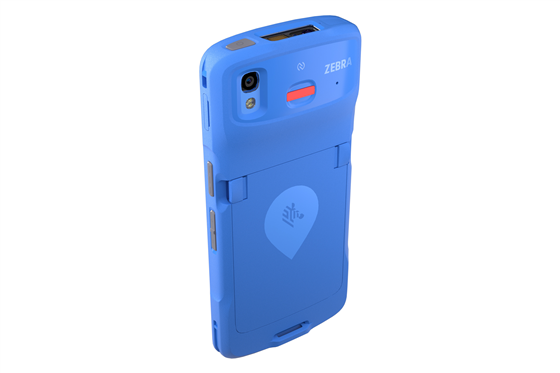

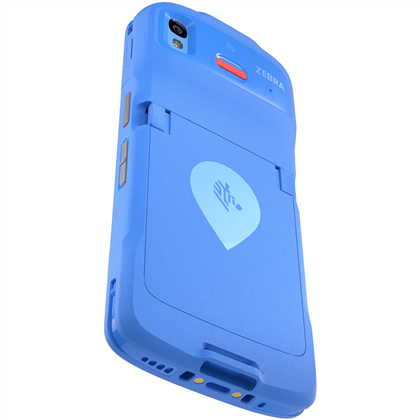

Dedicated alert button

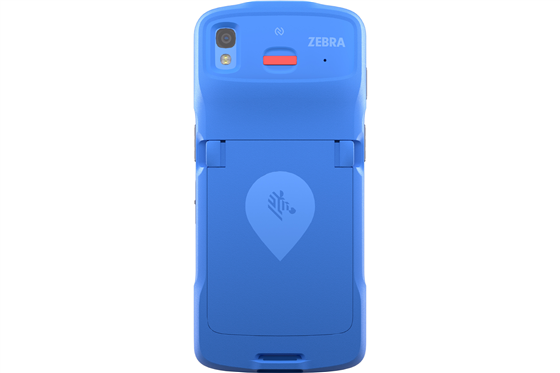

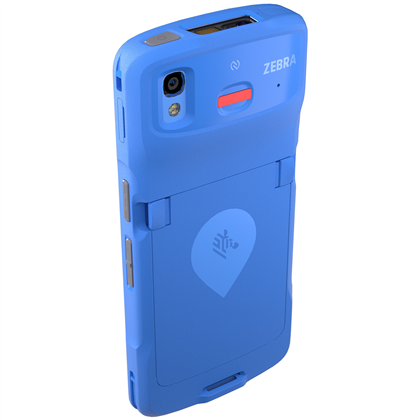

The red rear alert button can call a configured number or launch an emergency application. Administrators can set the activation behavior to reduce accidental alerts.
Capture for each workflow
Camera-only HC20/HC25 models suit general communications, documentation and lighter scanning. HC50/HC55 configurations add the SE4720 scan engine for frequent patient, medication, specimen and asset barcode capture.
Shared accessory platform
Compatible batteries, cradles, chargers, carry accessories and screen protection support the full family. Confirm the complete US power chain for each selected charger or cradle.
Communications and management
Enterprise voice, push-to-talk, Wi-Fi and optional cellular connectivity support communication across facilities and mobile-care environments. StageNow, LifeGuard and Zebra DNA tools help IT enroll, secure and manage the fleet; some capabilities require Zebra DNA Enterprise licensing.
Typical applications
Use the HC2X/HC5X family for bedside care, medication administration, specimen collection, facilities, environmental services, patient transport, home health and other workflows that require a cleanable enterprise mobile device.
Shop HC2X/HC5X Mobile Computer Models
WLMT0-H20B6DCJ1-NA
HC20 Healthcare Mobile Computer with WiFi, No Scanner, 6GB/64GB Flash, 16MP RFC, Rear Alert Button, MDNA Professional.
Camera:
16MP RFC
Memory:
6GB/64GB
MDNA Software:
MDNA Professional
Scanner:
No Scanner
Connectivity:
WiFi
WCMTA-H55D8BBK1-NA
HC55 Healthcare Mobile Computer with WiFi & Cellular, Scanner, 8GB/128GB Flash, 16MP RFC + 5MP FFC, Rear Alert Button, Hot Swap, SIM & eSIM, MDNA Enterprise.
Camera:
16MP RFC + 5MP FFC
Memory:
8GB/128GB
MDNA Software:
MDNA Enterprise
Scanner:
Scanner
Connectivity:
WiFi & Cellular
WCMTA-H25B6DCJ1-NA
HC25 Healthcare Mobile Computer with WiFi & Cellular, No Scanner, 6GB/64GB Flash, 16MP RFC, Rear Alert Button, SIM & eSIM, MDNA Professional.
Camera:
16MP RFC
Memory:
6GB/64GB
MDNA Software:
MDNA Professional
Scanner:
No Scanner
Connectivity:
WiFi & Cellular
WLMT0-H50D8BBK1-NA
HC50 Healthcare Mobile Computer with WiFi, Scanner, 8GB/128GB Flash, 16MP RFC + 5MP FFC, Rear Alert Button, Hot Swap, MDNA Enterprise.
Camera:
16MP RFC + 5MP FFC
Memory:
8GB/128GB
MDNA Software:
MDNA Enterprise
Scanner:
Scanner
Connectivity:
WiFi
Shop HC2X/HC5X Mobile Computer Accessories
CRD-HC2L5L-BS1CO
HC20/HC50 Healthcare white single slot charge only cradle. Power supply and USB cable sold separately (PWR-WUA5V12W0US, CBL-TC5X- USBC2A-01)
CRD-HC2L5L-BS5CO
HC20/HC50 Healthcare white 5-slot charge only cradle (shims included). Power supply, DC cable, and country specific AC line cord sold separately (PWR-BGA12V108W0WW, CBL-DC- 381A1-01).
CRD-HC2L5L-2S1D1B
HC20/HC50 Healthcare white single slot charge only cradle for 1 device & 1 battery. Power supply, DC cable, country specific AC Line Cord sold separately.
CRDCUP-HC2L5L-01
HC2X/HC5X Healthcare charge only white cradle cup, 1 user swappable cup.
CRDCUP-HC2L5L-05
HC20/HC50 Healthcare charge-only white cradle cups, 5 user swappable cups with shims pre-installed.
BRKT-SCRD-SMRK-01
Rack/Wall bracket, allows to install any Multi-Slot sharecradle on a wall or a 19inch IT rack and provides a holder for pwrs and cords. It also allows to install up to four spare battery chargers. Includes screws required for installation
BTRY-HC2L5L-2XMAXB
HC20/HC50 Healthcare PowerPrecision LI-ON Battery with BLE Beacon (Blue) - 3800 mAh - Single.
SAC-HC2L5L-4SCHG
HC20/HC50 Healthcare white 4-slot battery charger; Charges up to four Li-ion batteries. Power Supply, DC cable and country specific AC line cord sold separately (PWR- BGA12V50W0WW, CBL-DC-388A1-01).
BTRCUP-HC2L5L-01
HC20/HC50 Healthcare user swappable spare white battery cup to charge 4 HC20/50 Li-ion batteries. This cup must be placed in the same slot as the previous TC2X spare battery charging cup.
PWR-BGA12V108W0WW
Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
CBL-DC-381A1-01
Cable, DC PWR CRD, 4 or 5 Slot Cradle
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
CBL-DC-388A1-01
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
CBL-TC5X-USBC2A-01
USB C to USB A Communications and Charging Cable, 1m Long
CBL-TC2Y-USBC90A-01
USB-C CABLE WITH 90 DEGREE BEND IN USB-C ADAPTER
CBL-DC-523A1-01
DC Y-line cord for running two spare battery chargers to a single Level VI power supply SKU# PWR-BGA12V108W0WW
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
50-16000-678R
Cable, AC Line Cord, 36inchL grounded, three wire. Associated Country: United States
50-16000-221R
Cable, AC Line Cord, 1.8M, grounded, USA NEMA 5-15P. Associated Country: United States.
