DataLogic Gryphon I GPS4400
Description
Specifications
Download

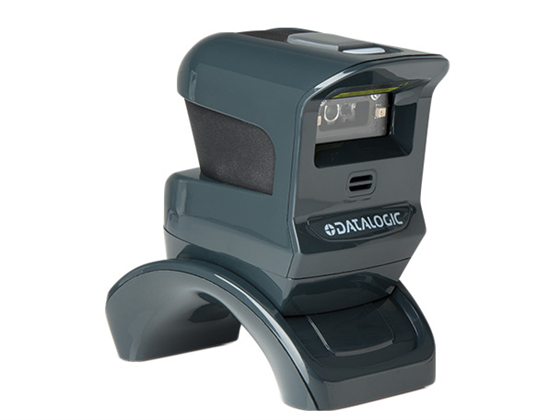

DataLogic Gryphon I GPS4400

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

Compact presentation scanning for a busy counter

The Datalogic Gryphon I GPS4400 reads printed and mobile-screen barcodes in a compact on-counter design. Use it hands-free for small items or pick it up for bulkier products; its adjustable, removable stand helps it fit the available workspace.

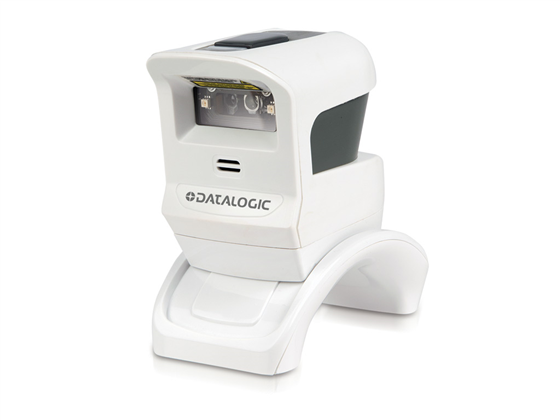

Datalogic Gryphon I GPS4400 presentation scanner

Key Specifications

  • Scanner configuration: Corded 2D presentation imager
  • Barcode capability: 1D, 2D, postal and stacked codes
  • Reading range: 13 mil EAN: 0.8–42.2 cm
  • Interfaces / connectivity: USB and RS-232
  • Durability: Repeated 1.2 m drops to concrete
  • Environmental sealing: IP52
  • Dimensions: With stand: 12.1 × 10.7 × 7.3 cm
  • Weight: 295 g
  • Image capture: 752 × 480 pixels; BMP, JPEG, TIFF
  • Warranty: 3 years

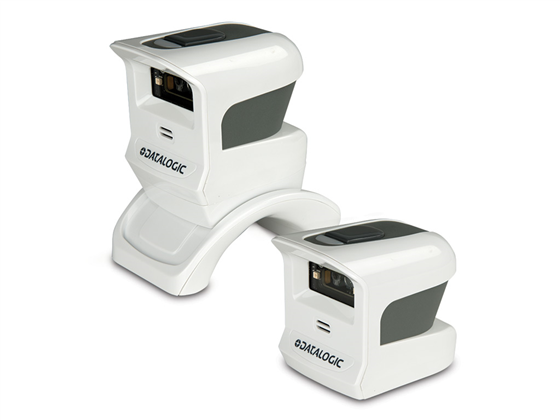

Without its stand, the scanner measures 7.4 × 9.5 × 6.4 cm and weighs 178 g. Reading distance varies with symbol size, quality and conditions.

In the Box

  • GPS4490-WH scanner
    • White Gryphon I GPS4400 2D scanner

Interface cable is sold separately. Select a compatible USB or RS-232 cable; a serial installation may also require an external power supply.

Read screens and capture images

Read barcodes on phones, computers and printed labels, including poor or damaged codes. Image and signature capture extends the scanner's use beyond checkout.

Flexible triggering with clear feedback

Choose automatic object sensing, continuous scanning or software triggering for your workflow. Green Spot good-read feedback provides a visible confirmation when the beeper is difficult to hear.

Scanner Configuration
Corded omnidirectional 2D presentation imager; hands-free or handheld use.
1D Barcode Support
Auto-discriminates standard 1D codes including GS1 DataBar linear codes.
2D Code Support
Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code and QR Code.
Postal Code Support
Australian, British, Canadian, China, Japanese, Portuguese and Swedish Post; IMB, KIX Post, Planet Code, Postnet and Royal Mail RM4SCC.
Stacked Code Support
EAN/JAN and UPC A/E Composites; GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MacroPDF, MicroPDF417 and PDF417.
Operating Current
Typical 175 mA; maximum 200 mA. Standby/idle: 105 mA in automatic/object-sense modes; 55 mA in trigger/serial-online modes.
Input Voltage
5 VDC ±5%.
Ambient Light
0–100,000 lux.
Drop Resistance
Repeated 1.2 m / 4 ft drops onto concrete.
ESD Protection
16 kV air discharge.
Humidity
90%, non-condensing.
Environmental Sealing
IP52.
Operating Temperature
0–50°C / 32–122°F.
Storage / Transport Temperature
−40 to 70°C / −40 to 158°F.
Interfaces
RS-232; USB OEM, USB COM and USB HID Keyboard. Interface cable sold separately for GPS4490-WH.

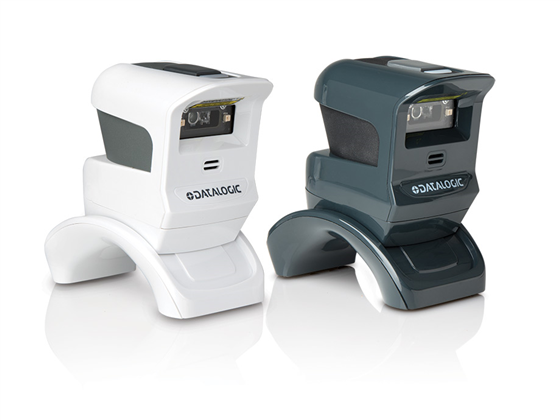

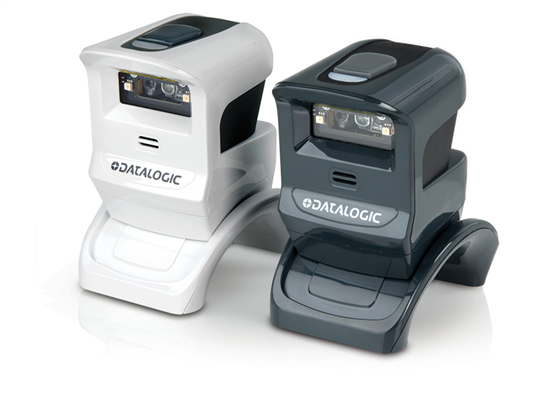

Colors
Black and white family configurations.
Dimensions with Stand
12.1 × 10.7 × 7.3 cm / 4.8 × 4.2 × 2.9 in.
Dimensions without Stand
7.4 × 9.5 × 6.4 cm / 2.9 × 3.7 × 2.5 in.
Weight
With stand: 295 g / 10.4 oz. Without stand: 178 g / 6.3 oz.
Field of View
40° horizontal × 26° vertical.
Image Capture
752 × 480 pixels; BMP, JPEG and TIFF; grayscale levels 256, 16 or 2.
Light Source
Aiming: 650 nm VLD. Illumination: 625 nm LED.
Minimum Print Contrast
25%.
Reading Angles
Pitch ±40°; roll/tilt ±180°; skew/yaw ±40°.
Reading Indicators
Adjustable-tone/volume beeper, Datalogic Green Spot good-read feedback and good-read LED.
Maximum Resolution
1D: 0.102 mm / 4 mil. Data Matrix: 0.178 mm / 7 mil.
Reading Range Conditions
Minimum distance depends on symbol length and scan angle; range depends on print resolution, contrast and ambient light.
Typical Depth of Field
Code 39: 5 mil, 2.6–18.8 cm; 10 mil, 0–37.9 cm. Data Matrix: 10 mil, 2.3–14.5 cm; 15 mil, 0–23.2 cm. EAN: 13 mil, 0.8–42.2 cm. PDF417: 10 mil, 0–22.4 cm. QR Code: 10 mil, 2.3–14.3 cm.
Agency Approvals
Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for certifications.
Environmental Compliance
China RoHS and EU RoHS.
Laser Classification
CDRH Class II; EN 60825-1 Class 2; IEC 60825 Class 2. Do not stare into the beam.
Configuration Utility
Datalogic Aladdin configuration software supported; refer to manufacturer support for availability.
OPOS / JavaPOS
Manufacturer utilities available at no charge.
Remote Host Download
Supported for remote servicing and updates.
Warranty
3-year factory warranty.
Gryphon GPS4400 Data Sheet
Download
Gryphon GPS4400 Quick Reference Guide
Download
Gryphon GPS4400 Product Reference Guide
Download
Gryphon GPS4400 Cleaning Instructions
Download

Shop Gryphon I GPS4400 Models

GPS4490-WH

Gryphon I GPS4490 2D Barcode Scanner, White, No Cable, RS-232 and USB Interface Support
