DataLogic Gryphon 4600

Name: DataLogic Gryphon 4600
Brand: DataLogic
Price: 217.21 USD
Availability: InStock

Images may not reflect the actual product

Fast, precise scanning with flexible corded and cordless choices

The Datalogic Gryphon 4600 reads printed labels, mobile-screen codes and compact barcodes for retail, healthcare and light manufacturing. High-performance models use dual sensors for greater reading reach; the GD4620 high-density model uses a single 1.5-megapixel sensor.

A green cross aimer helps target the label, while Green Spot confirms a successful read directly on the barcode. Choose a corded scanner, Bluetooth, or Datalogic STAR cordless radio. Cordless kits offer inductive charging with a rechargeable battery or a battery-free SuperCap pack.

Key Specifications

Scanner configuration: Corded GD, Bluetooth GBT or STAR cordless GM handheld
Barcode capability: 1D, 2D, postal and stacked codes; GS1 Digital Link, Digimarc and OCR
Reading range: 13 mil UPC: up to 100 cm HP or 50 cm HD
Interfaces / connectivity: GD4620: USB; GD4690 and WLC4690 base: USB or RS-232
Durability: Repeated 1.8 m drops to concrete; 2000 tumbles at 0.5 m
Environmental sealing: IP52
Dimensions: 18 × 6.5 × 7.9 cm
Weight: 144 g corded or 218 g cordless with battery
Power / charging: Cordless: 3250 mAh battery or 1000 F SuperCap; inductive charging
Scan feedback: Green Spot, beeper and LEDs; vibration on cordless models
Warranty: 5 years corded; 3 years cordless

Reading distance depends on symbol size, quality, contrast and lighting. Listed GM kit uses the North American STAR radio configuration. USB kits include a USB cable; other host connections and optional external power require the corresponding accessories.

In the Box

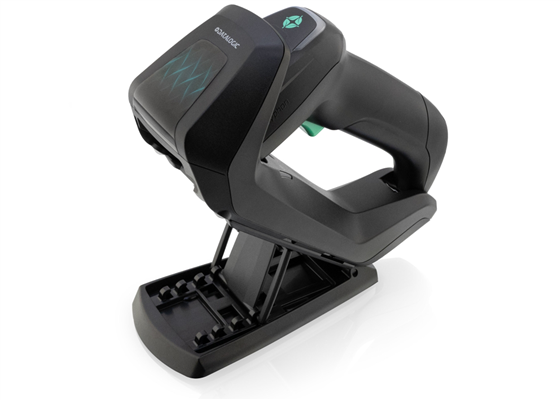

GBT4600-BK-BTK1-HP: black battery-powered Bluetooth scanner, WLC4690-BK-BT base and 90A052258 USB cable.

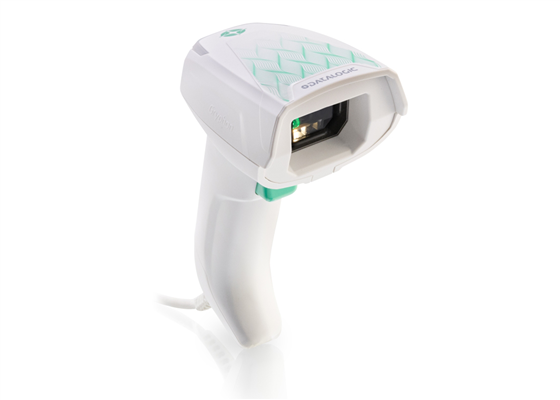

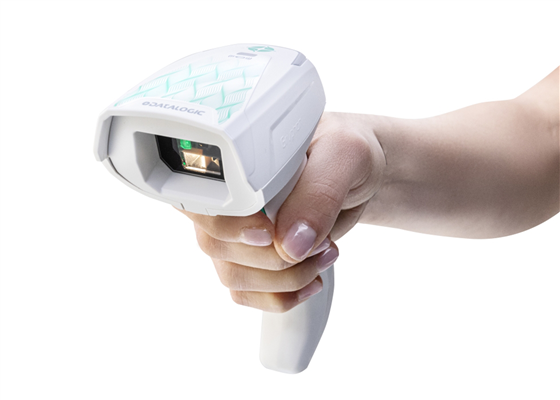

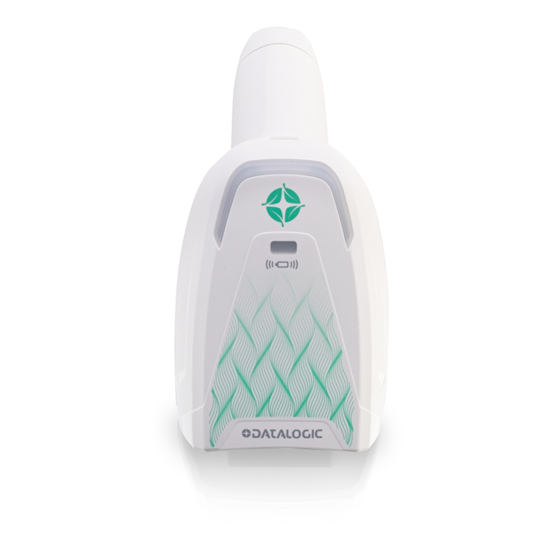

GBT4600-HC-BTK1-HP: white healthcare Bluetooth scanner with battery, WLC4690-HC-BT base and 90A052278 USB cable.
GBT4600-BK-BTK1-SC: black Bluetooth scanner with SuperCap pack, WLC4690-BK-BT base and 90A052258 USB cable.

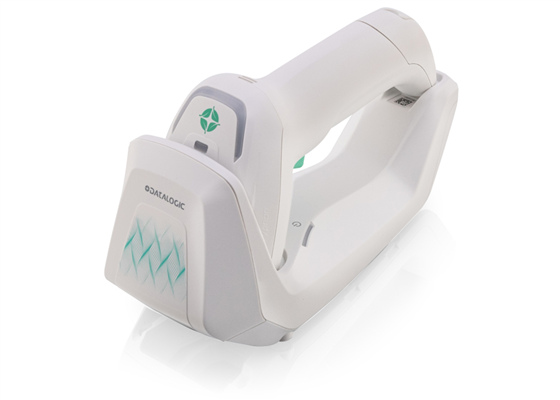

GM4600-HC-910K1-HP: white healthcare STAR scanner with battery, WLC4690-HC-910 base and 90A052278 USB cable.
GD4620-BK-HD: scanner only; interface cable sold separately.
GD4690-BKK1-HP: scanner and 90A052258 USB cable.

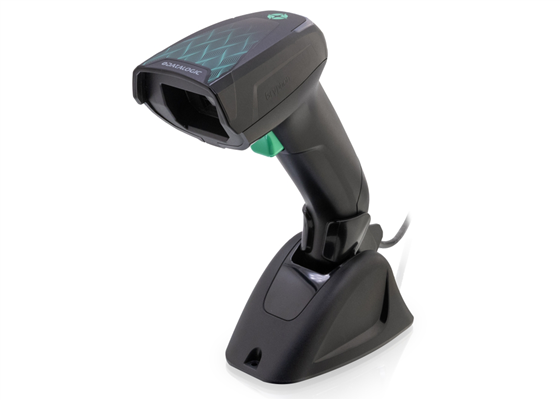

GD4690-BKK1B-HP: scanner, PM-BASE-GD46-BK presentation base and 90A052258 USB cable.
GD4620-BKK1-HD: black HD scanner and 90A052258 USB cable.
GD4620-BKK1S-HD: black HD scanner, STD-G041-BK stand and 90A052258 USB cable.
GD4620-HCK1-HD: white healthcare HD scanner and 90A052278 USB cable.
GD4690-BK-HP: black HP scanner only; cable sold separately.
GD4690-BK-B-HP: black HP scanner and PM-BASE-GD46-BK presentation base; cable sold separately.
GD4690-HCK1-HP: white healthcare HP scanner and 90A052278 USB cable.

External power supplies and AC cords are sold separately. USB host power can charge cordless kits; the faster published charging times require 12 V external power. Use the 8-0935 adapter with a regional cord such as 6003-0941 for the US. The separate MC-GM45 four-slot battery charger requires 90ACC0350 and a regional AC cord.

Target clearly and read with confidence

Selectable warm-white or red illumination adapts to different labels and surfaces. The green aimer, Green Spot and audible feedback help operators confirm each scan, while improved decoding handles damaged, distorted and reflective codes.

Designed for repeated daily use

Cordless inductive charging eliminates exposed charging contacts. White healthcare models add disinfectant-ready enclosures with antimicrobial additives tested to ISO 22196. Reader and base plastics use more than 70% recycled content as part of Datalogic’s ecodesign approach.

Scanner Configuration

GD 4620: corded high-density single-sensor scanner. GD 4690: corded high-performance dual-sensor scanner. GBT 4600: Bluetooth cordless; GM 4600: Datalogic STAR cordless. Listed cordless kits use high-performance dual-sensor optics.

1D / Linear Codes

Automatically discriminates standard 1D barcodes, including GS 1 DataBar linear codes.

2D Codes

Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR, Dot Code and GS 1 Digital Link.

Postal Codes

Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet and Royal Mail RM 4SCC.

Stacked Codes

EAN/JAN and UPC A/E composites; GS 1 DataBar composites, expanded stacked, stacked and stacked omnidirectional; MacroPDF, MicroPDF 417 and PDF 417.

Digital Watermarking and OCR

Digimarc barcodes; OCR-A, OCR-B and MICR character recognition.

Imager Sensor

High Performance (HP): dual sensors, 1.5 MP (1360 × 1120) and VGA (640 × 600). High Density (HD): single 1.5 MP (1360 × 1120) sensor.

Image Capture

BMP, JPEG and TIFF; grayscale levels of 256, 16 or 2.

Light Source

Green central-cross LED aimer; selectable warm-white or hyper-red LED illumination.

Motion Tolerance

70 inches per second.

Print Contrast Ratio (Minimum)

15%.

Reading Angle

Pitch ±65°; skew ±65°; roll 360°.

Reading Indicators

Adjustable-tone beeper, Green Spot on the barcode and good-read LEDs; vibration feedback on cordless models. Motionix supports automatic reading-mode transitions.

Resolution (Maximum)

1D and PDF 417: 0.077 mm / 3 mil. Data Matrix: 0.102 mm / 4 mil.

Reading Range - HP

Typical cm: Code 39 3 mil 2.5–20, 5 mil 0.5–35, 10 mil 0–60, 20 mil 0–125; Code 128 3 mil 3.5–14.5, 5 mil 1.5–30; UPC 13 mil 0–100; PDF 417 5 mil 2.5–17, 10 mil 0.5–38.5; DataMatrix 5 mil 3.5–10, 10 mil 0.5–29.5; QR 10 mil 0.5–25. Minimum distance at close range depends on symbol length and angle; all ranges depend on label size, print quality, contrast and light.

Reading Range - HD

Typical cm: Code 39 3 mil 2.5–15, 5 mil 0.5–22, 10 mil 0–35, 20 mil 0–52; Code 128 3 mil 3.5–11.5, 5 mil 1.5–20; UPC 13 mil 0–50; PDF 417 5 mil 2.5–15, 10 mil 0.5–27; DataMatrix 5 mil 3.5–10, 10 mil 0.5–20; QR 10 mil 0.5–20. Minimum distance at close range depends on symbol length and angle; all ranges depend on label size, print quality, contrast and light.

Bluetooth Communications

GBT 4600: Bluetooth 5.2 Classic and BLE at 2.4 GHz, selectable Class 1/2/3. Up to 100 m open-air Class 1 range to the base; other Bluetooth hosts vary. SPP, HID and HOGP; up to seven readers per base. Encryption and scanner authentication supported.

STAR Radio Communications

GM 4600: Datalogic STAR, regional 433.92 or 915 MHz ISM bands. Listed 910-series kit is the North American configuration. Point-to-point or multipoint, up to 16 readers per receiver, two-way communication and at least 50 m open-air range.

Interfaces

GD 4620: USB, including supported USB-C host cables. GD 4690 and WLC 4690 bases: USB or RS-232 multi-interface, including supported USB-C cables. Match the interface cable to the host; listed kits include USB-A cables.

Battery and Charging

Cordless battery models: removable 3250 mAh Li-ion pack. More than 80,000 scans per full charge under manufacturer conditions. With 12 V external power, typical empty-to-full 3.5 hours or 10–80%2 hours. USB 5 V charging is slower; external power adapter and cord sold separately.

SuperCap Power

Cordless SC model: removable 1000 F SuperCap pack, battery-free; approximately 7000 scans per full charge under manufacturer conditions. Datasheet charging times with 12 V external power: 30 minutes empty-to-full or 10 minutes from 10–80%. USB 5 V charging takes longer; settings and use affect results.

Cradle Power and Indicators

WLC 4690 input 4.5–14 VDC ±5%; typical charging below 6 W. Charging LED flashes orange; complete charge shows steady green. WLC 4690 supports inductive charging. Optional 8-0935 external power supply requires a regional AC cord.

Corded Electrical

GD 4690 input 4.5–14 VDC ±5%; GD 4620 input 5 VDC ±5%. Operating current below 300 mA at 5 V or 150 mA at 12 V; idle below 70 mA at 5 V or 40 mA at 12 V.

Drop, Tumble and Trigger Resistance

Repeated 1.8 m /6 ft drops to concrete; designed for 2000 tumbles at 0.5 m /1.5 ft; trigger rated for 10 million activations.

Particulate and Water Sealing

IP 52.

Temperature

Operating 0–50°C /32–122°F; storage and transport−40–70°C /−40–158°F.

Humidity and Ambient Light

0–95% non-condensing relative humidity; ambient illumination 0–110,000 lux.

ESD Protection

16 kV air discharge.

Dimensions

Scanner: 18 ×6.5 ×7.9 cm /7.1 ×2.6 ×3.1 in. Corded scanner with presentation base: 21 ×7.5 ×10.9 cm /8.2 ×2.9 ×4.2 in.

Weight

Corded scanner 144 g /5.1 oz; corded with presentation base 426 g /15 oz; cordless with battery 218 g /7.7 oz.

Colors and Healthcare Housing

Black standard or white healthcare. Healthcare enclosures are disinfectant-ready with antimicrobial additives compliant with ISO 22196. Follow manufacturer cleaning instructions.

Configuration and Management

Datalogic Aladdin configuration utility; Datalogic Connect remote management; OPOS, JavaPOS and Android SDK utilities; remote-host firmware download. Availability and service terms apply.

Safety and Environmental Compliance

Meets applicable safety and radio approvals for intended use; use the correct regional radio configuration. EU and China RoHS compliant. Consult the matching reference guide for certifications.

Warranty

5 years factory warranty for corded GD models; 3 years for cordless GBT/GM models.

GBT4600-BK-BTK1-HP

Gryphon GBT4600 Bluetooth USB kit, high-performance dual-sensor imager, black; battery, WLC4690-BK-BT charging base and 90A052258 USB cable included.

Power Source:

Battery

Color:

Black

Connection:

Bluetooth

Optics:

High Performance

Interface:

USB / RS-232

Package:

USB Kit

$592.68

GBT4600-HC-BTK1-HP

Gryphon GBT4600 Bluetooth USB kit, healthcare white, high-performance dual-sensor imager; battery, WLC4690-HC-BT charging base and 90A052278 USB cable included.

Power Source:

Battery

Connection:

Bluetooth

Optics:

High Performance

Interface:

USB / RS-232

Package:

USB Kit

Color:

White Healthcare

$653.24

GBT4600-BK-BTK1-SC

Gryphon GBT4600 Bluetooth USB kit, high-performance imager, black; SuperCap power pack, WLC4690-BK-BT charging base and 90A052258 USB cable included.

Color:

Black

Connection:

Bluetooth

Optics:

High Performance

Power Source:

SuperCap

Interface:

USB / RS-232

Package:

USB Kit

$627.42

GM4600-HC-910K1-HP

Gryphon GM4600 STAR cordless USB kit, North America 910-series radio, healthcare white, high-performance dual-sensor imager; battery, WLC4690-HC-910 base and 90A052278 USB cable included.

Power Source:

Battery

Optics:

High Performance

Connection:

STAR Cordless

Interface:

USB / RS-232

Package:

USB Kit

Color:

White Healthcare

$676.40

GD4620-BK-HD

Gryphon GD4620 corded 2D imager, high-density single-sensor, black, USB-only; scanner only, interface cable sold separately.

Color:

Black

Connection:

Corded

Optics:

High Density

Power Source:

Host Powered

Package:

Scanner Only

Interface:

USB Only

$217.21

GD4690-BKK1-HP

Gryphon GD4690 corded USB kit, high-performance dual-sensor imager, black, USB/RS-232 multi-interface; 90A052258 USB cable included.

Color:

Black

Connection:

Corded

Optics:

High Performance

Power Source:

Host Powered

Interface:

USB / RS-232

Package:

USB Kit

$255.50

GD4690-BKK1B-HP

Gryphon GD4690 corded USB kit, high-performance dual-sensor imager, black, USB/RS-232 multi-interface; PM-BASE-GD46-BK presentation base and 90A052258 USB cable included.

Color:

Black

Connection:

Corded

Optics:

High Performance

Power Source:

Host Powered

Interface:

USB / RS-232

Package:

USB Kit + Presentation Base

$276.13

GD4690-HCK1-HP

Gryphon I GD4690, Kit, 2D, High Performance, Dual-sensor, 4.5-14VDC, USB/RS-232 multi-interface, White HC (Kit includes Scanner and USB Cable 90A052278)

Connection:

Corded

Optics:

High Performance

Power Source:

Host Powered

Interface:

USB / RS-232

Package:

USB Kit

Color:

White Healthcare

$286.74

GD4620-BKK1S-HD

Gryphon I GD4620, Kit, 2D, High Density, Single-sensor, 5VDC, USB-only, Black (Kit includes Scanner, Stand STD-G041-BK and USB Cable 90A052258)

Color:

Black

Connection:

Corded

Optics:

High Density

Power Source:

Host Powered

Package:

USB Kit + Stand

Interface:

USB Only

$250.75

GD4690-BK-B-HP

Gryphon I GD4690, Kit, 2D, High Performance, Dual-sensor, 4.5-14VDC, USB/RS-232 multi-interface, Black (includes Scanner and Presentation Base PM-BASE-GD46-BK; cable sold separately)

Color:

Black

Connection:

Corded

Optics:

High Performance

Power Source:

Host Powered

Package:

Scanner + Presentation Base

Interface:

USB / RS-232

$271.99

GD4620-BKK1-HD

Gryphon I GD4620, Kit, 2D, High Density, Single-sensor, 5VDC, USB-only, Black (Kit includes Scanner and USB Cable 90A052258)

Color:

Black

Connection:

Corded

Optics:

High Density

Power Source:

Host Powered

Package:

USB Kit

Interface:

USB Only

$229.51

GD4620-HCK1-HD

Gryphon I GD4620, Kit, 2D, High Density, Single-sensor, 5VDC, USB-only, White HC (Kit includes Scanner and USB Cable 90A052278)

Connection:

Corded

Optics:

High Density

Power Source:

Host Powered

Package:

USB Kit

Interface:

USB Only

Color:

White Healthcare

$258.42

GD4690-BK-HP

Gryphon I GD4690, 2D, High Performance, Dual-sensor, 4.5-14VDC, USB/RS-232 multi-interface, Black (scanner only; cable sold separately)

Color:

Black

Connection:

Corded

Optics:

High Performance

Power Source:

Host Powered

Package:

Scanner Only

Interface:

USB / RS-232

$247.21

Shop Gryphon 4600 Accessories

HLD-G041-BK

Holder, Desk Wall Mount G041 Black

$16.82

HLD-G041-WH

Holder, Desk Wall Mount G041 White

$16.82

STD-G041-BK

Stand, Auto G041, Black

$30.60

MC-GM45

Four-slot battery charger for compatible Gryphon 4500/4600 battery packs; requires 90ACC0350 power supply and a regional AC cord, sold separately.

$194.04

STD-G041-WH

Auto-sensing presentation stand, G041, white, for compatible Gryphon scanners.

$35.81

WLC4690-BK-BT

Wireless charging and Bluetooth base for Gryphon GBT4600, black; USB/RS-232 multi-interface. Interface cable sold separately; optional 8-0935 external power adapter requires a regional AC cord.

$179.36

PM-BASE-GD46-BK

Presentation Mode Base, Black (Gryphon 4600 corded models)

$24.19

90A052258

Straight USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2 Meter, Black

$25.00

90A052278

USB Type-A interface cable for compatible Datalogic scanners, straight, 2 m, white.

$18.15

6003-0941

Power Cord, 110V, US

$15.00

8-0935

Power Supply, Requires Line Cord 6003-0941

$21.84

90ACC0350

Datalogic 12 V DC, 5 A switching power supply for compatible chargers, including MC-GM45; requires a regional 6003-series AC cord, sold separately.

$42.14
