DataLogic Gryphon 4200 Series
Description
Specifications
Download

DataLogic Gryphon 4200 Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

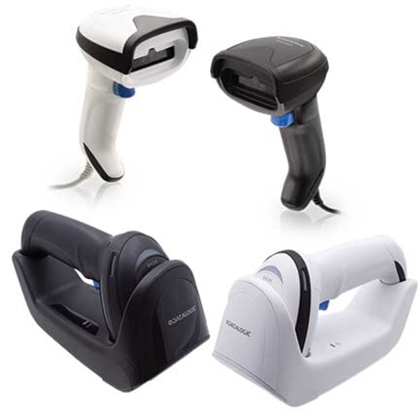

Premium 1D handheld scanning with wired or cordless connectivity

Datalogic's Gryphon 4200 series brings linear 1D scanning to retail and general-purpose applications. Choose a wired GD4200, Bluetooth GBT4200 or STAR cordless GM4200 model, with Motionix handling detection, a soft line viewfinder and Green Spot good-read feedback.

Key Specifications

  • Scanner configuration: Handheld 1D linear imager; wired or cordless
  • Barcode capability: Standard 1D codes, including GS1 DataBar linear codes
  • Reading range: Typical EAN/UPC 13 mil: 3.5–90 cm
  • Interfaces / connectivity: GD4220: USB; GD4290: USB/RS-232; GBT4200: Bluetooth 5.0; GM4200: 910 MHz STAR
  • Durability: Repeated 1.8 m (6 ft) drops onto concrete
  • Environmental sealing: IP52
  • Dimensions: All models: 16.6 × 6.8 × 10.9 cm (6.5 × 2.7 × 4.3 in)
  • Weight: Wired: 163 g; cordless: 235 g including battery
  • Cordless radio range: Open air with matching base: GBT4200 up to 100 m; GM4200 up to 50 m
  • Battery (cordless models): Replaceable 2,550 mAh; 80,000 reads per charge
  • Charging (cordless models): 4 hours using external 12 VDC power
  • Warranty: 5 years (wired); 3 years (cordless)

Reading and radio ranges depend on barcode quality, lighting, scan angle and the installation. GBT4200 supports Bluetooth HID/SPP; its 100 m open-air rating is with the base, and other Bluetooth hosts may differ. GM4200 requires a matching 910 MHz STAR radio base.

In the Box

  • GD4290-BK
    • Gryphon GD4290 black scanner

    Host cable sold separately.

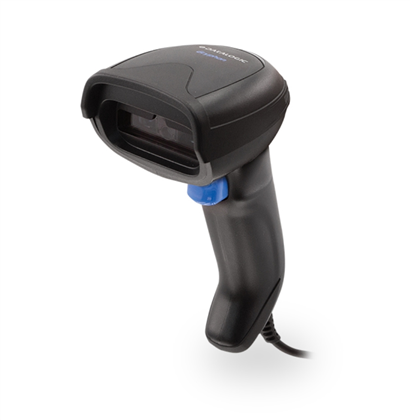

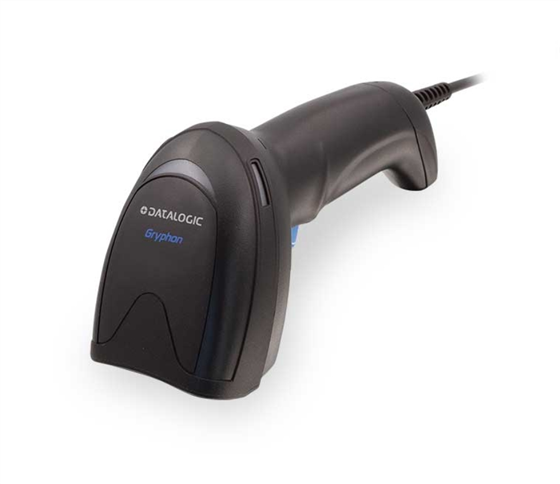

  • GD4220-BKK1 USB kit
    • Gryphon GD4220 black scanner
    • USB cable 90A052258

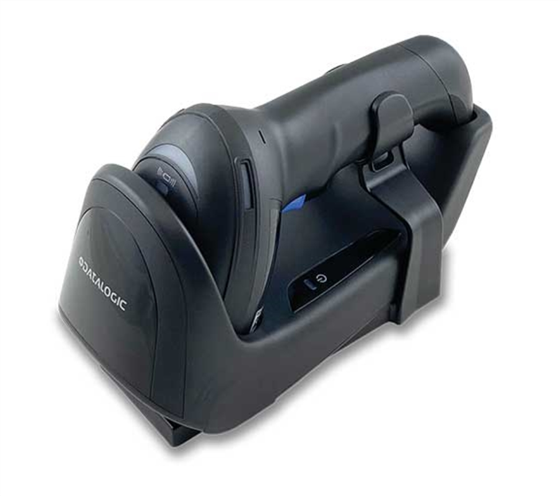

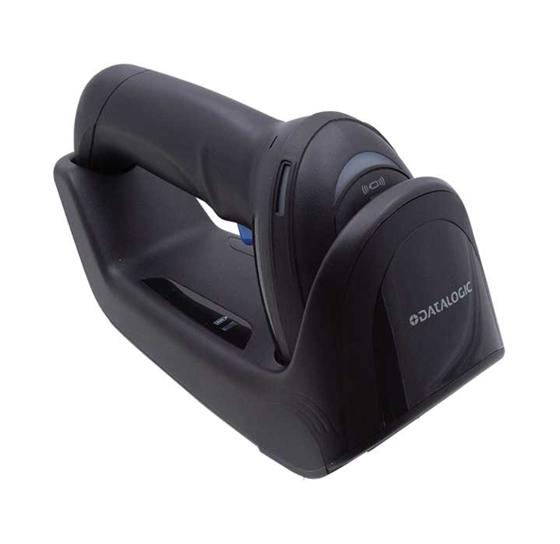

  • GBT4200-BK-WLC / GM4200-BK-910-WLC
    • Selected Gryphon GBT4200 or GM4200 black scanner

    Matching base and host cable sold separately.

  • GBT4200-BK-BTK1 USB kit
    • Gryphon GBT4200 black scanner
    • WLC4190-BK-BT Bluetooth base
    • USB cable 90A052258
  • GM4200-BK-910K1 USB kit
    • Gryphon GM4200 black 910 MHz scanner
    • WLC4190-BK-910 STAR base
    • USB cable 90A052258

External power adapters and regional line cords are separate accessories.

Enhanced linear imaging

Read high-density and low-resolution 1D codes, including damaged or poorly printed labels and barcodes displayed on mobile devices. The soft line viewfinder helps target the intended code.

Daily cleaning and wireless charging

Disinfectant-ready enclosures support regular cleaning with harsh disinfectant solutions. Cordless models use inductive battery charging, removing the need to clean charging contacts.

Bluetooth Wireless Technology (GBT4200)
Bluetooth 5.0 certified Class 1, Class 2 and Class 3; 2.4 GHz; HID and SPP profiles. Maximum 7 readers per radio receiver (cradle or commercial dongle). Open-air range: 100 m (328 ft), measured using the base station; other Bluetooth hosts may differ. Data encryption and scanner authentication.
STAR Cordless System (GM4200)
910 MHz for the listed GM4200-BK-910 models; effective radiated power <50 mW. Point-to-point or multi-point with up to 16 readers per radio receiver; two-way communications. Open-air range: 50 m (164 ft).
1D / Linear Codes
Automatic discrimination of standard 1D codes including GS1 DataBar linear codes.
Battery (cordless models)
Replaceable 2,550 mAh lithium-ion. Charge time: 4 hours using external 12 VDC power. Reads per charge: 80,000.
Cradle Indicator LEDs
Flashing orange: battery charging; steady green: charge completed.
Current (cordless models)
Charging with WLC4190: <1,200 mA maximum; scanner only: 750 mA maximum from battery; WLC4190 cradle only: 80 mA at 5 V while operating.
Input Voltage (Cradle)
4.5-14 VDC +/-5%, WLC4190 / WLC4090.
Current (corded models)
Typical operating: <350 mA at 5 V; <150 mA at 12 V. Typical standby/idle: <60 mA at 5 V; <30 mA at 12 V.
Input Voltage (corded models)
GD4220: 5 VDC +/-5%; GD4290: 4.5-14.0 VDC.
Ambient Light
0-130,000 lux
Drop Resistance
Repeated 1.8 m (6 ft) drops onto concrete.
ESD Protection
16 kV air discharge
Humidity
0-95%, non-condensing
Environmental Sealing
IP52
Temperature
Operating: 0-50 deg C (32-122 deg F); storage: -20 to 70 deg C (-4 to 158 deg F).
Interfaces
Cordless bases: WLC4190 supports USB Type-C / USB / RS-232; WLC4090 supports USB / RS-232. Corded models: GD4220 supports USB Type-C / USB only; GD4290 supports USB Type-C / USB / RS-232.
Color Options
Black
Enclosure
Disinfectant-ready housing designed for regular cleaning with harsh disinfectant solutions.
Dimensions
16.6 x 6.8 x 10.9 cm (6.5 x 2.7 x 4.3 in), corded and cordless models.
Weight
Corded models: 163 g (5.75 oz); cordless models: 235 g (8.29 oz), including battery.
Imager Sensor
CCD solid-state linear imager
Light Source
Dual LED array illumination, 612-630 nm.
Read Rate (Maximum)
1,000,000 pixels/sec (400 reads/sec)
Print Contrast Ratio (Minimum)
15%
Reading Angle
Pitch: +/-65 degrees; roll/tilt: +/-45 degrees; skew/yaw: +/-65 degrees.
Reading Indicators
Adjustable-tone beeper; 3GL good-read feedback with Green Spot on the code and dual good-read LEDs.
Resolution (Maximum)
0.077 mm / 3 mil
Typical Depth of Field
Code 39, 5 mil: 5.0-37 cm (2.0-14.6 in); 7.5 mil: 5.0-54 cm (2.0-21.3 in); 10 mil: 5.0-73.5 cm (2.0-28.9 in); 20 mil: 2.5-147 cm (1.0-57.9 in). EAN/UPC, 13 mil: 3.5-90 cm (1.4-35.4 in). Typical ranges depend on printing resolution, contrast and ambient light; minimum distance also depends on symbol length and scan angle.
Agency Approvals
Meets the necessary safety and regulatory approvals for intended use. Consult the model Quick Reference Guide for certification details.
Environmental Compliance
China RoHS and EU RoHS
LED Classification
IEC 62471 exempt group
Datalogic Aladdin
Manufacturer configuration utility available at no charge.
OPOS / JavaPOS
Manufacturer OPOS and JavaPOS utilities available at no charge.
Remote Host Download
Remote host download capability.
Warranty
5-year factory warranty for corded models; 3-year factory warranty for cordless models.
Gryphon 4200 Series Datasheet (Rev D, September 2023)
Download
Gryphon GBT/GM4200 Quick Reference Guide
Download
Gryphon GD4200 Quick Reference Guide
Download
Gryphon 4200 Series Product Reference Guide
Download

Shop Gryphon 4200 Series Models

GD4220-BKK1

Gryphon I GD4220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner and USB Cable 90A052258)

Interface:

USB

Accessories:

USB Cable

$123.00

GBT4200-BK-BTK1

Gryphon GBT4200, Bluetooth Kit, USB, Black (Kit includes scanner, WLC4190-BK-BT base and USB cable 90A052258)

Interface:

Bluetooth

Accessories:

Cable & Cradle

$353.00

GM4200-BK-910K1

Gryphon GM4200, STAR Kit, USB, 910 MHz, Black (Kit includes scanner, WLC4190-BK-910 base and USB cable 90A052258)

Accessories:

Cable & Cradle

Interface:

Radio (910 MHz)

$353.00

GM4200-BK-910-WLC

Gryphon GM4200, STAR Linear Imager, 910 MHz, Wireless Charging, Black. Base and Host Cable Sold Separately.

Accessories:

Not Included

Interface:

Radio (910 MHz)

$190.00

GBT4200-BK-WLC

Gryphon GBT4200, Bluetooth Linear Imager, Wireless Charging, Black. Base and Host Cable Sold Separately.

Interface:

Bluetooth

Accessories:

Not Included

$190.00

GD4290-BK

Gryphon I GD4290, Linear Imager, USB/RS-232 Multi-Interface, Black. Host Cable Sold Separately.

Accessories:

Not Included

Interface:

USB or Serial(RS-232)

$114.00

Shop Gryphon 4200 Series Accessories

8-0935

Power Supply, Requires Line Cord 6003-0941

$19.00

6003-0941

Power Cord, 110V, US

$15.00

ZSC2GM4231

Gryphon 4200 Ease of Care 3-Year Comprehensive Warranty. Includes 2 Day Shipping To Depot and Customer Covered by Datalogic. No Advanced Replacement.

$33.63

WLC4190-BK-BT

Wireless Charging Base Station, BT, USB/RS-232/Wedge Multi-Interface, Black (Desk/Wall)

$187.74

HLD-G041-BK

Holder, Desk Wall Mount G041 Black

$16.82

STD-G041-BK

Stand, Auto G041, Black

$30.60

90A052258

Straight USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2 Meter, Black

$25.00

90A052352

Cable, USB, Type C, PVCW, Straight, 2M, Black

$19.72

WLC4190-BK-910

Wireless Charging Base Station, 910MHz, USB/RS-232/Wedge Multi-Interface, Black (Desk/Wall)

$178.92

RBP-GM4200

Battery Pack, Removable, Gryphon 4200 series Wireless

$39.93

90A052316

Cable, Active, RS-485 to RS-232, Coiled, 3.6m

$45.76
