Honeywell Granit Ultra 2105i

Name: Honeywell Granit Ultra 2105i
Brand: Honeywell
Price: 931.68 USD
Availability: InStock

Images may not reflect the actual product

Ultra-rugged cordless scanning for demanding warehouse, distribution, and manufacturing workflows.

Brand update: The Granit Ultra 2105i is now a Brady product, formerly sold as the Honeywell Granit Ultra 2105i.

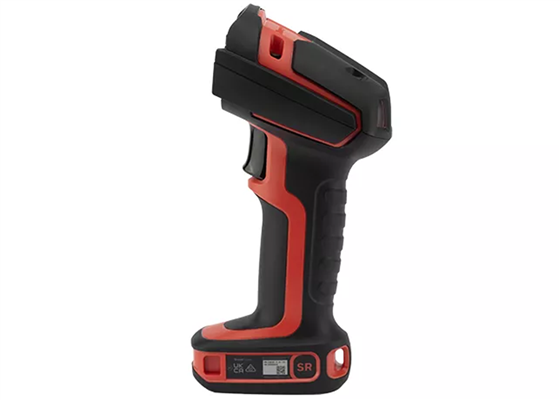

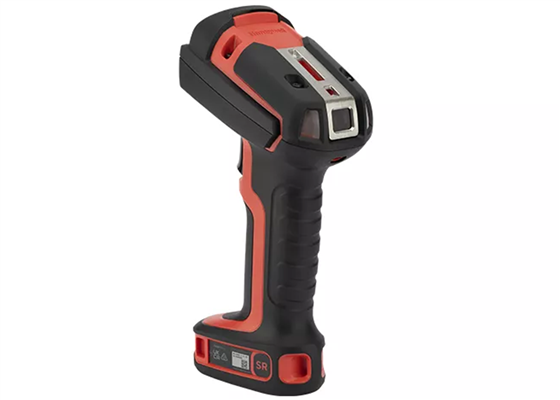

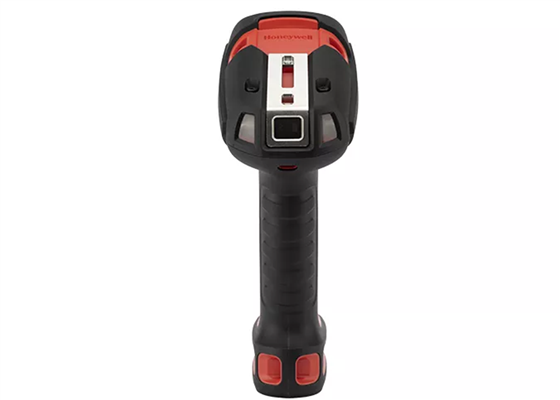

The Honeywell Granit Ultra 2105i combines rapid 1D and 2D area imaging with a cordless design built for repeated drops, tumbles, dust, and water exposure. Standard Range and Expanded Range configurations cover close-up work through mid-field scanning without changing the familiar Granit handling.

High-speed processing, Honeywell decoding enhancements, adjustable vibration feedback, and a secure drop-in charge and communication base help teams move quickly from receiving and picking to packing and production.

Key Specifications

Scanner configuration: Ultra-rugged cordless Bluetooth area imager; SR and XR options
Barcode capability: 1D, 2D, QR, PDF417, Digimarc, and OCR
Reading range: SR: 20 mil Code 128 to 1.0 m; XR: to 2.8 m
Interfaces / connectivity: Bluetooth 4.2; USB, keyboard wedge, and RS-232 TTL through supported bases and cables
Durability: 3 m (10 ft) drop rating; 7,500 tumbles at 1 m
Environmental sealing: Scanner IP65 and IP68; base IP65
Dimensions and weight: 194.8 × 75.8 × 139.5 mm; 425 g (15 oz)
Battery and runtime: 3300 mAh Li-ion; up to 100,000 scans or 14 hours per charge
Motion tolerance: Up to 4,000 mm/s
Warranty: 3 years for the scanner; 1 year for the battery.

In the Box

Honeywell Granit Ultra 2105i scanner
BAT-SCN11 lithium-ion battery

Scanner-only options omit the base and host cable. Kit options add the stated horizontal charge and communication base plus a USB or RS-232 cable; verify the selected option before ordering.

Ultra Scan Performance

Fast reads across real-world labels

Honeywell combines high-speed processing, AI-assisted algorithms, and decoding enhancements to keep common, damaged, and low-quality barcodes moving. Multi-code capture can organize and output several codes in a predefined order with Honeywell Data Format Editor.

Ultra Durability

Designed for rough daily handling

The 2105i withstands 3 m drops, 7,500 one-meter tumbles, temperatures from -20°C to 50°C, and IP65/IP68 exposure. The trigger is tested to three million activations for sustained warehouse and industrial use.

Ultra Ease of Use

Clear feedback and flexible configuration

Good-read LEDs, an adjustable beeper, and adjustable vibration give operators immediate confirmation. EZConfig, Scanner Management Utility, SDKs, and Honeywell workflow tools support configuration and fleet deployment when applicable.

Cordless Uptime

Secure charging for fixed or mobile stations

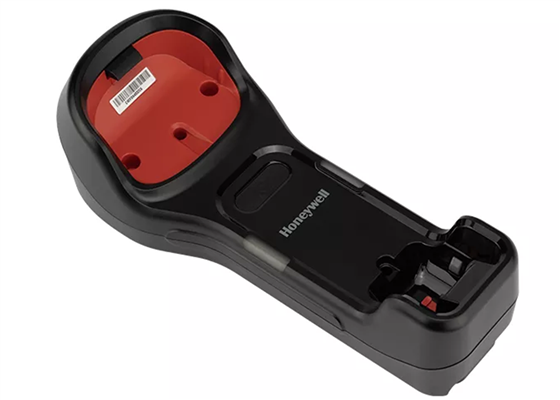

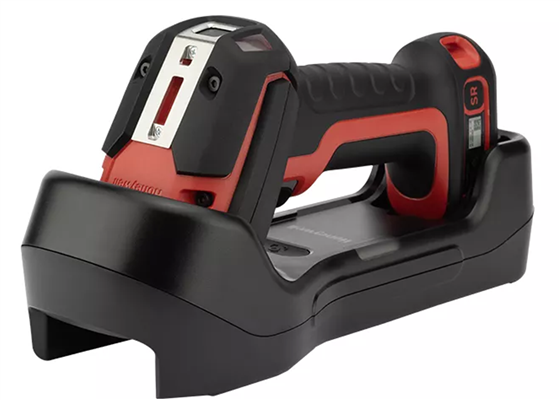

The 3300 mAh battery supports up to 100,000 scans per charge. The horizontal base supports quick drop-in charging, while its latching mechanism helps retain the scanner for vertical or vehicle-mounted installations.

Physical Dimensions

Scanner: 194.8 × 75.8 × 139.5 mm (7.7 × 3.0 × 5.5 in). Charge and communication base: 250.1 × 102 × 80.7 mm (9.8 × 4.0 × 3.2 in).

Weight

Scanner: 425 g (15 oz). Charge and communication base: 357 g (12.6 oz).

Input and Charging Power

Input: 4.4–5.5 VDC. Charging: 2.5 W (500 mA at 5 V USB 2.0) or 7.5 W (1500 mA at 5 V BC1.2 or external supply). Standby: 0.6 W (120 mA at 5 VDC). Charge time: under 12 hours by USB 2.0; 4 hours by USB BC1.2, 5 V/3 A supply, or MB4-BAT-SCN11 charger.

Battery and Runtime

3300 mAh lithium-ion battery; up to 100,000 scans per charge; expected operation up to 14 hours at two scans per second.

Bluetooth Radio

Bluetooth 4.2; 2.4–2.5 GHz ISM band; adaptive frequency hopping; Class 1, up to 100 m (330 ft) line of sight with the Honeywell charge and communication base.

Host Interfaces and User Feedback

USB, keyboard wedge, and RS-232 TTL (conversion cables available for ±12 V True RS-232). Good-decode LEDs, battery-status LED, Bluetooth-status LED, adjustable beeper, and adjustable vibration.

Temperature and Humidity

Operating (non-charging): -20°C to 50°C (-4°F to 122°F). Charging: 5°C to 35°C (41°F to 95°F). Storage: -40°C to 70°C (-40°F to 158°F). Humidity: up to 95% relative, non-condensing.

Drop Rating

3 m (10 ft) to MIL-STD-810G at 25°C/55% RH; 20 drops from 2.5 m (8.2 ft) across -20°C to 50°C; 50 drops from 2 m (6.5 ft) across -30°C to 50°C.

Tumble, Vibration, and Trigger

7,500 tumbles at 1 m (3.3 ft); withstands 5G peak from 5–300 Hz; trigger tested to 3 million activations.

Environmental Protection

Scanner: IP65 and IP68. Charge and communication base: IP65. Light tolerance: 0–100,000 lux. ESD: ±20 kV air, ±8 kV contact, and ±8 kV indirect coupling plane.

Scan Engine, Illumination, and Aimer

SR: 1280 × 1080 area imager, warm-white 2700 K illumination, green LED aimer. XR: near/far 1280 × 1080 area imagers, yellow-green illumination, green Class 2 laser aimer.

Scan Performance

Motion tolerance: up to 4,000 mm/s. Field of view — SR and XR-near: 42° horizontal × 36° vertical; XR-far: 16° × 14°. Print contrast: as low as 15%. Roll/pitch/skew: ±360°/±65°/±65°.

Resolution and Image Capture

SR/XR minimum resolution: 2.5 mil 1D and 5 mil 2D. Image capture: up to 109 PPI on an A4 document.

Typical Decode Range — SR

BAT-SCN11

Smart battery: Lithium-ion battery for Xenon Ultra 1962 Bluetooth scanners.

$114.99

CBL-020-300-C00-02

Cable: RS232 (+5V signals) DB9 Female, Host 5V Power With Option For External 5V Power, 300cm length, Coiled, No EAS, black, with ferrite, Industrial, Compatible with RJ45 5V Scanner Products

$65.86

CBL-500-300-C00

Honeywell USB Type-A Scanner Cable, 3 m, Coiled, Black, 5 V Host Power

$38.20

CBL-503-300-S00

Cable: USB, black, 12V locking, 3m (9.8ft), straight, 5V host power

$74.60

CBL-503-300-C00

Cable: USB, black, 12V locking, 3m (9.8ft), coiled, 5V host power

$68.87

CBL-503-500-C00

Cable: USB, black, 12V locking, 5m (16.4ft), coiled, 5V host power

$69.78

CBL-020-300-C00-01

Cable: Industrial: RS232 (5V signals), black, DB9 Female, 3m (9.8ft), coiled, 5V external power with option for host power on pin 9

$43.29

HOLDER-010-U

Holder: Desktop, wall mount, includes mounting hardware.

$39.13

BAT-SCN11

Honeywell BAT-SCN11 Smart Lithium-Ion Battery for Granit Ultra and Xenon Ultra Cordless Scanners

$114.99

CCB23-100BT-07N

Honeywell CCB23-100BT-07N Granit Ultra Charge and Communication Base, Bluetooth Class 1, 100 m, Up to 7 Scanners; Cables and Power Sold Separately

$623.88

CBL-801-370-C00

Cable, RS-232 (5V signals), Granit to Vocollect Talkman, host 5V power only, 3.7m, coiled, w/o ferrite

$131.53

CBL-020-500-C00

Cable: 16.4 Foot, RS232, Black, DB9 Female, Coiled, 5V Ext Power

$72.16

CBL-500-300-C00-07

Cable: USB Type A, Host 5V Power Only, 300cm length, Coiled, No EAS, black, without ferrite, Industrial, for freezer environments, Compatible with RJ45 5V Scanner Products

$88.14

CBL-500-300-S00-01

Non-Cancellable/Non-Returnable. Cable: USB, black, Type A, 3m (9.8 ), straight, 5v host power, industrial grade, w/o ferrite.

$71.77

CBL-501-300-S00

USB Granit scanner cable, compatible with VM series docks USB D9 connectors

$152.89

CBL-800-300-C00

NCNR Cable: USB, Type C, 3M, Coiled, 5V host power.

$35.89

CCB23-100BT-07N

Granit Ultra Base: Charge and communication. Class 1 Bluetooth. 100m (300'), up to 7 scanners can be connected. Compatible with RS232/USB/KBW cables or PS-05-3000-W-U (sold separately).

$623.88

199XILNYRDPLT

Replacement metal lanyard plate for connection to tool balancer. Compatible with Granit XP 199Xi models.

$63.82

199XIORING

O-ring seal for IP65/67 sealing with Granit XP scanner cables. Pack of 10.

$29.76

520-24-H3

Scanner heater to prevent fogging in freezer operations. Includes cable retractor. For use with 24V power. Configured for Granit (XP and legacy) scanner compatibility.

$2303.74

520-36/48-H3

Scanner heater to prevent fogging in freezer operations. Includes cable retractor. For use with 36-48V power. Configured for Granit (XP and legacy) scanner compatibility.

$2303.74

STND-33F00-012-4

Stand: gray, 33cm (13in) height, flexible rod, weighted base, Granit cup.

$70.49

TOOLBAL

Accessory: Take up Reel Balancer for 4800,5800,191xi series.

$157.54

VMHOLDER2K

Vehicle Mount Kit: Contains vehicle mount scanner cup, adjustable arm with ball joints (ADJARME) and mounting hardware

$102.55

VMHOLDER3K

Vehicle mount kit: Contains adjustable arm with 1 in. dia. ball joints and circular mounting plate

$125.30

VMHOLDER4K

Vehicle mount kit: Contains adjustable arm with 1 in. dia. ball joints and square post clamp base for posts up to 3 in. wide.

$248.56

PS-05-3000-W-U

Granit Ultra Power Supply for charge and communication base (CCB23), 5VDC 3.0A, 100-240VAC @50-60HZ, . Includes adapters for regional plug types A, C, G, and I. PS-05-3000-W-U is an optional power supply for speeding up the scanner battery charging for the CCB23.

$69.16

HOLSTER-INDUSTRIAL

Accessory: Holster Belt for Granit 1911i and 1981i cordless imagers.

$101.93

2105IENDCAP

Cordless Granit Ultra end cap (battery door) for 2105i models. One per pack.

$109.63

2105IENDCAPX100

Cordless Granit Ultra end cap (battery door) for 2105i models. 100 per pack.

$7107.56

CCB23ORING

O-ring for IP65 sealing with Granit Ultra Cordless Base cables. Pack of 10.

$17.71
