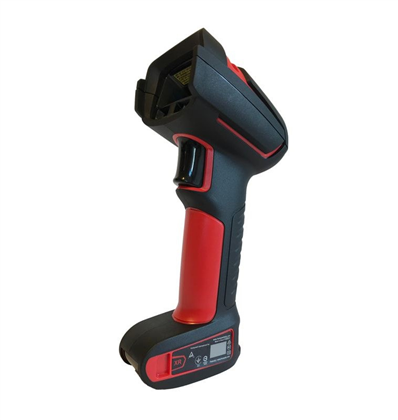

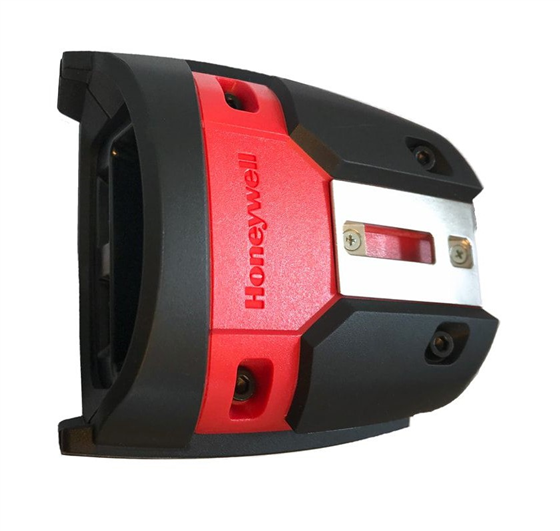

Honeywell Granit 1990i SR/XR
Granit 1990i SR/XR (iOS)
Corded rugged 1D/2D industrial scanner with standard-, flex-, or extended-range engines.Ultra-rugged corded area imaging for near-field labels, FlexRange scanning, and demanding warehouse workflows.
Brand update: The Granit 1990i SR/XR is now a Brady product, formerly sold as the Honeywell Granit 1990i SR/XR.
Honeywell Granit XP 1990i scanners combine fast 1D and 2D decoding with a deeply recessed, impact-resistant scan window for warehouses, distribution centers, and manufacturing floors. Choose Standard Range for close work or FlexRange XR when the same workflow must move from near-field barcodes to rack labels farther away.
Every 1990i configuration is corded, sealed to IP65 and IP67, and built for repeated drops and tumbles. A current XLR USB kit is also available for operations that require extreme long-range targeting.
Key Specifications
- Scanner configuration: Corded industrial handheld area imager; SR, FlexRange XR, and current XLR option
- Barcode capability: 1D, PDF, 2D, postal, Digimarc, DOT Code, and OCR symbologies
- Reading range: SR for near-field work; XR reads UPC to 5 ft and 100 mil Code 39 to 33 ft
- Interfaces / connectivity: USB, keyboard wedge, and RS-232 TTL; cable depends on the selected SKU
- Durability: 10 ft drop rating at room temperature and 7,000 tumbles at 3.3 ft
- Environmental sealing: IP65 and IP67
- Dimensions and weight: 7.6 x 3.0 x 3.9 in; 11.3 oz scanner
- Warranty: 3 years.
In the Box
- Selected Honeywell Granit XP 1990i scanner
- USB kits: 3 m industrial USB Type-A cable
- RS-232 kit: 3 m industrial RS-232 cable
Package contents vary by SKU. Scanner-only configurations do not include a cable; order an external power supply separately when the selected interface requires one.
Choose the right working range
Standard Range (SR)
SR is optimized for fast, normal near-field reads of 1D and 2D barcodes, including damaged and low-quality labels.
FlexRange (XR)
XR keeps near-field performance while extending UPC reading to 1.5 m (5 ft) and 100 mil Code 39 reading to 10 m (33 ft).
Engineered for industrial uptime
Rugged by design
The recessed scan window, 3 m drop rating, 7,000-tumble specification, and -30°C to 50°C operating range help keep work moving through harsh shifts.
Clear decode feedback
Adjustable LEDs, beeper, and vibration feedback help operators confirm successful reads in loud or visually demanding environments.
Extreme distance when required
Current XLR USB configuration
The available XLR kit supports close-range work and extends 13 mil UPC reads to 2 m (6.6 ft) and 100 mil codes to 24 m (79 ft).
Simplified fleet management
Honeywell software support
Honeywell Scanner Management Utility supports centralized deployment and updates, while Operational Intelligence can provide on-demand scan insights for managed environments.
Shop Granit 1990i SR/XR Models
1990ISR-3USB-N
Granit XP 1990iSR Ultra-Rugged Corded 1D/2D USB Kit, Standard Range (SR), Red, Vibration Feedback, 3 m USB Type-A Cable Included
Range:
Standard
Interface:
USB
1990IXR-3USB-N
Granit XP 1990iXR Ultra-Rugged Corded 1D/2D USB Kit, FlexRange (XR), Red, Vibration Feedback, 3 m USB Type-A Cable Included
Range:
FlexRange
Interface:
USB
1990IXLR-3USB-N
Granit XP 1990iXLR Ultra-Rugged Corded 1D/2D USB Kit, Extreme Long Range (XLR), Red, Vibration Feedback, 3 m USB Type-A Cable Included
Interface:
USB
Range:
XLR Extended Range
1990ISR-3-N
Granit XP 1990iSR Ultra-Rugged Corded 1D/2D Scanner, Standard Range (SR), Red, Vibration Feedback, Cable Not Included
Interface:
No Cable Included
Range:
Standard
1990IXR-3SER-N
Granit XP 1990iXR Ultra-Rugged Corded 1D/2D RS-232 Kit, FlexRange (XR), Red, Vibration Feedback, 3 m RS-232 Cable Included
Range:
FlexRange
Interface:
Serial
1990IXR-3-N
Granit XP 1990iXR Ultra-Rugged Corded 1D/2D Scanner, FlexRange (XR), Red, Vibration Feedback, Cable Not Included
Range:
FlexRange
Interface:
No Cable Included
Outlet Items

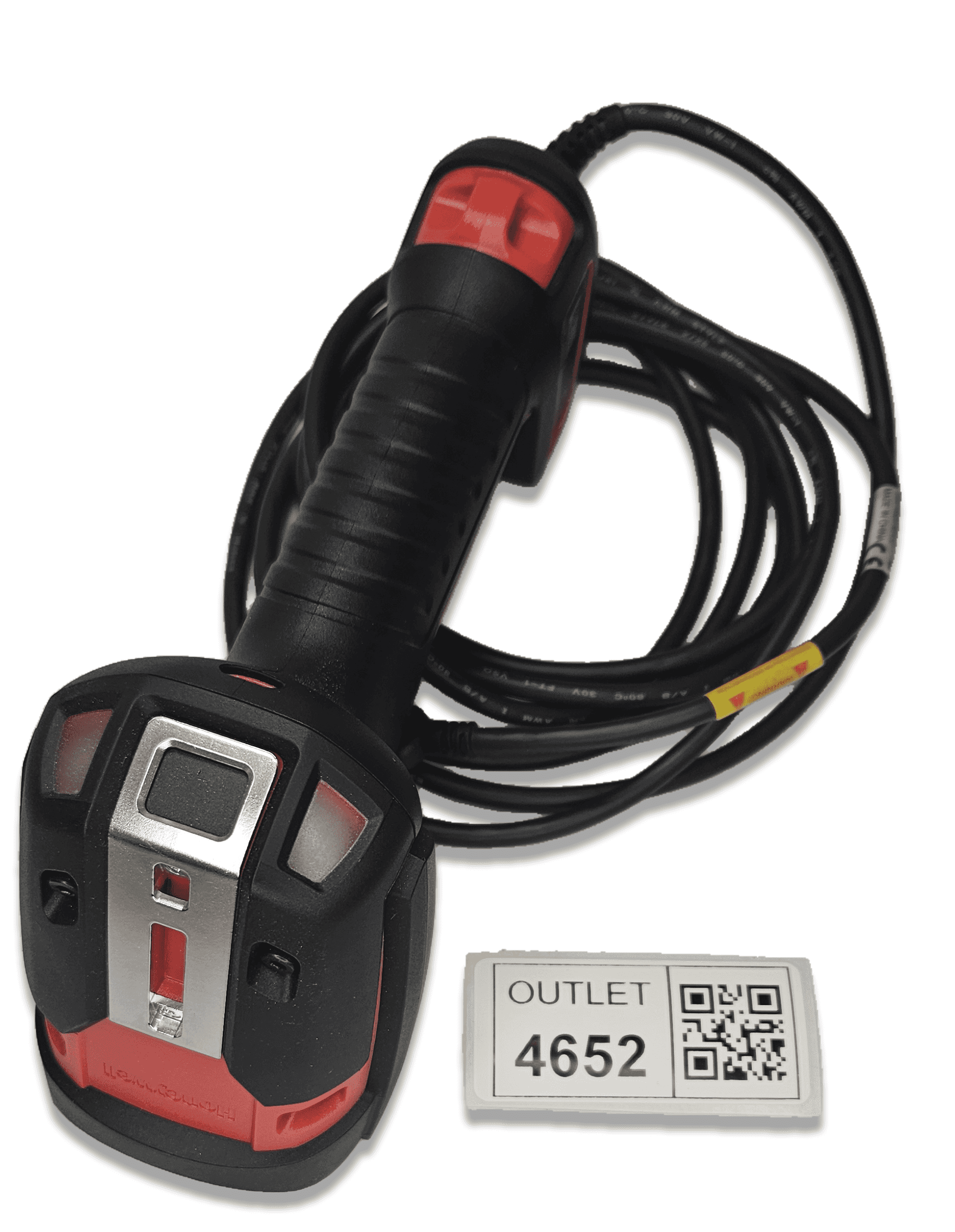

Honeywell Granit 1990i SR/XR
Honeywell Ultra Rugged Industrial Scanner Kit (Renewed, Like New). (CBL-500-300-S00). CID: 4652
Item Number: 1990IXR-3USB-N
1 Like New AvailableCID: 4652
Shop Granit 1990i SR/XR Accessories
SVC1990I-SG1R
1990I, Edge Service, Gold Maintenance Contract, 5-Day Depot, 1-Year, Renewal Contract
SVC1990I-SG3N
1990I, Edge Service, Gold Maintenance Contract, 3-Year, New
SVC1990I-SG5N
1990I, Edge Service, Gold Maintenance Contract, 1-Day Depot, 5-Year, New
BAT-SCN01A
Honeywell BAT-SCN01A 2400 mAh Li-Ion Battery for Voyager 1202g, 1452g, and 1472g; Xenon 1902 and 1952g; Granit 1911i, 1981i, and 1991i; Ground Shipping Required
MB4-BAT-SCN01NAD06
Charger: 4 Bay, Desktop Power Supply, NA power supply (46-00525 Level VI), Batteries not included
COB22
Base: Charge only. Only 1 scanner can be charged at a time. Power supply required and must be ordered separately.
46-00525-6
Honeywell Scanner Power Supply, North American Plug, 1.0 A at 5.2 VDC, for Cabled Connections and Xenon/Voyager Bases
HOLDER-010-U
Holder: Desktop, wall mount, includes mounting hardware.
HOLSTER-INDUSTRIAL
Accessory: Holster Belt for Granit 1911i and 1981i cordless imagers.
STND-33F00-012-4
Stand: gray, 33cm (13in) height, flexible rod, weighted base, Granit cup.
TOOLBAL
Accessory: Take up Reel Balancer for 4800,5800,191xi series.
199XILNYRDPLT
Replacement metal lanyard plate for connection to tool balancer. Compatible with Granit XP 199Xi models.
199XIORING
O-ring seal for IP65/67 sealing with Granit XP scanner cables. Pack of 10.
VMHOLDER2K
Vehicle Mount Kit: Contains vehicle mount scanner cup, adjustable arm with ball joints (ADJARME) and mounting hardware
VMHOLDER3K
Vehicle mount kit: Contains adjustable arm with 1 in. dia. ball joints and circular mounting plate
VMHOLDER4K
Vehicle mount kit: Contains adjustable arm with 1 in. dia. ball joints and square post clamp base for posts up to 3 in. wide.
