Honeywell Genesis XP 7680g
Description
Specifications
Download

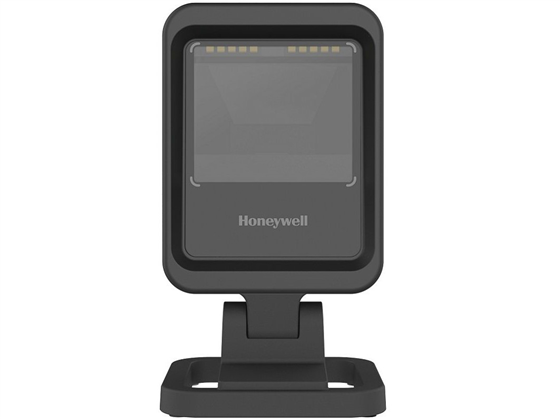

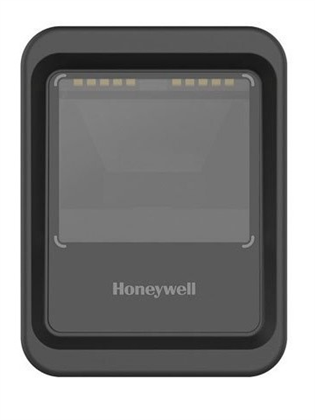

Honeywell Genesis XP 7680g

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

High-performance 1D and 2D presentation scanning in a compact, flexible design

Brand update: The Genesis XP 7680g is now a Brady product, formerly sold as the Honeywell Genesis XP 7680g.

The Honeywell Genesis XP 7680g is a corded hands-free area imager for retail, pharmacy and healthcare counters. XP scanning technology, a large field of view and strong motion tolerance help capture poorly printed, damaged and mobile barcodes with fewer repeat presentations.

Warm white illumination, automatic object detection and a 360-degree color feedback ring support an intuitive customer and operator experience. Flexible stand, wall and POS mounting choices adapt the scanner to varied counter layouts.

POSGuys review of the Honeywell Genesis XP 7680g presentation scanner.

Key Specifications

  • Scanner configuration: corded hands-free 1D/2D area-imaging presentation scanner
  • Barcode capability: 1D, PDF and 2D barcodes, including mobile and damaged codes
  • Reading range: standard-range engine; official 0–1 m class, barcode dependent
  • Interfaces / connectivity: USB, RS-232, RS-485 or keyboard wedge, depending on cable
  • Durability: fixed-use counter design; not intended for repeated drops or tumbles
  • Environmental sealing: IP52
  • Dimensions and weight: 80 × 40 × 105 mm without stand; 340 g with stand
  • Image sensor: 1,280 × 800 pixels
  • Motion tolerance: up to 400 cm/s for 13 mil UPC at optimal focus
  • Warranty: 3 years

In the Box

  • 7680GSR-2USB-1-N: black scanner, stand and 3 m USB cable
  • 7680GSR-2-1-N: black scanner and stand; interface cable not included
  • 7680GSR-2-N: black scanner only; stand and interface cable not included

Configuration note: Choose the complete USB kit for a counter-ready package, or match the device-only configurations with the required mounting and interface components.

XP scan performance

Fast motion capture and a broad field of view help read damaged labels and mobile barcodes without careful alignment.

Clear user feedback

The 360-degree color LED ring and warm white illumination make successful scans easy to recognize.

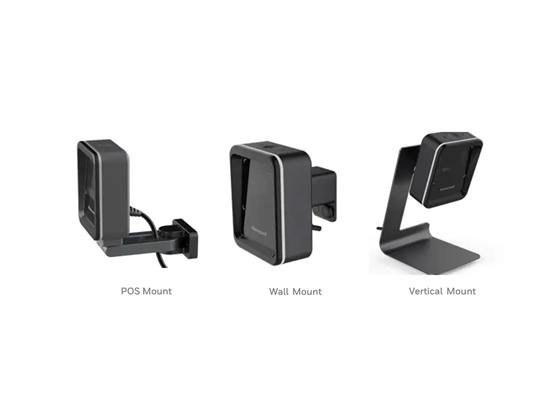

Placement flexibility

Use the adjustable stand or compatible wall and POS mounts to fit the workflow and available counter space.

Configuration support

Honeywell EZConfig supports scanner setup while multiple host interfaces fit established POS environments.

Dimensions (L x W x H)
80 mm x 40 mm x 105 mm; 145 mm with stand (3.2 in x 1.6 in x 4.1 in; 5.7 in with stand)
Weight
340 g (12 oz)
Trigger
Top-mounted button
Input Voltage
5.0 VDC typical
Operating Power
2.5 W (500 mA at 5 V)
Host System Interfaces
USB, RS-232, and keyboard wedge
Operating Temperature
0 C to 50 C (32 F to 122 F)
Storage Temperature
-40 C to 70 C (-40 F to 158 F)
Humidity
0% to 95% relative humidity, non-condensing
Drop Specification
50 drops from 1.5 m (5 ft)
Tumble Specification
1,000 tumbles from 0.5 m (1.6 ft)
Environmental Sealing
IP52
Ambient Light
Up to 100,000 lux
Beeper
90 dB at 10 cm
Image Sensor
Area imager; 1,280 x 800 pixel array (1 MP)
Motion Tolerance
400 cm/s (158 in/s) for 13 mil UPC at optimal focus
Print Contrast
20% minimum reflectance difference
Pitch and Skew
65 degrees pitch; 65 degrees skew
Decode Capability
Standard 1D, 2D, PDF417, DotCode, and Digimarc; capability depends on kit configuration
Typical Depth of Field
3 mil Code 39: 0-98 mm; 5 mil Code 39: 0-151 mm; 10 mil Data Matrix: 0-129 mm; 13 mil UPC: 0-250 mm; 6.7 mil PDF417: 0-138 mm; 20 mil QR: 0-212 mm
Minimum Resolution
1D: 3 mil (0.076 mm); 2D: 5 mil (0.127 mm)
Warranty
3-year factory warranty
Genesis XP 7680g Data Sheet
Download
Genesis XP 7680g Quick Start Guide Rev C
Download
Genesis XP 7680g User Guide Rev C
Download
Genesis XP 7680g Accessories Guide Rev A
Download
Honeywell EZConfig for Scanning v4.5.66
Download

Shop Genesis XP 7680g Models

7680GSR-2USB-1-N

Genesis XP 7680g 1D/2D Presentation Scanner USB Kit, Black, Standard Range, Stand and 3m USB Cable Included

Accessories:

USB Cable + Stand

$464.99

7680GSR-2-1-N

Genesis XP 7680g 1D/2D Presentation Scanner, Black, Standard Range, Stand Included, Cable Not Included

Accessories:

Stand, No Cable

$433.87

7680GSR-2-N

Genesis XP 7680g 1D/2D Presentation Scanner, Black, Standard Range, Stand and Cable Not Included

Accessories:

Not Included

$461.38

Shop Genesis XP 7680g Accessories

STND-02F07-016-01

Flexible POS Wall Mount,Genesis XP 7680G

$90.72

STND-18R06-016-01

Metal Counter Top Stand,Genesis XP 7680G

$94.16

STND-07R07-016-01

Fixed Wall Mount, Genesis XP 7680G

$59.98

CBL-020-300-S00-09

Genesis RS232 Cable, 3M, DB9 Female, Short Strain Relief, Black

$40.65

CBL-500-300-S00-09

Genesis XP USB Type-A Cable: 3 m, Short Strain Relief, Black

$40.65
