Zebra FXP20 RFID Point of Sale Fixed Reader
RFID visibility at the point of sale

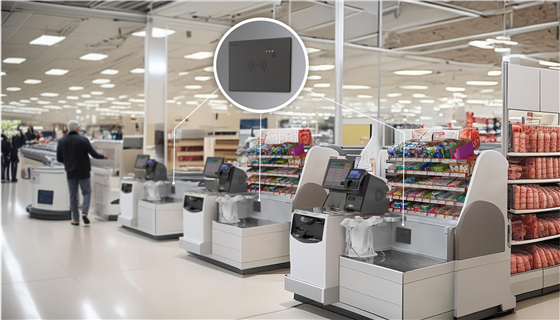

The Zebra FXP20 combines a fixed RFID reader and antenna in one compact device for staffed checkouts, self-checkout, inventory control and loss detection. Adjustable LEDs and audible feedback signal successful reads.
Its short-range antenna helps focus reads on items at the checkout. A locking USB connection links the reader to your POS host; Zebra’s 123RFID tools and JPOS driver support configuration and application integration.
Key Specifications
- Product / application: Fixed RFID reader for retail checkout
- RFID performance: Integrated short-range circular antenna
- Tag input: UHF RFID read/write
- Host software: 123RFID Desktop; JPOS integration
- Connectivity: Locking USB Type-B; no Ethernet
- Power: 12 VDC, 2 A supply included
- Environment: Indoor use; 0–40°C
- Mounting: Countertop or included flush adapter plate
- Dimensions: 5.3 × 4.6 × 1.4 in. reader
- Weight: 266 g reader
- US frequency: 902–928 MHz
- Warranty: 1 year
In the Box
- FXP20042-404031-US
- FXP20 reader with integrated antenna
- Countertop adapter plate
- Locking USB cable
- Power supply and US power adapter
- Regulatory guide
US, Canada and Puerto Rico configuration. External antennas and alternative mounting brackets are sold separately.
RFID technology engineered for retail
The RE40-based reader helps filter stray tags from neighboring checkout lanes and nearby displays, supporting accurate item identification in a configured checkout application.
Compact, all-in-one design

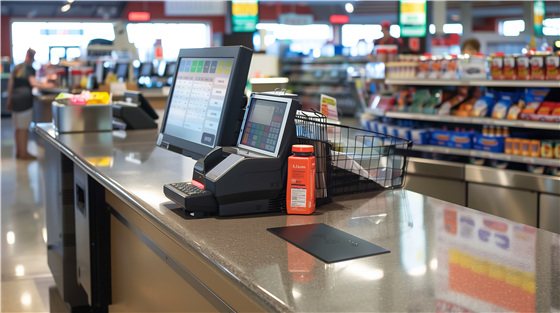

Use the FXP20 as a pad reader on a work surface or fit it into a counter with the included adapter plate. The integrated antenna keeps the standard installation compact.
Shop FXP20 RFID Point of Sale Fixed Reader Models
FXP20042-404031-US
FXP20 Point of Sale RFID Reader, RE40-based, integrated short-range circular polarized antenna, locking USB, US, Canada and Puerto Rico only. Includes adapter plate, USB cable, power supply and US power adapter.
