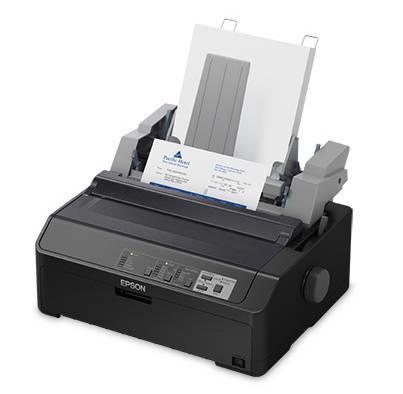

Epson FX-890II

Name: Epson FX-890II
Brand: Epson
Price: 461.28 USD
Availability: InStock

Images may not reflect the actual product

Durable impact printing for forms and reports

The Epson FX-890II is a narrow-carriage, 9-pin impact printer for demanding print environments. It handles cut sheets, continuous paper and multipart forms, with fast draft printing and a long-life ribbon to reduce interruptions.

Key Specifications

Print method: Impact Dot Matrix
Print speed: Up to 738 cps at 12 cpi, ultra-speed draft
Paper widths: Cut sheets: 3.9–10.1 in; continuous forms: 4–10 in
Resolution: Up to 240 × 144 dpi, near-letter quality
Interfaces / connectivity: USB and parallel; network model adds serial and Ethernet
Cutter and reliability: No cutter; printhead rated for 400 million characters
Platform support: Epson ESC/P, IBM PPDS and Microline emulation
Dimensions and weight: 414 × 320 × 176.5 mm body (W × D × H), excluding knob, sheet guide and release lever; approx. 7.2 kg
Warranty: 3 years

In the Box

Selected FX-890II printer
Power cable and setup documentation

Interface cables and optional paper-handling accessories are separate unless listed.

Fast forms output

Ultra Speed Draft reaches 738 characters per second at 12 cpi.

Long-life ribbon

The ribbon is rated for up to 7.5 million characters under Epson’s specified conditions, reducing replacement frequency.

Flexible paper handling

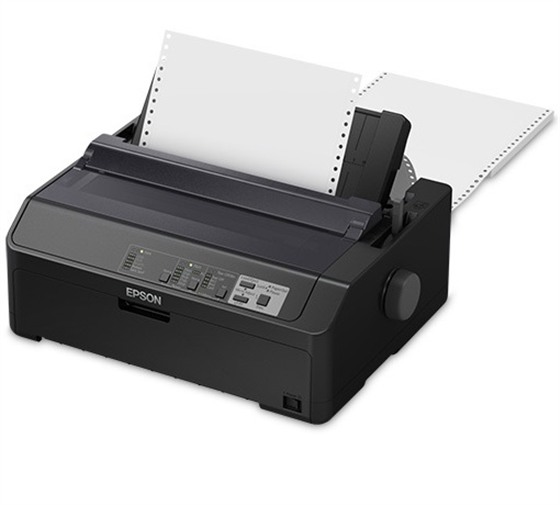

Print cut sheets and continuous forms, with up to seven-part forms using front or bottom pull-tractor feed under Epson’s specified conditions.

System compatibility

Epson ESC/P, IBM PPDS and MICROLINE printer languages support integration with existing applications.

Print Method

9-Pin, serial impact dot matrix

Print Direction

Bidirectional logic seeking for text and graphics; software-selectable unidirectional printing

Print Speed

Ultra speed draft: 615 cps at 10 cpi or 738 cps at 12 cpi; high-speed draft: 612/694 cps at 10/12 cpi; draft: 463/555 cps at 10/12 cpi; near-letter quality: 115/138 cps at 10/12 cpi

Print Resolution

Up to 240 × 144 dpi in near-letter-quality mode

Character Set

13 character tables, 13 international countries character sets

Fonts

Ultra-speed draft: 10/12 cpi; high-speed draft and draft: 10/12/15/17/20 cpi; near-letter-quality Roman/Sans Serif: 10/12/15/17/20 cpi and proportional, per Epson CPD-54358R3.

Barcodes Supported

EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

Column Capacity

80 columns at 10 cpi; 96 at 12 cpi; 120 at 15 cpi; 137 at 17 cpi; 160 at 20 cpi.

Line Spacing

1/6 in or programmable in 1/432 in increments

Paper Paths

Manual: front or rear input, top output; cut-sheet feeder: rear input; tractor: front, rear or bottom input; push-pull: front or rear input with additional tractor. Optional roll-paper holder.

Paper Feed Speed

Continuous: 134 mm/s (5.3 in/s); intermittent: 47.7 ms per line at 1/6 in spacing

Paper Dimensions

Single sheets: 3.9–10.1 in wide, 3.9–14.3 in long; continuous forms: 4–10 in wide, 4–22 in long; cut-sheet feeder: 7.2–8.5 in wide, 10.1–14 in long

Paper Thickness

0.018"

Copy Capacity

One original plus five copies normally; up to one original plus six copies with front or bottom pull tractor under Epson’s normal conditions

Optional Feeder Capacity

Single-bin: up to 50 sheets; high-capacity: up to 150 sheets of 82 g/m² paper, or up to 25 plain/bond envelopes or 30 airmail envelopes

Interfaces Available

Bidirectional Parallel (IEEE 1284 Nibble Mode supported), USB 2.0

Control Panel

Font, pitch, pause, tear-off/bin selection, line feed/form feed, load/eject, micro-adjust, reset, self-test, data dump and default-setting selection.

Reliability

52 million lines total print volume, excluding printhead; MTBF 25,000 power-on hours at 25% duty

Print Head Life

400 Million Characters @14 dots/character

Ribbon

S015329 black ribbon; approximately 7.5 million characters at draft, 10 cpi, 14 dots per character

Input Buffer

128KB

Dimensions

414 × 320 × 176.5 mm (16.3 × 12.6 × 6.9 in), W × D × H; excludes knob, sheet guide and paper release lever

Weight

Approx. 7.2 kg (15.9 lb)

Standards

UL62368-1, CAN/CSA C22.2 No. 60950-1, IEC/EN62368-1; FCC Part 15 Subpart B Class A, ICES-003 Class A, EN55032 Class A and AS/NZS CISPR32 Class A; CE marking; ENERGY STAR V2.0 and RoHS, as listed in Epson CPD-54358R3.

Acoustic Noise

Approximately 55 dBA under the user guide’s ISO 7779 test conditions; CPD-54358R3 lists 54 dBA.

Power

100–240 V AC universal model, 50–60 Hz; check the unit label. At 100–120 V: approximately 57 W printing and 0.4 W sleep (non-network model).

Operating Environment

Plain paper: 5–35°C, 10–80% RH; recycled paper, envelopes, labels and roll paper: 15–25°C, 30–60% RH; without condensation

Storage Environment

-30–60°C; 0–85% relative humidity, without condensation

Software Drivers / OS Support

Microsoft Windows XP, Vista, 7,8,8.1,10; Windows Server 2003, 2008, 2012, 2016

Emulation

ESC/P, IBM PPDS, Okidata Microline (FX-890 Okidata Mode only)

In the Box

FX-890II series printer, power accessories, ribbon cartridge, setup/user documentation, driver media and warranty certificate; package contents depend on configuration.

Warranty

3-year limited warranty in the U.S. and Canada.

Shop FX-890II Models

C11CF37201

FX-890II - Impact Dot Matrix Form Printer, 9-Pin, Narrow-Carriage, Up to 738 cps (12 cpi), Parallel & USB, Dark Gray

Interface:

USB & Parallel

$461.28

C11CF37202

FX-890II NT - Impact Dot Matrix Form Printer, 9-Pin, Narrow-Carriage, Up to 738 cps (12 cpi), Parallel/USB/Serial/Ethernet, Dark Gray

Interface:

USB, Parallel, Serial & Ethernet

$716.81

Shop FX-890II Accessories

C825343

PS-180 Power Supply For Epson Receipt Printers (120/220V). Includes AC Cord (205498100). Energy Star Rated.

$63.03

S015329

Black Ribbon (Single) for FX-890 and FX-890II

$10.08

C12C811141

Paper Roll Holder for FX-890/890II & PLQ-20

$94.00

C12C933761

Epson pull tractor unit for FX-890II and LQ-590II printers.

$76.03
