Zebra FS10 Fixed Industrial Scanner
Description
Specifications
Download

Zebra FS10 Fixed Industrial Scanner

Images may not reflect the actual product

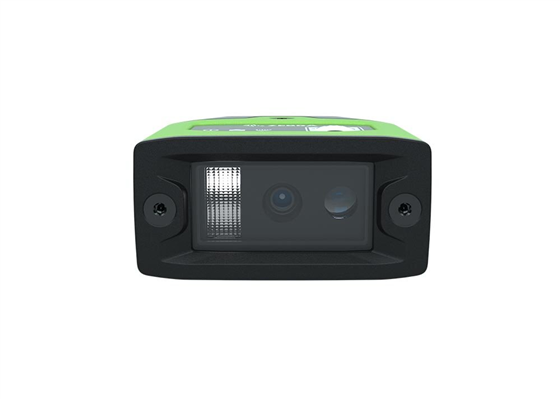

Product Image
small product image0
small product image1

Put plug-and-play high-quality scanning wherever you need it

The Zebra FS10 brings compact fixed barcode scanning to workstations, pack benches and production lines. Connect it to a host by USB for tracking parts and packages, inventory management and order fulfillment.

Zebra Aurora Focus simplifies setup and management. Standard-range autofocus, fast 1D/2D decoding with DPM and a sealed aluminum housing support industrial capture; choose the polarizing-filter model to reduce glare on reflective surfaces.

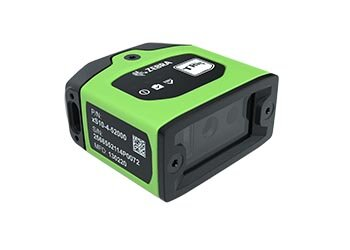

Zebra FS10 fixed industrial scanner, angled view

Key Specifications

  • Scanner configuration: Corded fixed-mount area imager
  • Barcode capability: 1D, 2D and DPM; OCR license optional
  • Reading range: Standard-range autofocus
  • Interfaces / connectivity: High-speed USB-C 2.0
  • Durability: Fixed-use design; drop/tumble rating not published
  • Environmental sealing: IP65 and IP67
  • Dimensions: 1.0 H x 2.0 D x 1.7 W in.
  • Weight: 4.23 oz. / 120 g
  • Image sensor: 1 MP; up to 60 fps
  • Warranty: 2 years

In the Box

  • Zebra FS10 fixed industrial scanner in the selected configuration

USB cable, mounting bracket and other installation accessories are sold separately unless the selected option explicitly includes them. OCR requires a separate add-on license.

Accurate Reads With Auto-Tune

Auto-Tune adjusts focus, brightness and contrast for the application. ImagePerfect helps capture challenging codes, while the optional polarizing filter reduces reflections on shiny surfaces.

Capture Every Code in One Scan

ManyCode mode in Aurora Focus reads multiple barcodes on an item in one capture, helping keep production and packing workflows moving. Software licensing can add functionality as requirements change.

Dimensions (H x D x W)
1.0 x 2.0 x 1.7 in. / 25.4 x 51.0 x 43.0 mm
Weight
4.23 oz. / 120 g (device)
Power
5 VDC, 1 A maximum (5 W)
Color and material
Industrial green aluminum housing
Interface ports and connectivity
One high-speed USB 2.0 Type-C connector
User indicators
Decode/Job Status LEDs, Power LED, Online/Run LED and adjustable-volume beeper
Image sensor
1.0 MP (1280 x 800 pixels) CMOS sensor; global shutter; 3.0 micrometer pixel size
Acquisition rate
Up to 60 frames per second
Aimer
Amber LED, circular pattern
Illumination
One 660 nm red LED and one 2700 K white LED
Imager field of view
6.0 mm liquid lens: 35 degrees horizontal x 26 degrees vertical, nominal
Operating temperature
32 to 113 degrees F / 0 to 45 degrees C
Storage temperature
-40 to 158 degrees F / -40 to 70 degrees C
Environmental sealing
IP65 and IP67
Humidity
5% to 90% RH, non-condensing
Shock resistance
EN 60068-2-27: 30 g, 11 ms, three shocks on each axis
Vibration resistance
EN 60068-2-6: 14 mm at 2 to 10 Hz; 1.5 mm at 13 to 55 Hz; 2 g at 70 to 500 Hz; two hours on each axis
1D symbologies
Codabar, Code 39, Code 93, Code 128, Interleaved 2 of 5, MSI Plessey, UPC/EAN
2D symbologies
Aztec, Data Matrix, DotCode, MaxiCode, PDF417, MicroPDF417, QR Code and Micro QR. Refer to the Product Reference Guide for the complete list of symbologies.
OCR
Deep learning-based OCR requires an add-on license. Supports Latin letters (A-Z, a-z), digits and the special characters listed in the manufacturer specification sheet.
Management software
Zebra Aurora Focus
Decoder packages
1D/2D Fast (60 FPS); 1D/2D DPM Full (60 FPS). Both listed FS10-SR10D1 configurations include fast 1D/2D decoding with DPM.
Environmental compliance
EN 50581:2012; EN IEC 63000:2018
Electrical safety
IEC 62368-1 (Ed. 2); EN 62368-1:2014/A11:2017
Laser and LED safety
IEC 62471:2006 (Ed. 1); EN 62471:2008
EMI/EMS
EN 55032:2015/A11:2020 (Class B); EN 55035:2017; EN 61000-3-2:2014 (Class A); EN 61000-3-3:2013; 47 CFR Part 15 Subpart B Class B; ICES-003 Issue 7 Class B
EU declaration of conformity
2014/30/EU; 2014/35/EU; 2011/65/EU
Optional accessories
Brackets, straight and 90-degree cables, cable guard, deflective mirror and certified serial-to-Ethernet cable adapter. Sold separately; select accessories appropriate to the installation.
Configuration differences
FS10-SR10D1-1402W: polarizing filter. FS10-SR10D1-1L02W: no polarizing filter. Both: standard-range autofocus, loud beeper, red/white illumination and plastic exit window.
Warranty
2 years from shipment, subject to Zebra hardware warranty terms
Recommended services
Zebra OneCare Essential and Zebra OneCare Select; sold separately
Laser applications
The FS10, including polarizing-filter configurations, is not suited for use with high-powered part-marking lasers such as YAG lasers.
FS10 Specification Sheet (August 2026)
Download
FS10 Product Reference Guide (MN-004336-05EN)
Download
FS10 and FS20 Accessories Guide
Download

Shop FS10 Fixed Industrial Scanner Models

FS10-SR10D1-1402W

Zebra FS10 fixed industrial USB scanner, standard-range autofocus, 1.0 MP, fast 1D/2D decoder with DPM, red and white illumination, loud beeper, polarizing filter and plastic exit window. Scanner only; cable and mount sold separately.

Polarizing Filter:

Included

$1295.00

FS10-SR10D1-1L02W

Zebra FS10 fixed industrial USB scanner, standard-range autofocus, 1.0 MP, fast 1D/2D decoder with DPM, red and white illumination, loud beeper and plastic exit window; no polarizing filter. Scanner only; cable and mount sold separately.

Polarizing Filter:

Not Included

$1245.00

Shop FS10 Fixed Industrial Scanner Accessories

CBL-USB00200-USA00

Zebra FS10 locking USB-C to USB-A cable, 2 m (6.5 ft.), straight connector.

$66.67

CBL-USB00200-USC00

Zebra FS10 locking USB-C to USB-C cable, 2 m (6.5 ft.), straight connector.

$66.67

CBL-USB00400-USA00

Zebra FS10 locking USB-C to USB-A cable, 4 m (13 ft.), straight connector.

$100.00

CBL-USB00400-USC00

Zebra FS10 locking USB-C to USB-C cable, 4 m (13 ft.), straight connector.

$100.00

CBL-USB00402-USA00

Zebra FS10 locking USB-C to USB-A cable, 4 m (13 ft.), 90-degree right-angle connector.

$100.00

BRKT-LMNT-C002

Zebra FS10 compact adjustable L-mount bracket, swivels 30 degrees (+/-15 degrees), supports vertical mounting.

$25.00

BRKT-LMNT-C000

Zebra FS10 ultra-compact L-mount bracket for fixed installation.

$26.67

CBL-MATE-USA00

Zebra FS10 I/O mating cable, DB-15 to USB-A and flying power leads; requires CBL-ADPTR-USC00.

$100.00

CBL-ADPTR-USC00

Zebra FS10 I/O adapter cable, USB-C to DB-15; requires CBL-MATE-USA00.

$166.67
