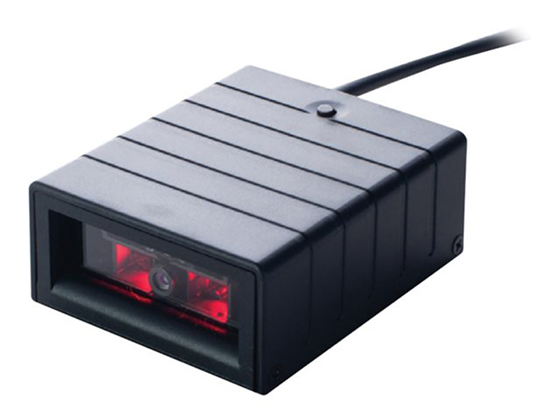

UniTech FC75
Fixed scanning in a compact footprint
The Unitech FC75 reads printed labels and on-screen 1D and 2D barcodes in a compact fixed-mount housing. It fits into limited workspaces at retail counters, warehouse stations and manufacturing lines.
Presentation mode supports continuous hands-free reading, while trigger mode provides on-demand scans. The listed USB model connects through its built-in cable.
Key Specifications
- Scanner configuration: Compact fixed-mount area imager
- Barcode capability: 1D and 2D; printed labels and screen barcodes
- Reading range: UPC-A 4.6–49.5 cm; varies with barcode
- Interfaces / connectivity: USB keyboard or virtual COM; USB cable included
- Durability: Multiple 1.2 m drops onto concrete
- Environmental sealing: IP42
- Dimensions: 56 × 69 × 27.7 mm
- Weight: 85 g, scanner only
- Warranty: 3 years
In the Box
- FC75 fixed-mount scanner with built-in USB cable
- Quick start guide
Hands-free stand is sold separately.
Capture moving labels and digital codes
Global shutter imaging captures the full image at once to reduce motion distortion. The FC75 supports both printed labels and barcodes displayed on screens, with a 60 fps scan rate.
Choose the scanning mode for the task
Presentation and trigger modes let the reader work in continuous hands-free stations or on-demand workflows. IP42 sealing and a 1.2 m drop specification support use around busy counters and workstations.
Shop FC75 Models
FC75-2UCB00-SG
Unitech FC75 fixed-mount 1D/2D barcode scanner, built-in USB cable, black; hands-free stand sold separately
