DataLogic Falcon X60/65

Name: DataLogic Falcon X60/65
Brand: DataLogic
Price: 1686.59 USD
Availability: InStock

Images may not reflect the actual product

Rugged mobile computing for heavy input and high shelves

The Datalogic Falcon X60/X65 combines a 4.3-inch touchscreen, large backlit keys and a field-detachable handle for demanding warehouse and logistics work. Choose standard, long-range or XLR scanning to match the labels and distances in your operation.

A 7000 mAh hot-swap battery, Wi-Fi 6/6E and an Android 15 platform support shared devices across shifts. Falcon X65 adds cellular 5G; the models currently listed here are Wi-Fi Falcon X60 configurations.

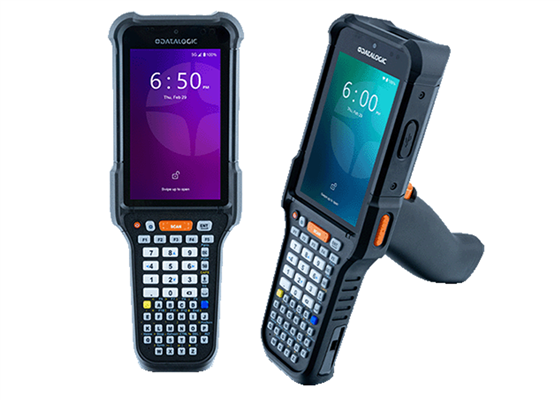

Datalogic Falcon X60/X65 handheld and pistol-grip mobile computers

Key Specifications

Operating system / support horizon: Android 15; platform upgradeable to Android 19
Processor: Qualcomm Dragonwing 4490, octa-core 2.4 GHz
Memory and storage: 8 GB RAM / 128 GB flash; microSD up to 2 TB
Display and input: 4.3-inch 480 × 800 touchscreen; 31, 41 or 53 backlit keys
Scan engine: Standard, long-range or XLR 1D/2D imager
Wireless connectivity: Wi-Fi 6/6E, Bluetooth 5.3 and NFC; 5G on X65 only
Ruggedness and sealing: IP65/IP68; 2.8 m ambient or 2.4 m full-temperature drops
Battery / power: 7000 mAh hot-swap battery; contact or 10 W wireless charging by model
Dimensions: 232 × 80 mm; handheld depth: 42 mm; XLR pistol depth: 165 mm
Weight: Handheld: 550 g; XLR pistol: 700 g
Warranty: 1 year

Drop ratings apply to concrete: 2.8 m at ambient temperature and 2.4 m from −20 to 50°C. Android upgrade availability and security maintenance depend on Datalogic release and service terms. Charging method and scan engine vary by model.

In the Box

Selected Falcon X60 computer with 7000 mAh rechargeable battery and keyboard overlays.
Handheld: hand strap and lower bridge.
Pistol grip: anti-drop wrist lanyard.
Quick-start and safety documentation.

Charging dock, power supply, regional AC cord, USB cable and protective boot are sold separately. Match a contact or wireless dock to the selected model. US dock power requires the appropriate supply plus 95ACC1113 AC cord.

Precise scanning from close range to high shelves

TrueAim uses a two-stage trigger to aim before capture. Green Spot confirms a successful scan directly on the label; on XLR models it is visible up to 10 m. XLR reading reaches up to 20 m with suitable barcodes; actual distance depends on label size and conditions.

Built for demanding shifts

IP65/IP68 sealing, Gorilla Glass Victus and tested drop resistance protect the device during repeated handling. Large, spaced keys support gloved input, while the detachable handle lets teams adapt the grip to scanning or data-entry work.

Operating System and Support

Android 15; GMS and AOSP configurations by region. Platform upgradeable to Android 19. Upgrade availability and security maintenance are subject to Datalogic release and service terms; no fixed support end date is stated here.

Processor, Memory and Expansion

Qualcomm Dragonwing 4490 octa-core at 2.4 GHz. 8 GB RAM and 128 GB UFS flash. One microSD slot supports cards up to 2 TB; cards sold separately.

Battery

Removable, hot-swappable rechargeable Li-ion battery; 3.63 V, 7000 mAh typical, 25.445 Wh. USB-C charging. Hot swap protects application data.

Wireless Charging

Wireless-charging configurations: WPC Qi EPP compatible, 10 W. Contact-charging configurations use compatible contact docks; match the dock to the model.

Drop Resistance

Multiple 2.8m/9.2ft drops to concrete at ambient temperature per MIL STD 810H; Multiple 2.4m/7.9ft drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810H

Tumbles

4000 1.0m/3.3 ft tumbles at room temperature, meets and exceed IEC 60068-2-32 Procedure 2 specification;

Particulate and Water Sealing

IP65 and IP68 with battery, per IEC60529 specification

Temperature

Operating: -20 to 50 ºC / -4 to 122 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF

ESD

15 kV air discharge / 8 kV contact discharge

Dimensions

Handheld: 232 x 80 x 42 mm / 9.13 x 3.15 x 1.65 in Pistol Grip: 232 x 80 x 165 mm / 9.13 x 3.15 x 6.50 in

Weight

Handheld: with battery: 550 g / 19.4 oz Pistol Grip, XLR: with battery 700 g / 24.7 oz

Primary Display

4.3-inch LCD A-Si IPS - WVGA 480 x 800 resolution; LED backlight and integrated touch screen; High brightness for Indoor and Outdoor High Visibility - 600 NITS typical

Touch Panel

Touch Screen: 5 points multi-touch capacitive panel with hardened Corning® Gorilla® Glass Victus® and optical bonding; Support for gloves and stylus; water drops rejection and anti-fingerprint surface finishing

Keyboard

Physical Keyboards: 31-key Numeric; 41-key Functional Numeric; 53-key Alphanumeric; Keyboard with backlight Physical Keys: 2 side scan keys; Power On/Off Software keys: 3 Android soft keys

Trigger

TrueAim professional two-stage trigger

Camera

Rear Camera: 13-megapixel resolution; Auto focus Illumination: user controllable LED flash (torch mode); Front Camera: 8-megapixel resolution; Fixed focus

Scan Engine

Halogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Halogen™ DE2172 Extra-long Range 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback on all scan engines; visible up to 10m for Extra-long Range

Vibration

Software programmable for duration and intensity

Accelerometer

3-Axis accelerometer to detect orientation

Gyroscope

Senses angular velocity

Ambient Light

Auto adjusts display backlight

Proximity

Auto deactivates display when close to face

Magnetometer

e-compass for direction and orientation detection

Barometer

Atmospheric pressure / Z-location (Falcon X65 only)

Interfaces

USB 3.2 Gen 1 host/client through USB-C; USB 2.0 at bottom I/O. Gigabit Ethernet through a compatible multi-slot dock. Docks and cables sold separately.

Microphones

2 mics, with noise cancellation

Loudspeaker

Speaker for handsfree data calls and audio application

Warranty

1-Year Factory Warranty

Wi-Fi

Wi-Fi 6/6E: IEEE 802.11 a/b/g/n/ac/ax and d/h/i/k/r/v/w/mc; 2×2 MU-MIMO. Country-dependent 2.4, 5 and 6 GHz operation. WPA3 Enterprise 192-bit mode supported.

Bluetooth and NFC

Bluetooth 5.3 Classic and BLE. NFC tag types 2/3/4/5, ISO 14443-4 A/B, ISO 15693, Mifare and Felica; reader and card-emulation modes.

Cellular, SIM and Positioning

Falcon X65 only: data-only 3G/4G LTE-Advanced/5G FR1; private networks and CBRS support. One nano-SIM and one eSIM; GPS, Galileo, GLONASS and BeiDou with A-GPS and dual-band L1/L5 GNSS. Falcon X60 has no cellular modem or GNSS.

Scanning Distance and Feedback

Standard, long-range and XLR 1D/2D imagers. XLR reaches up to 20 m with suitable symbols; range varies with label size, quality and conditions. Green Spot good-read feedback on all engines; visible up to 10 m on XLR.

Chemical Resistance

Resists industrial oils and specified cleaners: 0.8% sodium hypochlorite solution, Windex/Glassex with ammonia, Formula 409 glass/surface cleaner, 70% ethyl or isopropyl alcohol, and 3% hydrogen peroxide. Follow the manufacturer cleaning instructions.

Software and Management

Datalogic Mobility Suite includes Shield, Launcher, Enterprise Browser, Scan2Deploy, OEMConfig, SDKs, Visual Formatter, Wedge, Wi-Fi Guard and Battery Manager tools. Supports Android enterprise enrollment and compatible UEM/EMM, terminal-emulation and push-to-talk solutions; licenses/service terms may apply.

Regulatory

EU RoHS compliant. Class 2 laser to IEC/EN 60825-1; 21 CFR 1040.10 with stated Laser Notice 50 deviations. LED Exempt Risk Group to IEC/EN 62471. Use a configuration approved for the intended region.
