POS-X EVO TP6 Widescreen
Description
Specifications
Download

POS-X EVO TP6 Widescreen

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

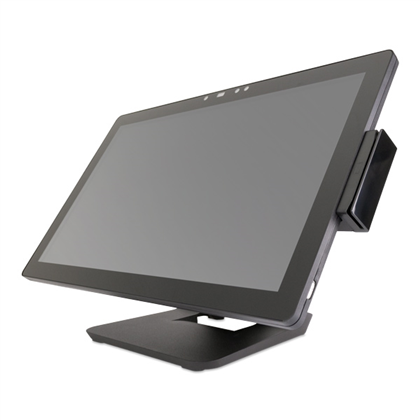

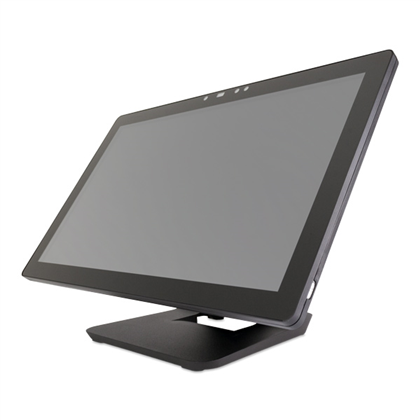

Commercial 18.5-inch widescreen touch computer for flexible point-of-sale installations

The POS-X EVO TP6 Widescreen is an 18.5-inch Full HD projected-capacitive touch computer for retail, hospitality, and other counter environments. Its fanless commercial enclosure, dual-hinge positioning, and VESA support suit staff-facing and customer-facing layouts.

Key Specifications

  • Processor: Intel Core i3-6100U.
  • Memory and storage: 8 GB DDR3L memory and 120 GB SSD.
  • Display and touch: 18.5-inch 1920 × 1080 TFT LCD with 10-point projected-capacitive multi-touch.
  • Operating system: Windows 10 IoT x64.
  • Ports and connectivity: Two USB 2.0 Type-A, four USB 3.0, three powered RJ45 serial, RJ45 LAN, dual-band Wi-Fi, cash-drawer, and VGA ports.
  • Mount / stand: Adjustable dual-hinge base with 75 mm and 100 mm VESA support.

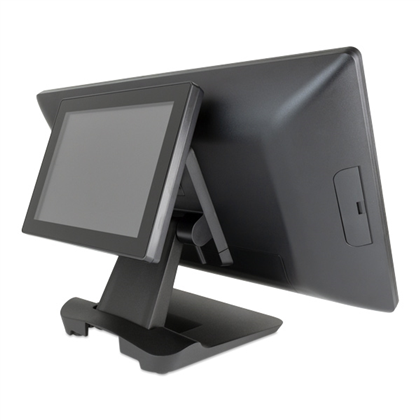

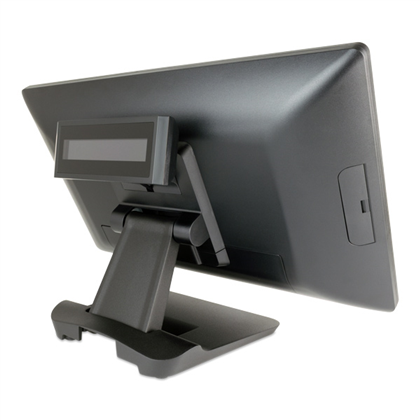

  • Peripheral options: MSR, biometric reader, two-line rear display, 10.1-inch rear display, and Augusta reader bracket.
  • Serviceability: Fanless die-cast aluminum enclosure with cable-free accessory mounting.
  • Dimensions and weight: 18.1 × 8 × 11.4 in with base; 9.6 lb.
  • Warranty: 3 years

In the Box

  • POS-X EVO TP6 Widescreen touch computer
  • AC power adapter and power cord
  • RJ45-to-DB9 serial cable

MSR, biometric reader, rear displays, and the Augusta reader bracket are sold separately unless the selected option explicitly includes them.

Widescreen Workspace

Full HD Display

The 16:9 Full HD screen provides room for modern POS layouts and customer-facing content.

Commercial Touch

Easy Counter Interaction

The TruFlat PCAP surface supports intuitive repeated-use interaction.

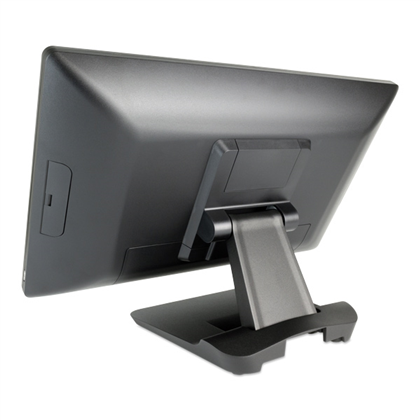

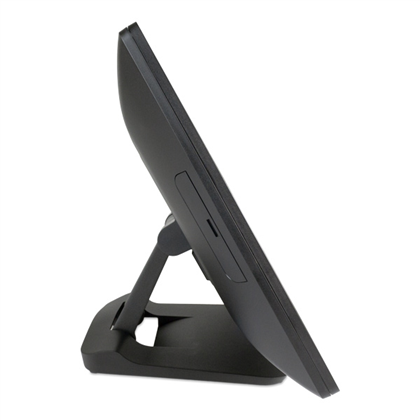

Flexible Installation

Tilt and VESA Support

The dual-hinge base helps position the display, while VESA support expands installation options.

Quiet Operation

Fanless Enclosure

The fanless design suits customer-facing spaces where low noise matters.

Processor
Intel Core i3-6100U
Bezel
TruFlat bezel
Chipset
Processor integrated
System Memory
8 GB DDR3L SO-DIMM
Storage
2.5-inch 64–500 GB SSD or 2.5-inch 500 GB HDD; current POSGuys configuration includes a 120 GB SSD
Display
18.5-inch (470 mm) TFT LCD
Resolution
1920 x 1080
Touch Technology
Projected-capacitive (PCAP), 10-point multi-touch
Brightness
350 nits
Graphics
Intel HD Graphics with DirectX 12 and OpenCL 4.2
TPM
2.0
Power
90 W / 19 V
Supported Operating Systems
Windows 8.1 Embedded x64, Windows 8.1 Pro x64, Windows 10 IoT x64, and Windows 10 Pro x64
USB Ports
2 x USB 2.0 Type-A and 4 x USB 3.0
Serial Ports
3 x powered RJ45 serial ports, selectable 0 V / 5 V / 12 V
Network
1 x RJ45 LAN; dual-band 802.11 a/b/g/n/ac Wi-Fi at 2.4 GHz and 5 GHz
Cash Drawer Port
1 x RJ11, 12 V / 24 V
Video Output
1 x DB15 VGA
Housing
Die-cast aluminum
Dimensions with Base
18.1 x 8 x 11.4 in (W x D x H)
Weight
9.6 lb
Tilt
Dual hinge
Housing Color
Black
Wall Mount
100 mm VESA; 75 mm or 100 mm with base
Front Ingress Protection
IP54 splash-resistant screen
Operating Temperature
32°F to 95°F (0°C to 35°C)
Humidity
20% to 80% RH, noncondensing
Certifications
FCC Class B, CE, LVD, and NOM
Viewing Angle
Horizontal 140°; vertical 130°
Warranty
3 years
TP6 Widescreen User Manual
Download
TP6 Widescreen Specification Sheet
Download
