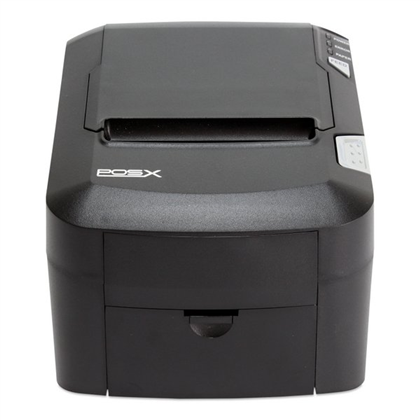

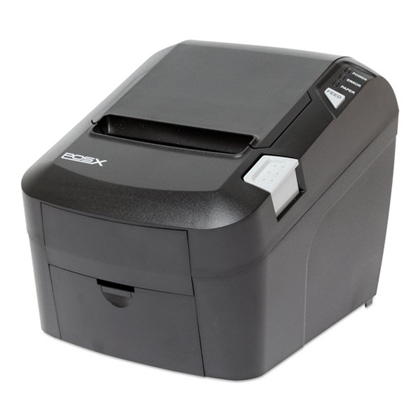

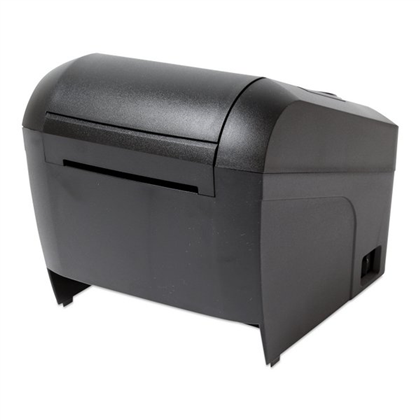

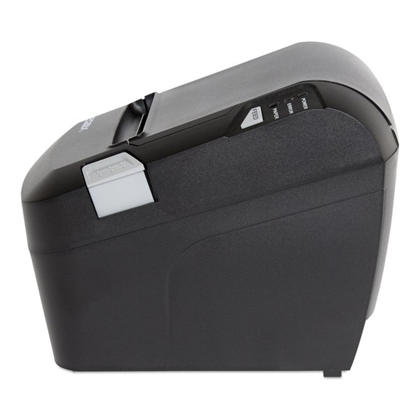

POS-X EVO Green
Efficient 80 mm thermal receipt printing with USB/serial or Ethernet connectivity.
The POS-X EVO Green is a direct-thermal receipt printer for retail and hospitality counters that need dependable output with a compact footprint. Drop-in paper loading, wall-mount support, and an automatic cutter make it practical for both front-counter and space-constrained installations.
Two current POSGuys configurations pair USB with RS-232 serial, or add 10/100 Ethernet for network printing. Both use the same 220 mm-per-second print engine and ESC/POS-compatible command set.
Key Specifications
- Print method: Direct thermal.
- Print speed: Up to 220 mm/sec (7.87 in/sec).
- Paper widths: 50–80 mm thermal paper; roll diameter up to 80 mm.
- Resolution: 180 × 180 dpi.
- Interfaces / connectivity: USB 2.0 and RS-232; selected model also includes 10/100 Ethernet.
- Cutter and reliability: Full or partial cut; cutter rated for 1.5 million cuts, printhead for 160 km, and MCBF for 60 million lines.
- Platform support: ESC/POS command compatible; OPOS support available.
- Dimensions and weight: 155 × 203 × 155 mm; 1.7 kg.
- Warranty: 3 years
In the Box
- EVO Green receipt printer in the selected interface configuration
- Power supply
- Interface cables for the selected configuration
Receipt paper and optional interface cards are sold separately unless the selected option explicitly includes them.
Keep Transactions Moving
Up to 220 mm-per-second receipt output
The print engine is sized for routine retail and hospitality volume while drop-in loading shortens paper changes.
Match the Host Connection
Two clearly filtered interface choices
Choose USB/serial for a directly connected register or the USB/serial/Ethernet model for network placement.
Place It Where It Fits
Countertop or wall-mount installation
The compact enclosure and wall-mount support help keep receipt printing accessible without consuming unnecessary counter space.
Integrate Established POS Software
ESC/POS commands with OPOS support
Common POS command and driver support helps the printer fit established Windows and point-of-sale environments.
Shop EVO Green Models
911LB480200J33
EVO Green Thermal Receipt Printer (USB, Serial, Ethernet)
Interface:
USB / RS-232 Serial / Ethernet
Shop EVO Green Accessories
RPCABLE-U
USB Interface Cable, 6 Foot, A to A
02798
6-Foot Parallel Printer Cable, DB25M/CENT36M, Beige
03019
6-Foot Beige DB9-to-DB25 Null-Modem Serial Printer Cable
28102
6-Foot Black USB Type-A-to-Type-B Printer Cable
EVO-PT3-1CARDE
XR520 Ethernet Interface Card - Replaces RPCARD-E2
EVO-PT3-1CARDP
XR520 Parallel Interface Card - Replaces RPCARD-P2
EVO-PT3-1CARDS
XR520 Serial Interface Card - Replaces RPCARD-S2
ARTFITT967
2-Year Warranty Extension for Eligible POS-X Products
963GE020000834
3-Pin Power Supply for POS-X Receipt Printers
XWP-T220PF-10-ADD
Phenol-Free Thermal Receipt Paper, 3.125 Inches by 220 Feet, 10-Roll Pack; Introductory Pack Price, Ground Shipping Only
