Zebra EM45

Name: Zebra EM45
Brand: Zebra
Price: 977.41 USD
Availability: InStock

Images may not reflect the actual product

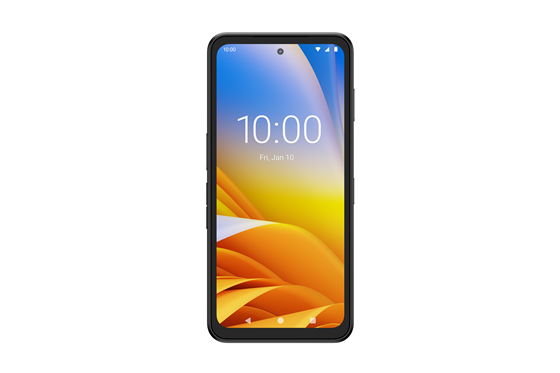

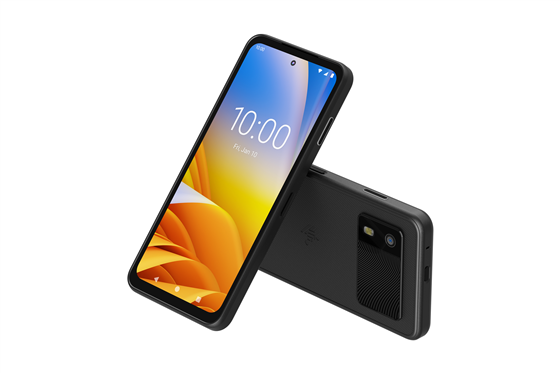

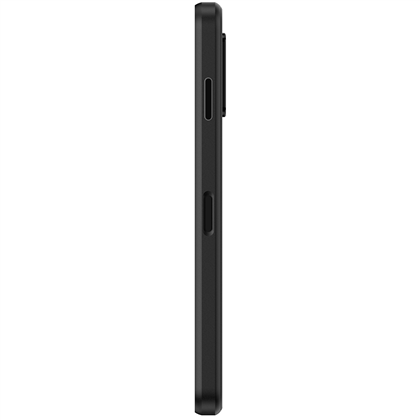

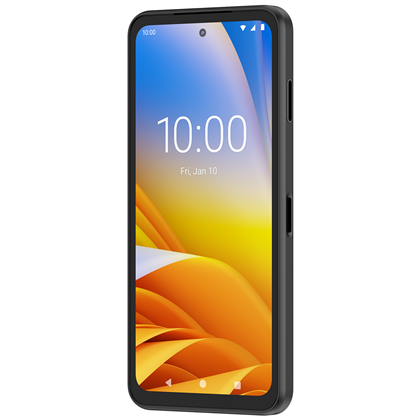

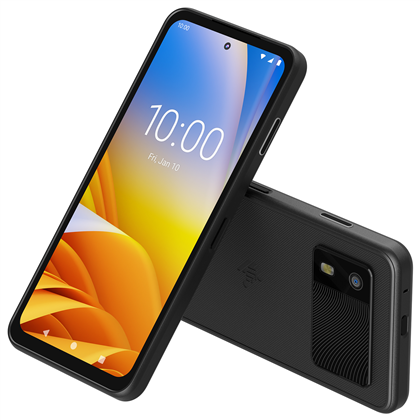

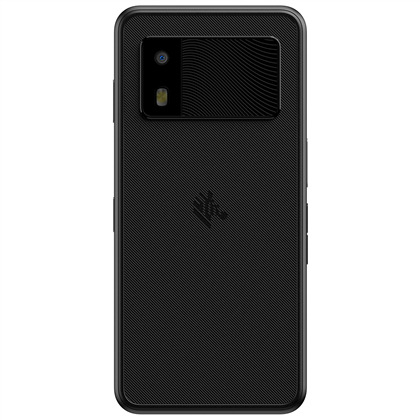

Zebra EM45 enterprise mobile computers combine a slim 6.7-inch design with 5G, Wi-Fi 6E and optional integrated UHF RFID.

The EM45 gives field, retail and service teams an enterprise-managed alternative to a consumer smartphone. A Qualcomm 5430 processor, 8 GB RAM and 128 GB flash support communications, customer service, inspections and data-intensive mobile applications.

Choose the standard EM45 for camera-based barcode capture or EM45 RFID when short-range UHF RFID is required. Both share the same compact platform, high-resolution cameras, enterprise security and Zebra DNA management tools.

See how EM45 RFID adds integrated UHF RFID to Zebra's enterprise mobile platform.

Key Specifications

Android 14 currently available; final supported release is Android 16
Qualcomm 5430 octa-core 2.2 GHz processor with dedicated neural processing capability
8 GB DDR5 RAM, 128 GB UFS 3.1 flash and microSD expansion up to 2 TB
6.7-inch FHD+ 2400 x 1080 display with dynamic 120 Hz refresh rate

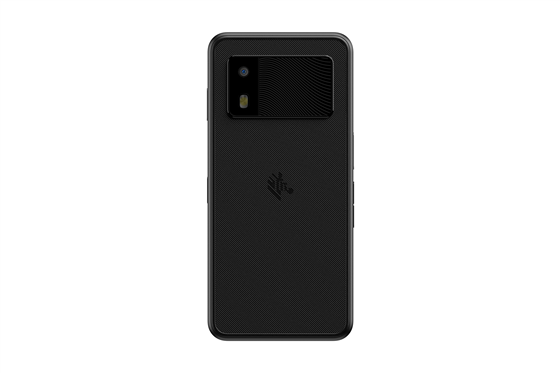

50 MP rear camera with autofocus and optical image stabilization; 8 MP front camera
5G, private 4G/5G, Wi-Fi 6E with 2x2 MU-MIMO, Bluetooth 5.3, NFC and dual SIM
Camera-based barcode capture; short-range UHF RFID on EM45 RFID configurations
PowerPrecision battery, fast charging and up to 25 hours of operation; capacity varies by configuration
Multiple 4 ft drops, 5 ft with protective boot, plus IP65 and IP68 sealing
One-year Zebra hardware warranty

In the Box

Selected EM45 or EM45 RFID enterprise mobile computer
SuperSpeed USB-C cable
Regulatory guide

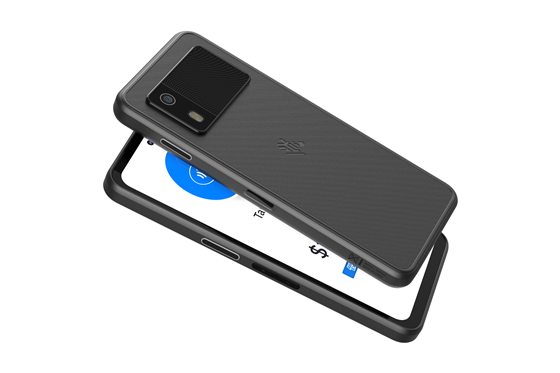

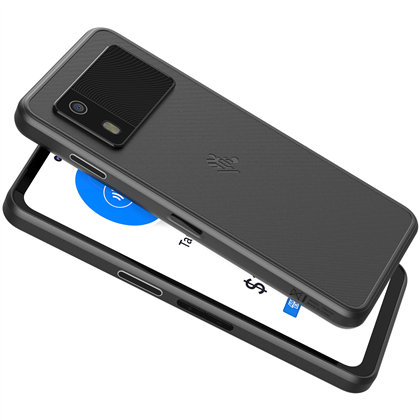

Installed screen protector and protective case with the EM45 RFID kit option only

Configuration note: The 45 W power adapter and other applicable accessories are sold separately unless the selected option explicitly states they are included.

A practical enterprise mobile platform

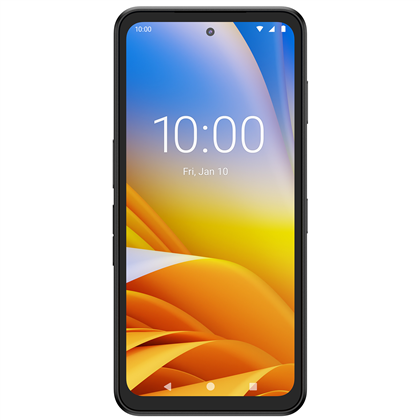

Clear display and capable cameras

The responsive FHD+ display supports light-glove use and rejects water droplets. The stabilized 50 MP rear camera captures detailed photos and 4K video for proof of service, inspections and documentation, while the 8 MP front camera supports collaboration.

Built for daily mobile work

Drop, tumble and sealing ratings help the EM45 withstand repeated field use. Three programmable buttons can provide one-touch access to scanning, push-to-talk, camera and other frequently used functions.

Fast connections and long shifts

5G, private-network support, Wi-Fi 6E, dual SIM and enterprise voice tools keep workers connected across facilities and field routes. Fast charging can restore up to 50 percent capacity in about 30 minutes under supported conditions.

Security and lifecycle management

Fingerprint and facial authentication, LifeGuard security updates, StageNow and Zebra DNA Cloud support controlled deployment and management. Some Zebra DNA capabilities require a separate license or support agreement.

Choose the configuration that fits the workflow

Standard EM45

Best for field sales, delivery, hospitality, assisted selling and service teams that need camera-based scanning, high-quality image capture and enterprise communications in a pocketable form factor.

EM45 RFID

Adds integrated short-range UHF RFID for inventory, item location and asset workflows without a separate sled. The RFID model also supports compatible contactless-payment use cases. Payment applications, cellular service and software licenses are configured separately.

Deployment and accessories

Compatible Zebra cradles, protective gear, power components and mounting accessories can tailor the EM45 to mobile or workstation use. Verify the complete power chain for the selected cradle; a power supply, DC cord and US AC line cord may be separate components.

Service options

Zebra OneCare plans can add repair, accidental-damage and replacement services beyond the standard warranty. Coverage, response level and regional availability depend on the selected agreement.

Dimensions

6.72 in L x 3.17 in W x .42 in D (170.65mm L x 80.54mm W x 10.7mm D)

Weight

8.82 oz (250g) (with embedded battery)

Display

6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate

Touch Panel

Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating

Power

Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 5,000mAh/19.4Wh

Expansion Slot

User-accessible MicroSD card; supports up to 2 TB

SIM

Dual SIM (single Nano SIM and eSIM)

Network Connections

WWAN; Wi-Fi, Bluetooth and NFC

Notifications

Audible tone; vibration Audible tone; vibration

Keypad

On-screen keypad

Voice and Audio

Two microphones with noise cancellation; HAC compliant (North America); Dual Stereo speakers for loudness; High Quality stereophonic speaker phone; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; HD VoIP, Voice and Multimedia, supporting Super-wideband (SWB), Wideband (WB) and Full band (FB)

Buttons

Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera

Interface Ports

USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode

CPU

Qualcomm® 5430 Octa-core, 2.2 GHz

Operating System

Upgradeable to Android 16

Memory

8 GB DDR5 RAM/128 GB UFS3.1 Flash

Operating Temperature

+32F to +122F (0C to +50C)

Storage Temperature

40F to +158F (-40C to +70C)

Humidity

5% — 95% non-condensing

Drop Specification

5 ft (1.5m) to tile over concrete across temperature (0C to +50C/+32F to +122F) with protective boot exceeding MIL-STD-810H; Multiple 4 ft (1.2m) to tile over concrete across temperature (0C to +50C/+32F to 122F) exceeding MIL-STD 810H

Tumble Specification

600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m)

Sealing

IP68 and IP65, with battery per applicable IEC sealing specifications

Vibration

Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz

Thermal Shock

-40F to +158F (-40C to +70C)

Electrostatic Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Motion Sensor

3-axis accelerometer with MEMS Gyro

Light Sensor

Automatically adjusts display backlight brightness

Proximity Sensor

Automatically detects when the user places the device against head during a phone call to disable display output and touch input

Magnetometer

eCompass to detect direction

Pressure Sensor

Altitude detection for locating

Dimensions

6.72 in L x 3.17 in W x .42 in D (170.65mm L x 80.54mm W x 10.7mm D)

Weight

8.82 oz (250g) (with embedded battery)

Display

6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate

Touch Panel

Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating

Power

Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 5,000mAh/19.4Wh

Expansion Slot

User-accessible MicroSD card; supports up to 2 TB

SIM

Dual SIM (single Nano SIM and eSIM)

Network Connections

WWAN; Wi-Fi, Bluetooth and NFC

Notifications

Audible tone; vibration Audible tone; vibration

Keypad

On-screen keypad

Voice and Audio

Buttons

Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera

Interface Ports

USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode

CPU

Qualcomm® 5430 Octa-core, 2.2 GHz

Operating System

Upgradeable to Android 16

Memory

8 GB DDR5 RAM/128 GB UFS3.1 Flash

Operating Temperature

+32F to +122F (0C to +50C)

Storage Temperature

40F to +158F (-40C to +70C)

Humidity

5% — 95% non-condensing

Drop Specification

Tumble Specification

600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m)

Sealing

IP68 and IP65, with battery per applicable IEC sealing specifications

Vibration

Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz

Thermal Shock

-40F to +158F (-40C to +70C)

Electrostatic Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Motion Sensor

3-axis accelerometer with MEMS Gyro

Light Sensor

Automatically adjusts display backlight brightness

Proximity Sensor

Automatically detects when the user places the device against head during a phone call to disable display output and touch input

Magnetometer

eCompass to detect direction

Pressure Sensor

Altitude detection for locating

Dimensions

6.72 in L x 3.17 in W x .42 in D (170.65mm L x 80.54mm W x 10.7mm D)

Weight

8.82 oz (250g) (with embedded battery)

Display

6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate

Touch Panel

Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating

Power

Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 5,000mAh/19.4Wh

Expansion Slot

User-accessible MicroSD card; supports up to 2 TB

SIM

Dual SIM (single Nano SIM and eSIM)

Network Connections

WWAN; Wi-Fi, Bluetooth and NFC

Notifications

Audible tone; vibration Audible tone; vibration

Keypad

On-screen keypad

Voice and Audio

Buttons

Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera

Interface Ports

USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode

CPU

Qualcomm® 5430 Octa-core, 2.2 GHz

Operating System

Upgradeable to Android 16

Memory

8 GB DDR5 RAM/128 GB UFS3.1 Flash

Operating Temperature

+32F to +122F (0C to +50C)

Storage Temperature

40F to +158F (-40C to +70C)

Humidity

5% — 95% non-condensing

Drop Specification

Tumble Specification

600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m)

Sealing

IP68 and IP65, with battery per applicable IEC sealing specifications

Vibration

Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz

Thermal Shock

-40F to +158F (-40C to +70C)

Electrostatic Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Motion Sensor

3-axis accelerometer with MEMS Gyro

Light Sensor

Automatically adjusts display backlight brightness

Proximity Sensor

Automatically detects when the user places the device against head during a phone call to disable display output and touch input

Magnetometer

eCompass to detect direction

Pressure Sensor

Altitude detection for locating

Scanning

Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture — complimentary with the device

Camera

Rear: 50 MP, Auto focus, OIS; ƒ/1.9, Video Recording Resolution: UHD 4K (3840x2160) @30fps, Front: 8 MP, ƒ/2.0, Video recording 1080P@30fps

NFC

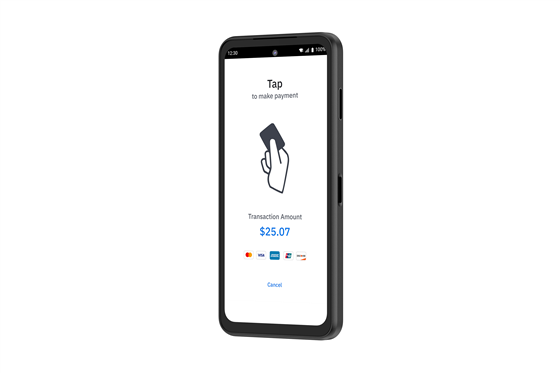

ISO 14443 Type A and B; Sony FeliCa⁵ and ISO 15693 cards; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified

Built-in RFID

Short range integrated UHF RFID; 4 ft (1.2m) range, reads 20 tags per second; EU 865-868 MHz and US 902-928 MHz

WLAN Radio

IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6

Wireless WAN

4G: B2/4/5/7/ 8/12/13/14/17/25/26/29/30/38/41/48/66/71;
3G: B2/4/5
Rest of World: 5G FR1: n1/2/3/5/7/8/20/26/28/38/40/41/66/71/77/78;
4G: B1/2/3/4/5/7/8/13/17/18/20/26/28/38/39/ 40/41/42/43/66/71; 3G: B1/2/4/5/6/8/19; 2G: 850/900/1800/1900 Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, Supports private
5G/LTE; CBRS (available only in the US)

Bluetooth

Class 1, Bluetooth v5.3; Classic Bluetooth(BR/EDR) and Bluetooth LE

Warranty

1 Year

Shop EM45 Models

EM45A1-3T106B0-NA

EM45 Enterprise Mobile. 5G Sub6 + Private 4G/5G, Wi-Fi 6E 2x2 MU-MIMO, 8GB RAM/128GB ROM, 6.7-inch Full HD+ display, 50MP RFC / 8MP FFC, SuperSpeed USB-C cable. NA only.

RFID:

No RFID

Kit:

Standard Package

$977.41

EM45A2-3T106B0-NA

EM45 Enterprise Mobile with RFID. 5G Sub6 + Private 4G/5G, Wi-Fi 6e 2x2 MIMO, 8GB RAM/128GB ROM, 6.7-inch Full HD+ display, 50 MP RFC / 8MP FFC, SuperSpeed USB-C cable. NA only.

RFID:

RFID

Kit:

Standard Package

$1290.48

EM45A2-3T106B0-NAWM

KIT: EM45 Enterprise Mobile with RFID, SuperSpeed USB-C cable, Screen protector & Protective Case installed. 5G Sub6 + Private 4G/5G, Wi-Fi 6E 2x2 MU-MIMO, 8GB RAM/128GB ROM, 6.7-inch Full HD+ display, 50 MP RFC / 8MP FFC. NA only.

Kit:

Protective Kit

RFID:

RFID

$1362.25

Shop EM45 Accessories

HS3100-BTN-LSB

Hs3100 Rugged Bluetooth Headset (Behind-The-Neck Headband Left) (Includes Hs3100 Shortened Boom Module And Hsx100 Btn Headband Module Left)

$722.28

SG-STYLUS-TCX-MTL-03

Passive Stylus, Micro-Knit Hybrid Fiber Tip - Pack of 3.

$40.32

SG-TC5NGTC7NG-TETHR-03

Passive Stylus Tether

$43.80

CRD-EM4X-1SNWS-01

This connect cradle, allows users to use EM45 RFID device as a workstation or kiosk. Includes HDMI, Ethernet, USB-A (x4) ports, shims, and 3.5mm headset jack. Power supply, DC line cord and AC line cord are all sold separately.

$563.92

PWR-BGA12V50W0WW

Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.

$82.33

CBL-DC-388A2-01

DC Line Cord for running the ET4X Point of Sale Stand from a Single Level VI Power Supply PWR-BGA12V50W0WW

$19.41

CBL-EC5X-USBC3A-01

USB-C To USB-C Communications And Charging Cable, 1.2m Long; Supports 3.0 Superspeed And Fast Charge

$21.00

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$17.94

50-16000-182R

AC Line Cord or Zebra Power Supplies

$8.24

11-08062-02R

Universal, rugged belt for hip holster.

$52.05

58-40000-007R

Zebra Universal Holster Shoulder Strap. Order Holster Separately.

$20.10

HS3100-OTH

HS31, Rugged Bluetooth Headset Over-The-Head Headband Includes HS3100 Boom Module And HSX100 OTH Headband Module inch

$818.09

HS3100-BTN-L

HS3100 Rugged Bluetooth headset with behind-the-neck headband (left). Included HS3100 boom module and HSX100 BTN-L headband module.

$722.28

SG-EM45EXO1-01

EM45 Protective Case QTY:1

$72.45

SG-EM45-SCRNPT1-1

EM45 SCREEN PROTECTOR 1-PACK Tempered Glass Screen Protector. Includes alcohol wipes, cleaning cloth, and tools needed for screen protector installation.

$28.75

HDST-USBC-PTT1-01

USB-C Wired Headset For PTT + VOIP W/ Rotating Ear Piece For Right/Left Ear Wearing. Includes Built-In PTT Button And Volume Controls.

$126.72

HS3100-OTH-SB

HS3100 Rugged Bluetooth Headset (Over-the-Head Headband) (Includes HS3100 Boom Module and HSX100 OTH Headband Module)

$818.09

HS3100-SBOOM-01

Hs3100 Shortened Boom Module (Includes Microphone Boom, Battery And Windscreen)

$479.86

PWR-WUA5V45W1US

USB Type C Power Supply Adaptor With US Plug. Used With USB-C Cable (CBL-EC5X-USBC3A-01) To Charge Device. USB PD 3.1 Power Supply With An Input Of 100-240VAC And A Self-Adjusting Output Ranging From 5V/3A To 20V/2.25A.

$43.89

50-16000-678R

Cable, AC Line Cord, 36inchL grounded, three wire. Associated Country: United States

$17.94

FM-RC-EM45

Rugged Case Zebra EM45

$29.50

FM-RC-EM45-BLTCP

Rugged Case Zebra EM45 Belt Clip

$36.00

FM-RC-EM45-HSTP

Rugged Case Zebra EM45 Silicone Handstrap

$36.00

FM-RC-EM45-M5500

Rugged Case Zebra EM45 Ingenic Moby 5500

$36.00

FM-RC-EM45-POP

Rugged Case Zebra EM45 PoP Socket

$49.00

FM-RC-EM45-WLLT

Rugged Case Zebra EM45 Wallet

$42.50

INF-SG-ZEB-EM45

Tempered Glass Zebra EM45

$17.00

Z1AE-EM45XX-3303

3 yr Z1C Essential EM45XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning, MOQ 20

$319.63

3PTY-MOB-065029

Mobilis Black Protech case for EM45.Compatible with Mobilis hand strap (3PTY-MOB-001367) and Mobilis shoulder strap (3PTY-MOB-001093).

$27.50

SG-EM45EXO2-01

EM45 Non-RFID Protective Case QTY:1

$72.45

SG-EM45-SCRNPT-10

EM45 10-Pack Tempered Glass Screen Protector. Includes alcohol wipes, cleaning cloth, and tools needed for screen protector installation.

$265.94

3PTY-RAM-GDS-SKIN-ZE37

RAM IntelliSkin for EM45

$68.20

Z1AE-EM45XX-3300

3 yr Z1C Essential EM45XX, 3 day TAT, purchased in 30 days, comprehensive, premium maintenance for std battery.

$238.13

Z1AZ-EM45XX-3303

3 yr Z1C Select EM45XX, advanced replacement, in NA and Mexico with Zebra owned buffer, purchased in 30 days, comprehensive, premium maintenance for std battery, std commissioning (MOQ 20 if enabled)

$308.32

SSPVFM450

Screen Protector for the Verifone M450 POS Device 6.78in x 4.236in. Multi-layer construction for added tensile strength. UV-resistant and designed to withstand medical-grade disinfectants without damage to the device screen.

$28.50

SSPHPLJEM4555

Seal Screen Protector for HP LaserJet Enterprise MFP M4555

$28.50

Have Questions?Call Us at: (800) 241-6264
