Elo TouchSystems EloPOS Pack 2

Name: Elo TouchSystems EloPOS Pack 2
Brand: Elo TouchSystems
Price: 1823.8 USD
Availability: InStock

Images may not reflect the actual product

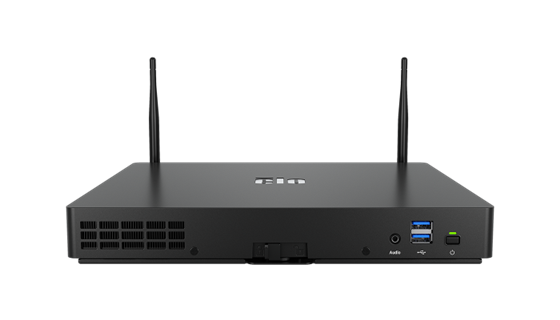

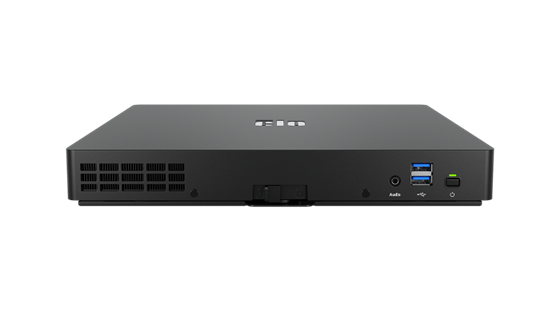

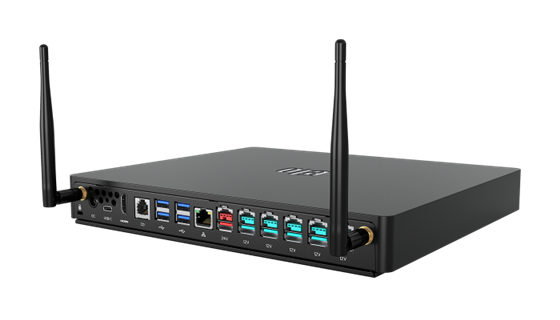

Commercial Intel POS computing with powered I/O, flexible mounting and serviceable components.

EloPOS Pack 2 is a compact POS computer for retailers and hospitality operators who want the computing hardware mounted off the counter while retaining extensive peripheral connectivity.

Choose a Celeron, Core i3, Core i5 or Core i7 configuration with no OS or Windows 11 IoT Enterprise LTSC. DDR5 memory, NVMe storage, Wi-Fi 6E and Bluetooth 5.3 support current deployments and future expansion.

Key Specifications

Processor: Intel G6900T to Core i7-14700T
Memory and storage: DDR5; NVMe SSD
Operating system: No OS or Windows 11 IoT Enterprise LTSC
Connectivity: Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.3
Ports: HDMI, USB-C, USB 3.0, powered USB and cash-drawer port
Serviceability: Accessible memory and storage
Mounting: Included table-mount bracket
Dimensions and weight: 10.9 x 1.4 x 9.4 in.; 5.76 lb
Warranty: 3 years

In the Box

EloPOS Pack 2 computer
180W power adapter
North American and EU power cords
USB-C, HDMI and USB cables
Two SMA antennas and quick installation guide

The selected configuration determines processor, memory, storage and operating system.

Built for Peripheral-Heavy POS

Powered connectivity where it is needed

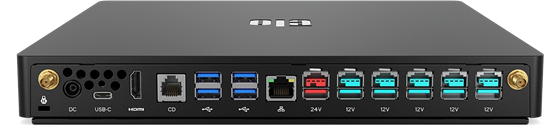

Five 12V and one 24V powered USB ports, six standard USB ports, HDMI, full-function USB-C and a selectable 12V/24V Epson-pinout cash-drawer port simplify checkout hardware integration.

Deploy, Mount and Service

A compact computer that stays accessible

The supplied bracket mounts the system under or behind a work surface. Serviceable internal memory and storage, TPM 2.0 and optional Intel VMD/AMT capabilities help support managed commercial deployments.

Processor

Intel® Celeron® Processor G6900T

Intel Core™ i3- 14100T Processor

Intel Core i5- 14500T Processor

Intel Core i7- 14700T Processor

Chipset

Intel Q670 Express

Video

Intel UHD Graphics 710

Intel UHD Graphics 730

Intel UHD Graphics 770

BIOS

AMI

Memory

8GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum1 on 2 slots)

8GB or 16GB 5600MHz DDR5 SODIMM on 1 of 2 slots (Expandable to 64GB max1 on 2 slots)

16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum1 on 2 slots)

Storage

128GB M.2 PCIe (NVMe) SSD3, 80 TBW

256GB M.2 PCIe (NVMe) SSD3, 160 TBW

256GB M.2 PCIe (NVMe) SSD3,160 TBW or 512GB M.2 PCIe (NVMe) SSD3, 320 TBW

256GB M.2 PCIe (NVMe) SSD3,160 TBW

Operating Systems

No Operating System, Microsoft Windows 10 IoT Enterprise LTSC 64-bit

Languages

Windows 10 – 36 Language groups

I/O Ports

1x HDMI port, 1x LAN RJ45 (Gigabit), 2x USB 3.0 (Front side), 4x USB 3.0 (Rear side), 1x 24V & 5x 12V Powered USB, 1x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch), 1x Full-function USB-C (Power up to 27W, USB 3.0, Display Port), 1x 3.5 mm headset jack

Wireless

802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

Antenna

2T2R design with External SMA connector

Bluetooth

Bluetooth 5.3

RAID

Intel Volume Management Device (VMD) technology for select SKUs

TPM

TPM 2.0

AMT

Intel Active Management Technology (AMT) for i5, i7 only.

Real Time Clock

Replaceable CR2450 lithium metal battery for clock

Power Supply

External 24VDC universal-type power supply brick, AC input voltage: 100-240 VAC, Input frequency: 50-60 Hz, Maximum output power: 180W

Power Consumption

ON Celeron: 35W (8GB DIMM/128GB SSD). Don’t exceed 145W for all peripherals load.; ON i3: 63W (8GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; ON i5: 62W (8GB DIMM/512GB SSD). Don’t exceed 118W for all peripherals load.; ON i7: 63W (16GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; SLEEP: <3W; OFF BIOS EUP Disable: <2.5W; OFF BIOS EUP Enabled: < 0.5W

Mounting Options

Bracket mounts to table with screws, System slides forward to engage hooks on bracket

Other Features

Serviceable internal components. Kensington Nano Security Slot. Kensington lock slot (Standard Size).

Upgrade Options

8GB 5600MHz DDR5 SO-DIMM – E466053, 16GB 5600MHz DDR5 SO-DIMM – E466237 , 32GB 5600MHz DDR5 SO-DIMM – E466430, M.2 PCIe (NVMe) 128GB SSD – E466613, M.2 PCIe (NVMe) 256GB SSD – E466803

Dimensions

10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm

Shipping Box Dimensions

14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm

Weight

Unpackaged: 5.76 lbs / 2.6 kg; Packaged: 10.14 lbs / 4.6 kg

Temperature

Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F)

Humidity (non-condensing)

Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature)

Compliance

Energy Star 8.0 certified configurations available

Warranty

3 years

Extended Warranty

4 year coverage - Elo P/N: E896120 ; 5 year coverage - Elo P/N: E896322

MTBF

50,000 hours demonstrated

What’s in the box

EloPOS Pack 2, North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch), EU Power Cord (1800+/-50mm), Power Adapter – 180W, USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch), HDMI cable (1800+/-50mm), (6 ft +/- 1 inch), USB cable (1800+/-50mm), (6 ft +/- 1 inch), 2x SMA Antenna, QIG
