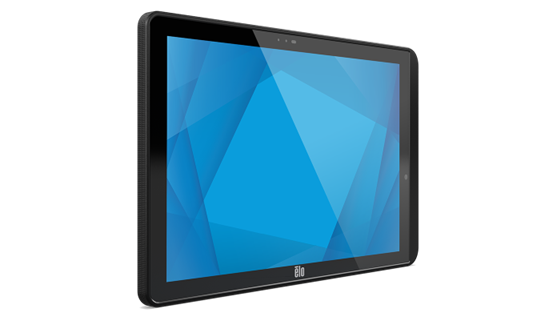

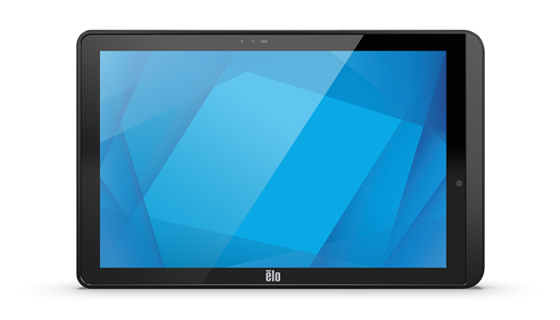

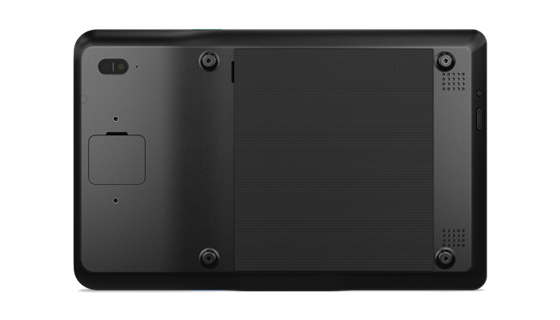

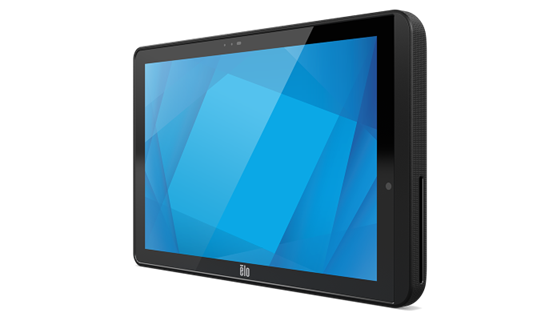

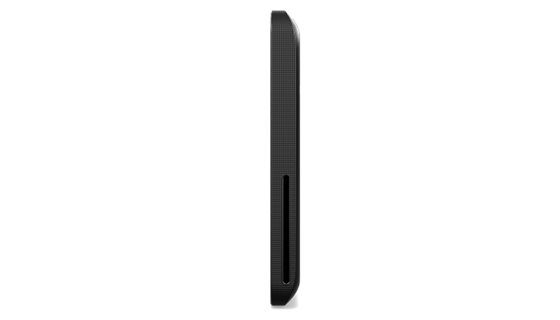

Elo TouchSystems Elo Pay M100
Mobile POS payment, scanning and service in one rugged 10.1-inch Android tablet.
Elo Pay M100 brings integrated chip and contactless payment to line busting, table service, curbside pickup and mobile checkout. Its 10.1-inch FHD display, Snapdragon 660 platform and Android 12 support a focused handheld POS workflow.
Choose a Wi-Fi or regional cellular model, with or without the integrated SE4100 1D/2D scanner. The optional rotating dock extends the same device to a fixed customer-facing counter.
Key Specifications
- Processor: Qualcomm Snapdragon 660 octa-core
- Memory and storage: 4GB RAM, 64GB storage
- Display and touch: 10.1-inch FHD, 1920 × 1200, Gorilla Glass
- Operating system: Android 12 with GMS; AOSP capable
- Ports and connectivity: USB-C, Wi-Fi ac, Bluetooth 5.0; cellular on applicable models
- Payment: EMV chip, contactless NFC and pin-on-glass
- Peripheral options: SE4100 1D/2D scanner and fingerprint reader on applicable configurations
- Serviceability: User-replaceable 8,000 mAh Quick Charge battery
- Dimensions and weight: 10.06 × 6.38 × 0.54 in.; from 1.69 lb
- Warranty: 1 year
In the Box
- Elo Pay M100 mobile POS tablet
- USB-C Quick Charge 3 charger
- USB-C cable
- Quick installation guide
Scanner, cellular capability and accessories vary by selected model. Docks, chargers, straps and mounts are sold separately.
Accept Payment Anywhere
Integrated mobile checkout
EMV chip, contactless NFC and pin-on-glass payment let teams take transactions to the customer instead of routing every sale through a fixed lane.
Built for the Shift
Commercial mobility
Corning Gorilla Glass Victus, IP54 sealing and multiple 1 m drop resistance support frequent handling. A rugged case raises the documented drop rating to 1.6 m.
Capture More Than Payments
Integrated scanning when required
Scanner models add the Zebra SE4100 1D/2D imager for item capture alongside payment. All models include an 8MP autofocus rear camera and 5MP front camera.
From Mobile to Fixed POS
Adapt the deployment
Add the rotating POS dock for a merchant- or customer-facing counter station, or choose the compatible chargers, hubs, straps, case and VESA solution for the workflow.
Shop Elo Pay M100 Models
E121214
Elo Pay M100, WiFi, Android 12 GMS, 10.1" HD 1920x1080 Display Qualcomm 660, 4GB RAM, 64GB FLASH, Integrated Pay (NFC, EMV), Barcode Scanner, 5MP Front Cam, 8MP Rear Cam, WiFi, BT, EloView Compatible, Black
Barcode Scanner:
Barcode Scanner
Connectivity:
WiFi
E121790
Elo Pay M100, Cellular (AT&T), Android 12 GMS, 10.1" HD 1920x1080 Display Qualcomm 660, 4GB RAM, 64GB FLASH, Integrated Pay (NFC, EMV), 5MP Front Cam, 8MP Rear Cam, WiFi, BT, Black
Connectivity:
Cellular & WiFi
E121593
Elo Pay M100, Cellular (AT&T), Android 12 GMS, 10.1" HD 1920x1080 Display Qualcomm 660, 4GB RAM, 64GB FLASH, Integrated Pay (NFC, EMV), Barcode Scanner, 5MP Front Cam, 8MP Rear Cam, WiFi, BT, Black
Barcode Scanner:
Barcode Scanner
Connectivity:
Cellular & WiFi
E121405
Elo Pay M100, WiFi, Android 12 GMS, 10.1" HD 1920x1080 Display Qualcomm 660, 4GB RAM, 64GB FLASH, Integrated Pay (NFC, EMV), 5MP Front Cam, 8MP Rear Cam, WiFi, BT, EloView Compatible, Black
Connectivity:
WiFi
Shop Elo Pay M100 Accessories
E118661
Elo M100 4 unit device charger
E120625
Elo Pay M100 Stylus
E815044
Elo small hub for Elo Pay 7-inch and Elo Pay M100
E118851
Elo M100 single unit device charger
E119034
Elo Pay M100 rotating POS dock with pogo-pins, requires E120428, E120022, or E640293
E640102
M100 ROTATING POS DOCK WITH USB-C PORT, REQUIRES E120428, E120022, OR E640293
E193052
ELO PAY M100 MOBILE VESA MOUNT
E119632
Elo Pay M100 rugged case
E119827
ELO, HANDSTRAP FOR M100
E120428
Elo Pay M100 rotating hand strap
E121016
ELO PAY M100 FINGERPRINT READER
E326107
ELO PAY M100 SPARE BATTERY
E640293
ELO PAY M100 BACK BRACKET
E672040
Elo, Mobile Computer 3 Yr Warranty Coverage & Accidental Damage Repair
E815235
Elo large hub for Elo Pay 7-inch
E119228
Elo Pay M100 Fixed VESA mount
