Elo TouchSystems Elo 3204L & 4304L Interactive Displays

Name: Elo TouchSystems Elo 3204L & 4304L Interactive Displays
Brand: Elo TouchSystems
Price: 1655.27 USD
Availability: InStock

Images may not reflect the actual product

Commercial 32- and 43-inch interactive displays for collaboration, self-service and digital experiences.

The Elo 3204L and 4304L combine Full HD visual clarity with TouchPro® PCAP multi-touch for shared content, wayfinding, room collaboration and customer-facing installations.

Both models are built for 24/7 operation, support portrait, landscape and tabletop deployment, and provide flexible video, touch and device-management connections.

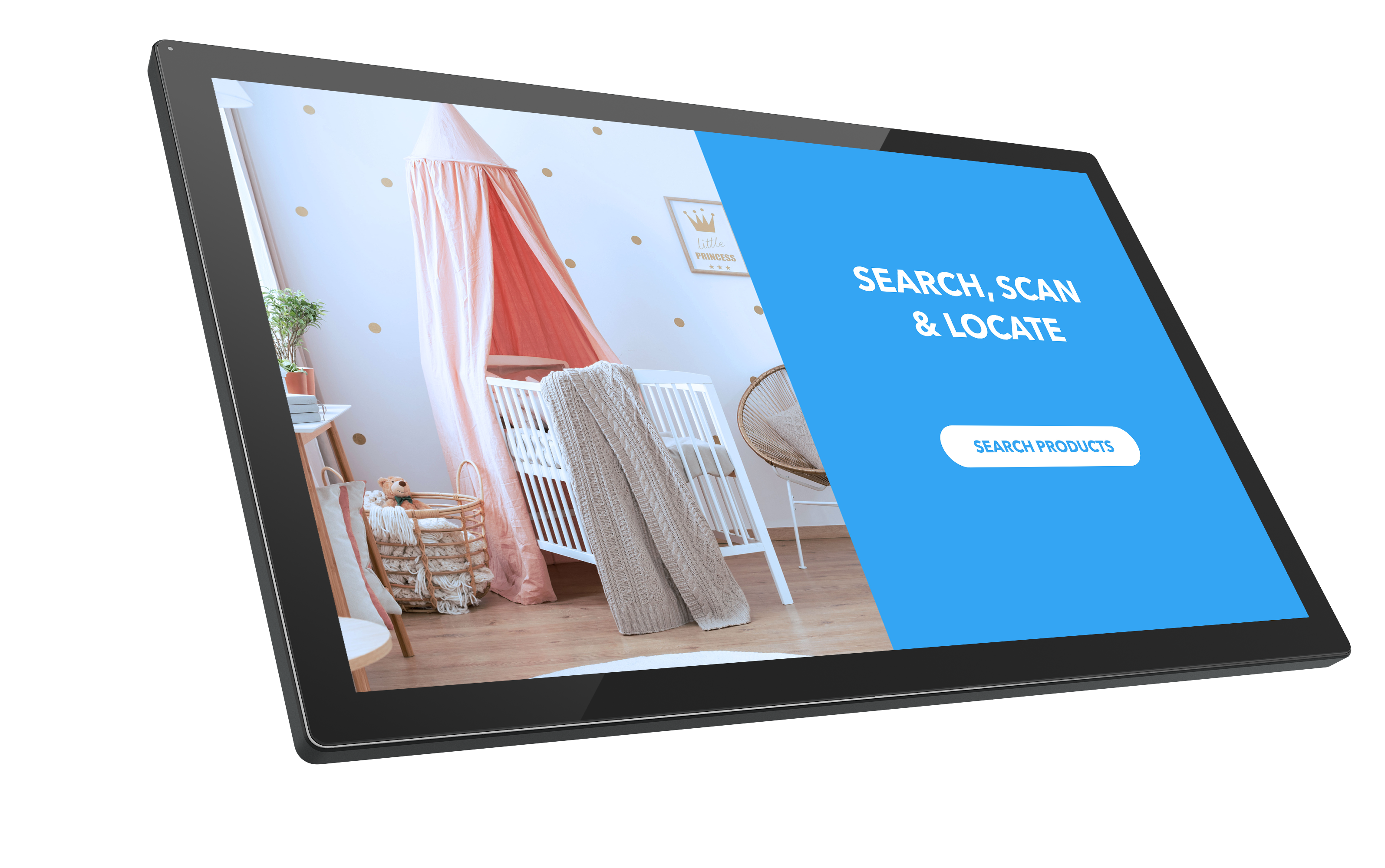

Elo 3204L large-format interactive display

Key Specifications

Display and touch: 31.5 or 42.5 in.; TouchPro PCAP, up to 40 touches
Resolution: Full HD 1920 x 1080 at 60 Hz
Ports and connectivity: HDMI, DisplayPort, USB-C, Ethernet and RS-232/MDC
Power: 100–240 VAC; rear power pass-through
Durability and environment: IK07; 24/7 commercial operation
Mounting: VESA 400 x 400 mm; portrait, landscape or tabletop
Dimensions and weight: Model-specific; 26.17–40.72 lb unpackaged
Standout: Touch-through support for up to 6 mm glass / 3 mm plastic
Warranty: 3 years

In the Box

Selected Elo 3204L or 4304L interactive display
Quick installation guide
Regional AC input cables and AC output cable
USB-C to USB-C cable and BrightSign mounting screws

Included items are model-family package contents; compatible mounts, compute modules and players are sold separately.

Designed for Multi-User Touch

TouchPro PCAP

Up to 40 simultaneous touches with palm rejection support natural shared interaction. OSD-selectable touch-through can support compatible protective glass or plastic overlays.

Ready for Integrated Installs

Clean compute and player integration

VESA mounting and rear integration support compatible Elo Backpacks, selected Intel NUC systems and BrightSign players, while power pass-through helps reduce exposed cabling.

Flexible Content Connections

Video, touch and control

Use dual HDMI, DisplayPort or USB-C for content, plus USB-C for touch and video. Ethernet, RS-232/MDC, an optional OSD remote connection and Elo Edge Connect ports support managed deployments.

Commercial Deployment Tools

Operate and manage with confidence

24/7 design, ambient-light sensing, auto wake, OTA firmware updates and support for EloView or Crestron Connected V2 help keep interactive environments running.

Bezel Color

Black

Display

31.5" / 800.1 mm diagonal, active matrix TFT LCD

Active Display Area (W x H)

27.5" x 15.47" / 698.4 mm x 392.9 mm

Touch Technology

TouchPro® PCAP – up to 40 touches with palm rejection

Touch Thru

TouchPro® PCAP supports up to 6mm glass / 3mm plastic with up to 2 touches. Supports gloves up to 1.4mm.

Aspect Ratio

16:9

Native Resolution

1920 x 1080 @ 60Hz

Preset Video Timings

640x480 60Hz
800x600 56/60Hz
1024x768 60Hz
1280x720 60Hz
1280x960 60Hz
1280x1024 60Hz
1920x1080 50/60Hz

Number of Colors

16.7 million, 8bit(D)

Brightness (typical)

LCD Panel 400 nits; with PCAP 320 nits

Response Time (typical)

8 msec

Viewing Angle (typical)

Horizontal: ±89° / 178° total
Vertical: ±89° / 178° total

Contrast Ratio (typical)

3000:1

Compute Mounting Options

Elo Backpack 4 & 5 with Android, Elo Backpack with Intel, Intel NUC with 100mm x 100mm VESA mounting plate, BrightSign XT/XD/HD series player

Built-in IoT Control

EloView cloud control supported; Crestron Connected® V2 supported

On-Screen Display (OSD)

Language, Time, Time Zone
Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C
Video Settings: Brightness, Contrast, Sharpness, Aspect Ratio
Color Settings: Color Temp, Sensor, Presets
Audio: Output, Mute, Volume
Power: Loss Behavior, Lock, Energy Saving, CEC
Scheduling, OSD Lock, Touch Through
Firmware update via OTA or USB

I/O Ports

2x HDMI 1.4, DisplayPort 1.2, USB-C (touch + video), RJ45 (IoT LAN), RJ45 (OSD remote), 3.5mm TRS (RS-232/MDC), 3.5mm audio out, 4x Elo Edge Connect (Micro USB), USB-A (Wi-Fi dongle only)

Control Buttons

Power, Video Source Selection, On-Screen Display

Power

Input: 100–240VAC, 50/60Hz
Power consumption: ON 45W, Sleep 2.3W, Off 0.29W

Audio

2 x 5W integrated speakers; 3.5mm headphone output

Mounting Options

VESA 400 x 400 mm, M6

Dimensions

30.07" x 18.04" x 1.95" / 763.7 x 458.1 x 49.6 mm

Weight

Unpackaged: 26.17 lbs / 10.9 kg
Packaged: 33.75 lbs / 15.28 kg

Operating Time

24 hours/day

Compliance

Energy Star® 8.0

Warranty

3-year standard warranty with AUR included

Shop Elo 3204L & 4304L Interactive Displays Models

E103164

Elo 3204L 32-inch Interactive Display, FHD, TouchPro PCAP 40-Touch, USB-C, Clear Anti-Friction Glass

Screen Size:

32-inch

$1655.27

E103351

Elo 4304L 43-inch wide LCD Monitor, FHD, HDMI 1.4 & DisplayPort 1.2, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Clear Anti-friction Glass, USB-C, Black

Screen Size:

43-inch

$2350.30
