Touch Dynamic Edge Ultra Kiosk

Name: Touch Dynamic Edge Ultra Kiosk
Brand: Touch Dynamic
Price: 2178.52 USD
Availability: InStock

Images may not reflect the actual product

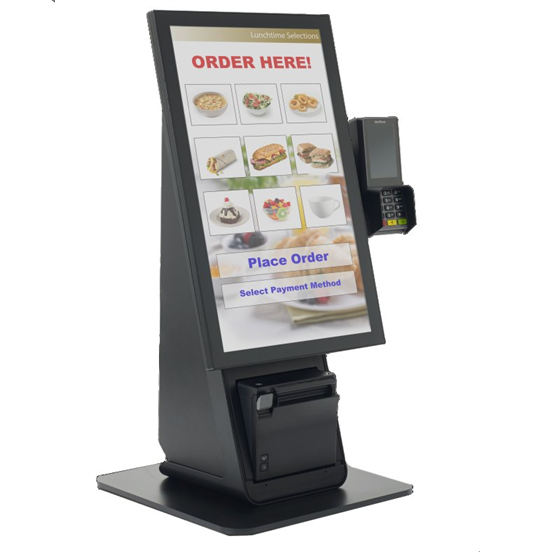

Configurable kiosk with a recessed receipt printer

The Touch Dynamic Edge Ultra Kiosk combines a compatible touchscreen terminal with a recessed printer base. Countertop and floor-mounted configurations support landscape or portrait installations, with the terminal and peripheral package specified by exact configuration.

Key Specifications

Processor: Intel Celeron / Core or Qualcomm, by terminal
Memory and storage: RAM and SSD / eMMC package by exact configuration
Display and touch: Compatible 15–21.5-inch terminal; size by option
Operating system: Windows or Android by terminal configuration
Ports and connectivity: Terminal-specific USB, serial and LAN
Mount / stand: Floor podium or countertop, by package
Peripheral options: Optional MSR, scanner, PIN pad mount and camera
Serviceability: Modular terminal and recessed Epson printer
Dimensions (W × D × H): Varies by terminal and mounting package
Weight: Varies by installed terminal, printer and mount
Warranty: 3 years

In the Box

Selected kiosk terminal / base package
Printer and mounting hardware only as stated in the selected configuration

Included peripherals and installed software depend on the selected configuration.

Recessed printer

The printer sits inside the base to help shield its cutter and print head from spills.

Flexible installation

Counter and floor-mount choices support portrait or landscape panel orientation.

Supported Panel Sizes

15, 17, 18.5 and 21.5-inch panels in the matching kiosk sheet; exact terminal must be compatible.

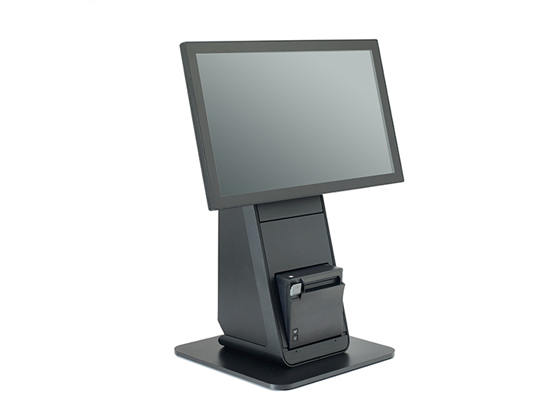

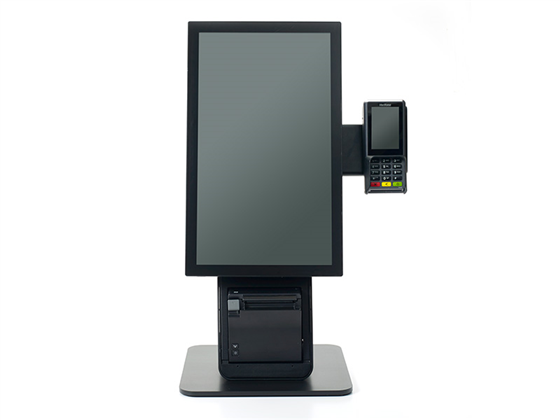

Orientation

Landscape or portrait, with compatible panel and mount.

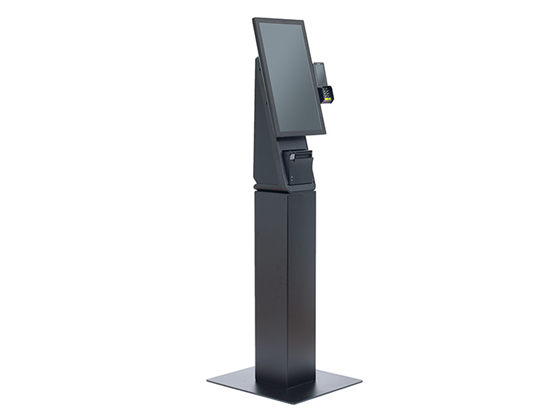

Mounting

Countertop or floor-mount options.

Power Design

One internal power source powers the terminal, printer and rear display in the matching integrated configuration.

Printer Installation

Printer recessed in base.

Epson TM-M30 Interfaces

USB / Ethernet, serial / Ethernet or Wi-Fi choices, by exact printer package.

Epson TM-T88VI Interfaces

USB / Ethernet / Wi-Fi, serial / Ethernet / Wi-Fi or serial / Ethernet / USB choices, by package.

Optional Peripherals

MSR, scanner, PIN pad mount, Wi-Fi and webcam; terminal and mount compatibility required.

Processor

Determined by the installed terminal. Current family platforms include Intel Celeron J6412 / Core i3 and Qualcomm Snapdragon 450; earlier generations differ.

Memory and Storage

Windows terminal: installed RAM and SSD by exact option. Android terminal: installed memory / eMMC by option; do not interchange specifications.

Display and Touch

Screen size, native resolution and touch technology are specified by the installed terminal.

Operating System

Installed OS is configuration-specific; Windows and Android terminal packages are distinct.

Dimensions

Depend on terminal, printer and counter / floor mounting package.

Weight

Depends on the complete terminal, printer and mounting package.

Compatible Terminal Families

Current Ultra Kiosk base compatibility includes QK22, Nexus 21.5-inch, Pulse Ultra, Pulse Ultra WS and Breeze Ultra WS; exact terminal / mounting hardware must match.

Integrated MSR

Optional; reader and terminal compatibility required.

Barcode Capture

Optional 2D scanner; driver-license capability requires the appropriate scanner / software configuration.

Camera

Optional 2MP webcam in current base compatibility table.

Payment Mounting

Optional PIN pad mounting bracket; payment device and integration are separate.

Printer Protection

Recessed printer placement helps shield the cutter and print head from spills; no enclosure waterproof rating is implied.

Shop Edge Ultra Kiosk Models

EU1000AH0NNXXNW

Edge Ultra 22" Android Touch Computer Counter Kiosk. Snapdragon 450, 3GB RAM, 32GB eMMC. Android 9. Includes Touch Computer, Edge Ultra Counter Mount Kiosk Enclosure, and Epson TM-M30 Receipt Printer with USB and Ethernet.

Operating System:

Android 9

Mount:

Counter kiosk

Processor:

Qualcomm Snapdragon 450

$2178.52

EU1000AS0NNXXNW

Edge Ultra 22" Android Touch Computer Floor Kiosk. Snapdragon 450, 3GB RAM, 32GB eMMC. Android 9. Includes Touch Computer, Edge Ultra Floor Mount Kiosk Enclosure, and Epson TM-M30 Receipt Printer with USB and Ethernet.

Operating System:

Android 9

Mount:

Floor kiosk

Processor:

Qualcomm Snapdragon 450

$2821.48

EU38A0MS0NNXXNN

Edge Ultra 22" Touch Computer Floor Kiosk. Projected Capacitive Touch Intel Processor i3-1115G4 Tiger Lake 8GB DDR4 RAM 128GB M.2 NVME SSD Windows 10 IOT (64 Bit). Includes Touch Computer, Edge Ultra Floor Mount Kiosk Enclosure, and Epson TM-M30 Receipt Printer with USB and Ethernet.

Mount:

Floor kiosk

Processor:

Intel Core i3-1115G4

Operating System:

Windows 10 IoT

$3397.77

EU38A0MH0NNXXNN

Edge Ultra 22" Touch Computer Counter Kiosk. Projected Capacitive Touch Intel Processor i3-1115G4 Tiger Lake 8GB DDR4 RAM 128GB M.2 NVME SSD Windows 10 IOT (64 Bit) Edge Ultra Counter Mount Kiosk Enclosure, and Epson TM-M30 Receipt Printer with USB and Ethernet.

Mount:

Counter kiosk

Processor:

Intel Core i3-1115G4

Operating System:

Windows 10 IoT

$2754.81

EU38A01H0NNXXNN

Edge Ultra 22" Touch Computer Counter Kiosk. Intel Processor i3-1115G4 Tiger Lake 8GB DDR4 RAM 128GB M.2 NVME SSD Windows 11 Pro (64 Bit). Includes Touch Computer, Edge Ultra Counter Mount Kiosk Enclosure, and Epson TM-M30 Receipt Printer with USB and Ethernet.

Mount:

Counter kiosk

Processor:

Intel Core i3-1115G4

Operating System:

Windows 11 Pro

$2888.14

Shop Edge Ultra Kiosk Accessories

KIOSK-EDGEULTRA

Edge Ultra Floor Mount Kiosk - Base Only. Order Computer & Printer Separately.

$826.66

BRACKET-PPKIT-VER400-03

Mounting Bracket for Verifone P200/P400. Touch Dynamics Edge Ultra. Payment Device Sold Separately.

$114.08

BRACKET-PPKIT-LANE-05

Mounting Bracket for Lane 3000/5000. Compatible with Touch Dynamics Edge Ultra Kiosk. Payment Device Sold Separately.

$114.08

BRACKET-PPKIT-AUG-02

Mounting Bracket for Augusta. Compatible with Touch Dynamics Edge Ultra Kiosk. Payment Device Sold Separately.

$114.08

BRACKET-PPKIT-PAX-01

Mounting Bracket for Pax S300. Compatible with Touch Dynamics Edge Ultra Kiosk. Payment Device Sold Separately.

$114.08

CM5680WA-BR0-KIT01

Honeywell Compact 2D Barcode Scanner Add-On Module. For Use With Touch Dynamics Edge Ultra Kiosk.

$308.70

ED-WALLMOUNT

Edge Kiosk Wall Mount. Compatible with Touch Dynamics Edge Ultra Kiosk.

$140.74

C-16GBFS4-LV

16 GB RAM Upgrade Service - Manufacturer installs Prior to shipping (must be purchased with Device)

$200.00
