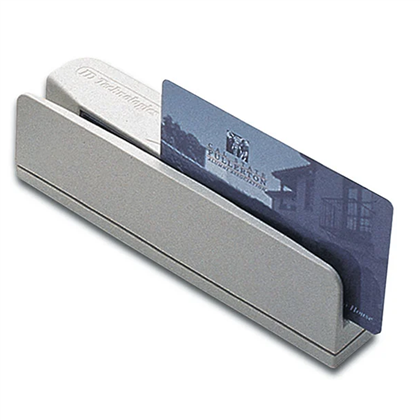

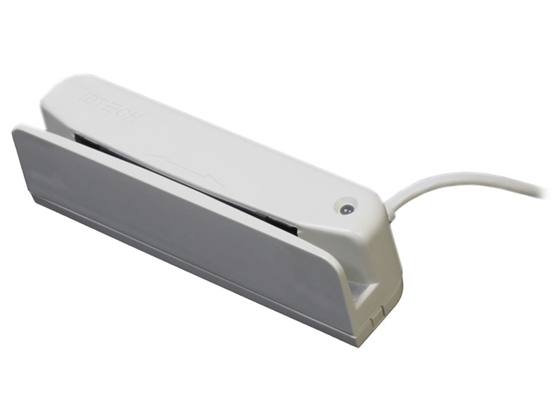

ID Tech EasyMag

Images may not reflect the actual product
Product Image
small product image0
small product image1

A full-length swipe path with programmable output

The ID TECH EasyMag reads up to three magnetic stripe tracks in either swipe direction. Its slot is more than five inches long, helping guide the card through the read path in POS, loyalty and security applications.

Programmable data editing can divide, rearrange and validate card fields for a compatible host application. USB, keyboard-wedge and serial interfaces are offered across the family; the selected part number determines the connection.

ID Tech EasyMag Magnetic Card Readers

Key Specifications

  • Product type / application: Programmable magnetic stripe reader
  • Track capacity / swipe speed: Up to three tracks; 3–65 in/sec
  • Supported cards: ISO 7811, AAMVA and CA DMV
  • Platform / compatibility: Keyboard input or compatible serial/HID software
  • Interfaces / connectivity: USB, PS/2 or RS232, by model
  • Power: 5 V DC; USB models draw host power
  • Durability / environment: Minimum 1 million passes; 0–55°C
  • Mounting / form factor: Freestanding or fixed flat-surface mounting
  • Dimensions: 130.6 × 32 × 41 mm
  • Weight: Approximately 8 oz with cable
  • Warranty: 1 year

In the Box

  • EasyMag reader
    • Selected EasyMag reader with attached interface cable

Other accessories are sold separately unless included with the selected option.

Data editing

MagSwipe configuration software supports parsing, control characters and prefix/suffix formatting.

Flexible placement

Rubber feet, hook-and-loop pads or bottom mounting holes support different workstation layouts.

Card formats
ISO 7811, AAMVA and CA DMV
Read direction and speed
Bidirectional; 3 to 65 inches per second
Read-head life
Minimum 1 million passes
Power
5 V DC +/-10%; 40 mA typical. RS232 models require a separate 5 V DC, 350 mA supply.
Cable
6-foot straight cable
Operating temperature
0 to 55 C
Storage temperature
-30 to 70 C
Humidity
Maximum 95% non-condensing
ESD immunity
4 kV direct contact; 8 kV air discharge
Color Options
Black, Beige
Interface
Keyboard wedge (PS/2), RS232, USB keyboard, USB CDC or USB HID, depending on configuration
Track Numbers
Tracks 1-2-3 or Tracks 1-2
Programmability
MagSwipe software supports parsing, rearranging and validating data, with prefix, suffix and control characters.
Weight
8 oz (including cable)
Dimensions
5.14 (l) x 1.25 (w) x 1.6 (h) - 130.6 x 32 x 41 mm
Mounting Options
Rubber feet, Velcro pads, two each 0.3 in deep, blind mounting holes for self-threading #6 screws
Warranty
1 Year
EasyMag manufacturer specification sheet
Download
EasyMag keyboard-wedge / USB user manual (legacy)
Download
EasyMag USB / RS232 Quick Start Guide
Download

Shop EasyMag Models

IDEA-334112B

EasyMag Swipe Reader, Color: Black with Tracks 1 & 2, USB Cable

Tracks:

1 / 2

Color:

Black

Interface:

USB keyboard emulation

$104.00

IDEA-334133B

EasyMag Swipe Reader, Color: Black with Tracks 1,2 & 3, USB Cable

Tracks:

1 / 2 / 3

Color:

Black

Interface:

USB keyboard emulation

$129.00

IDEA-334133

EasyMag Swipe Reader, Beige, Tracks 1, 2 and 3, USB Keyboard Emulation Cable.

Tracks:

1 / 2 / 3

Color:

Beige

Interface:

USB keyboard emulation

$138.04

IDEA-333133

EasyMag Swipe Reader, Color: Beige with Tracks 1,2 & 3, Keyboard Wedge Cable

Tracks:

1 / 2 / 3

Color:

Beige

Interface:

PS/2

$141.50

IDEA-333112

EasyMag Swipe Reader, Color: Beige with Tracks 1 & 2, Keyboard Wedge Cable

Tracks:

1 / 2

Color:

Beige

Interface:

PS/2

$110.85

IDEA-334112

EasyMag Swipe Reader, Color: Beige with Tracks 1 & 2, USB Cable

Tracks:

1 / 2

Color:

Beige

Interface:

USB keyboard emulation

$111.40
