UniTech EA660
Description
Specifications
Download

UniTech EA660

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

Rugged touch computing for retail and field teams

The Unitech EA660 combines a bright 6-inch display, integrated 1D/2D scanning and a removable smart battery for inventory, receiving and mobile service. Choose standard-range scanning or a long-range configuration for higher shelves and more distant labels.

Wi-Fi and cellular offers let you match connectivity to the job. All listed models ship with Android 13. Unitech states upgrade support through Android 17 for the family; check the selected model for its included accessories.

Key Specifications

  • Operating system / support horizon: Ships with Android 13; family upgrade support through Android 17
  • Processor: Snapdragon 4490, octa-core up to 2.4 GHz
  • Memory and storage: 6 GB RAM / 128 GB UFS; 8 GB RAM optional
  • Display and input: 6-inch FHD+ touch display; up to 630 nits
  • Scan engine: 1D/2D; standard-range SE4710 and long-range offers
  • Wireless connectivity: Wi-Fi 6E, Bluetooth 5.2 and NFC; cellular on selected models
  • Ruggedness and sealing: IP65/IP68; 1.5 m drops, 1.8 m with boot case
  • Battery / power: Removable 5000 mAh smart battery; warm swap
  • Form factor: Touch handheld
  • Dimensions: 162.9 × 77 × 14.9 mm
  • Weight: 270 g with battery, varies by configuration
  • Warranty: 1 year

In the Box

  • EA660 terminal in the selected configuration
  • 5000 mAh battery
  • USB Type-C charging cable
  • Power adapter, as specified by the listed offers
  • Hand strap with the standard-range offers

Boot cases, cradles, gun grips and spare batteries are sold separately.

Read the screen in changing conditions

The FHD+ display reaches up to 630 nits for sunlight visibility. Gorilla Glass Victus, glove mode and wet-finger support help teams use the touchscreen indoors and outdoors.

Choose scanning for the working distance

Standard-range SE4710 offers suit everyday item and carton scanning. Long-range configurations support more distant labels; the optional family engine reaches up to 12 m under suitable barcode and reading conditions.

Operating system / support
All listed configurations ship with Android 13. Unitech states family upgrade support through Android 17; newer EA660 generations are advertised with Android 15. Google ARCore supported.
GMS certified
GMS certified
Android Enterprise
AER certified
CPU
Qualcomm Snapdragon™ 4490 Processor, 64bits, Octa Cores up to 2.4GHz
Memory
6GB RAM / 8GB RAM (option) Flash 128GB UFS
Security
Supports Secure Boot and Verified Boot
Languages
English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Input methods
Input Chinese/ English Supports handwriting and soft keyboard

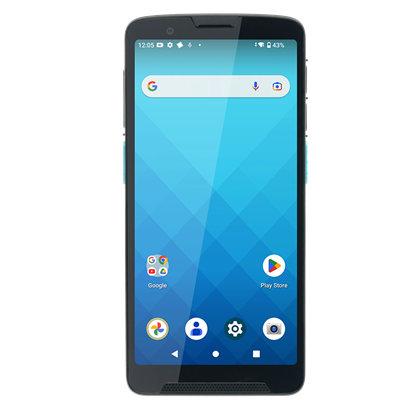

Screen Size
6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits
Touch Panel
Corning® Gorilla® Glass Victus®, 5-point capacitive multi-touch, stylus (5.5 mm), glove mode (3 mm), wet-finger compatibility
Buttons / Keypad
5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button
Camera
5 MP Front camera, 16 MP Rear with auto-focus function and Flash Light
Indicators
LED, Speaker, Vibrator

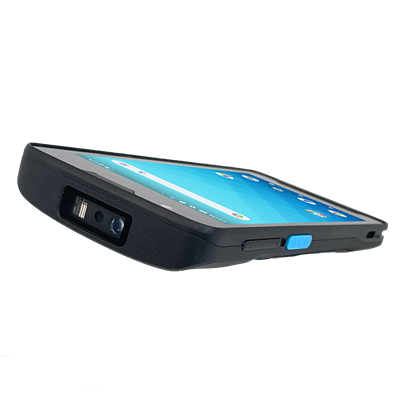

Scan engine configurations
Standard-range 1D/2D offers use Zebra SE4710; long-range 1D/2D offers are also available. Optional family engine reaches up to 12 m, depending on barcode size and conditions.
1D Barcodes
UPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5/ITF-14, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
2D Barcodes
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite
Postal
US Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal
OCR
OCR-A, OCR-B, E13B (MICR)
HF RFID
Support HF/NFC Frequency 13.56Mhz Support ISO14443-4 (Type A, Type B), ISO15693, Mifare, Felica(ISO/IEC18092) compliance

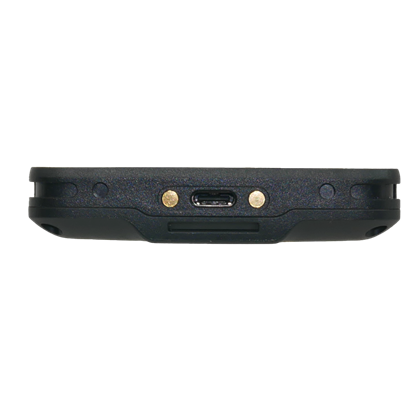

USB
USB 3.1 (type-C) support USB OTG, DRP, DRD, Type C Ethernet/USB-Host via cradle
OTG
Yes, over USB Type-C

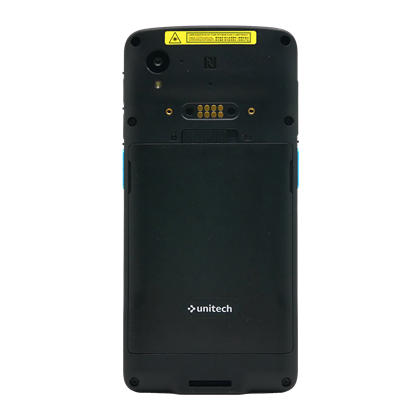

POGO PIN
PogoPin backside: Support Gun-grip, UHF reader PogoPin bottom: Charging via cradle
SIM Slot
Cellular configurations only. 1 eSIM+1 nano SIM
Expansion Slot
MicroSD, up to 1TB
Audio
One speaker ( up to 104 dB @ 4kHz at 10cm), One receiver, Dual noise-cancelling microphones, Smart PA
Battery
3.87V, 5000mAh UL certified smart battery Support Warm SWAP
Bluetooth
Bluetooth® 5.2, support BLE
WLAN
Wi-Fi 6E (2.4GHz & 5 GHz & 6 GHz) IEEE 802.11 a/b/g/n/ac/ax/d/e/h/i/k/r/v (MU-MIMO 2X2) Supports Dual Band Simultaneous (DBS) and Fast Roaming (802.11r with PMKID caching) Security WPA3, WPA2, WPA, WEP, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, Wi-Fi CERTIFIED™
WWAN
Cellular configurations only. 5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n28, n34, n38, n39, n40, n41, n48, n66, n77, n78, n79 4G LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B19, B20, B28, B66 LTE (TDD): B34, B38, B39, B40, B41, B48 3G WCDMA/UMTS/HSPA+: B1 (2100MHz), B2 (1900MHz), B4 (1700MHz), B5 (850MHz), B8 (900MHz) 2G GSM/GPRS/EDGE: B2 (PCS1900), B3 (DCS1800), B5 (GSM850), B8 (GSM900) Support Data, SMS and Voice capabilities *n48& B48 for CBRS
GPS
GPS, GLONASS, Gallileo, BeiDou, QZSS, supports L1+L5, a-GPS, XTRA
Sensors
Gyroscope,G-sensor, E-Compass,Light & Proximity Sensor
MDM Software
SOTI, VMware and MoboLink
Dimensions
162.9mm x 77mm x 14.9mm
Weight
270g ± 1.5% (with battery)* *The weight will vary depending on the configuration.
Drop Specification
1.5m drops to concrete per MIL-STD-810H 1.8m with boot case
Sealing
IP65 & IP68
Tumble test
0.5m tumbles for 300 cycles / 600 drops for EA660 1m tumbles for 500 cycles / 1000 drops for EA660 with boot case
Operating temperature
-20°C to 55°C
Storage temperature
-40°C to 70°C (without battery)
Charging temperature
0°C to 45°C
Relative Humidity
5% ~ 95% (Non-Condensing)
Optional accessories 1
■ USB 3.0 type-C cable for terminal & 1-slot cradle (PN#1550-905908G) ■ Quick charge Adaptor with US plug for terminal & 1-slot cradle (PN#1010-900073G) ■ Quick charge Adaptor with EU plug for terminal & 1-slot cradle (PN#1010-900074G) ■ hand strap (PN#5400-900052G) ■ 1 Fixed Arm, 2 Screws for Hand Strap (PN# 5400-900051G) ■ Boot case (PN#3210-900040G) ■ 9H glass screen protector ( PN#5400-900062G, 10pcs with Packing ) ■ Battery 3.87V 5000mAh (PN#1400-900074G)
Optional accessories 2
■ Stylus ( 5.5mm #386534G) ■ Coiled strap (PN# 387610G) ■ Gun grip (PN# 5500-900108G) ■ Wrist Lanyard (PN#385892G) ■ RP902 Bluetooth UHF RFID Pocket Reader (PN# RP902-33E8S0G (EU) / RP902-43A8S0G (US) / RP902-43F8S0G (JP) ■ Single Slot Charging Cradle *(PN#5000-900129G) ■ Single Slot USB Cradle *(PN#5000-900130G) ■ Single Slot Ethernet Cradle *(PN#5000-900131G)
Optional accessories 3
* Use USB Cable & Power Adapter from EA660 ■ 5-Slot Terminal Charging Cradle(PSU Only) (PN#5000-900132G) ■ 5-Slot Ethernet Cradle(PSU Only) (PN#5000-900134G) ■ 4-Terminal+ 4-battery Charging Cradle(PSU Only) (PN#5000-900133G) ■ 4-slot battery charger(PSU Only) (PN#5100-900037G) ■ Power supply for Multi-Slot Cradle (PN#1010-900068G) ■ 3-Pin Power Cord (UK) PN#1550-602689G ■ 3-Pin Power Cord(EU) PN#1550-602333G
Optional accessories 4
■ 3-Pin Power Cord(US) PN#1010-601551G ■ EA660 docking station (PSU Only) (PN#5000-900142G) ■ 5V/6A Power supply for Docking station (PN#1010-900043G) ■ Vehicle cradle (PN#5000-66C0001G)
Standard package
■ EA660 Terminal ■ Battery ■ USB 3.0 Cable (Type C) ■ Adaptor (US or EU plug) (*Not available in EU)
Basic package
■ EA660 Terminal ■ Battery ■ USB 3.0 Cable (Type C)
Regulatory Approvals
CE, UKCA, FCC, IC, NCC, VCCI, TELEC, JATE, CCC, SRRC, NAL, RoHS, BQB, N-Mark
Warranty
1 year
EA660 Spec Sheet
Download
EA660 User Manual
Download
EA660 Quick Start Guide
Download
EA660 Accessory Guide
Download

Shop EA660 Models

EA660-NANFTMDG

Unitech EA660 Rugged Mobile Computer, Android 13, SE4710 1D/2D Imager, 5G and Wi-Fi 6E, Bluetooth, HF/NFC, GPS, 5 MP Front and 16 MP Rear Cameras; Includes Battery, Hand Strap, USB Cable and US Power Adapter

Connectivity:

Cellular + Wi-Fi

Scan Range:

Standard Range

$1061.44

EA660-LA6FTMDG

Unitech EA660 Rugged Mobile Computer, Android 13, Long-Range 1D/2D Imager, Wi-Fi, Bluetooth, HF/NFC, GPS and Cameras, Green; Includes Battery, USB Cable and US Power Adapter

Scan Range:

Long Range

Connectivity:

Wi-Fi

$1282.96

EA660-LANFTMDG

Unitech EA660 Rugged Mobile Computer, Android 13, Long-Range 1D/2D Imager, Cellular and Wi-Fi, Bluetooth, HF/NFC, GPS and Cameras, Green; Includes Battery, USB Cable and US Power Adapter

Connectivity:

Cellular + Wi-Fi

Scan Range:

Long Range

$1341.96

EA660-NA6FTMDG

Unitech EA660 Rugged Mobile Computer, Android 13, SE4710 1D/2D Imager, Wi-Fi 6E, Bluetooth, HF/NFC, GPS, 5 MP Front and 16 MP Rear Cameras; Includes Battery, Hand Strap, USB Cable and US Power Adapter

Scan Range:

Standard Range

Connectivity:

Wi-Fi

$946.63

Shop EA660 Accessories

EA660-NA6FRMDG-Z3

Unitech EA660 3 Year Comprehensive Warranty Coverage. 5-Day Repair. Ground Shipping.

$523.00

3210-900040G

Unitech EA660 protective boot case; increases the specified drop rating from 1.5 m to 1.8 m.

$21.26

5000-900130G

Unitech EA660 single-device USB charging and communication cradle, without a spare-battery slot. Requires USB-C cable 1550-905908G and a compatible EA660 USB power adapter, such as 1010-900073G; sold separately.

$114.70

1400-900074G

Unitech EA660 spare smart battery, 3.87 V, 5000 mAh.

$85.43

401702G

Unitech EA660 screen protector.

$14.48

5000-900133G

Unitech EA660 cradle for charging four devices and four spare batteries, with power supply. US AC power cord 1010-601551G is sold separately. Remove the cradle insert for devices fitted with a boot or gun grip. Computers and batteries sold separately.

$492.05

1010-601551G

Unitech US AC power cord for compatible cradle and battery-charger power adapters. Power adapter sold separately.

$13.91

5000-900144G

Unitech EA660 single-device charge-only cradle. Requires USB-C cable 1550-905908G and a compatible EA660 USB power adapter, such as 1010-900073G; sold separately.

$49.25

5500-900113G

Unitech EA660 gun grip; terminal sold separately.

$82.61

1550-905908G

Unitech USB 3.0 Type-C cable; compatible with EA660, PA768, PA760 and HT730.

$17.43

383642G

Unitech coiled stylus tether; compatible with EA660 and PA768, and supported HT680 / HT682 / PA550 / PA690 / PA692 / PA968 devices.

$12.00

386534G

Unitech 5.5 mm stylus; compatible with EA520, EA660 and PA768.

$16.11

5400-900052G

Unitech EA660 / PA768 hand strap with buckle and fixed arm; includes two screws. Individual pack.

$29.60

1010-900068G

Power Adapter, Input Voltage: 100VAC~240VAC, Output Voltage: 12VDC 5A) (3-pin power cord 1010-601551G is sold separately)

$38.25

5000-900134G

Unitech EA660 five-device Ethernet charging cradle with power supply. US power cord 1010-601551G is sold separately. Remove the cradle insert for devices fitted with a boot or gun grip.

$860.04

5000-900132G

Unitech EA660 five-device charge-only cradle with power supply. US power cord 1010-601551G is sold separately. Remove the cradle insert for devices fitted with a boot or gun grip.

$437.24

5000-900131G

Unitech EA660 single-device Ethernet charging cradle, without a spare-battery slot. Uses the EA660 USB-C cable and power adapter; cradle does not include them. Remove the cradle insert for devices fitted with a boot or gun grip.

$154.52

5100-900037G

Unitech EA660 four-slot spare-battery charger with power supply. US power cord 1010-601551G is sold separately. Batteries sold separately.

$376.11

1010-900073G

Unitech US USB power adapter for compatible EA660, PA768, HT730 and WD200 devices; USB Type-C cable sold separately.

$21.73

5400-900072G

Unitech EA660 glass screen protectors, 10-pack.

$109.53
