UniTech EA520
Compact data capture for retail and field service

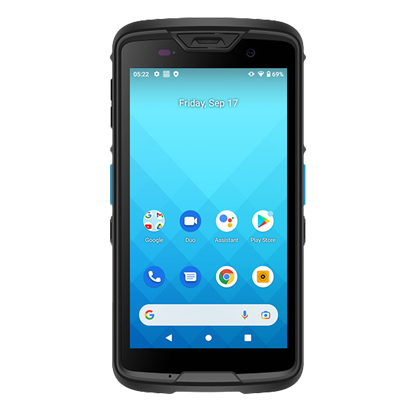

The Unitech EA520 combines barcode scanning, NFC and a 13 MP rear camera in a lightweight 5-inch Android mobile computer. Its removable battery and rugged housing support inventory checks, customer assistance and field data collection.
Key Specifications
- Operating system / support horizon: Android 11 with GMS on listed models; support horizon not specified
- Processor: Octa-core, 2 GHz
- Memory and storage: 4 GB RAM / 64 GB flash
- Display and input: 5-inch HD touchscreen; glove and wet operation
- Scan engine: SE4710 1D/2D imager on listed configurations
- Wireless connectivity: Dual-band Wi-Fi, Bluetooth 5; 4G on cellular models
- Ruggedness and sealing: IP67; 1.5 m drops, 1.8 m with optional boot
- Battery / power: Removable 3.85 V, 4250 mAh battery; USB-C charging

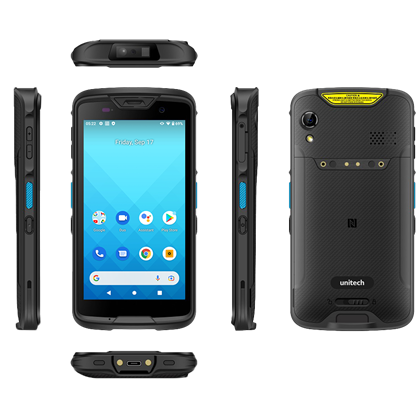

- Form factor: Handheld touch computer
- Dimensions: 151.1 × 76.8 × 13.7 mm
- Weight: 246 g with battery
- Warranty: 15 months
In the Box
- Listed Android 11 configurations
- EA520 mobile computer
- Battery
- USB charger
Cradles, protective accessories and RFID attachments are sold separately unless the selected option explicitly includes them.

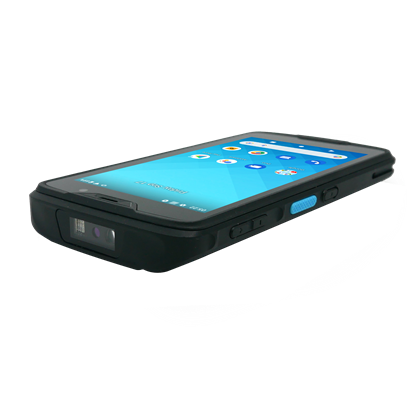

Powerful Barcode Reading Performance

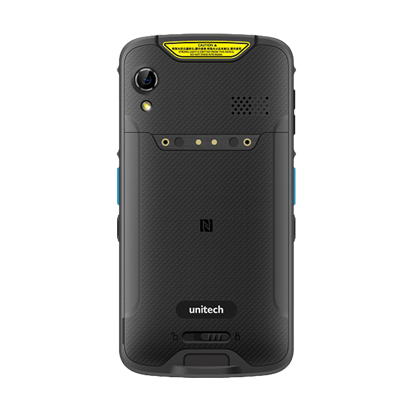

Capture 1D and 2D codes from paper and mobile screens. Integrated NFC and a rear camera extend data capture beyond barcodes.
Durable at Its Best
Gorilla Glass 3 and IP67 sealing protect the device during daily work. The optional boot increases the specified drop resistance from 1.5 m to 1.8 m.
Shop EA520 Models
EA520-NAGFTMDG
EA520 Mobile computer, SE4710 2D Scanner, Android 11, GMS, BT 5.0, WIFI, 4G, 13MP Camera, Battery and USB Charger
Connectivity:
WiFi & Cellular
EA520-NA6FTMDG
EA520 Mobile Computer, SE4710 2D Scanner, Android 11, GMS, BT 5.0, WIFI Only, 13MP Camera, Battery and USB Charger
Connectivity:
WiFi
Shop EA520 Accessories
EA520-NA6FUMDG-Z2
2 Year Comprehensive Coverage for Unitech EA520. Includes Accidental Damage and Issues Caused By Wear & Tear. 5 Business Day Repair Depot Turnaround.
EA520-NA6FUMDG-AZ1
Comprehensive Coverage for Unitech EA520, 1 Year, 48-Hour Repair, 2-Day Shipping (not valid in Canada), Use this Part Numbers also as 1-Year Renewal
EA520-NA6FUMDG-Z3
Comprehensive Coverage for Unitech EA520, 3 Years, 5-Day Repair, Ground Shipping
401621G
EA520 Glass Screen Protector
5400-900046G
EA520 Hand Strap
5000-900097G
EA520 vehicle cradle
5100-900033G
EA520 4-slot battery charger
5000-900092G
Unitech EA520 single-slot charging cradle only; USB cable and power adapter required.
5500-900097G
EA520 Standard Gun Grip
386534G
Unitech 5.5 mm stylus; compatible with EA520, EA660 and PA768.
EA520-NA6FUMDG-AZ3
Comprehensive Coverage for Unitech EA520, 3 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)
EA520-NA6FUMDG-Z1
Comprehensive Coverage for Unitech EA520, 1 Year, 5-Day Repair, Ground Shipping, Use this Part Numbers also as 1-Year Renewal
EA520-NA6FUMDG-AZ2
Comprehensive Coverage for Unitech EA520, 2 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)
384896G
8mm Stylus for EA520
1010-900058G
Unitech 5V/2A US USB power adapter for compatible EA520, PA760, MS652 Plus, HT330, RP902, MS838, MS851B and MS852 series devices.
1400-900063G
EA520 Battery, 3.85V, 4250mAh
1550-905919G
Unitech USB 2.0 Type-C cable, compatible with HT330, MS633, MS633 LR and RP902.
383642G
Unitech coiled stylus tether; compatible with EA660 and PA768, and supported HT680 / HT682 / PA550 / PA690 / PA692 / PA968 devices.
1010-900068G
Power Adapter, Input Voltage: 100VAC~240VAC, Output Voltage: 12VDC 5A) (3-pin power cord 1010-601551G is sold separately)
1010-601551G
Unitech US AC power cord for compatible cradle and battery-charger power adapters. Power adapter sold separately.
