Elo TouchSystems E-Series Android
Description
Specifications
Download

Elo TouchSystems E-Series Android

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

E-Series Android (iOS)

Elo E-Series Android 14-inch all-in-one POS computers, Android 14, 8GB RAM, 64GB storage; standard or customer-display stand configurations.

A compact Android point-of-sale computer with flexible customer-facing display options.

Elo E-Series with Android combines a 14-inch Full HD TouchPro PCAP touchscreen, Qualcomm QCS6490 processing, Android 14, 8GB RAM and 64GB storage in an all-in-one POS computer. Integrated USB, Ethernet and cash-drawer connections support retail, hospitality and self-service installations.

Choose a standard stand, an integrated 10.1-inch customer-facing touchscreen, or a customer display with NFC. Two Elo Edge Connect ports support compatible peripherals, while EloView enables remote content deployment and device management.

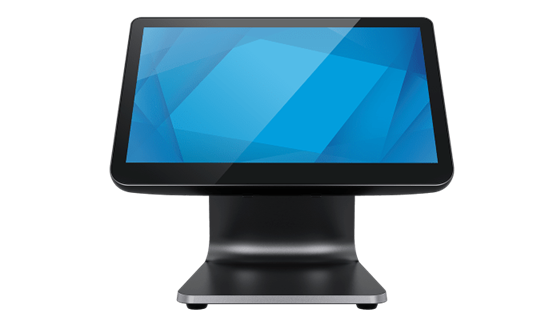

Elo E-Series Android 14-inch POS computer with standard stand

Key Specifications

  • Processor: Qualcomm QCS6490 octa-core
  • Memory and storage: 8GB RAM; 64GB storage
  • Display and touch: 14-inch Full HD; 10-touch PCAP
  • Operating system: Android 14 with GMS
  • Connectivity: Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
  • Ports: Four USB-A, USB-C, 12V/24V cash drawer
  • Mount / stand: 75mm VESA; stand included
  • Peripheral options: Two Edge Connect ports; optional customer display and NFC
  • Serviceability: Optional EloCare; OS 360 updates and upgrades by subscription
  • Dimensions: 13.44 x 12.16 x 7.57–8.24 in., by stand configuration
  • Weight: 6.4–7.9 lb, by configuration
  • Warranty: 2 years

In the Box

  • E-Series Android
    • Selected 14-inch computer with stand
    • Power brick and North American / European power cables
    • Quick Install Guide and two cable ties

E579570 includes the customer-display stand. E338246 includes the customer-display stand with NFC. Other peripherals are sold separately.

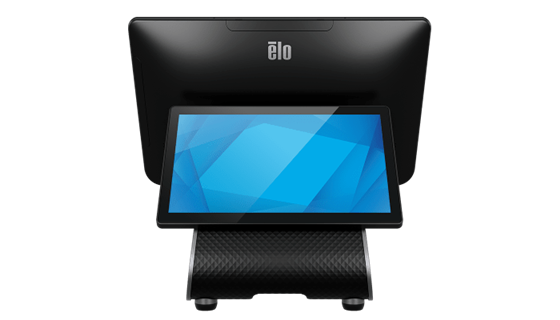

Customer-facing interaction

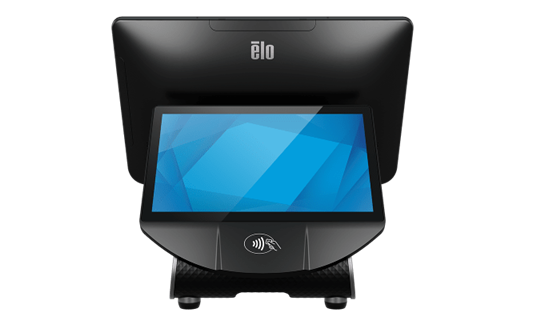

The optional 10.1-inch TouchPro PCAP display provides a second touchscreen for customer interaction. The NFC configuration adds integrated contactless capability for supported applications.

Connect your checkout

Dedicated cash-drawer connectivity, four USB 3.0 ports and two Edge Connect locations bring essential peripherals together. Wi-Fi 6, Bluetooth 5.2 and Gigabit Ethernet support wired and wireless deployments.

Display
14-inch / 355.6 mm active-matrix TFT LCD with LED backlight
Operating System
Android 14 with Google Mobile Services; EloView support. Planned Android 16 and 18 upgrades through OS 360 subscription.
Processor
Qualcomm Snapdragon QCS6490 octa-core
Memory
8GB RAM
Storage
64GB internal storage
I/O Ports
Four USB-A 3.0; RJ45 Gigabit Ethernet (10/100/1000); RJ12 12V/24V cash-drawer port; 19V DC input; USB-C customer-display output with DisplayPort Alt Mode, USB 3.0 and power delivery up to 15W (5V/3A, 9V/1.5A, 15V/1A); two micro-USB Elo Edge Connect ports (1.2A on one port and 500mA on the other).
Wireless
Wi-Fi 802.11 a/b/g/n/ac/ax (Wi-Fi 6); Bluetooth 5.2
NFC
E338246 configuration only: 13.56 MHz; ISO 14443 Type A/B, ISO 15693, MIFARE/DesFire, FeliCa and NFC Forum tags. E579366 and E579570 do not include NFC.
Webcam
8-megapixel autofocus; 3264 x 2448 at 30 fps
Optional Customer Display
Included with E579570 and E338246: 10.1-inch TouchPro PCAP touchscreen, 1024 x 600 at 60 Hz, 10 simultaneous touches; active area 222.72 x 125.28 mm (8.77 x 4.93 inches); viewing angle ±80° horizontal/vertical; 16.2 million colors; 250 nits LCD / 213 nits PCAP; USB-C DisplayPort + USB connection, 5V/3A. E338246 also includes NFC.
Speakers
Two 2W speakers
Audio
Two built-in digital microphones
Active Area
309.31 x 173.99 mm (12.18 x 6.85 inches)
Resolution
1920 x 1080 at 60 Hz
Touch Technology
TouchPro PCAP; up to 10 simultaneous touches
Surface Treatment
Clear glass
Aspect Ratio
16:9
Display Colors
16.2 million
Brightness
250 nits (LCD panel); 213 nits (PCAP touchscreen)
Response Time
25 ms
Viewing Angle
±80° horizontal and vertical (160° total)
Contrast Ratio
700:1
Power Input
100–240V AC, 50/60 Hz
Power Consumption
With customer-facing display: on 14W; off less than 0.5W; sleep 5W
Dimensions
E579366 / E579570: 13.44 x 12.16 x 7.57 inches (341.4 x 308.9 x 192.4 mm). E338246: 13.44 x 12.16 x 8.24 inches (341.4 x 308.9 x 209.2 mm). Manufacturer lists W x D x H.
Shipping Dimensions
18.8 x 16.5 x 13.2 inches (478 x 418 x 335 mm)
Weight
E579366: 6.4 lb / 2.9 kg; E579570 and E338246: 7.9 lb / 3.6 kg
Shipping Weight
E579366: 14.1 lb / 6.4 kg; E579570 and E338246: 15.4 lb / 7.0 kg
Temperature
Operating: 0–40°C; storage: -20–50°C
Humidity
Operating: 20–80%; storage: 10–90%
Mounting
75mm VESA; stand included
Warranty
2-year manufacturer warranty; optional EloCare service plans
Security Updates
Bi-monthly updates through OS 360 subscription; planned Android upgrades require subscription
Regulatory Approvals
UL/cUL and FCC (US); IC (Canada); CE (Europe); CB (international); VCCI/MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KC (Korea); CCC/SRRC (China); UKCA (UK)
Real-Time Clock
Lithium coin cell battery
Sealability
Touchscreen optically bonded to LCD
Country Availability
United States, Canada, EMEA, United Kingdom, Australia, Japan, South Korea, Mexico, Brazil, Taiwan, Argentina and India
In the Box
Selected E-Series Android computer with stand; North American and European power cables; power brick; Quick Install Guide; two cable ties. E579570 includes the customer-display stand; E338246 includes the customer-display stand with NFC. Other peripherals sold separately.
Elo E-Series Android Specification Sheet
Download
Elo E-Series Android Quick Install Guide
Download
Elo E-Series Android Dimensional Drawing
Download

Shop E-Series Android Models

E579366

14-inch Android 14 POS computer, 8GB RAM, 64GB storage, standard stand

NFC:

No

Customer Display:

None

$1360.92

E579570

14-inch Android 14 POS computer, 8GB RAM, 64GB storage, customer-display stand

Customer Display:

10.1-inch Touchscreen

NFC:

No

$1689.12

E338246

14-inch Android 14 POS computer, 8GB RAM, 64GB storage, customer-display stand with NFC

Customer Display:

10.1-inch Touchscreen

NFC:

Yes

$1742.88

Shop E-Series Android Accessories

E001002

Elo Edge Connect Magnetic Stripe Reader (MSR) - NCNR

$151.14

E393160

Elo Edge Connect 2D Barcode Scanner, SE2707, Black

$275.00

E384627

Edge Connect 2D Barcode Scanner, SE4720, Black

$382.53

E245047

Edge Connect 2D Barcode Scanner, SE4107, Black

$279.54

E644767

Edge Connect Status Light, Micro USB, RGB LED lights offer various color illumination

$73.57

E201494

Edge Connect 2D Webcam

$220.69

E673037

Edge Connect RFID Reader

$361.13

E894719

Edge Connect Speaker Bar, Black

$78.92

E514304

I-Series for Android (2/3/4) Replacement Power Supply Kit

$111.02

E338432

Elo 10.1-inch Wedge customer-facing touchscreen display without NFC

$324.22

E338628

Elo 10.1-inch Wedge customer-facing touchscreen display with NFC

$378.95
