Elo TouchSystems E-Series 3

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

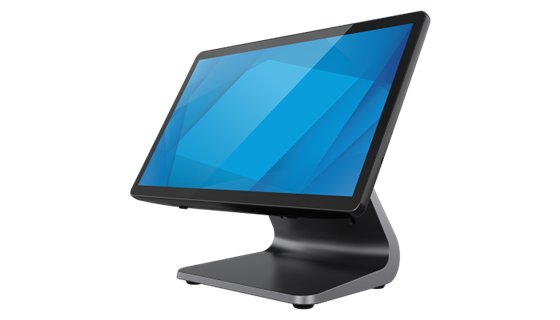

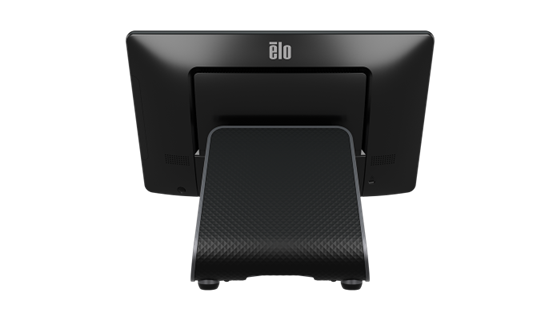

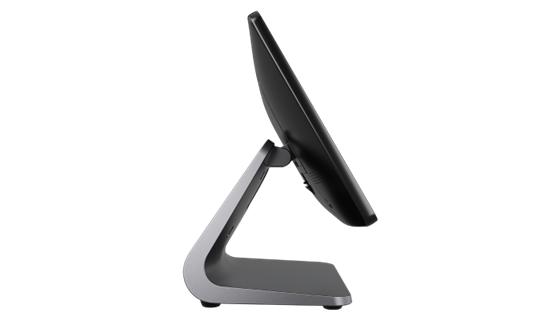

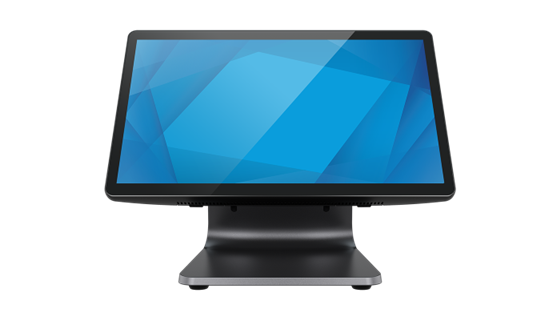

A compact 15.6-inch touchscreen POS computer for counter, kiosk, and customer-facing deployments.

Elo E-Series 3 combines a Full HD TouchPro PCAP display with Intel N97 processing, DDR5 memory, and NVMe storage in a commercial all-in-one POS computer.

Choose a Windows 11 or no-OS configuration, with memory, storage, Wi-Fi, and rear-display kit choices shown in the model selector. Elo Edge Connect support provides a clean path for compatible counter peripherals.

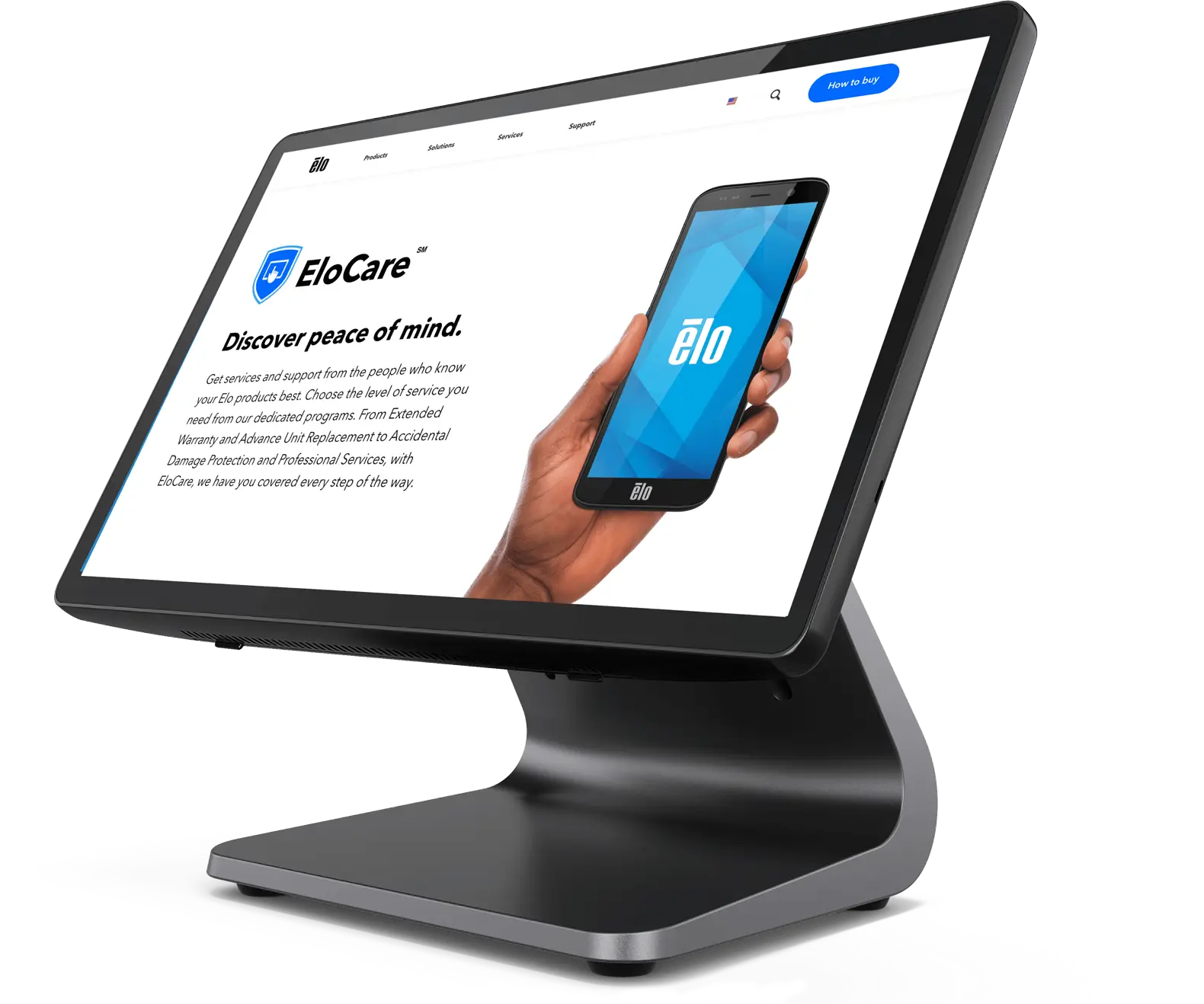

Elo E-Series 3 15.6-inch touchscreen POS computer

Key Specifications

  • Processor: Intel N97
  • Memory and storage: 8GB/128GB or 16GB/256GB
  • Display and touch: 15.6-inch FHD, 10-touch PCAP
  • Operating system: Windows 11 or no OS
  • Connectivity: USB, serial, cash-drawer, Gigabit Ethernet, USB-C
  • Peripheral options: Two Elo Edge Connect locations
  • Serviceability: Serviceable internal components
  • Mounting: Stand configurations and 75mm VESA support
  • Warranty: 1 year

In the Box

  • E-Series 3 touchscreen computer
  • 90W power adapter and regional power cords
  • RJ-45 to DB-9 serial cable
  • Quick Installation Guide and cable tie

Stand, operating system, wireless capability, memory/storage, and rear-display components vary by selected option. Applicable accessories are sold separately unless the option states otherwise.

Built for the Counter

Full HD touch in a compact footprint

The 15.6-inch 16:9 display gives modern POS software a clear workspace while the 10-touch TouchPro PCAP screen supports fast staff interaction.

Configure for Your Deployment

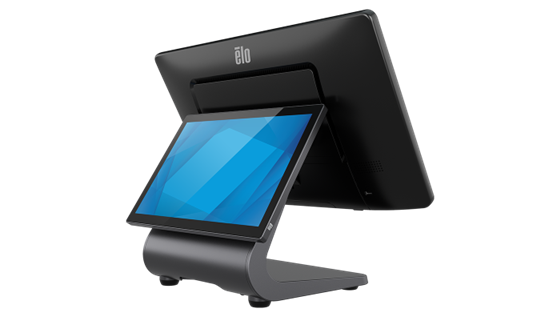

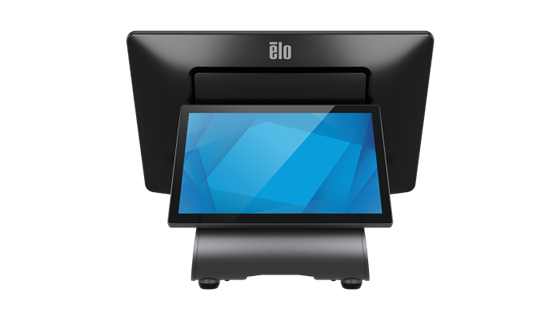

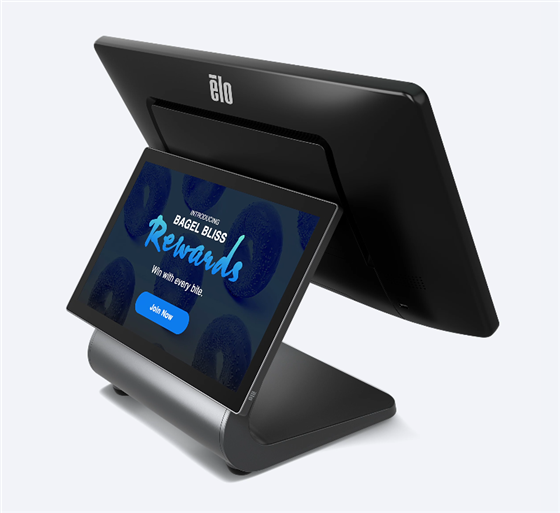

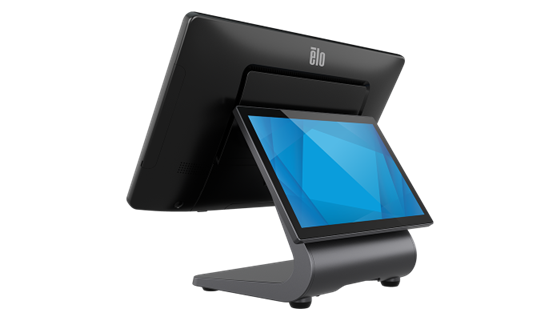

Windows, no-OS, and rear-display choices

Operating system, memory/storage, Wi-Fi and rear-facing-display choices support different deployment requirements.

Connect POS Hardware

Ports for everyday checkout

USB, serial, cash-drawer, Ethernet, and full-function USB-C connections support common POS hardware without an external desktop computer.

Add Only What You Need

Elo Edge Connect expansion

Two Edge Connect locations support compatible Elo scanners, readers, cameras, and other modular accessories for a cleaner counter build.

Enclosure Color
Black
Active Display Area (W x H)
13.55" x 7.62" / 344.2mm x 193.5mm
Display
15.6" / 396.24 mm diagonal, active matrix TFT LED LCD
Touch Technologies
TouchPro® PCAP with up to 10 touches
Aspect Ratio
1920 x 1080 @ 60Hz
Number of Colors
262k
Brightness (typical)
LCD panel: 200 nits, TouchPro PCAP: 170 nits
Viewing Angle (typical)
Horizontal: 89°/89° or 178° total / Vertical: 89°/89° or 178° total
Contrast Ratio (typical)
500:1
Response Time Total (typical)
25 msec
Processor
Intel Processor N97 (6M Smart Cache, up to 3.60 GHz)
Memory (RAM)
8GB 4800MHz DDR5 SO-DIMM on 1 slots (Expandable to 16GB maximum1 on 1 slots)
Storage
128GB M.2 PCIe (NVMe) SSD³, 80 TBW
256GB M.2 PCIe (NVMe) SSD³, 160 TBW
³GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Operating System Options
No Operating System
Microsoft Windows 11 IoT Enterprise LTSC 64-bit 2024
Languages
Windows 11 - 36 Language groups
TPM
Intel® Platform Trust Technology (Intel® PTT)
Video
Intel UHD Graphics
BIOS
AMI
Wireless Connectivity
802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz; Bluetooth 5.3
I/O Ports
1 x RJ45 LAN (Gigabit) Port
2 x USB 3.0 Ports
2 x USB 2.0 Ports
2 x Micro USB 2.0 Ports for Elo Edge Connect peripherals(Right/Bottom)
2 x RJ45 Serial Port
1 x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1 x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1 x Audio Port (3.5 mm headset jack)
Speakers
Two 2W internal speakers
Control Buttons
Power Button
Power
External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W
Max Power Consumption
On: <30W; Sleep: < 2W; Off: < 0.5W
Dimensions
14.56" x 7.19" x 11.75" / 370.4 mm x 182.6 mm x 298.4 mm
Shipping Dimensions
18.3" x 10.3" x 14.8" / 465 mm x 262 mm x 376 mm
Weight
Unpackaged: 7 lbs / 3.2 kg / Packaged: 11 lbs / 5.0 kg
Temperature
Operating: 0°C to 35°C (32°F to 95°F); Storage: -20°C to 60°C (-4°F to 140°F)
The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition. For non-OS SKUs, recommend installing the Elo optimize TDP tool for better performance.
Humidity (non-condensing)
Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature)
Real-Time Clock
Replaceable CR2032 lithium metal battery for clock
MTBF
50,000 hours demonstrated
Sealability
Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Other Features
Serviceable internal components; Kensington lock
Mounting Options
75mm VESA mount
Warranty
1-year warranty
Extended Warranty
4 yr - Elo P/N: E819598; 5 yr - Elo P/N: E819795; 3 yr + AUR - Elo P/N: E820186; 4 yr + AUR - Elo P/N: E820388; 5 yr + AUR - Elo
What’s in the box
E-Series 3, North America Power Cord, EU Power Cord, Power Adapter – 90W, Series Port Cable RJ-45 to DB-9, Quick Installation Guide (QIG), Cable tie
E-Series 3 Spec Sheet
Download
E-Series 3 User Manual
Download
E-Series 3 Quick Installation Guide
Download

Shop E-Series 3 Models

E849902

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

WiFi:

WiFi Included

Operating System:

Windows 11

$1768.80

E849902-CFD-KIT

Elo E-Series 3 rear-display bundle with E849902 15.6-inch Windows 11 computer, E967935 1004LS display, E997555 rear-display mount, E193547 100 mm VESA adapter and E185034 USB-C cable.

Memory & Storage:

8GB RAM, 128GB SSD

WiFi:

WiFi Included

Operating System:

Windows 11

$2291.96

E849711

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, NO WIFI, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

WiFi:

No WiFi

Operating System:

Windows 11

$1667.60

E153259

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 16GB RAM, 256GB SSD, Black, With Stand

Memory & Storage:

16GB RAM, 256GB SSD

WiFi:

WiFi Included

Operating System:

Windows 11

$2099.90

E850312

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, NO WIFI, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

Operating System:

No OS

WiFi:

No WiFi

$1497.10

E850098

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

Operating System:

No OS

WiFi:

WiFi Included

$1590.60

E153661

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 16GB RAM, 256GB SSD, Black, With Stand

Memory & Storage:

16GB RAM, 256GB SSD

Operating System:

No OS

WiFi:

WiFi Included

$1914.00

E967935-CFD

Elo 1004LS rear-display kit with E967935 10.1-inch display, E997555 rear-display mount, E193547 100 mm VESA adapter and E185034 USB-C cable; computer not included.

Operating System:

Computer not included

Memory & Storage:

Computer not included

WiFi:

Computer not included

$523.16

Shop E-Series 3 Accessories

E375343

EMV Cradle for MagTek eDynamo

$92.29

E586981

EMV Cradle for Ingenico RP457c (Audio Jack, BT, USB)

$90.79

E710930

EMV Cradle for Ingenico RP457c (BT, USB)

$92.29

E134286

Edge Connect Fingerprint Scanner

$263.49

E384627

Edge Connect 2D Barcode Scanner, SE4720, Black

$382.53

E644767

Edge Connect Status Light, Micro USB, RGB LED lights offer various color illumination

$73.57

E673037

Edge Connect RFID Reader

$361.13

E245047

Edge Connect 2D Barcode Scanner, SE4107, Black

$279.54

E134699

Edge Connect 3D Camera

$477.49

E201494

Edge Connect 2D Webcam

$220.69

E001002

Elo Edge Connect Magnetic Stripe Reader (MSR) - NCNR

$151.14

E997555

Elo Kit, E-Series 3, Rear Facing Display Mount

$16.00

E193547

Elo, Kit, 100mm VESA Adapter, E-Series 3

$5.06

E185034

Cable Kit, E-Series, Type C to C, CFD

$17.00
