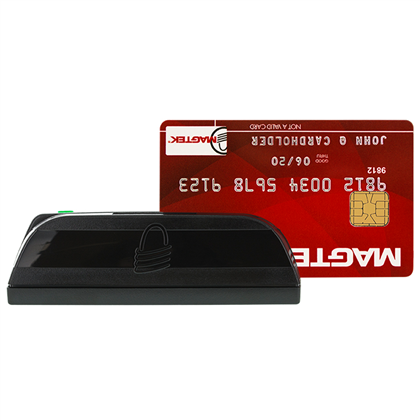

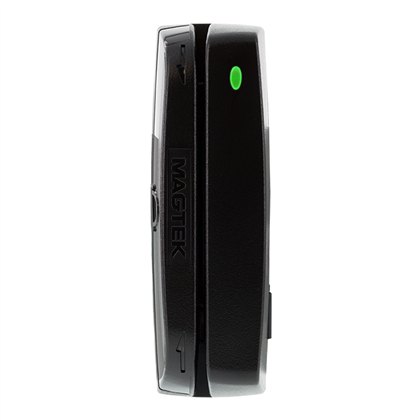

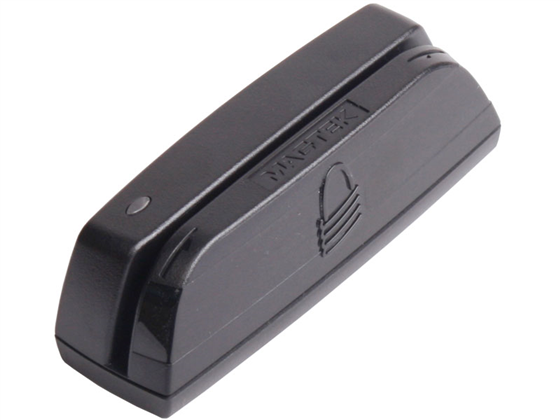

MagTek Dynamag
Compact USB swipe capture with configurable data security
The MagTek Dynamag reads magnetic stripe cards in either direction through a compact countertop swipe path. USB supplies both power and data, with keyboard-emulation and HID configurations for different host applications.
MagneSafe security and remote key management support compatible payment integrations. The unencrypted 21073145 configuration differs from encrypted or processor-configured versions; processing software and key provisioning must match the selected reader.
Key Specifications
- Product type / application: USB magnetic stripe reader
- Track capacity: Tracks 1, 2 and 3; bidirectional
- Supported cards: ISO 7810/7811 and AAMVA
- Platform / compatibility: Keyboard input or compatible HID software
- Interfaces / connectivity: USB keyboard emulation or USB HID
- Power: 5 V USB bus; 100 mA maximum
- Durability / environment: 1 million swipes; 0–70°C operation
- Mounting / form factor: Countertop or fixed mounting
- Dimensions: 99.5 × 31.6 × 30.4 mm
- Weight: 50 g, without cable
- Warranty: 1 year
In the Box
- Dynamag reader
- Selected USB swipe reader with 6-foot cable
Encryption keys and processor configuration depend on the selected part number.
MagneSafe security
Supported configurations use Triple DES encryption and DUKPT key management.
Remote configuration
Compatible services can update security settings and keys without returning the reader.
Shop Dynamag Models
21073145
MagTek Secure Card Reader, Black with 3-Track Reader, UnEncrypted Mode, USB Keyboard Emulation Interface
Security:
Unencrypted
Interface:
USB keyboard emulation
21073062
Magtek Secure Card Reader, Black with 3-Track Reader, Encrypted Mode, USB Keyboard Emulation Interface
Security:
Encrypted
Interface:
USB keyboard emulation
21073075
Magtek Secure Card Reader, Black with 3-Track Reader, Encrypted Mode, USB HID Interface
Security:
Encrypted
Interface:
USB HID
