Socket DuraSled Data Readers

Images may not reflect the actual product

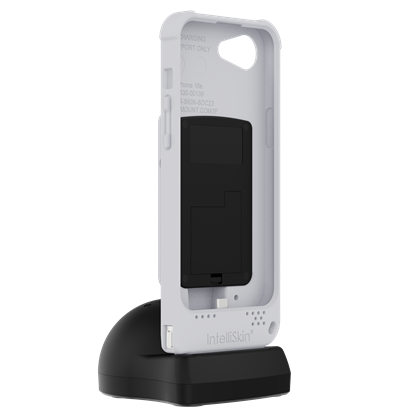

Product Image
small product image0

DuraSled Data Readers (iOS)

DuraSled DS840/DS860 barcode reader sleds for exact compatible iPhones; phones are not included.

Barcode capture and a protective case for compatible iPhones

DuraSled DS840 and DS860 combine a Bluetooth barcode reader with a phone-specific protective sled for mobile delivery, asset tracking, ticketing and other application-driven workflows. Both read printed and on-screen 1D/2D codes; DS860 adds higher-performance reading and supported OCR workflows.

Select the exact phone fit, reader model, color and charging bundle. These are data-reader sleds, not handheld computers: no iPhone is included. CaptureSDK integration and compatible application support are required for native scanning workflows.

Cloud DuraSled with phone-specific case and charging dock; phone not included

Key Specifications

  • Scanner configuration: Cordless barcode reader in a selected iPhone sled case
  • Barcode capability: Printed/on-screen 1D/2D; DS860 also supports OCR types
  • Reading range: Barcode-dependent; DS840 up to 19.5 in, DS860 up to 36.1 in
  • Interfaces / connectivity: Bluetooth Classic; up to 33 ft (10 m), environment-dependent
  • Durability: Rubber casing; 2,500 tumbles at 3.3 ft (1 m) to a metal plate
  • Environmental sealing: IP rating not published for the assembled sled and phone
  • Dimensions and weight: Phone-case and bundle dependent; phone excluded
  • Warranty: 1 year

In the Box

  • Single-sled options
    • Selected DS840 or DS860 with the stated phone-fit case
    • Charging dock only when the option states it
    • Wrist strap and Get Started Guide
  • Six-sled domestic bundles
    • Six selected DuraSled readers and phone-fit cases
    • One 6-bay charging dock

No phones are included. Scanner-only options exclude a charger; charging accessories are sold separately unless stated by the selected package.

Protect the mobile workflow

The rubber case adds drop protection while keeping the reader and compatible iPhone together. The modular approach lets compatible cases change without replacing the core reader and SDK integration.

Printed and on-screen capture

Omnidirectional barcode reading supports labels and phone-displayed codes. Choose DS860 when its extended decode performance and supported OCR types are needed; validate the credential type with your application provider.

Models
DS840 performance 1D/2D reader and DS860 professional 1D/2D reader with supported OCR types.
Phone fit
Current manufacturer variants specify iPhone17e/16e or iPhone16/15. Select the exact option; no Pro, Plus or Max fit is implied.
Phones included
None. These are data-reader sleds and cases, not iDS handheld computer bundles.
Color
Black or Cloud, by exact option.
Bundle choices
One sled without charger; one sled with charging dock; or six sleds with one domestic6-bay charging dock, as stated by the selected option.
Included items
Selected reader(s), phone-fit case(s), wrist strap and Get Started Guide; charging dock only when specified. Scanner-only options exclude a charger. Charging cable/adapter sold separately unless explicitly stated.
Warranty
1 year
Sealing
No IP rating published for the assembled sled and phone in current DS840/DS860 product specifications.
Dimensions and device weight
Current manufacturer table labels each phone-fit sled as147.6x71.6x7.8mm and113.5g; these thin dimensions do not establish the complete assembled reader/case envelope. Confirm fit via exact phone model, not these dimensions. Distributor option weights are shipping data, not device mass.
Ambient Light
From 0 to 100 000 lux. From pitch black to direct sunlight.
Charging Temperature
Charging in an ambient temperature above 40° C / 100° F may result in charging issues.
Operating Temperature
0° to 45° C (32° to 113° F)
Relative Humidity
95% at 60° C (140° F) (non-condensing)
Storage Temperature
-40° to 70° C (-40° to 158° F)
Tumble Specification
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3.
Charging Dock
Weight: 16.9 oz (478.5 g) Size: 7.33”x 1.12” x 3.23” (186.2 x 28.4 x 82.0mm)
USB 2.0 Cable
Weight: ~2.72 oz (77.1 g) Cable Length: 1.2 Meters
Battery Type
1 rechargeable Lithium Ion Polymer (replaceable battery)
Charge Time
8 Hours
Life of battery
500 charge-discharge cycles
Life per full charge
Standby time: 25 hours; active Scan Time: 10,000 scans within 11 hours (based on one scan every 4 seconds)Note: Battery life varies depending on ambient temperature, ambient light, and the age of the battery.
Battery weight
12.5g
Percentage lithium
36.3%
mAh
700
Cells per battery
1
Watts per battery
2.59
Cell type
Proprietary
Chemical composition
Lithium - polymer
Lithium content
4.5g
Voltage
3.7v
Hazmat UN Number
UN3481, P.I. 967
ROHS Compliance
Yes, Included with Scanner
Country of origin
China
Commodity code
8507.60.0000
Bluetooth Profiles
Basic Mode - Human Interface Device (HID)Application Mode - Serial Port Profile (SPP)iOS Application Mode (Default)Some Operating Systems or smartphone/tablet models may support only one profile.
Bluetooth Radio
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption
Bluetooth Range
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook).
DS840 Default Barcode Symbologies
1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E, 2D Symbologies: Aztec, Composite, Data Matrix, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr,
DS840 Supported Barcode Symbologies
1D Symbologies: Code 11, Matrix 2 5, Msi, Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail,
DS840 Print Contrast
Down to 25%-20%
DS840 Scan Angle
44.5° (Horizontal) - 33.5° (Vertical)
DS840 Sensor Resolution
1280 horizontal x 960 vertical pixels
DS840 Reading Distance
3.0 to 49.5 cm (1.2 to 19.5 in.) Depends on barcode size, symbology, label media
DS860 Default Barcode Symbologies
1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E, 2D Symbologies: Aztec, Composite, Data Matrix, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr, OCR Typeface: Ocr A, Ocr B,
DS860 Supported Barcode Symbologies
1D Symbologies: Code 11, Matrix 2 5, Msi, Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail, OCR Typeface: Micr E13b,
DS860 Print Contrast
Down to 25%-20%
DS860 Scan Angle
44.5° (Horizontal) - 33.5° (Vertical)
DS860 Sensor Resolution
1280 horizontal x 960 vertical pixels
DS840 Decode Ranges
Barcode-dependent examples: Code39 5mil2.2–4.5in; DataMatrix10mil1.6–3.9in; UPC/EAN13mil2.2–11.0in; Code12815mil2.2–15.0in; QR15mil1.6–7.9in. Manufacturer overall stated range1.2–19.5in (3–49.5cm).
DS860 Decode Ranges
Barcode-dependent examples: Code1285mil2.3–9.8in; PDF4175mil3.0–7.9in; PDF4176.67mil2.5–10.1in; DataMatrix10mil2.1–11.0in; UPCA100%1.6–24.9in; Code12815mil2.4–27.8in; Code3920mil1.6–36.1in; QR20mil1.1–17.5in. Manufacturer3milCode39 row has inconsistent inch/cm values and is not reproduced.
