Socket DuraScan 800 Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

DuraScan 800 Series (iOS)

Socket Mobile DuraScan 800 Series attachable Bluetooth Classic readers. D840 reads 1D/2D barcodes; D860 adds supported OCR, MRZ and DotCode; D800 reads 1D. Scanner-only, charging-adapter, dock and six-reader/six-bay packages vary by part number.

Attachable Bluetooth readers for mobile barcode capture

The Socket Mobile DuraScan 800 Series pairs a compact reader with a compatible phone, tablet or computer over Bluetooth Classic. Choose the D840 for everyday 1D and 2D scanning, or the D860 for supported OCR, MRZ and DotCode workflows as well as barcodes. Existing D800 options read 1D barcodes only.

A Klip supports reader attachment to a compatible mobile setup. Choose the charging package listed for the exact part number: a scanner-only unit, charging-adapter bundle, single dock or six-reader/six-bay bundle. These are DuraScan readers, not DuraSled phone cases.

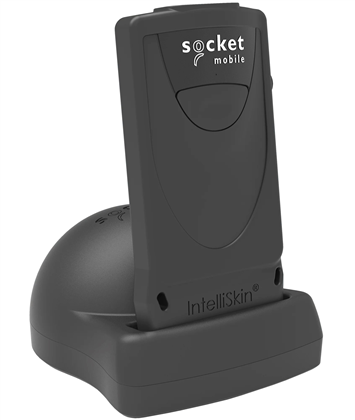

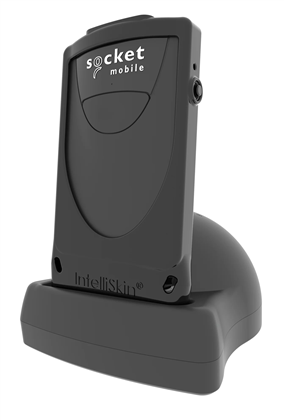

DuraScan 800 Series reader shown in an optional single charging dock

Key Specifications

  • Scanner configuration: Attachable cordless reader; D800 linear imager, D840/D860 area imagers
  • Barcode capability: D800: 1D; D840: 1D/2D; D860 adds supported OCR, MRZ and DotCode
  • Reading range: D840: up to 19.5 in; D860: UPC-A up to 24.9 in; code-dependent
  • Interfaces / connectivity: Bluetooth Classic 2.1 + EDR; HID, SPP and iOS application modes
  • Durability: Multiple 6.5 ft (2 m) drops to concrete
  • Environmental sealing: IP40, per linked model datasheets
  • Dimensions and weight: Reader: 4.20 × 2.37 × 0.66 in; 2.52 oz (71.5 g); charging accessories additional
  • Warranty: 1 year limited scanner warranty

In the Box

  • Single-reader packages
    • Selected DuraScan reader with installed battery
    • Attachment Klip
    • Charging accessory only where specified for the selected SKU
  • Six-reader / six-bay packages
    • Six selected-model readers

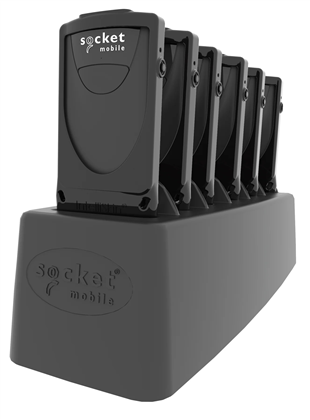

    • Six-bay charging station

Scanner-only CX3554-2183 and CX3555-2184 require a separately purchased charging accessory. Phone or tablet is not included. Application and Bluetooth-profile compatibility must be checked for the intended host.

Dimensions (L x W x D)
4.20 x 2.37 x 0.66 in (106.68 x 60.20 x 16.76 mm), per the linked English D800/D840/D860 model datasheets. Charging accessories are additional.
Weight
Data reader: 2.52 oz (71.5 g), per the linked English model datasheets. Charging accessories are additional.
Color
Black
Interface
Class 2 Bluetooth Classic 2.1 + EDR with 56-bit data encryption. Host support depends on the selected Bluetooth profile and application.
Scan Method
D800: 1D linear imager. D840: omnidirectional 1D/2D imager. D860: 1D/2D imager with supported DotCode, OCR and MRZ/travel-document reading. Historical D820: 1D/2D imager. DuraScan D-series readers are not DuraSled DS-series cases.
Mobility/Range
Up to 33 ft (10 m), depending on the environment and host device.
Battery

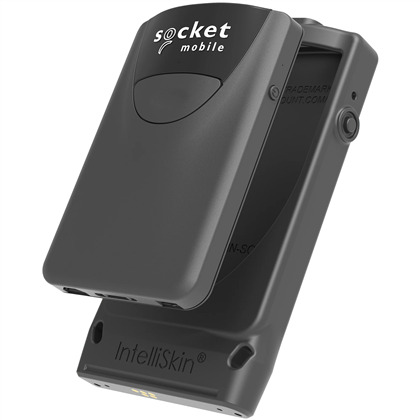

One rechargeable, replaceable 700 mAh lithium-ion polymer battery.
Operating Time
D800 linked English datasheet: 21 hours standby; 8,000 scans within 9 hours at one scan every 4 seconds, or 49,000 within 4 hours at two scans per second. Current D840/D860 specifications: 25 hours standby; 10,000 scans within 11 hours at one scan every 4 seconds. Actual runtime varies with temperature, light, battery age and use.
Recharge Time
Approximately 8 hours.
Drop Specification
Multiple 6.5 ft. (2 m) drops to concrete
Environmental Sealing
IP40
Warranty
1-year limited scanner warranty. Linked English model datasheets list 90-day accessory coverage; coverage depends on the selected accessory.
Bluetooth Profiles
Basic Mode (HID), Application Mode (SPP), and iOS Application Mode. Some host devices support only one profile.
Reading Distance
D800: 1.5-24 in (3.8-61 cm), per its linked English sheet. D840: 1.2-19.5 in (3.0-49.5 cm), per current specifications. D860 examples: 100% UPC-A, 1.6-24.9 in; 20 mil Code 39, 1.6-36.1 in. All ranges depend on code size, symbology and media.
Ambient Light
0 to 100,000 lux.
Operating Temperature
Current D840/D860 specifications: 0 to 45 degrees C (32 to 113 degrees F). D800 linked English sheet: 0 to 50 degrees C (32 to 122 degrees F).
Storage Temperature
Current D840/D860 specifications: -40 to 70 degrees C (-40 to 158 degrees F). D800 linked English sheet: -30 to 70 degrees C (-22 to 158 degrees F).
Relative Humidity
D840/D860 current specifications: 95% at 60 degrees C (140 degrees F), non-condensing. D800 linked English sheet specifies the same limit.
Battery Service Life
Approximately 500 charge-discharge cycles.
Battery Voltage
3.7 V.
Battery Energy
2.59 Wh, per the linked English model datasheets.
Battery Weight
12.5 g; battery only, not the complete reader.
Default Barcode Symbologies
D840/D860 current 1D: Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, GS1-128, GS1 DataBar Expanded/Limited/Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A and UPC-E. 2D: Aztec, Composite, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417 and QR. D860 additionally lists OCR-A/OCR-B; its model overview also supports DotCode and MRZ workflows.
Additional Supported Symbologies
D840/D860: Code 11, Matrix 2 of 5, MSI; Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB/One Intelligent Mail. D860 additionally lists MICR E13B. Format enablement and application compatibility apply.
D800 Barcode Symbologies
1D only. Linked English sheet defaults: Code 39, Code 128, EAN-13/JAN, EAN-8/JAN, GS1 DataBar/Expanded/Limited, GS1-128, Interleaved 2 of 5, UPC-A, UPC-E1. Additional supported formats include Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 93 and Matrix 2 of 5.
Scan Angle
D800 linked English sheet: 53 degrees. Current D840/D860 specifications: 44.5 degrees horizontal and 33.5 degrees vertical.
D840 Typical Depth of Field
Near-far distances in inches, current specifications: 5 mil Code 39, 2.4-9.5; 5 mil Code 128, 2.8-9.0; 6.67 mil PDF417, 2.4-8.0; 10 mil Data Matrix, 2.9-8.5; 100% UPC-A, 1.8-19.5; 15 mil QR, 1.2-11.5; 20 mil QR, 1.2-14.0.
D860 Typical Depth of Field
Near-far distances in inches, current specifications: 5 mil Code 128, 2.3-9.8; 5 mil PDF417, 3.0-7.9; 6.67 mil PDF417, 2.5-10.1; 10 mil Data Matrix, 2.1-11.0; 100% UPC-A, 1.6-24.9; 15 mil Code 128, 2.4-27.8; 20 mil Code 39, 1.6-36.1; 20 mil QR, 1.1-17.5.
D800 Typical Depth of Field
Near-far distances in inches, linked English sheet: 5 mil Code 39, 2.8-5.9; 10 mil Code 39, 1.4-11.0; 15 mil Code 39, 1.8-16.1; 13 mil UPC/EAN, 1.6-12.6.
Print Contrast
D800 linked English sheet: 30% minimum. Current D840/D860 specifications list approximately 20-25% minimum, depending on the barcode.
Indicators
Audible tones, vibration feedback and Bluetooth/power/scan LED indicators, per the linked model datasheets.
Supported Platforms
iOS, Android and Windows, with compatible Bluetooth Classic profiles and applications. Mac keyboard entry uses HID mode. No future Android-version support guarantee is implied.
RoHS Compliance
Manufacturer lists RoHS compliance for the reader and included battery.
Certification and Regulatory
D840/D860 current specifications and D800 linked English sheet: IEC 60950-1, UL 60950-1, CAN/CSA C22.2; FCC Part 15 Class C, RSS 210, ICES 003, C-Tick, CISPR 22, CE EN55022/EN55024, TELEC; IEC/EN 62471 Exempt Group. FCC ID LUBMA41; IC ID 2529A-MA41S8; TELEC R 201-125709. Consult exact reader labeling for deployment requirements.
D800/D820/D840/D860 User Guide
Download
D840 Programming Guide (shared 2D models)
Download
DuraScan D800 1D Scanner Datasheet
Download
DuraScan D820 Datasheet
Download
DuraScan D840 Datasheet
Download
DuraScan D860 Datasheet
Download
Quick Start Guide
Download

Shop DuraScan 800 Series Models

CX3554-2183

DuraScan D840, Universal Barcode Scanner (Charger Sold Separately)

Scanner:

2D Imager, Fast Scan

Series:

D840

Feature:

Fast Scan

Charge Accessories Included:

None

Charging Dock:

Sold Separately

$381.93

CX3551-2179

Deployment Bundle - NA & Japan DuraScan D840, Universal Barcode Scanner (6 units) & 6 Bay Charger

Scanner:

2D Imager, Fast Scan

Charging Dock:

6 Bay Charger

Charge Accessories Included:

6 Bay Charging Dock

Series:

D840

Feature:

Fast Scan

$2487.93

CX3555-2184

Socket Mobile, Durascan D860, 2D barcodes, DOT Code, OCR, MRZ/passports, and travel IDs (Charger sold separately)

Scanner:

2D Imager, Advanced

Series:

D860

Feature:

DOT Code, OCR, MRZ/Passports, & Travel IDs

Charge Accessories Included:

None

Charging Dock:

Sold Separately

$576.33

CX3557-2186

DuraScan D840, Universal Barcode Scanner & Charging Dock

Scanner:

2D Imager, Fast Scan

Charge Accessories Included:

Charging Dock

Charging Dock:

Charging Dock

Series:

D840

Feature:

Fast Scan

$457.53

CX3558-2187

Socket Mobile, Durascan D860, 2D barcodes, DOT Code, OCR, MRZ/passports, and travel IDs, Charger Dock Included

Scanner:

2D Imager, Advanced

Charge Accessories Included:

Charging Dock

Charging Dock:

Charging Dock

Series:

D860

Feature:

DOT Code, OCR, MRZ/Passports, & Travel IDs

$651.93

Shop DuraScan 800 Series Accessories

AC4065-1499

7/600/700/800 Series - AC Power Supply USB (NA & Japan) 100-240V, 5V/1A

$28.00

AC4126-1794

Wrist Strap for DuraCase 7/600/700/800 Series Scanners - Black

$17.33

AC4130-1828

Durable Retractable Clip for 7/600/700/800 Series - Black

$38.67

AC4093-1669

DuraCase Charging Dock - Black

$118.15

AC4145-1903

Holster for DuraCase with rotating belt clip

$57.33

AC4200-2300

Holster-Large for DuraCase & DuraSled with rotating belt clip

$57.33

AC4119-1786

DuraCase-Multi Charger AC Power Cord NA & Japan Designed to connect to the DuraCase Multi-Bay Charger and an outlet to recharge the 800 Series scanner and attached mobile devices.
