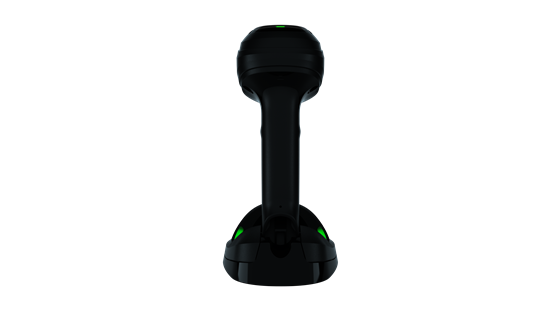

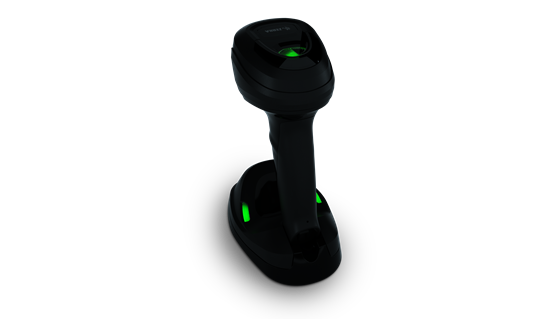

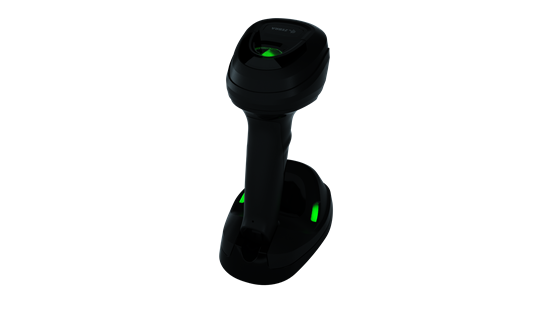

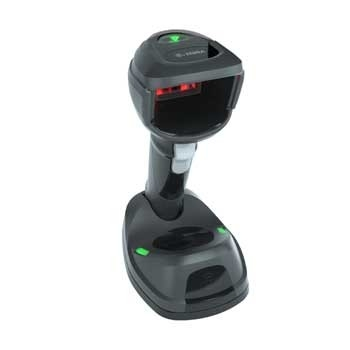

Zebra DS9908R

Name: Zebra DS9908R
Brand: Zebra
Price: 1374.88 USD
Availability: InStock

Images may not reflect the actual product

Boost productivity at the point of sale with hybrid barcode and RFID capture.

The Zebra DS9908R combines a high-performance hybrid presentation imager with integrated UHF RFID so associates can capture barcodes and RFID-tagged merchandise at the checkout.

Purpose-built handheld and hands-free modes, fast first-pass reads, and optional Checkpoint EAS or driver-license parsing configurations help streamline busy retail transactions.

Key Specifications

Scanner configuration: Corded hybrid presentation/handheld area imager with integrated UHF RFID
Barcode capability: 1D, 2D, QR, PDF417, OCR, Digimarc, and document imaging
Reading range: UPC 13 mil to 24.7 in. handheld; nominal RFID range about 18 in. (45.7 cm)
Interfaces: USB, RS232, keyboard wedge, and TGCS (IBM) 46XX over RS485
Durability: Multiple 4 ft. (1.2 m) drops and 2,000 tumbles
Sealing: IP42
Dimensions/weight: 8.0 x 3.9 x 5.75 in.; 14.8 oz. (420 g)
Warranty: Five years

In the Box

Selected Zebra DS9908R scanner

Interface cable, USB Power Plus kit components, Checkpoint EAS support, and driver-license parsing depend on the selected configuration. Scanner-only options require a compatible cable ordered separately.

Configurations on This Page

USB with Checkpoint EAS — standard DS9908R barcode and RFID capture with Checkpoint EAS support.
USB with Driver-License Parsing + Checkpoint EAS — adds embedded parsing for supported driver-license data.
USB Power Plus Kit — includes the USB Power Plus cable configuration and does not include Checkpoint EAS.
Scanner-Only Configuration — standard DS9908R without a cable or Checkpoint EAS; order the compatible interface cable separately.

View DS9908R RFID Guide

Purpose-Built Hybrid Scanning

Move naturally between presentation and handheld use

A capacitive touch sensor and accelerometer switch modes as the scanner is picked up, while the integrated adjustable stand keeps presentation scanning compact and stable.

Retail-Ready Barcode Performance

Capture difficult barcodes quickly

PRZM Intelligent Imaging, a megapixel sensor, wide field of view, and swipe speeds up to 240 in. per second help decode damaged, low-contrast, glossy, and mobile barcodes.

RFID at the Checkout

Read multiple tagged items without line of sight

The integrated EPC Gen2 UHF RFID reader captures tagged merchandise at the point of sale and operates from 5 VDC without a separate external power supply.

Flexible Retail Workflows

Choose EAS and parsing capabilities by option

Available configurations support Checkpoint EAS deactivation or driver-license parsing, while 123Scan and Zebra management tools simplify setup and maintenance.

Dimensions

DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D 20.3 cm H x 9.9 cm W x 14.6 cm D

Weight

DS9908R: 14.8 oz./420.0 g

Input Voltage Range

4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply

Current

Operating: 400 mA typical; standby: 135 mA typical at 5.0 VDC

Color

Midnight Black

Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

Electronic Article Surveillance

Compatible with Checkpoint EAS deactivation system

TAA Compliance

Trade Agreement Act Compliant

User Indicators

Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)

Swipe Speed (Hands-Free)

Up to 240 in./610 cm per second for 13 mil UPC in optimized mode

Light Source

Aiming Pattern: Circular 617nm Amber LED

Illumination

(2) 645nm Red LEDs

Imager Field of View

48° H x 30.6° V Nominal

Image Sensor

1280 x 800 pixels

Minimum Print Contrast

16% minimum reflective difference

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° - 360°

Standards Supported

EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63

RFID Engine

Zebra Proprietary Radio Technology

Nominal Read Range

~18 in. / ~45.7 cm

RFID Power Output

3 dBm to 22 dBm

Frequency Range

US: 902 - 928 MHz

Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Quality (A4 Document)

116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./ 20.3 cm

Operating Temperature

32.0° to 122.0° F / 0.0° to 50.0° C

Storage Temperature

-40.0° to 158.0° F / -40.0° to 70.0° C

Humidity

5% to 95% RH, non-condensing

Drop Specification

DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete

Tumble Specification

Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler

Environmental Sealing

DS9908R: IP42

Electrostatic Discharge (ESD)

ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles / 0 to 107,600 Lux

Regulatory

IEC/EN 62368-1 electrical safety; IEC/EN 62471 LED safety; FCC Part 15 Class B and ICES-003 Class B

Accessories

Zebra Multi-Mount Bracket; compatible interface cables and power components vary by selected configuration

Symbol Decode Capability

1D:
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

OCR:
OCR-A, OCR-B, MICR, US Currency

Digimarc
Digimarc barcodes

Minimum Element Resolution

Code 39 - 3.0 mil

Code 128 - 3.0 mil*

DataMatrix - 6.0 mil

QR Code - 6.0 mil

* With Decode Range Limit feature disabled.

Typical Handheld Decode Ranges

Code 39 3 mil: 1.1–3.0 in.; Code 128 5 mil: 1.0–7.1 in.; PDF417 6.7 mil: 1.2–8.0 in.; UPC 13 mil: 0–24.7 in.; Data Matrix 10 mil: 1.3–9.3 in.; QR 20 mil: 1.0–18.0 in.

Warranty

Five years from date of shipment, subject to Zebra hardware warranty terms

Recommended Services

Zebra OneCare Select; Zebra OneCare Essential

Utilities and Management

Zebra 123Scan, Scanner SDK, Scanner Management Service, and 123RFID utilities

Shop DS9908R Models

DS9908-SRR0004ZCUS

DS9908R RFID Presentation Scanner with Checkpoint EAS, Black, Standard Range, Corded, USB, 902-928 MHZ

Imager:

Standard Range

Interface:

USB

Checkpoint EAS:

Yes

$1403.52

DS9908-DLR0004ZCUS

DS9908R RFID Presentation Scanner with DL Parsing & Checkpoint EAS, Black, Standard Range, Corded, USB, 902-928 MHZ

Imager:

Standard Range + DL Parsing

Interface:

USB

Checkpoint EAS:

Yes

$1427.40

DS9908-SR4U230RAZU

DS9908-SR Black RFID USB Power Plus Kit - 902-928 MHZ: DS9908-SRR0004ZZUS Scanner, CBA-U23-S07ZBR Shielded USB Power+ Cable

Checkpoint EAS:

Imager:

Standard Range

Interface:

USB Power+ (cable included)

$1410.22

DS9908-SRR0004ZZUS

DS9908: Presentation Area Imager, Standard Range, Corded, RFID, Midnight Black, 902-928 MHZ, Scanner Only — Order Cable Separately

Checkpoint EAS:

Interface:

No cable

Imager:

Standard Range

$1374.88

Shop DS9908R Accessories

CBA-U21-S07ZBR

Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2

$46.76

PWR-WUA5V4W0US

Power supply - Level VI wall adapter with captive DC cable and US adapter clip, 5.2V, 1.1A, 5.7W

$52.14

CBA-U23-S07ZBR

Cable - Shielded USB: Power Plus Connector, 7ft. (2m), Straight, 12V

$61.37

CBA-R01-S07PBR

Cable - RS-232, DB9 female, 7 ft. (2 m), straight; requires external 5V power supply

$42.38

CBA-R08-S07ZBR

Cable - RS232: 7 ft. (2 m), Nixdorf BEETLE 5V direct power, with TTL current limit protection

$36.54
