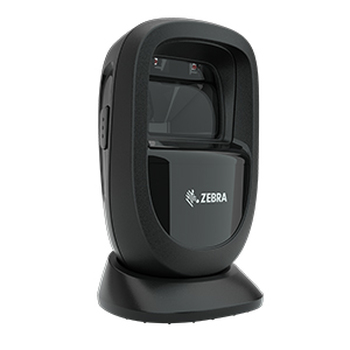

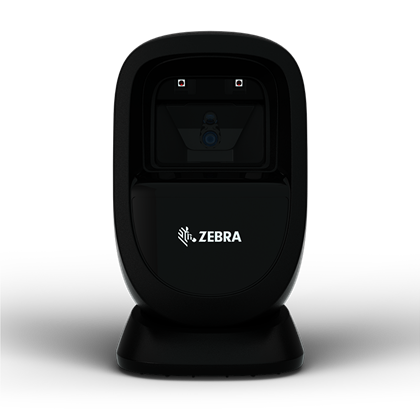

Zebra DS9308 Hands-Free Scanner
The little presentation scanner with big functionality
The Zebra DS9308 is a compact presentation scanner for space-constrained convenience, drug, quick-service restaurant, retail and hospitality counters. Its stylish near-zero-footprint design combines high-speed 1D/2D imaging with a rugged, spill-resistant base for speedier transactions and dependable all-day service.
An 800 MHz processor, megapixel sensor and Zebra PRZM Intelligent Imaging work together on damaged, low-contrast and mobile barcodes, while advanced capture tools handle documents, multiple labels and selected driver-license workflows. The four-position base, broad mounting options and compatibility with DS9208 cables and power supplies simplify installation and upgrades.
Integration note: Use part # DS9308-SR4R2800AZW when integrating with RUBY.
See the compact Zebra DS9300 Series presentation scanners in action.
Key Specifications
- Scanner configuration: Corded hands-free presentation area imager with handheld operation
- Barcode capability: 1D and 2D barcodes, including QR, PDF417, DotCode and dotted DataMatrix
- Reading range: Contact to 8.8 in. (22.4 cm) for 13 mil UPC
- Interfaces / connectivity: USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485
- Durability: Multiple 5 ft. (1.5 m) drops and 1,000 tumbles
- Environmental sealing: IP52
- Dimensions and weight: 5.7 x 3.4 x 3.3 in.; 11.2 oz.
- Warranty: 3 years
- Image sensor: 1280 x 800 pixels; 52 degrees horizontal x 33 degrees vertical field of view
- Motion tolerance: Up to 120 in. (305 cm) per second for 13 mil UPC in optimized mode
In the Box
- Scanner only: DS9308 scanner and Quick Start Guide
- USB kit: DS9308 scanner, Quick Start Guide, and the shielded USB cable named in the selected option
- Verifone/RUBY serial kit: DS9308 scanner, Quick Start Guide, and CBA-R28-C09ZAR cable
- US RS232 kit: DS9308 scanner, Quick Start Guide, CBA-R01-S07PBR cable, and PWR-WUA5V4W0US power supply
Configuration note: Interface cable, required external power, and optional mounting brackets are separate unless the selected option explicitly includes them.
Compact, Fast Presentation Scanning
The near-zero-footprint housing and 45-degree cable connector fit crowded checkout counters. PRZM Intelligent Imaging, an 800 MHz processor, megapixel sensor and curved exit window capture standard and high-density 1D/2D symbols, phone screens, DotCode and dotted DataMatrix through cellophane. Digimarc is limited to specific configurations.
Swipe speeds are up to 50% faster than competitive presentation scanners, while the wide field of view reduces repositioning. Adaptive illumination dims at idle and activates when a barcode enters the field.
More Than Barcode Capture
Supported North American workflows parse driver-license data for age verification, loyalty and credit applications. Intelligent Document Capture converts A6-or-smaller prescriptions, passports and checks into corrected electronic images. Multi-Code Data Formatting captures several symbols in one pass, and Preferred Symbol selects the intended code from a group. Compatible configurations can coordinate scanning with Checkpoint EAS deactivation.
Built for the Counter
The DS9308 is designed for 5-foot drops, 1,000 consecutive tumbles and IP52 resistance to dust and everyday spills. Front and rear good-decode LEDs and an adjustable beeper confirm reads. Its frictionless ratcheting base provides four positions from 15 degrees back to 45 degrees forward without a wear-prone hinge.
Simple Deployment
DS9208 cable and power-supply compatibility protects installed infrastructure. Optimized defaults, auto-host-detect cables and nearly 100 international keyboards simplify rollout. Slipper-style and locking mounts support counter, wall, handheld and self-checkout use. Zebra Simple Setup Experience can create a tailored configuration from a phone in five minutes or less.
Zebra DNA Management
123Scan stages or updates devices with one configuration barcode. Scanner SDK supports custom applications, ScanSpeed Analytics identifies performance issues, and Scanner Management Service or Windows Management Instrumentation provides remote fleet control.
Applications
Use the DS9308 for point of sale, coupons and loyalty, age verification, EAS, ticketing, boarding passes and quick-service counters. Supported formats include major 1D/2D symbologies, OCR-A, OCR-B, MICR and U.S. currency; image exports include Bitmap, JPEG and TIFF.
Shop DS9308 Hands-Free Scanner Models
DS9308-SR4U2100AZW
DS9308 Hands-Free Scanner Black USB Kit: DS9308-SR00004ZZWW Scanner, CBA-U21-S07ZBR Shielded USB Cable
Color:
Black
Driver's License Parsing:
Not Included
Checkpoint EAS:
Not Included
Interface:
USB
DS9308-DL4U2100AZN
DS9308-DL BLACK USB KIT - NA: DS9308-DL00004ZZNA SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE (Driver's License Parsing)
Color:
Black
Driver's License Parsing:
DL Parsing
Checkpoint EAS:
Not Included
Interface:
USB
DS9308-SR0000WZZWW

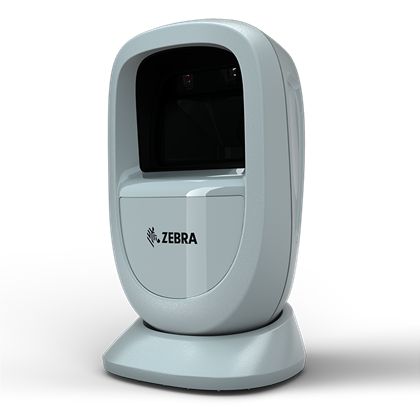

DS9308: Presentation Area Imager, Standard Range, Corded, Alpine White, Scanner Only — Order Cable Separately
Driver's License Parsing:
Not Included
Checkpoint EAS:
Not Included
Interface:
Order Cable Separately
Color:
White
DS9308-SR00004ZZWW
DS9308: Presentation Area Imager, Standard Range, Corded, Midnight Black, Scanner Only — Order Cable Separately
Color:
Black
Driver's License Parsing:
Not Included
Checkpoint EAS:
Not Included
Interface:
Order Cable Separately
DS9308-DL00004ZZNA
DS9308: Presentation Area Imager, Standard Range, DL Parsing, Corded, Midnight Black (scanner only, see accessories for USB cable)
Color:
Black
Driver's License Parsing:
DL Parsing
Checkpoint EAS:
Not Included
Interface:
Order Cable Separately
DS9308-DL00004ZCNA
DS9308: Presentation Area Imager, Standard Range, DL Parsing, Corded, Midnight Black, Checkpoint EAS, Scanner Only — Order Cable Separately
Color:
Black
Checkpoint EAS:
Checkpoint EAS
Driver's License Parsing:
DL Parsing
Interface:
Order Cable Separately
DS9308-SR00004ZCWW
DS9308: Presentation Area Imager, Standard Range, Corded, Midnight Black, Checkpoint EAS, Scanner Only — Order Cable Separately
Color:
Black
Checkpoint EAS:
Checkpoint EAS
Driver's License Parsing:
Not Included
Interface:
Order Cable Separately
DS9308-SR4R2800AZW
DS9308 Hands-Free Scanner Black Serial Kit: DS9308-SR00004ZZWW Scanner, CBA-R28-C09ZAR Verifone Cable, Confirmed to Work with Ruby
Color:
Black
Driver's License Parsing:
Not Included
Checkpoint EAS:
Not Included
Interface:
RS232 Serial - Verifone
DS9308-SR4R0110AZU
DS9308 Hands-Free Scanner Black Serial Kit - US: DS9308-SR00004ZZWW Scanner, CBA-R01-S07PBR Serial Cable, PWR-WUA5V4W0US Power
Color:
Black
Driver's License Parsing:
Not Included
Checkpoint EAS:
Not Included
Interface:
RS232 Serial
Shop DS9308 Hands-Free Scanner Accessories
CBA-U21-S07ZBR
Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2
CBA-R01-S07PBR
Cable - RS-232, DB9 female, 7 ft. (2 m), straight; requires external 5V power supply
PWR-WUA5V4W0US
Power supply - Level VI wall adapter with captive DC cable and US adapter clip, 5.2V, 1.1A, 5.7W
CBA-R28-C09ZAR
Cable, RS232, 9ft. 2.8m Coiled, Verifone Ruby
