Zebra DS8288-R

Name: Zebra DS8288-R
Brand: Zebra
Price: 921.75 USD
Availability: InStock

Images may not reflect the actual product

Barcode scanning and RFID verification with cordless freedom

The Zebra DS8288-R combines fast 1D/2D barcode scanning with integrated UHF RFID for retail checkout, returns and item-level tracking. Bluetooth 5.2 gives associates freedom to move, and contactless inductive charging eliminates exposed charging contacts. Its 2 MP optical system and PRZM intelligent imaging capture printed and electronic barcodes, while RFID adds a second layer of product identification.

A capacitive multi-function button supports RFID workflows and programmable actions. Adjustable RFID read range helps limit unintended reads around the checkout.

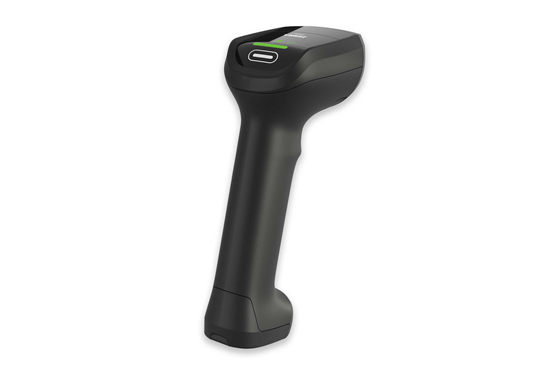

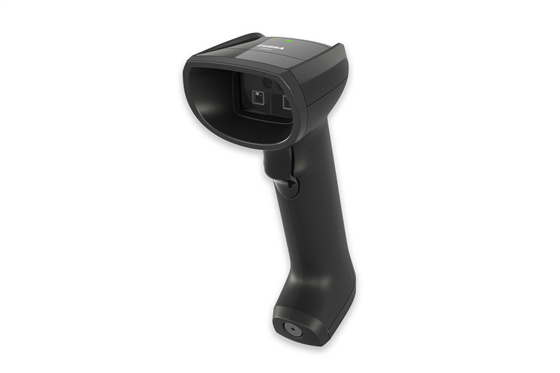

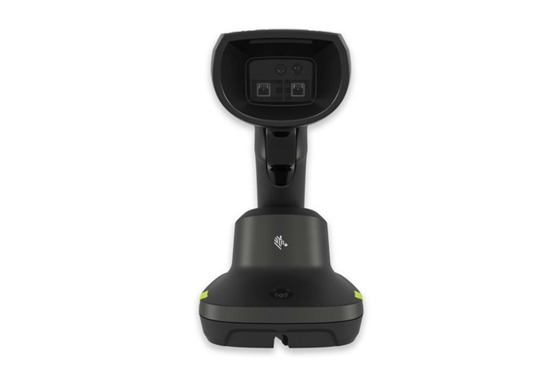

Zebra DS8288-R cordless RFID and barcode scanner

Key Specifications

Scanner configuration: Cordless handheld area imager with integrated UHF RFID
Barcode capability: 1D/2D, QR, PDF417, GS1 Digital Link, Digimarc and OCR
Barcode range: 0.2–27.5 in. for 13 mil UPC
Interfaces: Bluetooth 5.2 with BLE; USB and RS232 through compatible cradles
RFID: EPC Gen2 / Gen2 V2.2; ISO 18000-63
US frequency: 902–928 MHz
RFID performance: Approximately 10 tags/second; up to 43 in. (109 cm)
Imager: 1600 × 1200 pixels; green aiming LED
Durability: IP52; 10 ft. MIL-STD drop rating; 2,000 tumbles
Power: 3,500 mAh PowerPrecision+ battery; up to 75 hours of RFID-model runtime
Dimensions / weight: 6.9 × 2.7 × 4.4 in.; 9.9 oz. (281.7 g), excluding cradle
Warranty: 3 years

In the Box

USB presentation kit — DS8288-SR4U210RPVU
- DS8288-SR5F004VZUS RFID scanner
- CR8288-PC100F4WW presentation cradle
- CBA-U21-S07ZBR shielded USB cable
Scanner only — DS8288-SR5F004VZUS
Cradle and host cable are sold separately.

Add RFID to checkout verification

Layer barcode data and RFID tag reads to support item identification and help detect ticket switching or product mismatches in a configured application.

Capture challenging barcodes

The advanced 2 MP imager and PRZM intelligent imaging support quick capture of damaged, poorly printed and screen-displayed barcodes.

Scanner configuration

DS8288-R cordless standard-range 1D/2D imager with integrated UHF RFID

Dimensions — scanner

6.9 H × 2.7 W × 4.4 D in. (17.6 × 6.9 × 11.1 cm)

Weight — scanner

9.9 oz. (281.7 g), excluding cradle

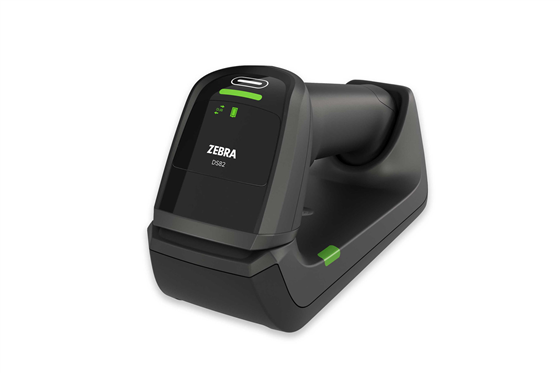

Cradle dimensions / weight

Standard: 2.9 × 3.0 × 8.3 in. (7.3 × 7.6 × 21.1 cm), 238.9 g; presentation: 3.0 × 3.7 × 4.9 in. (7.7 × 9.4 × 12.5 cm), 204.1 g

Bluetooth

Bluetooth 5.2 with BLE; Class 1 up to 330 ft. (100 m); Class 2 up to 33 ft. (10 m); Serial Port and HID profiles

Bluetooth adjustable power

Class 1: 4 dBm in 8 steps; Class 2: 2 dBm in 8 steps

Security

FIPS 140-3 certified configuration

Battery

3,500 mAh PowerPrecision+ Li-ion battery

Battery scan performance

Up to 100,000 barcode scans at 60/minute or 65,000 at 10/minute

Battery RFID performance

Up to 70,000 RFID tag reads at 60/minute or 45,000 at 10/minute

Operating time — RFID model

Up to 75 hours; runtime depends on workflow and configuration

Charging

Contactless inductive charging. Ready for a 14-hour shift: 90 minutes on standard USB or 25 minutes on external 5 V / USB Type-C. Full charge: 13 hours on standard USB or 3.5 hours on external 5 V / USB Type-C.

Power options

Interchangeable PowerPrecision+ battery or optional PowerCap (sold separately).

Cradle input voltage

Standard cradle: 4.8–5.5 VDC host / 10.8–13.2 VDC external. Presentation cradle: 4.7–5.5 VDC host / 10.8–13.2 VDC external.

Cradle operating current

470 mA typical at 5 VDC standard USB; 1,450 mA typical with BC 1.2

User indicators

Direct decode LEDs, rear LEDs, speaker, vibration, battery status and capacitive multi-function button

Barcode imager

1600 × 1200 pixels; PRZM intelligent imaging

RFID standards

EPC Class 1 Gen2; Gen2 V2.2; ISO 18000-63

RFID radio

Zebra proprietary radio

RFID frequency — US configuration

902–928 MHz

RFID read rate / range

Approximately 10 tags/second; approximately 43 in. (109 cm). Range depends on tag and environment.

RFID output power

0.1–22 dBm

Host interfaces

USB and RS232; host interface depends on selected cable

Keyboard support

90+ international keyboards

Housing color

Midnight black

Aiming / illumination

Circular green 524 nm LED; warm-white illumination, two LEDs

Image field of view

48° horizontal × 36° vertical

Minimum print contrast

16% minimum reflective difference

Motion tolerance

Up to 160 in./second (406 cm/second) for 13 mil UPC in optimized mode; hands-free up to 40 in./second (102 cm/second)

Skew / pitch / roll

±60° / ±60° / 0–360°

Imaging formats / document capture

Bitmap, JPEG and TIFF; 140 PPI on an 11 × 8.5 in. document at 11.8 in. range

Supported 1D symbologies

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

Supported 2D symbologies

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

OCR / other barcode support

OCR-A, OCR-B, MICR, US Currency; GS1 Digital Link; Digimarc barcodes

Minimum element resolution

Code 39 / Code 128: 3 mil; Data Matrix / QR: 5 mil

Operating temperature

32–122°F (0–50°C)

Storage temperature

−40–158°F (−40–70°C)

Humidity

0–95% RH, non-condensing

Drop specification

10 ft. (3 m) MIL-STD drop rating; 54 drops from 6 ft. (1.8 m)

Tumble specification

2,000 tumbles from 1.5 ft. (0.5 m)

Environmental sealing

IP52

Electrostatic discharge

±16 kV air; ±8 kV direct and indirect contact (EN 61000-4-2)

Ambient light immunity

0–10,000 foot-candles (0–107,600 lux)

Decode range — Code 39

3 mil: 1.8–6.3 in. (4.6–16.0 cm); 5 mil: 0.6–12.6 in. (1.5–32.0 cm); 20 mil: 0.8–41.0 in. (2.0–104.1 cm)

Decode range — Code 128

3 mil: 2.2–6.1 in. (5.6–15.5 cm); 5 mil: 1.3–11.0 in. (3.3–27.9 cm)

Decode range — PDF417 / UPC

6.7 mil PDF417: 1.3–10.5 in. (3.3–26.7 cm); 13 mil UPC: 0.2–27.5 in. (0.5–69.9 cm)

Decode range — Data Matrix / QR

10 mil Data Matrix: 0.7–11.8 in. (1.8–30.0 cm); 20 mil QR: 0–19.0 in. (0–48.3 cm). Distance depends on symbol type, size and lighting.

Environmental compliance

EN IEC 63000:2018

Electrical safety

EN/IEC 62368-1; UL 62368-1; CAN/CSA-C22.2 No. 62368-1

LED safety

IEC 62471; EN 62471

EMI / immunity

EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 60601-1-2; FCC Part 15 Subpart B Class B; ICES-003 Issue 7

Utilities / management

Zebra DNA; 123Scan configuration utility; Remote Management; DataCapture DNA applications as supported

Recommended service plans

Zebra OneCare Select and Essential (sold separately)

RF exposure / radio compliance

EN 50663; EN 62479; FCC Part 2.1093; RSS-102 Issue 6; EN 300 328; EN 303 417; EN 301 489-1 / -17

Warranty

3 years for scanner and cradle, subject to Zebra hardware warranty terms

Shop DS8288-R Models

DS8288-SR4U210RPVU

DS8288-R cordless RFID and 1D/2D barcode scanner USB presentation kit, midnight black, FIPS, vibration, 902–928 MHz. Includes DS8288-SR5F004VZUS scanner, CR8288-PC100F4WW inductive presentation cradle and CBA-U21-S07ZBR shielded USB cable.

Configuration:

USB presentation kit

$1251.00

DS8288-SR5F004VZUS

DS8288-R standard-range cordless RFID and 1D/2D barcode scanner, midnight black, FIPS, white illumination, vibration, 902–928 MHz US/Canada/Puerto Rico configuration. Scanner only; cradle and host cable sold separately.

Configuration:

Scanner only

$921.75

Shop DS8288-R Accessories

CR8288-PC100F4WW

DS8288: Presentation Cradle, Inductive, Bluetooth, FIPS, Midnight Black

$407.68

CR8288-SC100F4WW

DS8288: Standard Cradle, Inductive, Bluetooth, FIPS, Midnight Black

$407.68

CBA-U21-S07ZBR

Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2

$48.63
