Zebra DS8208-R

Name: Zebra DS8208-R
Brand: Zebra
Price: 527.25 USD
Availability: InStock

Images may not reflect the actual product

Barcode scanning and RFID verification in one corded handheld

The Zebra DS8208-R combines fast 1D/2D barcode scanning with integrated UHF RFID for retail checkout, returns and item-level tracking. Its 2 MP optical system and PRZM intelligent imaging capture printed and electronic barcodes, while RFID adds a second layer of product identification.

A capacitive multi-function button supports RFID workflows and programmable actions. Adjustable RFID read range helps limit unintended reads around the checkout.

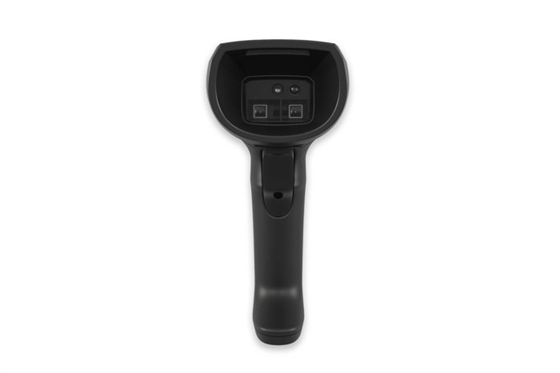

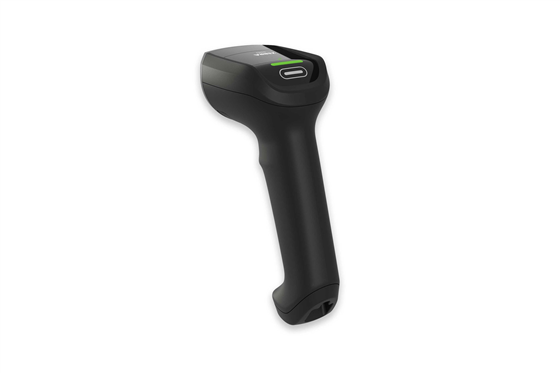

Zebra DS8208-R corded RFID and barcode scanner

Key Specifications

Scanner configuration: Corded handheld area imager with integrated UHF RFID
Barcode capability: 1D/2D, QR, PDF417, GS1 Digital Link, Digimarc and OCR
Barcode range: 0.2–27.5 in. for 13 mil UPC
Interfaces: USB and RS232; cable selected separately
RFID: EPC Gen2 / Gen2 V2.2; ISO 18000-63
US frequency: 902–928 MHz
RFID performance: Approximately 10 tags/second; up to 43 in. (109 cm)
Imager: 1600 × 1200 pixels; green aiming LED
Durability: IP52; 10 ft. MIL-STD drop rating; 2,000 tumbles
Power: 4.8–5.5 VDC host powered
Dimensions / weight: 6.5 × 2.7 × 4.1 in.; 7.7 oz. (218.2 g)
Warranty: 5 years

In the Box

DS8208-SR50004VZUS
- DS8208-R standard-range scanner
- Midnight black housing, white illumination and vibration feedback
- US / Canada / Puerto Rico RFID configuration
Scanner-only configuration. Host cable and optional stand are selected separately.

Add RFID to checkout verification

Layer barcode data and RFID tag reads to support item identification and help detect ticket switching or product mismatches in a configured application.

Capture challenging barcodes

The advanced 2 MP imager and PRZM intelligent imaging support quick capture of damaged, poorly printed and screen-displayed barcodes.

Scanner configuration

DS8208-R corded standard-range 1D/2D imager with integrated UHF RFID

Dimensions

6.5 H × 2.7 W × 4.1 D in. (16.5 × 6.9 × 10.5 cm)

Weight — scanner

7.7 oz. (218.2 g)

Input voltage

4.8–5.5 VDC, host powered

Operating / standby current

450 mA typical at 5 VDC / 120 mA typical at 5 VDC

User indicators

Direct decode LEDs, rear LEDs, speaker, vibration and capacitive multi-function button

Barcode imager

1600 × 1200 pixels; PRZM intelligent imaging

RFID standards

EPC Class 1 Gen2; Gen2 V2.2; ISO 18000-63

RFID radio

Zebra proprietary radio

RFID frequency — US configuration

902–928 MHz

RFID read rate / range

Approximately 10 tags/second; approximately 43 in. (109 cm). Range depends on tag and environment.

RFID output power

0.1–22 dBm

Host interfaces

USB and RS232; host interface depends on selected cable

Keyboard support

90+ international keyboards

Housing color

Midnight black

Aiming / illumination

Circular green 524 nm LED; warm-white illumination, two LEDs

Image field of view

48° horizontal × 36° vertical

Minimum print contrast

16% minimum reflective difference

Motion tolerance

Up to 160 in./second (406 cm/second) for 13 mil UPC in optimized mode; hands-free up to 40 in./second (102 cm/second)

Skew / pitch / roll

±60° / ±60° / 0–360°

Imaging formats / document capture

Bitmap, JPEG and TIFF; 140 PPI on an 11 × 8.5 in. document at 11.8 in. range

Supported 1D symbologies

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

Supported 2D symbologies

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

OCR / other barcode support

OCR-A, OCR-B, MICR, US Currency; GS1 Digital Link; Digimarc barcodes

Minimum element resolution

Code 39 / Code 128: 3 mil; Data Matrix / QR: 5 mil

Operating temperature

32–122°F (0–50°C)

Storage temperature

−40–158°F (−40–70°C)

Humidity

0–95% RH, non-condensing

Drop specification

10 ft. (3 m) MIL-STD drop rating; 54 drops from 6 ft. (1.8 m)

Tumble specification

2,000 tumbles from 1.5 ft. (0.5 m)

Environmental sealing

IP52

Electrostatic discharge

±16 kV air; ±8 kV direct and indirect contact (EN 61000-4-2)

Ambient light immunity

0–10,000 foot-candles (0–107,600 lux)

Decode range — Code 39

3 mil: 1.8–6.3 in. (4.6–16.0 cm); 5 mil: 0.6–12.6 in. (1.5–32.0 cm); 20 mil: 0.8–41.0 in. (2.0–104.1 cm)

Decode range — Code 128

3 mil: 2.2–6.1 in. (5.6–15.5 cm); 5 mil: 1.3–11.0 in. (3.3–27.9 cm)

Decode range — PDF417 / UPC

6.7 mil PDF417: 1.3–10.5 in. (3.3–26.7 cm); 13 mil UPC: 0.2–27.5 in. (0.5–69.9 cm)

Decode range — Data Matrix / QR

10 mil Data Matrix: 0.7–11.8 in. (1.8–30.0 cm); 20 mil QR: 0–19.0 in. (0–48.3 cm). Distance depends on symbol type, size and lighting.

Environmental compliance

EN IEC 63000:2018

Electrical safety

EN/IEC 62368-1; UL 62368-1; CAN/CSA-C22.2 No. 62368-1

LED safety

IEC 62471; EN 62471

EMI / immunity

EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 60601-1-2; FCC Part 15 Subpart B Class B; ICES-003 Issue 7

Utilities / management

Zebra DNA; 123Scan configuration utility; Remote Management; DataCapture DNA applications as supported

Recommended service plans

Zebra OneCare Select and Essential (sold separately)

Warranty

5 years, subject to Zebra hardware warranty terms

Shop DS8208-R Models

DS8208-SR50004VZUS

DS8208-R standard-range corded RFID and 1D/2D barcode scanner, midnight black, white illumination, vibration, 902–928 MHz US/Canada/Puerto Rico configuration. Scanner only; host cable and stand sold separately.

$527.25

Shop DS8208-R Accessories

CBA-U21-S07ZBR

Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2

$48.63

STND-GS0082C-04

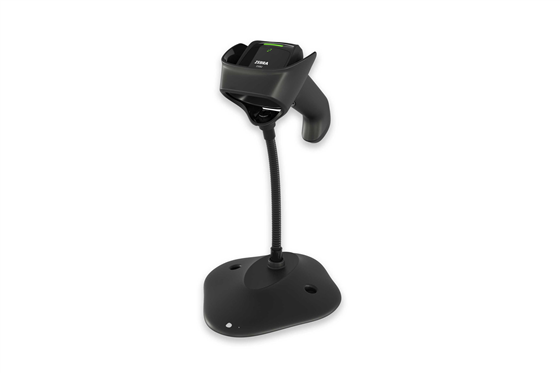

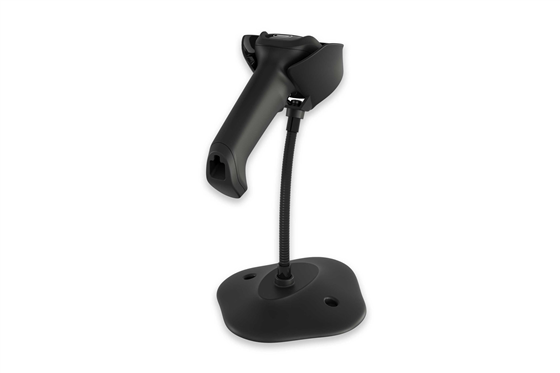

Gooseneck Intellistand DS8208 (Black)

$58.24
